lamborghini espada air-con (da 0 a 175) parts diagram

021 - Air-Con (Da 0 a 175)

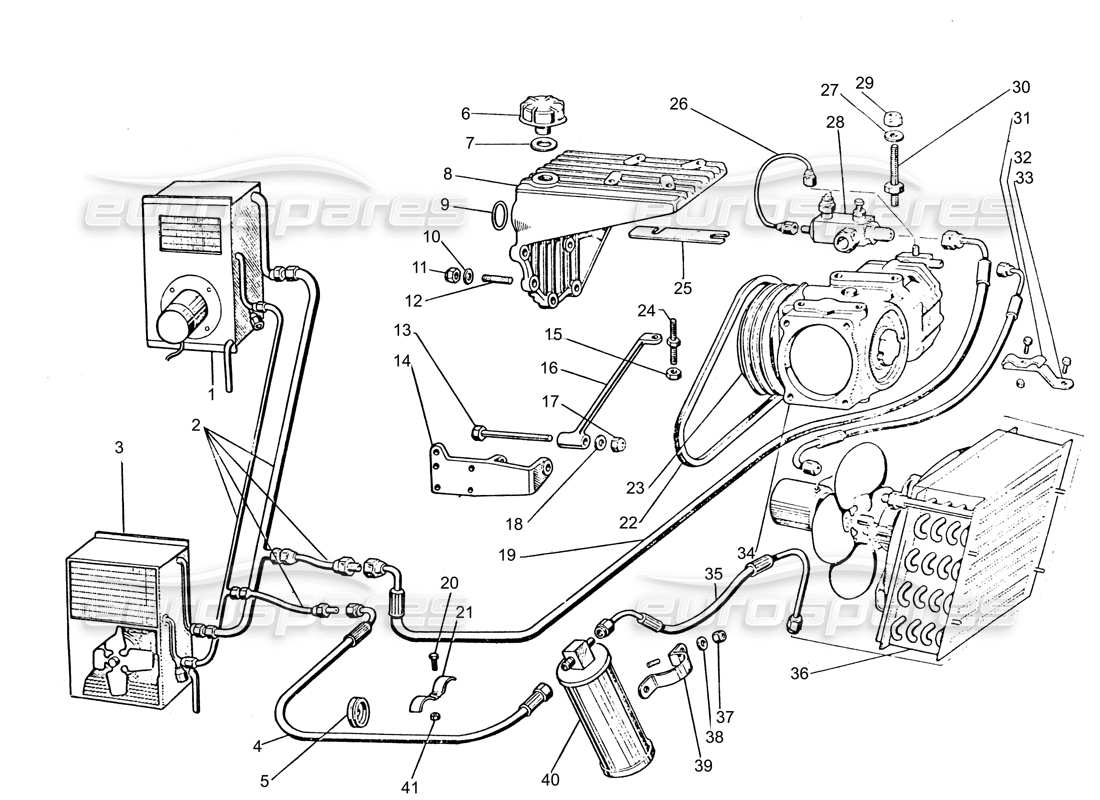

Lamborghini Espada Air-Con (Da 0 a 175) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004505246S
N/A
Da 0 a 175
# 002
MPN: 004505248
N/A
Da 0 a 175
# 003
MPN: 004505245D
N/A
Da 0 a 175
# 004
MPN: 004506856
N/A
Da 0 a 175
from £147.42
from £147.42
# 005
MPN: 008611002
GROMMET 22X38X10 MM
Da 0 a 175
from £13.87
from £13.87
# 006
MPN: 001102613
OIL FILLER PLUG
Da 0 a 175
# 007
MPN: 001101401
OIL FILLER PLUG GASKET
Da 0 a 175
from £2.25
from £2.25
# 008
MPN: 004504530
SUPPORTO COMPRESSORE
Da 0 a 175
from £292.68
from £292.68
# 009
MPN: 008605501
RING
Da 0 a 175
from £0.54
from £0.54
# 010
MPN: 008401006
WASHER 22X10.5X2.5 UNI 1734/5S /Z
Da 0 a 175
from £0.54
from £0.54
# 011
MPN: 008201008
NUT
Da 0 a 175
from £0.57
from £0.57
# 012
MPN: 00??801006
N/A
Da 0 a 175
# 013
MPN: 008101021
SCREW M10X1.5X125 UNI 5737
Da 0 a 175
from £11.53
from £11.53
# 014
MPN: 001604488
SUPPORTA ALTERNATORE E PUNTONE
Da 0 a 175
from £23.40
from £23.40
# 015
MPN: 008201011
M10 'UNI 5589-65/8G' NUT
Da 0 a 175
from £11.53
from £11.53
# 016
MPN: 004505677
PUNTONE SUPPORTO COMPRESSORE
Da 0 a 175
from £28.23
from £28.23
# 017
MPN: 008201010
M10 SELF LOCKING NUT (MONTATO DAL TELAIO N.4155)
Da 0 a 175
from £0.89
from £0.89
# 018
MPN: N90179103
WASHER 18X8,4X2,5
Da 0 a 175
from £1.06
from £1.06
This part replaces part number 008400801
# 019
MPN: 004506855
N/A
Da 0 a 175
from £159.20
from £159.20
# 020
MPN: N01020717
SCREW M5X12 UNI 5739/8G/Z
Da 0 a 175
from £0.47
from £0.47
This part replaces part number 008100504
# 021
MPN: 004505977
JUBILEE CLIP
Da 0 a 175
from £9.52
from £9.52
# 022
MPN: 004504532
CINGHIA COMANDO COMPRESSORE
Da 0 a 175
from £31.20
from £31.20
# 023
MPN: 004505446
GIUNTO ELETTROMAGNETICO COMPLETO
Da 0 a 175
# 024
MPN: 004505681
REGISTRO PER PUNTONE
Da 0 a 175
from £19.02
from £19.02
# 025
MPN: 004504637
PIASTRINA DI SPESSORE
Da 0 a 175
from £5.02
from £5.02
# 026
MPN: 004505585
ISOBAR VALVE/COMPRESSOR PIPE
Da 0 a 175
from £37.48
from £37.48
# 027
MPN: 003401006
N/A
Da 0 a 175
# 028
MPN: 004505250
ISOBAR VALVE
Da 0 a 175
from £181.99
from £181.99
# 029
MPN: 008201008
NUT
Da 0 a 175
from £0.57
from £0.57
# 030
MPN: 004504533
COLONNETTA PER SUPPORTO COMPRESSORE
Da 0 a 175
from £53.73
from £53.73
# 031
MPN: 004506036
N/A
Da 0 a 175
# 032
MPN: 004505978
N/A
Da 0 a 175
from £6.47
from £6.47
# 033
MPN: 004505979
N/A
Da 0 a 175
from £6.47
from £6.47
# 034
MPN: 004505352
see 004511439
Da 0 a 175
# 035
MPN: 004506034
PIPE / TUBE / HOSE
Da 0 a 175
from £34.12
from £34.12
# 036
MPN: 004505247
CONDENSOR
Da 0 a 175
from £894.91
from £894.91
# 037
MPN: 008200606
BUSH
Supersession
Supersession
# 038
MPN: 008400606
WASHER
Da 0 a 175
Supersession
Supersession
# 039
MPN: 004504600
N/A
Da 0 a 175
# 040
MPN: 004505322/a
DRYER BOTTLE
use : 004535411 - 004537126 - 004537127
# 041
MPN: N0211963
M5 'UNI 7473 ZD' SELF-LOCKIN GNUT
Da 0 a 175
from £0.53
from £0.53
