lamborghini espada handbrake series i parts diagram

015 - Handbrake Series I

Lamborghini Espada Handbrake Series I Parts Diagram

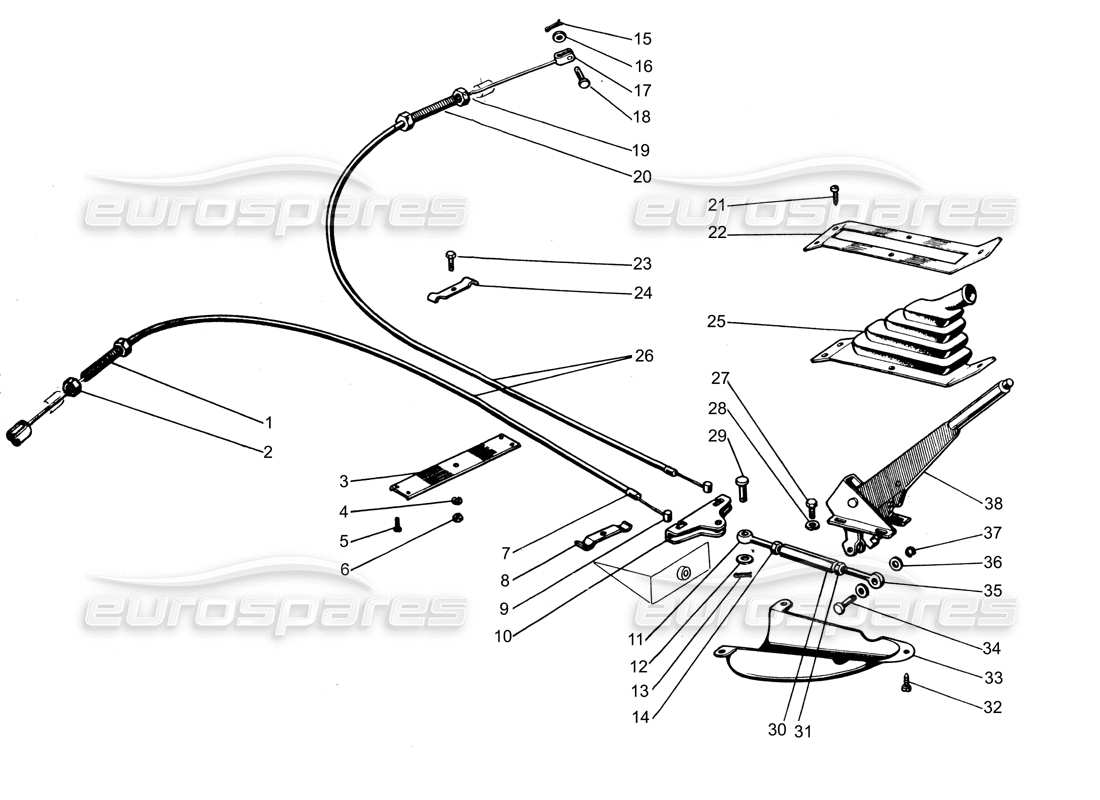

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 003301867
NUT
from £23.01
from £23.01
# 002
MPN: 008201213
12 'UNI 210 8G' NUT (GRUPPO MONTATO DAL MOTORE 30501)
from £3.36
from £3.36
# 003
MPN: 003305640
BRACKET / SUPPORT
from £8.87
from £8.87
# 004
MPN: 008410502
WASHER D.5.3 UNI 1751/ZD
Supersession
Supersession
# 005
MPN: N01020717
SCREW M5X12 UNI 5739/8G/Z
from £0.47
from £0.47
This part replaces part number 008100504
# 006
MPN: 008200501
M5X0.8X4 'UNI 5588/6S/Z' NUT
Supersession
Supersession
# 007
MPN: 003301857
SHEATH TERMINAL
from £2.74
from £2.74
# 008
MPN: 003301470
HANDBRAKE WIRE PLATE
from £7.52
from £7.52
# 010
MPN: 003301308
HANDBRAKE BRACKET
from £15.72
from £15.72
# 011
MPN: 003304857
TIRANTE COMANDO FRENO
from £14.01
from £14.01
# 012
MPN: N90179103
WASHER 18X8,4X2,5
from £1.06
from £1.06
This part replaces part number 008400801
# 013
MPN: 008820201
SPLIT PIN 1.8X15 UNI 1336A
from £4.11
from £4.11
# 014
MPN: 008200604
NUT
Supersession
Supersession
# 015
MPN: 008820201
SPLIT PIN 1.8X15 UNI 1336A
from £4.11
from £4.11
# 016
MPN: N90179103
WASHER 18X8,4X2,5
from £1.06
from £1.06
This part replaces part number 008400801
# 017
MPN: 003301315
RH BRAKE WIRE ASSEMBLY
from £116.08
from £116.08
# 018
MPN: 410609789
JOURNAL
from £18.55
from £18.55
This part replaces part number 003301307 which we have in stock
# 019
MPN: 008201213
12 'UNI 210 8G' NUT (GRUPPO MONTATO DAL MOTORE 30501)
from £3.36
from £3.36
# 020
MPN: 003301867
NUT
from £23.01
from £23.01
# 021
MPN: 008700506
SCREW KNIP 4.8X16DIN7971 BLACK STEEL
from £0.54
from £0.54
# 022
MPN: 003305471
PIASTRINA DI FERMO
from £8.79
from £8.79
# 023
MPN: 008100501
SCREW M5X25
from £0.54
from £0.54
# 024
MPN: 003301470
HANDBRAKE WIRE PLATE
from £7.52
from £7.52
# 025
MPN: 14303307
HAND BRAKE RUBBER COVER
(003305468)
# 026
MPN: 003304855
CAVO (DA 0 A 800)
# 027
MPN: N01029315
SCREW M8X16 UNI 5739/8G/Z
from £0.85
from £0.85
# 028
MPN: 008410806
WASHER
Supersession
Supersession
# 029
MPN: 410609789
JOURNAL
from £18.55
from £18.55
This part replaces part number 003301307 which we have in stock
# 030
MPN: 413609206
ADJUSTING SLEEVE
(Valid for RH D. version – April 1994) REGISTRO
from £39.87
from £39.87
# 031
MPN: 008200607
NUT M6
from £8.05
from £8.05
# 032
MPN: 003700306
N/A
# 034
MPN: 008001159
N/A
# 035
MPN: 003304856
N/A
from £12.93
from £12.93
# 036
MPN: 008400701
N/A
from £1.71
from £1.71
# 037
MPN: 008580702
LOCK RING
from £11.53
from £11.53
