lamborghini espada steering column parts diagram

019 - Steering Column

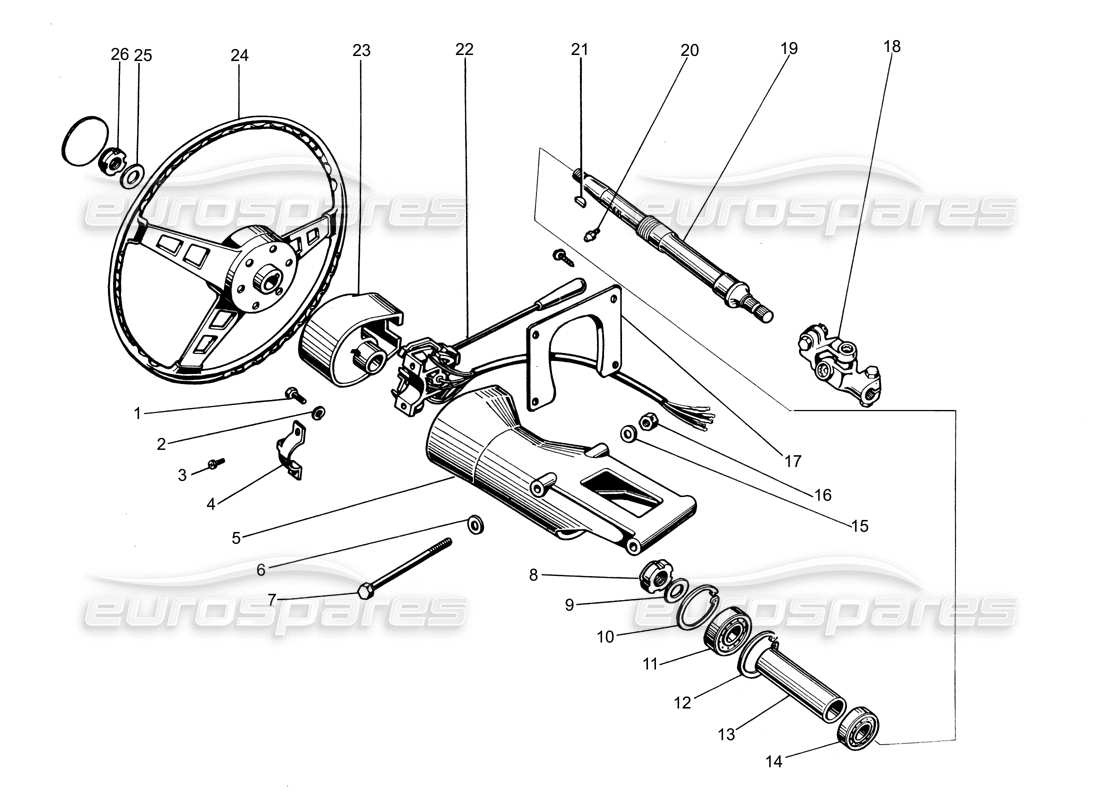

Lamborghini Espada Steering Column Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008100821
SCREW
Supersession
Supersession
# 002
MPN: 008410602
LOCK WASHER
from £28.85
from £28.85
# 003
MPN: 008700406
NUT
from £0.54
from £0.54
# 004
MPN: 004301408
FASCETTA;
# 005
MPN: 004301183
STEERING BRACKET
from £389.96
from £389.96
# 006
MPN: 008401006
WASHER 22X10.5X2.5 UNI 1734/5S /Z
from £0.54
from £0.54
# 007
MPN: 008101021
SCREW M10X1.5X125 UNI 5737
from £11.53
from £11.53
# 008
MPN: 008252503
M25X1.5X38 SELF-LOCKING RING N UT
Supersession
Supersession
# 009
MPN: 008402504
WASHER 25.5X33X2.5
from £12.90
from £12.90
# 010
MPN: 008575001
O-RING I 47 UNI 3654
from £0.57
from £0.57
# 011
MPN: 008502503
BEARING
from £76.48
from £76.48
# 012
MPN: 008575001
O-RING I 47 UNI 3654
from £0.57
from £0.57
# 013
MPN: 004301390
SPACER
from £47.68
from £47.68
# 014
MPN: 008502503
BEARING
from £76.48
from £76.48
# 015
MPN: 008401006
WASHER 22X10.5X2.5 UNI 1734/5S /Z
from £0.54
from £0.54
# 016
MPN: 008201008
NUT
from £0.57
from £0.57
# 017
MPN: 006107149
N/A
# 018
MPN: 004301424
JOINT
from £2,961.40
from £2,961.40
# 019
MPN: 004302566

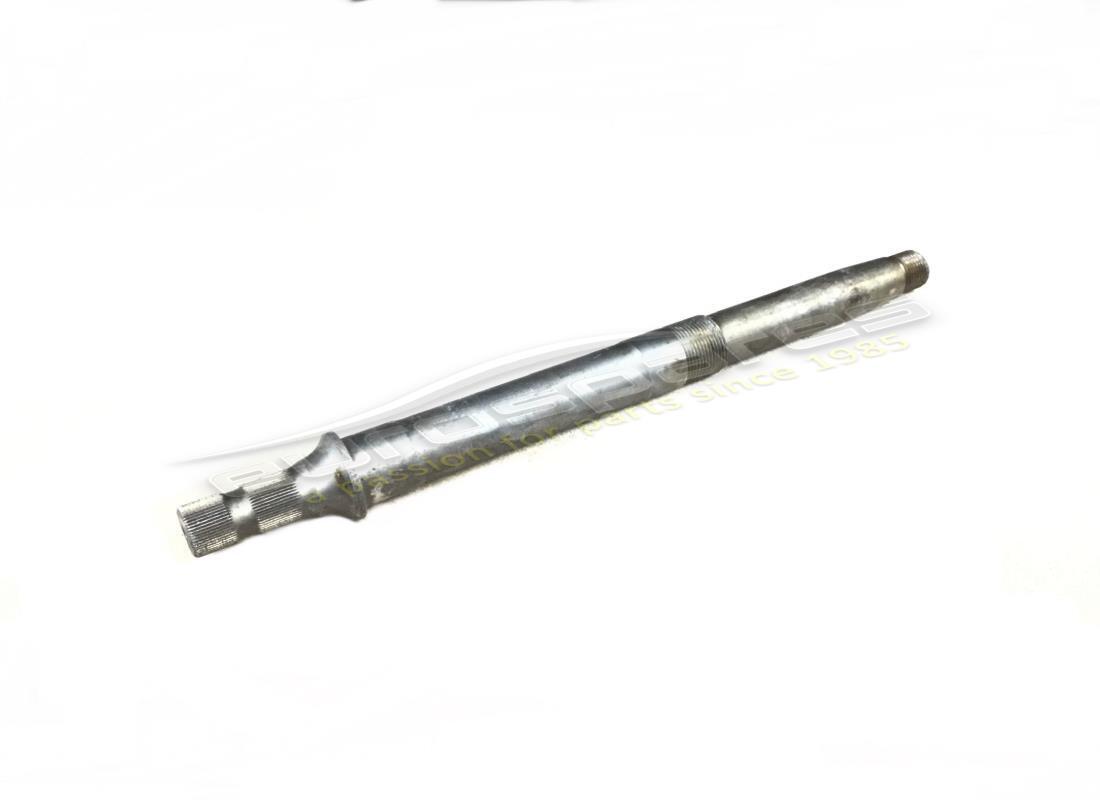

STEERING WHEEL COLUMN
from £1,044.75
from £1,044.75
# 020
MPN: 004301397
INDICATOR RETURN LEVER PIN
from £15.01
from £15.01
# 021
MPN: 008860701
TAB 5X7.5 UNIM 99
from £4.73
from £4.73
# 022
MPN: 004313277
COLUMN SWITCH
from £324.00
from £324.00
# 023
MPN: 004301383
HORN & LIGHT BRACKET
from £495.00
from £495.00
# 024
MPN: 004305507
N/A
# 025
MPN: 008401807
WASHER 18.5X30X2.5
from £12.90
from £12.90
# 026
MPN: 008251801
GHIERA
from £22.68
from £22.68
