lamborghini espada gearbox ( 0 to 800) parts diagram

012.2 - Gearbox ( 0 to 800)

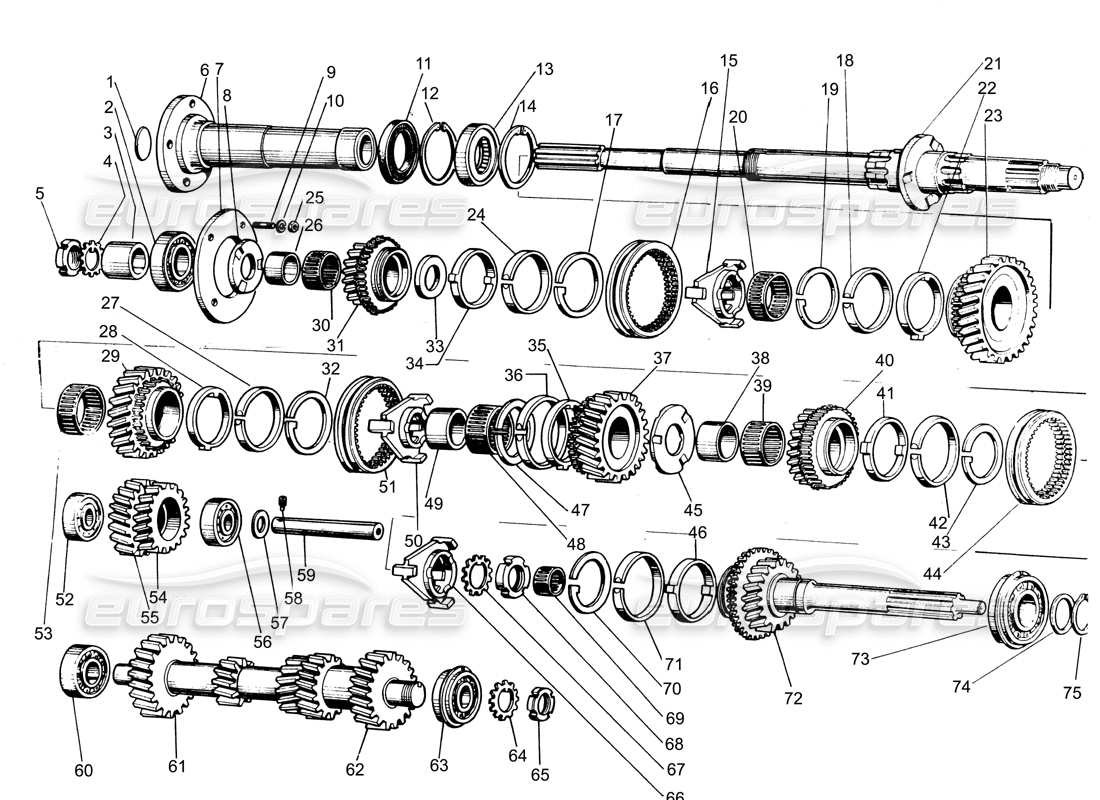

Lamborghini Espada Gearbox ( 0 to 800) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 008933501
PLUG
Da 0 a 800
from £1.71
from £1.71
GEARBOX OUTLET PLUG Genuine Lamborghini - New (to order)
# 002
MPN: 008503503
CUSCINETTO
Da 0 a 800
from £72.50
from £72.50
BEARING Genuine Lamborghini - New In stock
# 003
MPN: 002404434
DISTATALE
Da 0 a 800
from £15.01
from £15.01
ODOMETER GEAR SHIM Genuine Lamborghini - New (to order)
# 004
MPN: 008413502
WASHER SKF MB7
Da 0 a 800
from £3.57
from £3.57
WASHER SKF MB7 Genuine Lamborghini - New (to order)
# 005
MPN: 008253506
RING NUT
from £18.04
from £18.04
M35X1.5X52 RING NUT Genuine Lamborghini - New (to order)
# 006
MPN: 002402569
MANICOTTO DI USCITA MOTO
Da 0 a 800
from £320.04
from £320.04
TRANSMISSION OUTLET SLEEVE Genuine Lamborghini - New (to order)
# 007
MPN: 002401754
ANELLO DI ARRESTO PER CUSCINETTO
Da 0 a 800
from £40.80
from £40.80
FLANGE Genuine Lamborghini - New (to order)
# 008
MPN: 002401734
WASHER
Da 0 a 800
from £252.06
from £252.06
WASHER Genuine Lamborghini - New (to order)
# 009
MPN: 008300613
STUD M6X14 UNI 5911 8G/Z
Da 0 a 800
from £3.07
from £3.07
STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New In stock
# 010
MPN: 008410603
LOCK WASHER
Da 0 a 800
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 011
MPN: 008614203

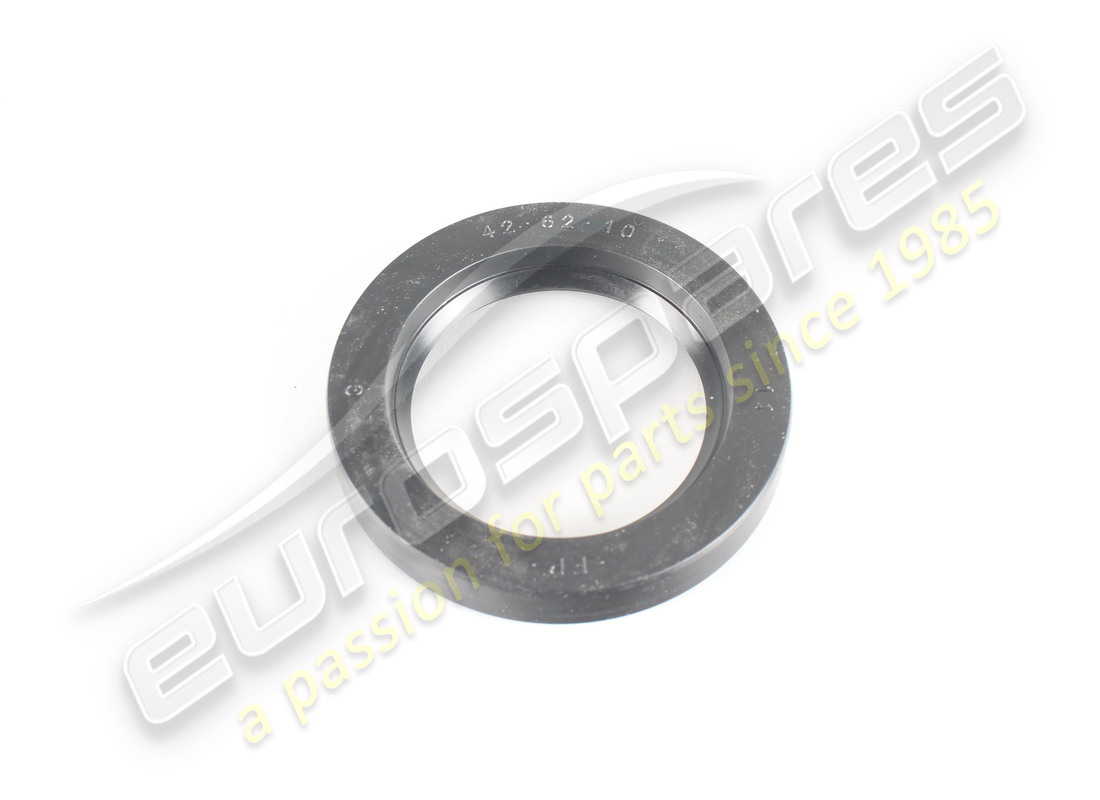

OIL SEAL
from £9.96
from £9.96
OIL SEAL 42X62X10 MM Genuine Lamborghini - New In stock
# 012
MPN: 008576601
RETAINER RING
Da 0 a 800
from £0.54
from £0.54
O-RING I 62 UNI 3654 Genuine Lamborghini - New (to order)
# 013
MPN: 008524203

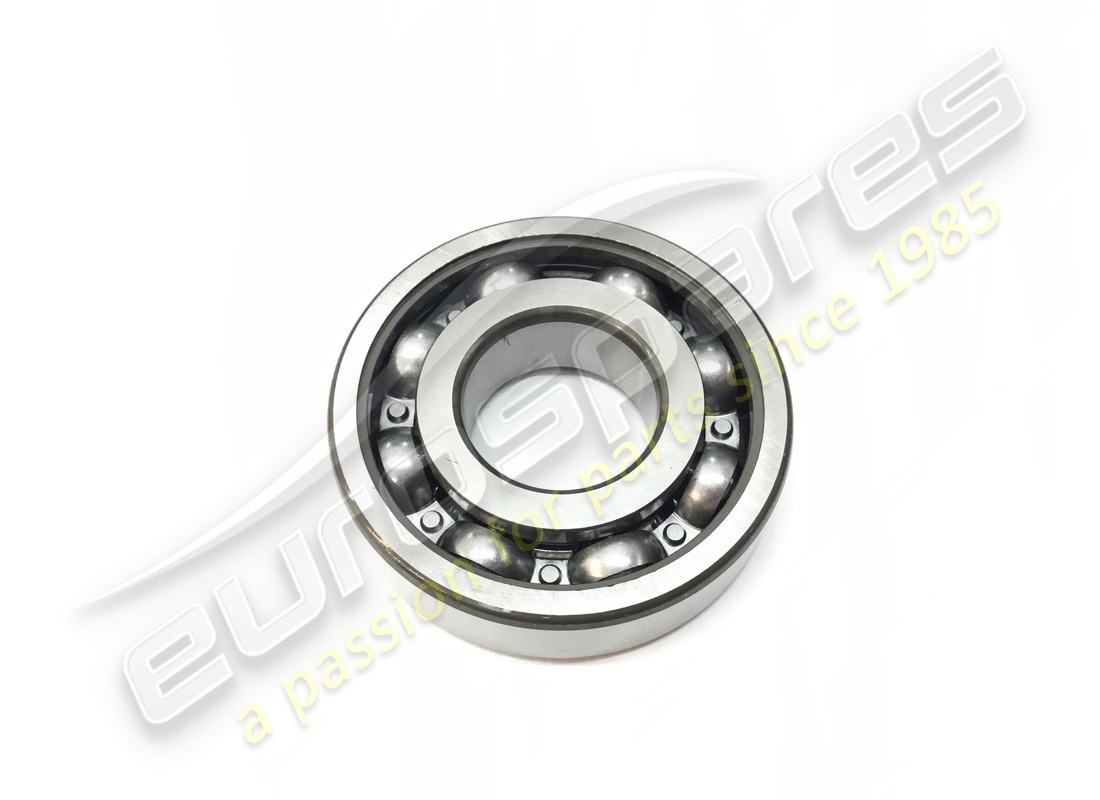

BEARING
Da 0 a 800
from £124.48
from £124.48
BEARING (008524203) Eurospares Approved Part - New (to order)
BEARING Genuine Lamborghini - New In stock
# 014
MPN: 008576601
RETAINER RING
Da 0 a 800
from £0.54
from £0.54
O-RING I 62 UNI 3654 Genuine Lamborghini - New (to order)
# 015
MPN: 002402004
5TH SPEED DRIVE UNIT
Da 0 a 800
from £2,122.70
from £2,122.70
5TH SPEED DRIVE UNIT Genuine Lamborghini - New (to order)
# 016
MPN: 002402007
GEAR ENGAGING SLEEVE
Da 0 a 800
from £1,292.65
from £1,292.65
GEAR ENGAGING SLEEVE Genuine Lamborghini - New (to order)
# 017
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
SYNCHRONISER RETAINING RINGS Genuine Lamborghini - New In stock
# 018
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
SYNCHRONISER RING Genuine Lamborghini - New In stock
# 019
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
SYNCHRONISER RETAINING RINGS Genuine Lamborghini - New In stock
# 020
MPN: 008525001

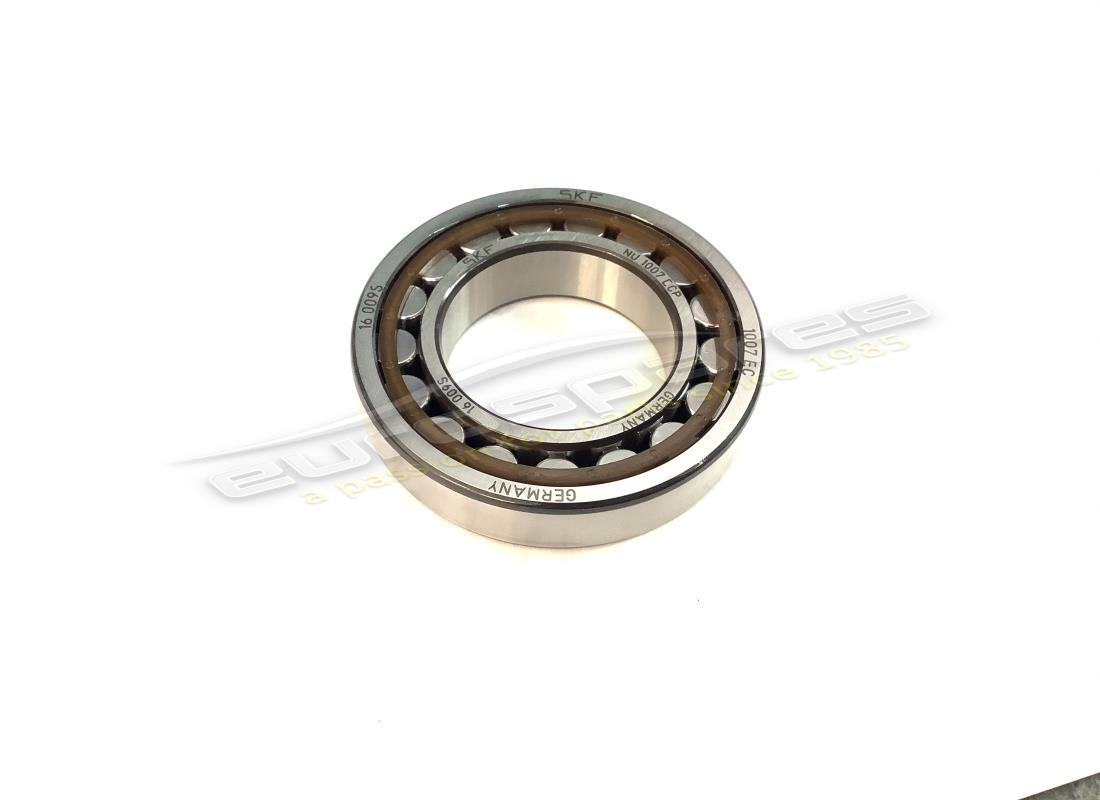

BEARING
Da 0 a 800
from £26.78
from £26.78
ROLLER BEARING Genuine Lamborghini - New In stock
# 021
MPN: 002401711
ALBERO PRIMARIO
Da 0 a 800
from £810.87
from £810.87
PRIMARY SHAFT Genuine Lamborghini - New (to order)
# 022
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
SYNCHRONISER INNER RING Genuine Lamborghini - New In stock
# 023
MPN: 002401729
RUOTA R.M.
Da 0 a 800
from £344.91
from £344.91
REVERSE GEAR Genuine Lamborghini - New (to order)
# 024
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
SYNCHRONISER RING Genuine Lamborghini - New In stock
# 025
MPN: 008200604
NUT
Da 0 a 800
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 026
MPN: 002401737
O-RING
Da 0 a 800
from £49.75
from £49.75
O-RING Genuine Lamborghini - New (to order)
# 027
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
SYNCHRONISER RING Genuine Lamborghini - New In stock
# 028
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
SYNCHRONISER INNER RING Genuine Lamborghini - New In stock
# 029
MPN: 002401731
WHEEL 1A SPEED
Da 0 a 800
from £629.46
from £629.46
1ST SPEED GEAR Genuine Lamborghini - New (to order)
# 030
MPN: 008524002
BEARING
Da 0 a 800
from £28.19
from £28.19
BEARING Genuine Lamborghini - New In stock
# 031
MPN: 002401730
5TH SPEED GEAR
Da 0 a 800
from £986.65
from £986.65
5TH SPEED GEAR Genuine Lamborghini - New (to order)
# 032
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
SYNCHRONISER RETAINING RINGS Genuine Lamborghini - New In stock
# 033
MPN: 002402572
N/A
Da 0 a 800
N/A Genuine Lamborghini - New (to order)
# 034
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
SYNCHRONISER INNER RING Genuine Lamborghini - New In stock
# 035
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
SYNCHRONISER INNER RING Genuine Lamborghini - New In stock
# 036
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
SYNCHRONISER RING Genuine Lamborghini - New In stock
# 037
MPN: 002401728
INGRANAGGIO 2DA VELOCITA'
from £1,774.30
from £1,774.30
2ND SPEED GEAR Genuine Lamborghini - New (to order)
# 038
MPN: 002401742
O-RING
Da 0 a 800
from £159.52
from £159.52
O-RING Genuine Lamborghini - New (to order)
# 039
MPN: 086311228A

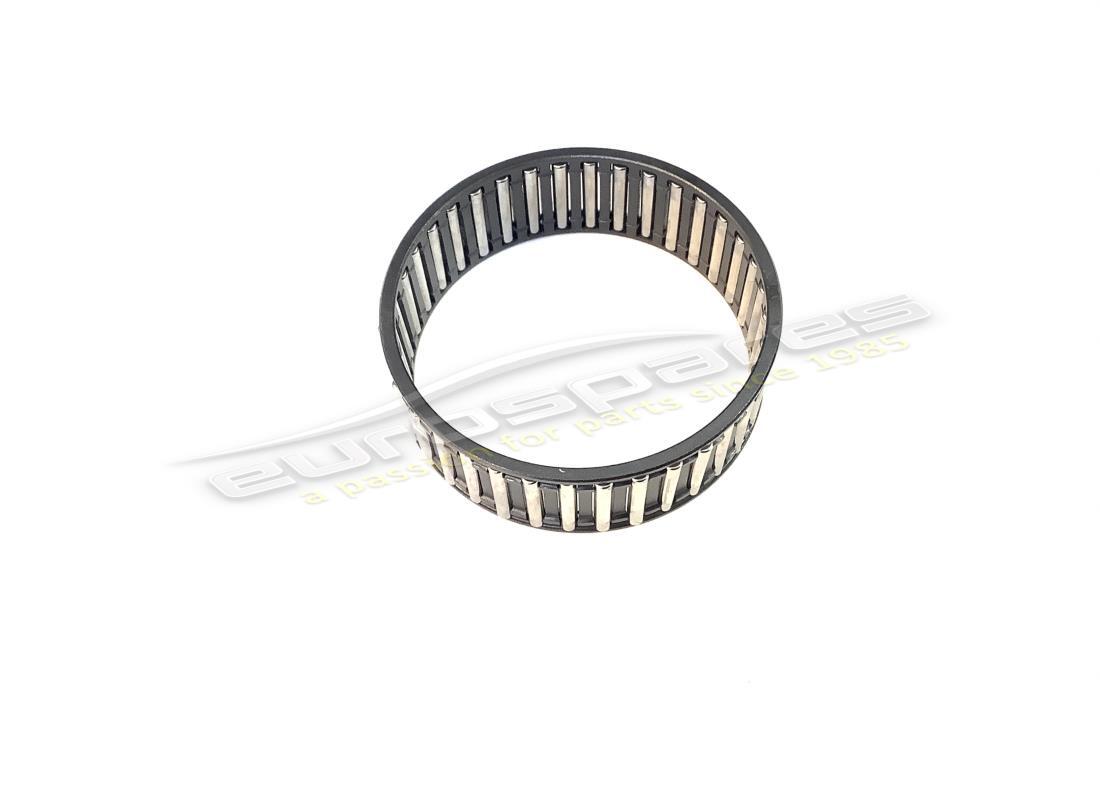

ROLLER BEARING
from £64.59
from £64.59
NEEDLE CAGE Genuine Lamborghini - New (to order)
# 040
MPN: 002401727
3RD SPEED GEAR
Da 0 a 800
from £1,292.65
from £1,292.65
3RD SPEED GEAR Genuine Lamborghini - New (to order)
# 041
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
SYNCHRONISER INNER RING Genuine Lamborghini - New In stock
# 042
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
SYNCHRONISER RING Genuine Lamborghini - New In stock
# 043
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
SYNCHRONISER RETAINING RINGS Genuine Lamborghini - New In stock
# 044
MPN: 002402007
GEAR ENGAGING SLEEVE
Da 0 a 800
from £1,292.65
from £1,292.65
GEAR ENGAGING SLEEVE Genuine Lamborghini - New (to order)
# 045
MPN: 002401828
2ND-3RD SPEED WASHER
Da 0 a 800
from £44.53
from £44.53
2ND-3RD SPEED WASHER Genuine Lamborghini - New (to order)
# 046
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
SYNCHRONISER INNER RING Genuine Lamborghini - New In stock
# 047
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
SYNCHRONISER RETAINING RINGS Genuine Lamborghini - New In stock
# 048
MPN: 086311228A
ROLLER BEARING
from £64.59
from £64.59
NEEDLE CAGE Genuine Lamborghini - New (to order)
# 049
MPN: 002401742
O-RING
Da 0 a 800
from £159.52
from £159.52
O-RING Genuine Lamborghini - New (to order)
# 050
MPN: 002402006
SP JOINT
Da 0 a 800
SP JOINT Genuine Lamborghini - New (to order)
# 051
MPN: 002402007
GEAR ENGAGING SLEEVE
Da 0 a 800
from £1,292.65
from £1,292.65
GEAR ENGAGING SLEEVE Genuine Lamborghini - New (to order)
# 052
MPN: 008502002

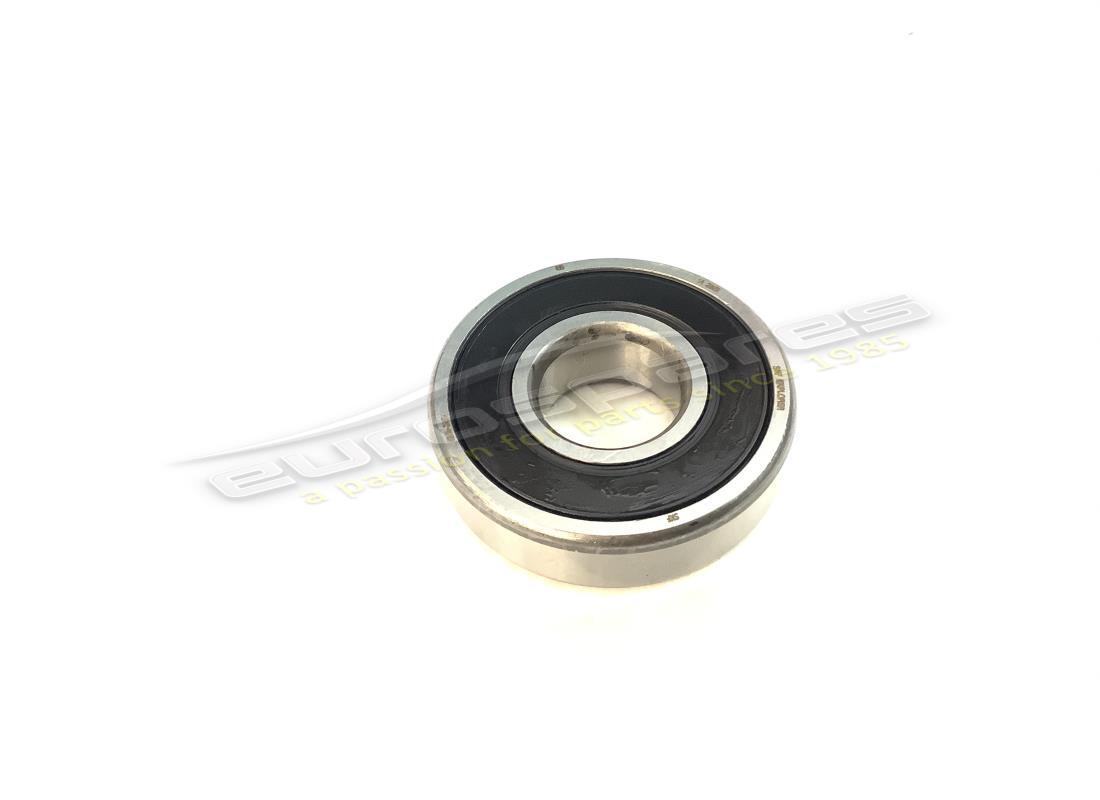

SCN 6304-2RS EXBLN20
Da 0 a 800
from £38.27
from £38.27
SCN 6304-2RS EXBLN20 Genuine Lamborghini - New In stock
# 053
MPN: 086311228A
ROLLER BEARING
from £64.59
from £64.59
NEEDLE CAGE Genuine Lamborghini - New (to order)
# 054
MPN: 002401770
REVERSE GUIDE GEAR
Da 0 a 800
from £201.06
from £201.06
REVERSE GUIDE GEAR Genuine Lamborghini - New (to order)
# 055
MPN: 002401732
INGRANAGGIO PER GALOPPINO
Da 0 a 800
Lamborghini PART 002401732 Genuine Lamborghini - New (to order)
# 056
MPN: 008502002
SCN 6304-2RS EXBLN20
Da 0 a 800
from £38.27
from £38.27
SCN 6304-2RS EXBLN20 Genuine Lamborghini - New In stock
# 057
MPN: 002401772
DLSTANZLALE
Da 0 a 800
from £7.52
from £7.52
REVERSE GUIDE PULLEYSHIM Genuine Lamborghini - New (to order)
# 058
MPN: 008700806
VITE
Da 0 a 800
from £1.71
from £1.71
SCREW M8X14 UNI 592512K Genuine Lamborghini - New (to order)
# 059
MPN: 002401771
ALBERINO RETROMARCIA
Da 0 a 800
from £37.40
from £37.40
REVERSE SHAFT Genuine Lamborghini - New (to order)
# 060
MPN: 008503002
CUSCINETTO
Da 0 a 800
from £29.68
from £29.68
BEARING (008503002) Eurospares Approved Part - New In stock
BEARING Genuine Lamborghini - New (to order)
# 061
MPN: 002401710
ALBERO SECONDARIO
Da 0 a 800
from £247.90
from £247.90
SECONDARY SHAFT Genuine Lamborghini - New (to order)
# 062
MPN: 002401709
GEAR 3A SPEED AND TRANSFER
Da 0 a 800
from £181.57
from £181.57
3RD SPEED DOUBLE GEAR Genuine Lamborghini - New (to order)
# 063
MPN: 008503003
BEARING
Da 0 a 800
from £14.01
from £14.01
BEARING Genuine Lamborghini - New (to order)
# 064
MPN: 008413001
WASHER SKF MB6
Da 0 a 800
from £1.65
from £1.65
WASHER SKF MB6 Genuine Lamborghini - New In stock
# 065
MPN: 008253002
30X1.5X45 SELF-LOCKING RING NUT
Da 0 a 800
from £54.56
from £54.56
This part replaces part number 009253002
30X1.5X45 SELF-LOCKING RING NU T Genuine Lamborghini - New In stock
# 066
MPN: 002402005
3RD SPEED DRIVE UNIT
Da 0 a 800
from £2,122.70
from £2,122.70
3RD SPEED DRIVE UNIT Genuine Lamborghini - New (to order)
# 067
MPN: 008413502
WASHER SKF MB7
Da 0 a 800
from £3.57
from £3.57
WASHER SKF MB7 Genuine Lamborghini - New (to order)
# 068
MPN: 008253506
RING NUT
from £18.04
from £18.04
M35X1.5X52 RING NUT Genuine Lamborghini - New (to order)
# 069
MPN: 008523005
BEARING
Da 0 a 800
from £14.38
from £14.38
BEARING Genuine Lamborghini - New (to order)
# 070
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
SYNCHRONISER RETAINING RINGS Genuine Lamborghini - New In stock
# 071
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
SYNCHRONISER RING Genuine Lamborghini - New In stock
# 072
MPN: 002401726
ALBERO FRIZIONE CAMBIO
Da 0 a 800
from £470.94
from £470.94
GEARBOX/CLUTCH SHAFT Genuine Lamborghini - New (to order)
# 073
MPN: 008503504
BEARING
Da 0 a 800
from £41.42
from £41.42
BEARING Genuine Lamborghini - New (to order)
# 074
MPN: 002401747
WASHER
Da 0 a 800
from £40.86
from £40.86
CLUTCH SHAFT SHIM ADJUSTMENT W ASHER Genuine Lamborghini - New (to order)
# 075
MPN: 008583202
SEEGER RING
Da 0 a 800
from £0.56
from £0.56
O-RING AA 35 E Genuine Lamborghini - New In stock
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
