Lamborghini Espada Exhaust (Da 0 a 325) Parts Diagram

020 - Exhaust (Da 0 a 325)

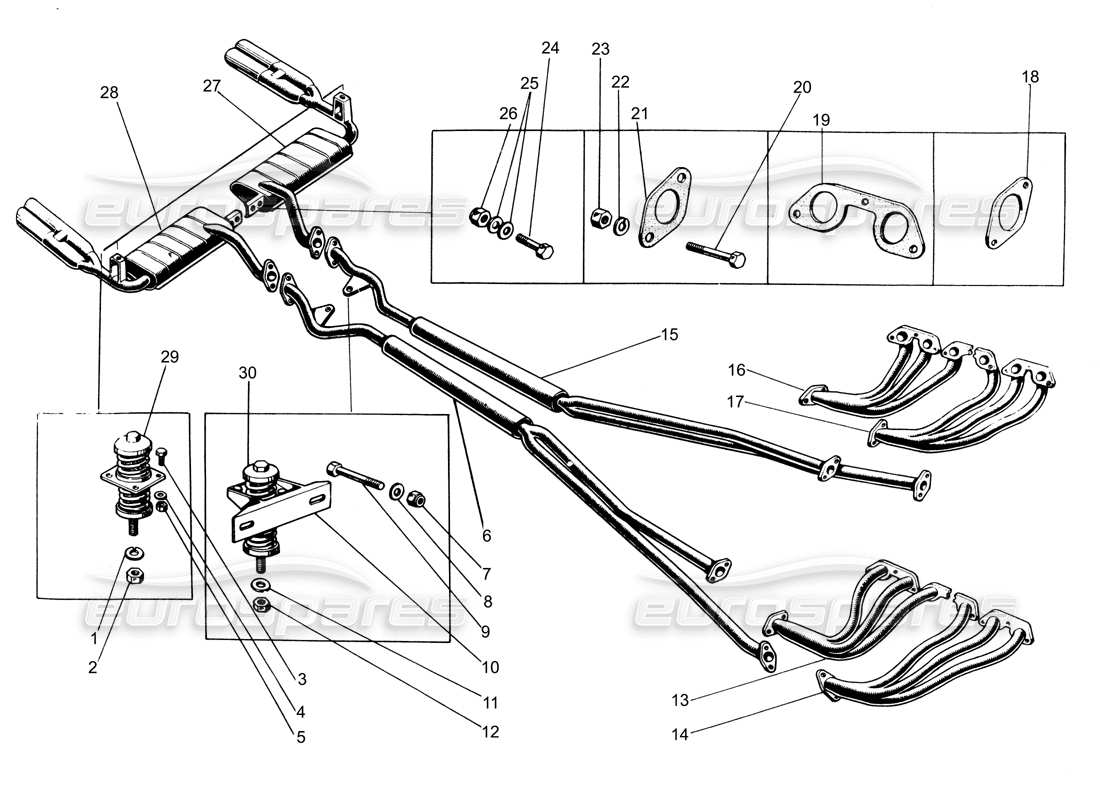

Lamborghini Espada Exhaust (Da 0 a 325) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 008401007
                                                              WASHER 21.5X10.4X2 UNI 6592/5S /Z
                                                              from £0.54
                                                              from £0.54
                                                              # 002
                                                              MPN: 008201008
                                                              NUT
                                                              from £0.57
                                                              from £0.57
                                                              # 003
                                                              MPN: 008100502
                                                              BOLT
                                                              from £0.54
                                                              from £0.54
                                                              # 004
                                                              MPN: WHT001187
                                                              WASHER
                                                              from £0.56
                                                              from £0.56
                                                              This part replaces part number 008400502
                                                              # 005
                                                              MPN: N0211963
                                                              M5 'UNI 7473 ZD' SELF-LOCKIN GNUT
                                                              from £0.53
                                                              from £0.53
                                                              # 007
                                                              MPN: 008200809
                                                              M8 SELF-LOCKING NUT
                                                              Supersession
                                                              Supersession
                                                              # 008
                                                              MPN: N90179103
                                                              WASHER 18X8,4X2,5
                                                              from £1.06
                                                              from £1.06
                                                              This part replaces part number 008400801

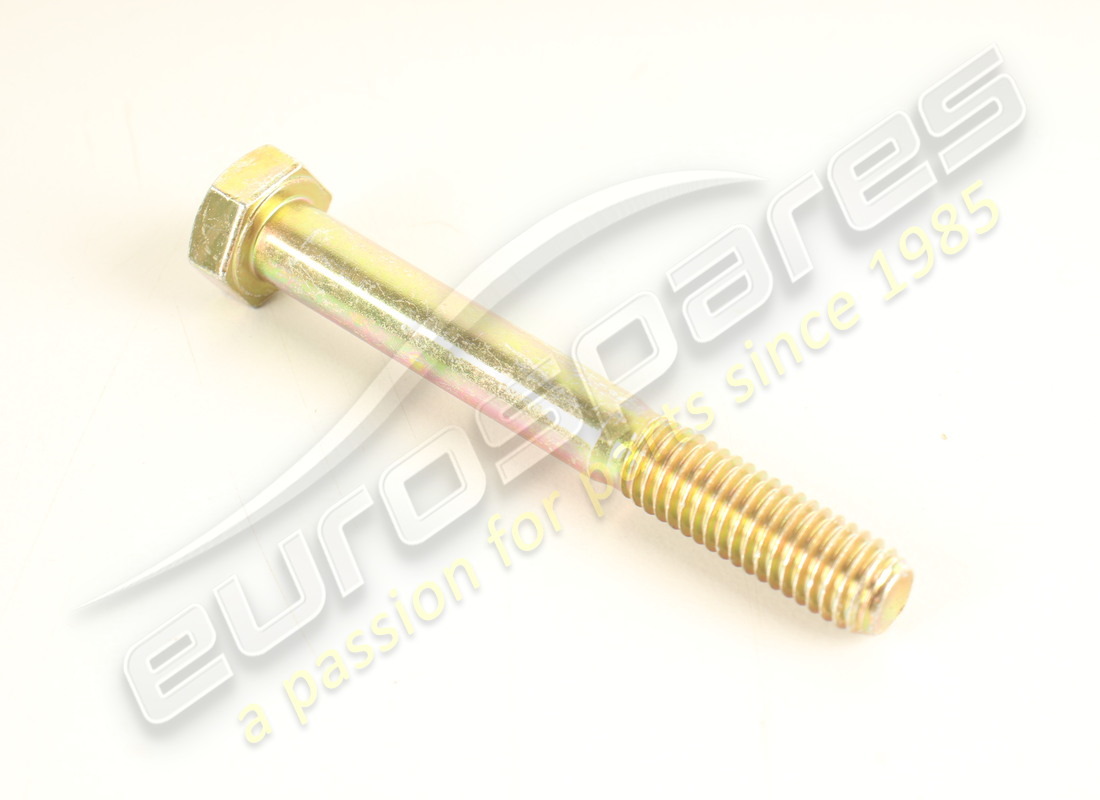

                                                              # 009
                                                              MPN: 008100835
                                                              SCREW M8X65 UNI 5737/8G
                                                              from £2.09
                                                              from £2.09
                                                              # 010
                                                              MPN: 004405055
                                                              SUPPORTO VLBRACHOC
                                                              from £78.86
                                                              from £78.86
                                                              # 011
                                                              MPN: 008401007
                                                              WASHER 21.5X10.4X2 UNI 6592/5S /Z
                                                              from £0.54
                                                              from £0.54
                                                              # 012
                                                              MPN: 008201008
                                                              NUT
                                                              from £0.57
                                                              from £0.57
                                                              # 013
                                                              MPN: 004405047
                                                              COLLETTORE POSTERIORE DESTRO
                                                              from £1,500.00
                                                              from £1,500.00
                                                              # 014
                                                              MPN: 004405045
                                                              COLLETTORE ANTERIORE DESTRO
                                                              from £1,500.00
                                                              from £1,500.00
                                                              # 016
                                                              MPN: 004405048
                                                              COLLETTORE POSTERLORE SINISTRO
                                                              from £1,500.00
                                                              from £1,500.00
                                                              # 017
                                                              MPN: 004405046
                                                              COLLETTORE ANTERIORE SINISTRO
                                                              from £1,500.00
                                                              from £1,500.00
                                                              # 018
                                                              MPN: 004401530
                                                              EXHAUST GASKET
                                                              from £17.46
                                                              from £17.46
                                                              This part replaces part number CM-01530
                                                              # 019
                                                              MPN: 001101178
                                                              DOUBLE EXHAUST GASKET
                                                              from £17.58
                                                              from £17.58
                                                              This part replaces part number MT-01178
                                                              # 020
                                                              MPN: N01033520
                                                              SCREW M8X35
                                                              from £1.06
                                                              from £1.06
                                                              # 021
                                                              MPN: 004404026
                                                              EXHAUST MANIFOLD GASKET
                                                              from £20.72
                                                              from £20.72
                                                              This part replaces part number CM-04026
                                                              # 022
                                                              MPN: 008410806
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              # 023
                                                              MPN: 008200807
                                                              M8 'OT.58 UNI 2012'SELF-LOCKINGNUT
                                                              from £14.38
                                                              from £14.38
                                                              # 024
                                                              MPN: 008100827
                                                              SCREW M8X25 UNI 5739/8G/ZG
                                                              Supersession
                                                              Supersession
                                                              # 025
                                                              MPN: N90179103
                                                              WASHER 18X8,4X2,5
                                                              from £1.06
                                                              from £1.06
                                                              This part replaces part number 008400801
                                                              # 026
                                                              MPN: 008200804
                                                              NUT
                                                              from £0.74
                                                              from £0.74
                                                              # 027
                                                              MPN: 004405053
                                                              MARMITTA POSTERIORE SINISTRA
                                                              from £1,517.45
                                                              from £1,517.45
                                                              # 028
                                                              MPN: 004405052
                                                              MARMITTA POSTERIORE DESTRA
                                                              from £1,517.45
                                                              from £1,517.45
                                                              # 029
                                                              MPN: 004405143
                                                              SUPPORT MOUNT
                                                              from £122.67
                                                              from £122.67
                                                              # 030
                                                              MPN: 400251393A
                                                              EXHAUST SUPPORT MOUNT
                                                              from £151.23
                                                              from £151.23
                                                              This part replaces part number 004432031 - and 5 more. Click to view details
