Lamborghini Espada inlet manifolds Parts Diagram

003.2 - inlet manifolds

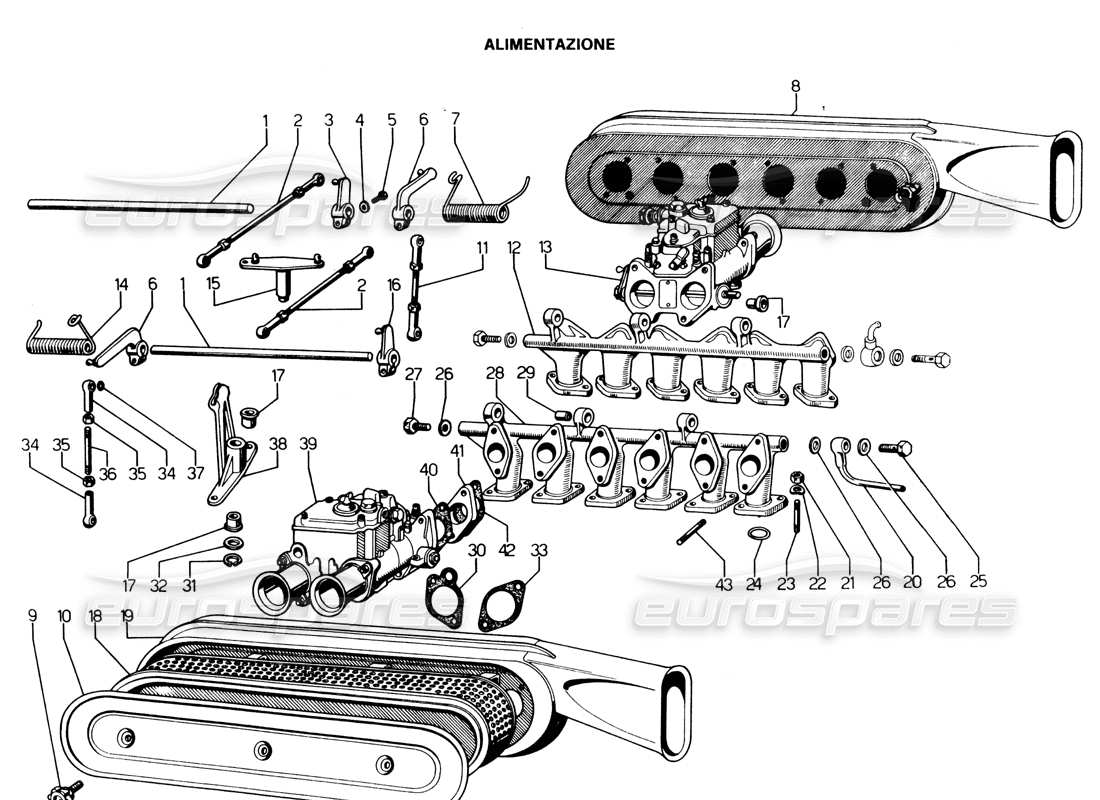

Lamborghini Espada Inlet manifolds Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                  #
                                                                                                                  Part number
                                                                                                                  Description
                                                                                                                  Price
                                                                                                                  # 000
                                                                                                                  MPN: 40DCOE18
                                                                                                                  COMPLETE CARBURETTOR
                                                                                                                  Italian made Weber,40DCOE18
                                                                                                                  # 000
                                                                                                                  MPN: 40DCOE31
                                                                                                                  COMPLETE CARBURETTOR
                                                                                                                  Italian made Weber,40DCOE31
                                                                                                                  # 001
                                                                                                                  MPN: 001301885
                                                                                                                  CARBURETTOR CONTROL SHAFT
                                                                                                                  from £17.46
                                                                                                                  from £17.46
                                                                                                                  # 002
                                                                                                                  MPN: 001310583
                                                                                                                  TIE ROD
                                                                                                                  from £91.66
                                                                                                                  from £91.66
                                                                                                                  # 003
                                                                                                                  MPN: 001301093
                                                                                                                  COMANDO ASTE
                                                                                                                  from £143.10
                                                                                                                  from £143.10
                                                                                                                  # 004
                                                                                                                  MPN: 008410603
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 005
                                                                                                                  MPN: 008100618
                                                                                                                  BOLT
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 006
                                                                                                                  MPN: 001301095
                                                                                                                  COMANDO CARBURATORE
                                                                                                                  from £326.84
                                                                                                                  from £326.84
                                                                                                                  # 007
                                                                                                                  MPN: 001301374
                                                                                                                  SPRING
                                                                                                                  from £15.47
                                                                                                                  from £15.47
                                                                                                                  # 008
                                                                                                                  MPN: 001309191
                                                                                                                  CORPO DEPURATORE ARIA DESTRO (COMPLETO)
                                                                                                                  # 008
                                                                                                                  MPN: 001313192
                                                                                                                  CORPO DEPURATORE ARIA SINISTRO (COMPLETO)
                                                                                                                  from £392.17
                                                                                                                  from £392.17
                                                                                                                  # 009
                                                                                                                  MPN: 001309421
                                                                                                                  KNOB
                                                                                                                  from £6.70
                                                                                                                  from £6.70
                                                                                                                  # 010
                                                                                                                  MPN: 001320202
                                                                                                                  COVER
                                                                                                                  from £336.35
                                                                                                                  from £336.35
                                                                                                                  # 010
                                                                                                                  MPN: LST003D
                                                                                                                  FIAAM AIR BOX STICKER RHS
                                                                                                                  from £10.50
                                                                                                                  from £10.50
                                                                                                                  # 010
                                                                                                                  MPN: LST003S
                                                                                                                  FIAAM AIR BOX STICKER LHS
                                                                                                                  from £10.50
                                                                                                                  from £10.50
                                                                                                                  # 011
                                                                                                                  MPN: 001310582
                                                                                                                  TIE ROD
                                                                                                                  from £327.70
                                                                                                                  from £327.70
                                                                                                                  # 012
                                                                                                                  MPN: 001304771
                                                                                                                  COLLETTORE ASPIRAZIONE SINISTRO
                                                                                                                  from £664.12
                                                                                                                  from £664.12
                                                                                                                  # 013
                                                                                                                  MPN: 001310651
                                                                                                                  CARBURATORE SINISTRO
                                                                                                                  from £366.47
                                                                                                                  from £366.47
                                                                                                                  # 013
                                                                                                                  MPN: SK2201
                                                                                                                  CARBURETTOR GASKET SET
                                                                                                                  40 DCOE 92/150 - 93/150
                                                                                                                  from £434.64
                                                                                                                  from £434.64
                                                                                                                  # 014
                                                                                                                  MPN: 001301910
                                                                                                                  MOLLA
                                                                                                                  from £15.47
                                                                                                                  from £15.47
                                                                                                                  # 015
                                                                                                                  MPN: 001303816
                                                                                                                  PORNO RINVIO ACCELERATORE
                                                                                                                  # 016
                                                                                                                  MPN: 001305396
                                                                                                                  COMANDO ASTE
                                                                                                                  from £57.97
                                                                                                                  from £57.97
                                                                                                                  # 017
                                                                                                                  MPN: 008801204
                                                                                                                  BUSH
                                                                                                                  from £5.85
                                                                                                                  from £5.85
                                                                                                                  # 018
                                                                                                                  MPN: 001304531
                                                                                                                  AIR FILTER
                                                                                                                  from £148.92
                                                                                                                  from £148.92
                                                                                                                  # 019
                                                                                                                  MPN: 001309250
                                                                                                                  INVOLUCRO DEPURATORE ARIA SINISTRO
                                                                                                                  # 019
                                                                                                                  MPN: 001313191
                                                                                                                  INVOLUCRO DEPURATORE ARIA DESTRO
                                                                                                                  from £392.17
                                                                                                                  from £392.17
                                                                                                                  # 020
                                                                                                                  MPN: 003204610
                                                                                                                  UNION
                                                                                                                  from £89.49
                                                                                                                  from £89.49
                                                                                                                  # 021
                                                                                                                  MPN: N01100845
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 008200801 - and 2 more. Click to view details
                                                                                                                  # 022
                                                                                                                  MPN: WHT001514
                                                                                                                  WASHER
                                                                                                                  from £15.09
                                                                                                                  from £15.09
                                                                                                                  This part replaces part number 008410805
                                                                                                                  # 023
                                                                                                                  MPN: 008300822
                                                                                                                  THREADED STUD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 024
                                                                                                                  MPN: 008604202
                                                                                                                  SEALING RING
                                                                                                                  from £0.99
                                                                                                                  from £0.99
                                                                                                                  # 025
                                                                                                                  MPN: 003101941
                                                                                                                  BOLT
                                                                                                                  from £2.64
                                                                                                                  from £2.64
                                                                                                                  # 026
                                                                                                                  MPN: 008401610
                                                                                                                  WASHER
                                                                                                                  from £6.32
                                                                                                                  from £6.32
                                                                                                                  # 027
                                                                                                                  MPN: 008931602
                                                                                                                  PLUG
                                                                                                                  from £3.03
                                                                                                                  from £3.03
                                                                                                                  # 028
                                                                                                                  MPN: 001304770
                                                                                                                  COLLETTORE ASPIRAZIONE DESTRO
                                                                                                                  # 029
                                                                                                                  MPN: 008801205
                                                                                                                  BUSH
                                                                                                                  from £13.69
                                                                                                                  from £13.69
                                                                                                                  # 030
                                                                                                                  MPN: 001301221
                                                                                                                  GASKET
                                                                                                                  from £11.59
                                                                                                                  from £11.59
                                                                                                                  # 031
                                                                                                                  MPN: 008581101
                                                                                                                  SEEGER RING
                                                                                                                  from £3.65
                                                                                                                  from £3.65
                                                                                                                  # 032
                                                                                                                  MPN: 008401215
                                                                                                                  WASHER
                                                                                                                  from £7.26
                                                                                                                  from £7.26
                                                                                                                  # 033
                                                                                                                  MPN: 001301222
                                                                                                                  GASKET
                                                                                                                  from £4.12
                                                                                                                  from £4.12
                                                                                                                  # 034
                                                                                                                  MPN: 001300804
                                                                                                                  TESTINA COMANDO CARBURATORE
                                                                                                                  from £7.38
                                                                                                                  from £7.38
                                                                                                                  # 035
                                                                                                                  MPN: 008200501
                                                                                                                  NUT
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 036
                                                                                                                  MPN: 008300506
                                                                                                                  THREADED STUD
                                                                                                                  from £51.07
                                                                                                                  from £51.07
                                                                                                                  # 037
                                                                                                                  MPN: 001300805
                                                                                                                  MOLLA
                                                                                                                  # 038
                                                                                                                  MPN: 001304706
                                                                                                                  CAVALLOTTO COMANDO ACCELERATORE
                                                                                                                  from £58.29
                                                                                                                  from £58.29
                                                                                                                  # 039
                                                                                                                  MPN: 001310650
                                                                                                                  CARBURATORE•DESTRO
                                                                                                                  from £366.47
                                                                                                                  from £366.47
                                                                                                                  # 039
                                                                                                                  MPN: SK2201
                                                                                                                  CARBURETTOR GASKET SET
                                                                                                                  40 DCOE 92/150 - 93/150
                                                                                                                  from £434.64
                                                                                                                  from £434.64
                                                                                                                  # 040
                                                                                                                  MPN: 001300290
                                                                                                                  GASKET
                                                                                                                  from £2.24
                                                                                                                  from £2.24
                                                                                                                  # 041
                                                                                                                  MPN: 001300289
                                                                                                                  SPESSORE
                                                                                                                  from £39.35
                                                                                                                  from £39.35
                                                                                                                  # 042
                                                                                                                  MPN: 001300291
                                                                                                                  GASKET
                                                                                                                  from £11.59
                                                                                                                  from £11.59
                                                                                                                  # 043
                                                                                                                  MPN: 008300823
                                                                                                                  THREADED STUD
                                                                                                                  from £4.37
                                                                                                                  from £4.37
                                                                                                                  # 044
                                                                                                                  MPN: 001308539
                                                                                                                  TESTINA SIN
                                                                                                                  # 046
                                                                                                                  MPN: 008830206
                                                                                                                  JUBILEE CLIP
                                                                                                                  from £12.56
                                                                                                                  from £12.56
                                                                                                                  # 047
                                                                                                                  MPN: 001313202
                                                                                                                  PIPE / TUBE / HOSE
                                                                                                                  from £10.95
                                                                                                                  from £10.95
                                                                                                                  # 048
                                                                                                                  MPN: 001313201
                                                                                                                  PIPE / TUBE / HOSE
                                                                                                                  from £12.11
                                                                                                                  from £12.11
                                                                                                                  # 049
                                                                                                                  MPN: 001313203
                                                                                                                  PIPE / TUBE / HOSE
                                                                                                                  # 050
                                                                                                                  MPN: 008830204
                                                                                                                  JUBILEE CLIP
                                                                                                                  from £5.43
                                                                                                                  from £5.43
                                                                                                                  # 051
                                                                                                                  MPN: 001309058
                                                                                                                  UNION
                                                                                                                  from £17.70
                                                                                                                  from £17.70
                                                                                                                  # 052
                                                                                                                  MPN: N10690001
                                                                                                                  NUT
                                                                                                                  from £318.19
                                                                                                                  from £318.19
                                                                                                                  # 053
                                                                                                                  MPN: 008300509
                                                                                                                  PRIGLONIERO
                                                                                                                  # 054
                                                                                                                  MPN: 008604001
                                                                                                                  GOMMINO TROMBETTE
                                                                                                                  from £6.43
                                                                                                                  from £6.43
                                                                                                                  # 056
                                                                                                                  MPN: 001306139
                                                                                                                  CARB. SINISTRO (G.BRET.-AUSTRALIA)
                                                                                                                  # 056
                                                                                                                  MPN: 004609315
                                                                                                                  CARB. SINISTRO (USA).
                                                                                                                  # 057
                                                                                                                  MPN: 001306138
                                                                                                                  CARB. DESTRO (G.BRET.- AUSTRALIA).
                                                                                                                  # 057
                                                                                                                  MPN: 004609314
                                                                                                                  CARB. DESTRO (USA)
                                                                                                                  # 058
                                                                                                                  MPN: 001313271
                                                                                                                  CORPO DEP. SIN. (G.BRET.)
                                                                                                                  from £559.65
                                                                                                                  from £559.65
                                                                                                                  # 058
                                                                                                                  MPN: 001313271
                                                                                                                  CORPO DEP. SIN. (USA)
                                                                                                                  from £559.65
                                                                                                                  from £559.65
                                                                                                                  # 059
                                                                                                                  MPN: 001313270
                                                                                                                  CORPO DEP. DES. (USA)
                                                                                                                  from £559.65
                                                                                                                  from £559.65
                                                                                                                  # 059
                                                                                                                  MPN: 001313272
                                                                                                                  CORPO DEP. DES.(G.BRET.)
