007.6 - Water circuit

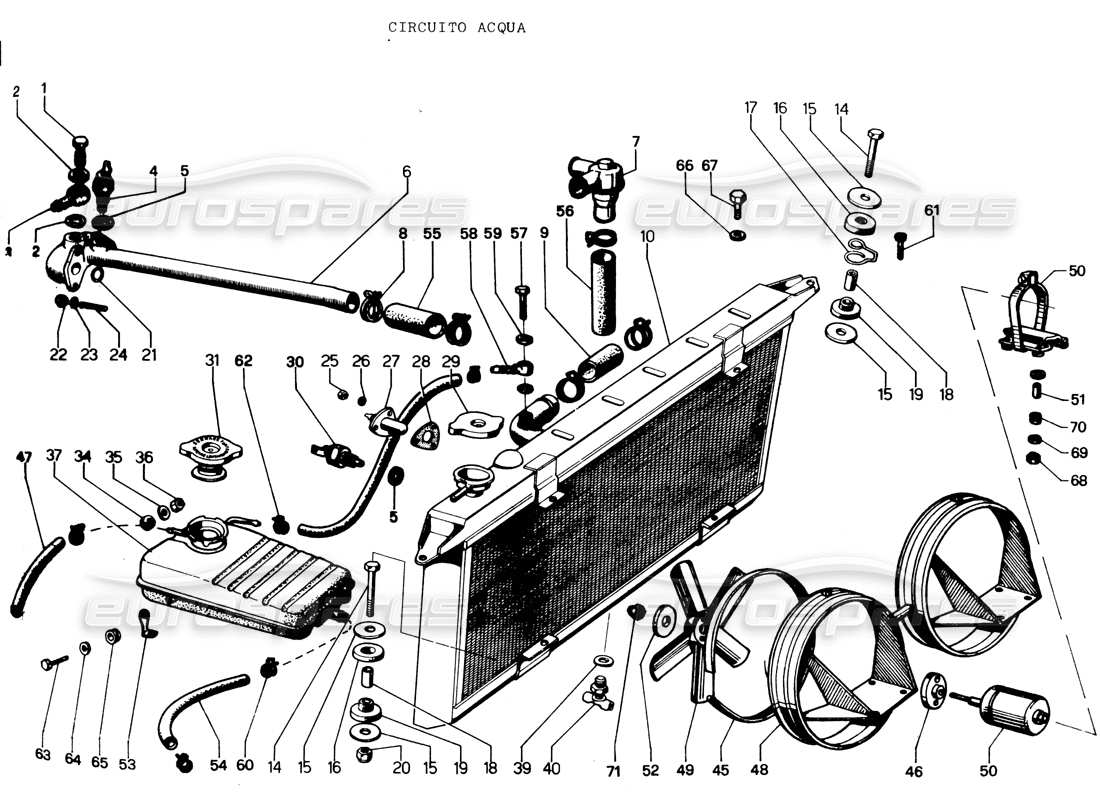

Lamborghini Espada Water circuit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 003101941
BOLT
from £2.64
from £2.64
# 002
MPN: 008401610
WASHER
from £6.32
from £6.32
# 003
MPN: 001708903
UNION
from £210.11
from £210.11
# 004
MPN: 001701646
TERMOCONTATTO SPIA ACQUA
# 005
MPN: 008401610
WASHER
from £6.32
from £6.32
# 006
MPN: 0011702498
TUBO ACQUA (DA 0 A 1000)
from £414.75
from £414.75
# 007
MPN: 001719309
THERMOSTAT
from £169.70
from £169.70
# 008
MPN: 008835004
JUBILEE CLIP
from £6.14
from £6.14
This part replaces part number 008830201
# 009
MPN: 001704585
MANICOTTO (DA 0 A 1000)
from £24.88
from £24.88
# 010
MPN: 0011709968
RADIATORE (651 A 1000)
# 011
MPN: 008100617
BOLT
from £3.65
from £3.65
# 012
MPN: 008400606
WASHER
Supersession
Supersession
# 013
MPN: 008200606
NUT
Supersession
Supersession
# 014
MPN: 008100831
BOLT
from £0.53
from £0.53
# 015
MPN: WHT001942
WASHER
from £2.06
from £2.06
# 016
MPN: WHT001189
RUBBER RING
from £2.38
from £2.38
This part replaces part number 001707163
# 018
MPN: 001701592
SPACER
from £11.72
from £11.72
# 019
MPN: 001701495
RUBBER GROMMET
from £32.99
from £32.99
# 020
MPN: 008200804
NUT
from £0.73
from £0.73
# 021
MPN: 008602303
SEALING RING
from £0.53
from £0.53
This part replaces part number GN-01236
# 022
MPN: 008200606
NUT
Supersession
Supersession
# 023
MPN: 008400606
WASHER
Supersession
Supersession
# 024
MPN: 008300608
STUD
from £0.66
from £0.66
# 025
MPN: 008200402
NUT
from £1.62
from £1.62
# 026
MPN: 008410402
WASHER
Supersession
Supersession
# 027
MPN: 001724565
TEMPERATURE SENDER UNIT
(Single terminal)
from £122.50
from £122.50
# 028
MPN: 001705504
GASKET
from £16.41
from £16.41
# 029
MPN: 001704590
TAPPO RADIATORE
from £56.55
from £56.55
# 030
MPN: 001801333
TERMOCOPIA
from £126.99
from £126.99
# 031
MPN: 001704296
TANK CAP 1,0 BAR
from £87.32
from £87.32
# 032
MPN: 008830204
JUBILEE CLIP
from £5.43
from £5.43
# 033
MPN: 001704587
TUBO (DA 0 A 1000)
from £13.98
from £13.98
# 034
MPN: 008610601
RUBBER GROMMET
from £3.16
from £3.16
# 035
MPN: 008400607
WASHER
Supersession
Supersession
# 036
MPN: 008200606
NUT
Supersession
Supersession
# 037
MPN: 001704579
SERB. SUPP.ACQUA (DA 0 A 1000)
# 038
MPN: 001708139
TUBO SCARICO ACQUA
# 039
MPN: 001701906
WASHER
Supersession
Supersession
# 040
MPN: 001701905
RUBINETTO
from £65.54
from £65.54
# 041
MPN: 001705153
RUBBER GROMMET
from £2.16
from £2.16
# 042
MPN: 001704947
ELETTROVENTILATORE
# 043
MPN: 008611202
RUBBER GROMMET
# 044
MPN: 008830108
JUBILEE CLIP
from £3.70
from £3.70
# 045
MPN: 001701803
GUARNIZIONRE
from £69.01
from £69.01
# 046
MPN: 001701631
WASHER
from £10.20
from £10.20
# 047
MPN: 001709981
FUBO
# 048
MPN: 001705649
SUPPORT
from £373.79
from £373.79
# 049
MPN: 001701405
VENTOLA
from £244.70
from £244.70
# 050

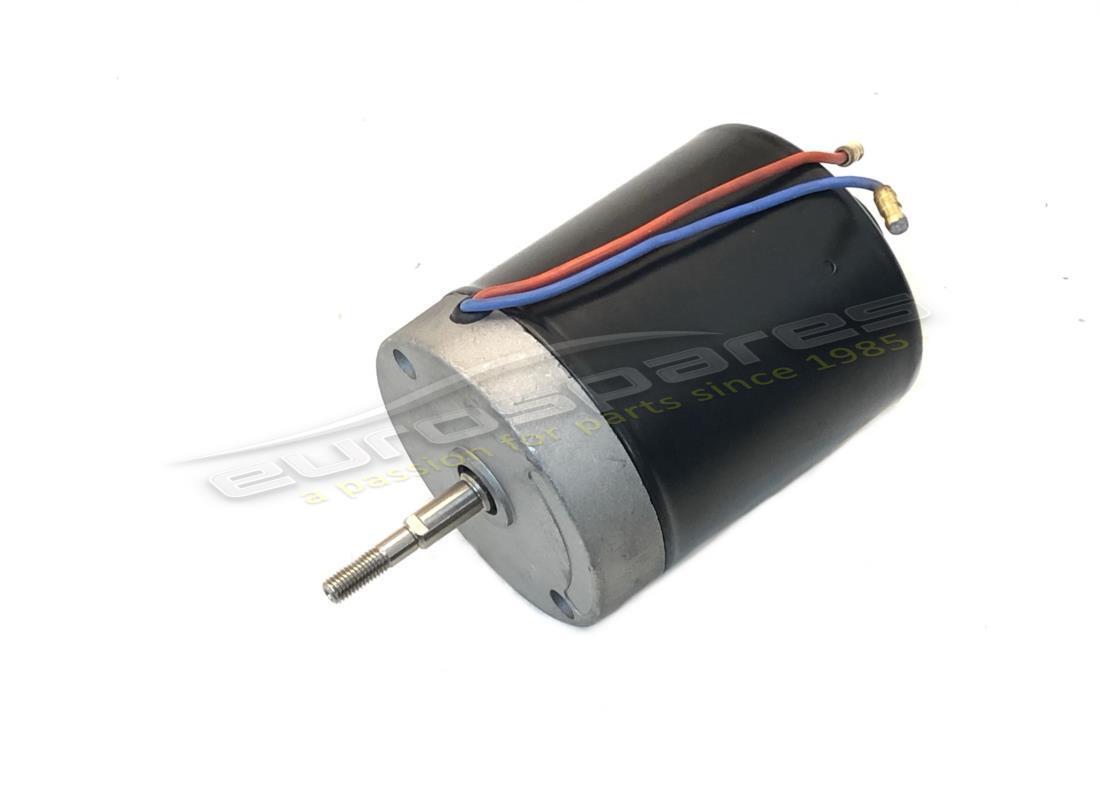

MPN: 001705166
MOTORINO
from £223.70
from £223.70
# 051
MPN: 006105650
SPACER
# 052
MPN: 001701531
WASHER
from £23.01
from £23.01
# 053
MPN: 001709979
SUPPORT
from £10.08
from £10.08
# 054
MPN: 001710007
PIPE / TUBE / HOSE
# 055
MPN: 001710433
PIPE / TUBE / HOSE
from £53.48
from £53.48
# 056
MPN: 001709991
PIPE / TUBE / HOSE
# 057
MPN: 001710465
SCREW
# 058
MPN: 001710464
UNION
from £3.86
from £3.86
# 059
MPN: 008401008
WASHER
Supersession
Supersession
# 060
MPN: 008830206
JUBILEE CLIP
from £12.56
from £12.56
# 061
MPN: 008700406
VITA
from £0.54
from £0.54
# 062
MPN: 008830204
JUBILEE CLIP
from £5.43
from £5.43
# 063
MPN: N01020717
BOLT
from £0.47
from £0.47
This part replaces part number 008100504
# 064
MPN: 008400501
WASHER
from £0.53
from £0.53
# 065
MPN: 008610701
RUBBER GROMMET
from £18.62
from £18.62
# 066
MPN: 008410603
WASHER
Supersession
Supersession
# 067
MPN: 008100620
BOLT
from £3.65
from £3.65
# 068
MPN: 008200403
NUT
from £1.58
from £1.58
# 069
MPN: 008400501
WASHER
from £0.48
from £0.48
# 070
MPN: 008610501
GOMMINI
from £14.31
from £14.31
# 071
MPN: 008200608
NUT
from £3.70
from £3.70
# 072
MPN: 008410502
WASHER
Supersession
Supersession
