059.3 - Electrical System: Dashboard and Battery (RH Drive)

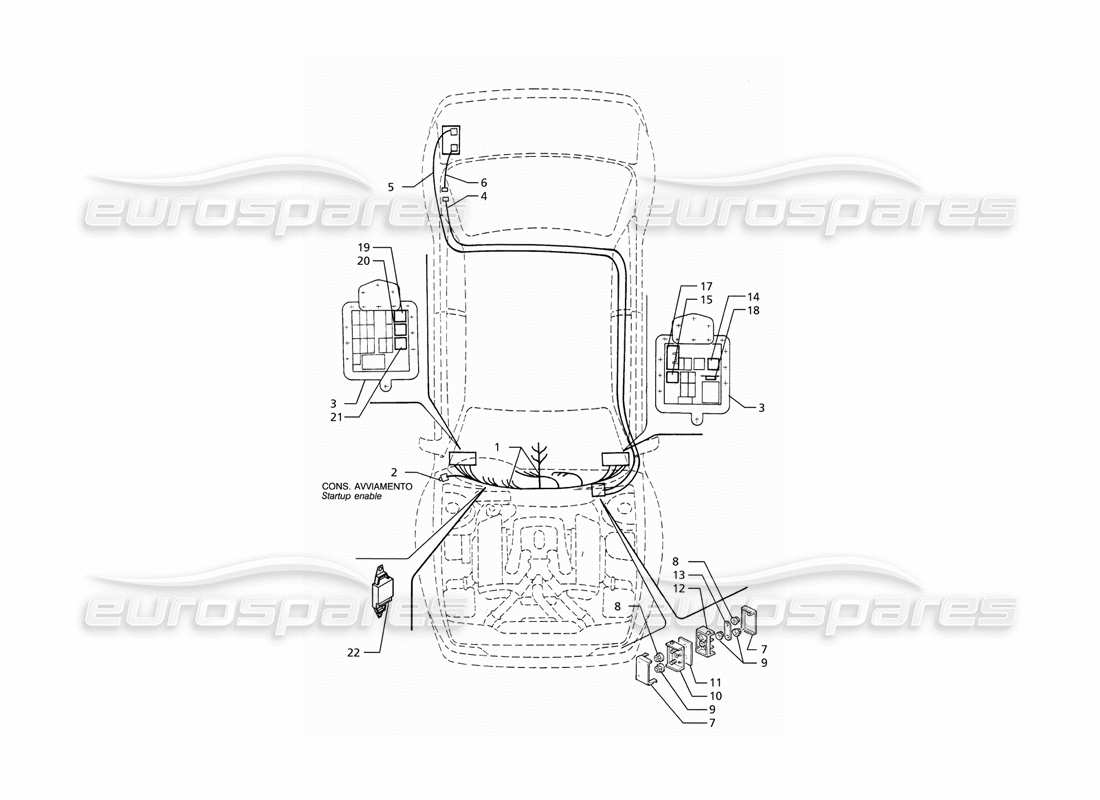

Maserati Ghibli 2.8 (ABS) Electrical System: Dashboard and Battery (R.H.Drive) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
363017107
DASHBOARD WIRING
- Valid for 22, 21 version
from
£308.28
from
£308.28
#
002
MPN:
373000121
STARTUP ENABLE CONNECTOR
- Valid for 22, 21 version
from
£1.24
from
£1.24
#
003
MPN:
373000102
RELAY / FUSE SUPPORT
- Valid for 22, 21 version
from
£19.25
from
£19.25
#
004
MPN:
373000126
GROUND CABLE
- Valid for 22, 21 version
from
£4.42
from
£4.42
#
005
MPN:
363017149
BATTERY POSITIVE CABLE
- Valid for 22, 21 version
from
£68.95
from
£68.95
#
006
MPN:
373000150
BATTERY NEGATIVE CABLE
- Valid for 22, 21 version
from
£11.19
from
£11.19
#
007
MPN:
393050340
COVER
- Valid for 22, 21 version
Supersession
Supersession
#
008
MPN:
122600080
NUT
- Valid for 22, 21 version
#
009
MPN:
122600060
NUT
- Valid for 22, 21 version
#
010
MPN:
393050342
BODY WITH COUPLINGS
- Valid for 22, 21 version
from
£10.16
from
£10.16
#
011
MPN:
393050343
GASKET
- Valid for 22, 21 version
from
£1.56
from
£1.56
#
012
MPN:
393050341
INSULATING BODY
- Valid for 22, 21 version
from
£2.17
from
£2.17
#
013
MPN:
393050344
CONNECTOR
- Valid for 22, 21 version
from
£1.80
from
£1.80
#
014
MPN:
313320134
BOSCH RELAY
- Valid for 22, 21 version
from
£17.10
from
£17.10
This part replaces part number 184101
#
015
MPN:
373300112
BELTS DEVICE
- Valid for 22, 21 version
from
£68.19
from
£68.19
#
017
MPN:
323320193
DOOR LOCK CONTROL UNIT
- Valid for 22, 21 version
from
£23.22
from
£23.22
#
018
MPN:
373000124
HEAT PROTECTION
- Valid for 22, 21 version
from
£7.18
from
£7.18
#
019
MPN:
30331161
SERVICES RELAY (BLUE)
- Valid for 22, 21 version
#
020
MPN:
363302115
INTERMITTANCE
- Valid for 22, 21 version
from
£7.25
from
£7.25
This part replaces part number 313320115
#
021
MPN:
313351139
ELECTRIC HORNS RELAY (GREY)
- Valid for 22, 21 version
from
£3.02
from
£3.02
This part replaces part number 30331137
#
022
MPN:
373300129
INSIDE LIGHT TIMER
- Valid for 22, 21 version
from
£20.96
from
£20.96
This part replaces part number 363302129
