058 - Electrical System: Engine Compartment (LH Drive)

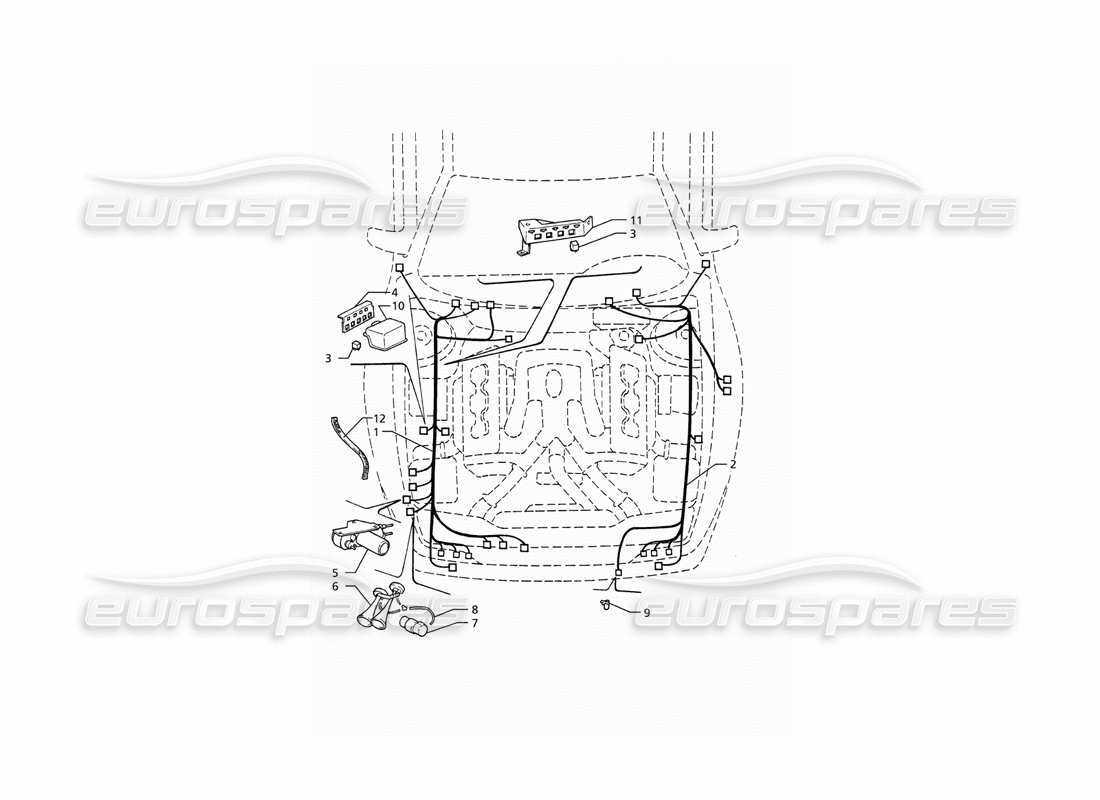

Maserati Ghibli 2.8 (ABS) Electrical System: Engine Compartment (L.H.Drive) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
363002142
ENGINE COMPARTMENT RH WIRING
- Valid for 09, 10 and 02 version
from
£145.31
from
£145.31
#
002
MPN:
363002143
ENGINE COMPARTMENT LH WIRING
- Valid for 09, 10 and 02 version
from
£70.30
from
£70.30
#
003
MPN:
313320134
BOSCH RELAY
- Valid for 09, 10 and 02 version
from
£16.96
from
£16.96
This part replaces part number 184101
#
004
MPN:
313052303
RELAY SUPPORT
- Valid for 09, 10 and 02 version
from
£5.09
from
£5.09
#
005
MPN:
325520172
VACUUM PUMP
- Valid for 09, 10 and 02 version
from
£99.75
from
£99.75
#
006
MPN:
313320006
HORN ASSY
- Valid for 09, 10 and 02 version
from
£28.52
from
£28.52
#
007
MPN:
313320146
COMPRESSOR
- Valid for 09, 10 and 02 version
from
£56.34
from
£56.34
#
008
MPN:
314020316
TUBE
- Valid for 09, 10 and 02 version
from
£1.80
from
£1.80
This part replaces part number 313320325
#
009
MPN:
393650307
EXTERNAL TEMPERATURE SENSOR
- Valid for 09, 10 and 02 version
from
£27.65
from
£27.65
#
010
MPN:
313052337
RELAY PROTECTION
- Valid for 09, 10 and 02 version
from
£13.47
from
£13.47
#
011
MPN:
313753109
RELAY SUPPORT
- Valid for 09, 10 and 02 version
from
£3.63
from
£3.63
#
012
MPN:
393050151
ENGINE/CHASSIS GROUND BRAID
- Valid for 09, 10 and 02 version
from
£3.75
from
£3.75
