Maserati Ghibli 2.8 (ABS) Air Conditioning System (RH Drive) With R134A Gas Parts Diagram

021.3 - Air Conditioning System (RH Drive) With R134A Gas

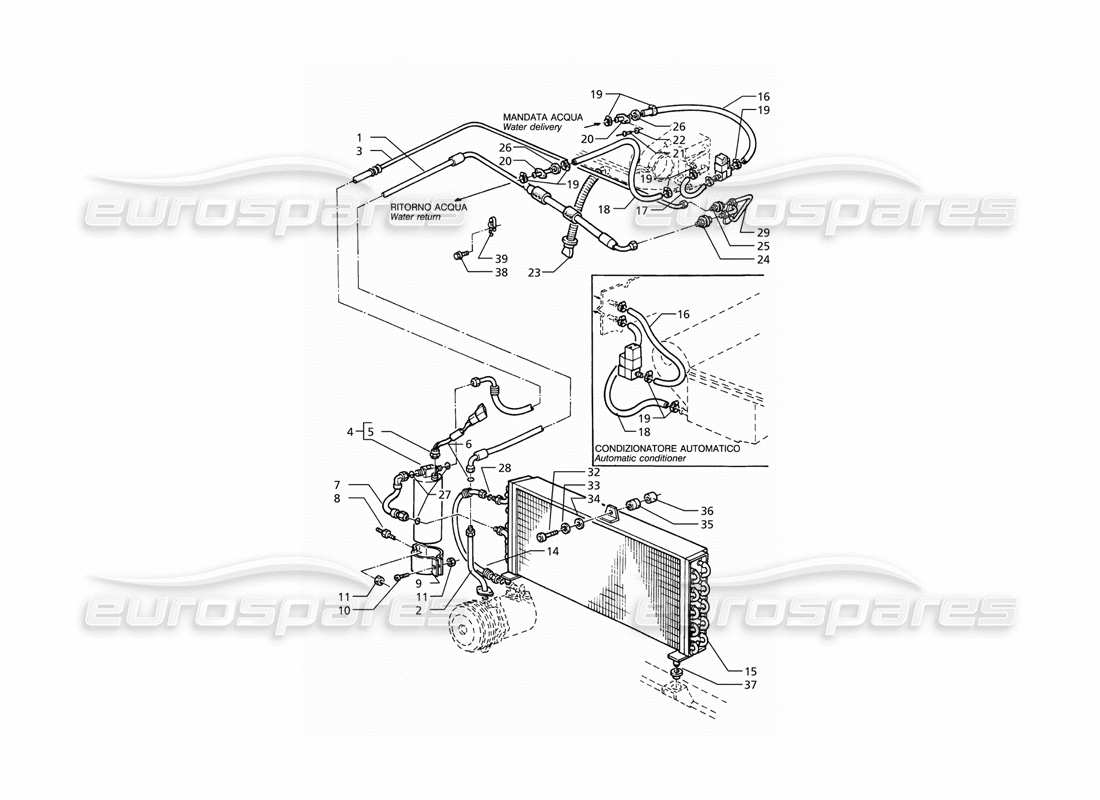

Maserati Ghibli 2.8 (ABS) Air Conditioning System (R.H.Drive) With R134A Gas Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 375515173
    FREON RETURN LINE
    - Valid for 22, 21 version
    from £54.47
    from £54.47
    # 002
    MPN: 375515185
    FREON RETURN LINE ON COMPR.
    - Valid for 22, 21 version
    from £16.40
    from £16.40
    # 003
    MPN: 365517182
    FREON DELIVERY LINE TO EVAPOR.
    - Valid for 22, 21 version
    from £33.65
    from £33.65
    # 004
    MPN: 375500174
    FILTER ASSY
    - Valid for 22, 21 version
    from £103.03
    from £103.03
    # 005
    MPN: 365502175
    MAX. AND MIN. CAPACITY PRESSURE SWITCH
    - Valid for 22, 21 version
    from £95.21
    from £95.21
    # 006
    MPN: 315520445
    RING 1/2 FREON LINE
    - Valid for 22, 21 version
    from £0.70
    from £0.70
    # 007
    MPN: 365517181
    FREON LINE COND. TO FILTER
    - Valid for 22, 21 version
    from £46.84
    from £46.84
    # 008
    MPN: 479009120
    PLATE
    - Valid for 22, 21 version
    from £23.26
    from £23.26
    # 009
    MPN: 375500301
    CLAMP
    - Valid for 22, 21 version
    from £4.70
    from £4.70
    # 010
    MPN: 101206025
    SCREW
    - Valid for 22, 21 version
    # 011
    MPN: 128300060
    NUT
    - Valid for 22, 21 version
    Supersession
    Supersession
    # 014
    MPN: 365500262
    FREON DELIVERY LINE TO COND.
    - Valid for 22, 21 version
    from £32.45
    from £32.45
    This part replaces part number 365500179
    # 015
    MPN: 395550220
    BIRANGO CONDENSER
    - Valid for 22, 21 version
    from £582.45
    from £582.45
    This part replaces part number 325555220 - and 1 more. Click to view details
    # 016
    MPN: 315520479
    WATER LINE
    - Valid for 22, 21 version
    from £8.27
    from £8.27
    # 017
    MPN: 315520480
    WATER LINE
    - Valid for 22, 21 version
    from £2.06
    from £2.06
    # 018
    MPN: 315520481
    WATER LINE
    - Valid for 22, 21 version
    from £7.91
    from £7.91
    # 019
    MPN: 186402028
    CLAMP
    - Valid for 22, 21 version
    from £1.57
    from £1.57
    # 020
    MPN: 315520370
    CONNECTION
    - Valid for 22, 21 version
    from £0.71
    from £0.71
    # 021
    MPN: 164323413
    RIVET
    - Valid for 22, 21 version
    # 022
    MPN: 169020005
    FLAT WASHER
    - Valid for 22, 21 version
    from £1.10
    from £1.10
    # 023
    MPN: 315520017
    CONDENSATE DRAINAGE TUBE
    - Valid for 22, 21 version
    from £1.77
    from £1.77
    # 024
    MPN: 31331303
    FAIRLEAD
    - Valid for 22, 21 version
    from £1.07
    from £1.07
    # 025
    MPN: 315520371
    FAIRLEAD
    - Valid for 22, 21 version
    from £0.64
    from £0.64
    # 026
    MPN: 315520372
    GASKET
    - Valid for 22, 21 version
    from £0.70
    from £0.70
    # 027
    MPN: 315520443
    3/8 O RING FOR FREON
    - Valid for 22, 21 version
    from £0.70
    from £0.70
    # 028
    MPN: 315520444
    3/8 O RING FOR FREON
    - Valid for 22, 21 version
    from £0.70
    from £0.70
    # 029
    MPN: 375515111
    DELIVERY AND RETURN ASSY
    - Valid for 22, 21 version
    from £49.13
    from £49.13
    # 032
    MPN: 101206020
    SCREW
    - Valid for 22, 21 version
    # 033
    MPN: 135300064
    SPRING WASHER
    - Valid for 22, 21 version
    # 034
    MPN: 135900064
    FLAT WASHER
    - Valid for 22, 21 version
    from £0.47
    from £0.47
    # 035
    MPN: 315570375
    RING
    - Valid for 22, 21 version
    # 036
    MPN: 315520376
    SPACER
    - Valid for 22, 21 version
    from £3.68
    from £3.68
    # 037
    MPN: 189453
    BUSH
    from £1.10
    from £1.10
    This part replaces part number 374030312
    # 038
    MPN: 108006012
    FLANGED BOLT
    - Valid for 22, 21 version
    from £0.54
    from £0.54
    # 039
    MPN: 97804
    CLAMP
    - Valid for 22, 21 version
    Supersession
    Supersession
