maserati ghibli 2.8 (abs) wheel rims parts diagram

043 - Wheel Rims

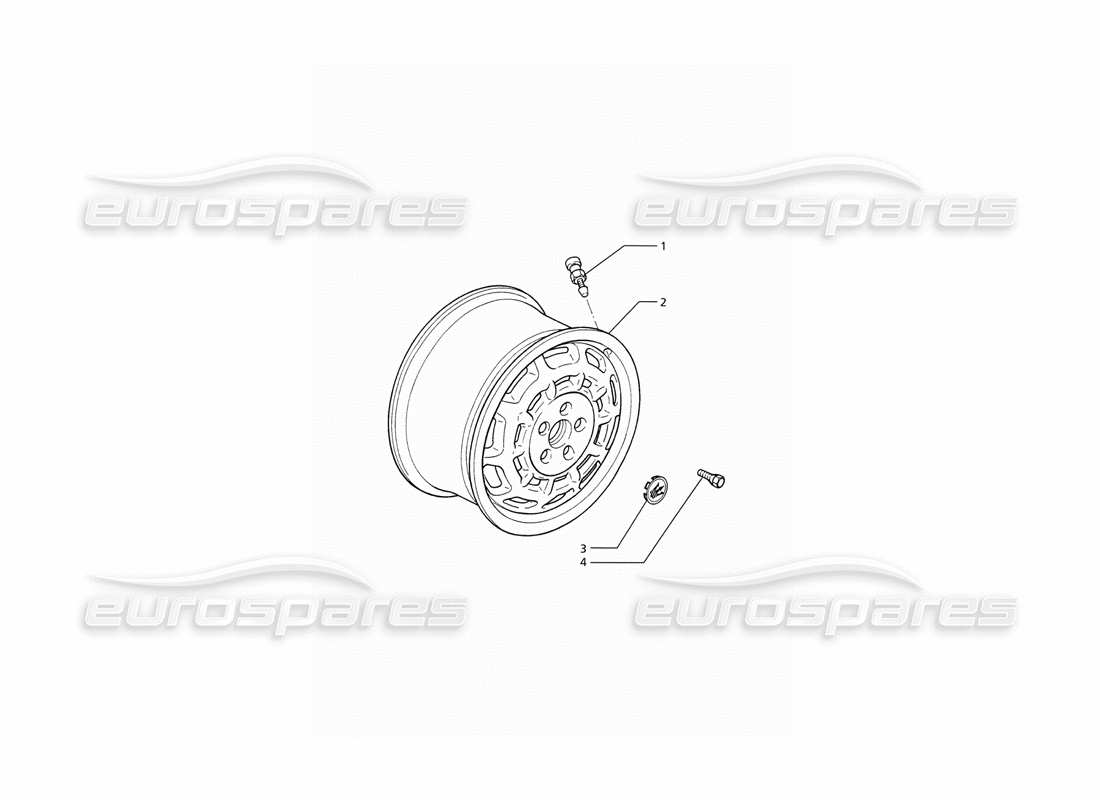

Maserati Ghibli 2.8 (ABS) Wheel Rims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 317250104
        TUBELESS VALVE
        from £5.43
        from £5.43
        This part replaces part number 317220103
        # 002
        MPN: 367201378
        7J X 16 FRONT WHEEL RIM
        from £166.41
        from £166.41
        # 002
        MPN: 367201380
        8J X 16 REAR WHEEL RIM
        from £145.77
        from £145.77
        # 003
        MPN: 367202106

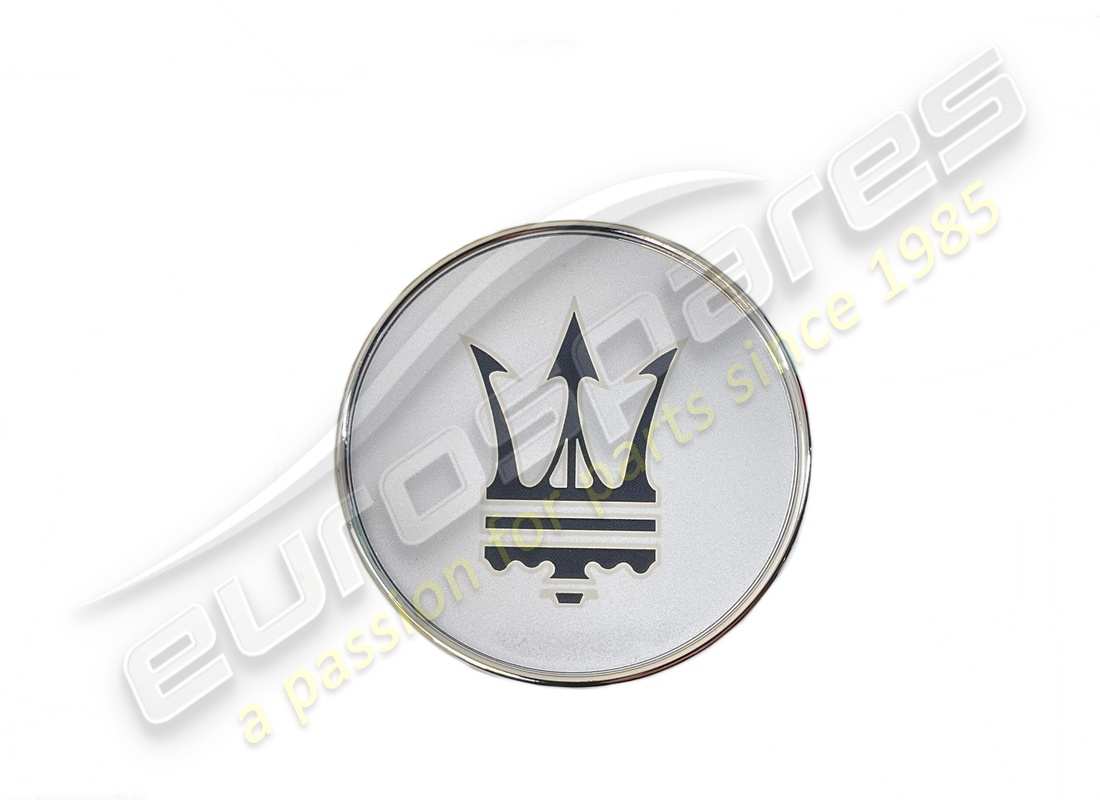

        Badge
        from £83.06
        from £83.06
        # 004
        MPN: 377200308
        RIM SECURING SCREW
        from £5.51
        from £5.51
        # 004
        MPN: 377200308LB
        LOCKING WHEEL BOLT
        Set of 4x bolts and 1x tool
