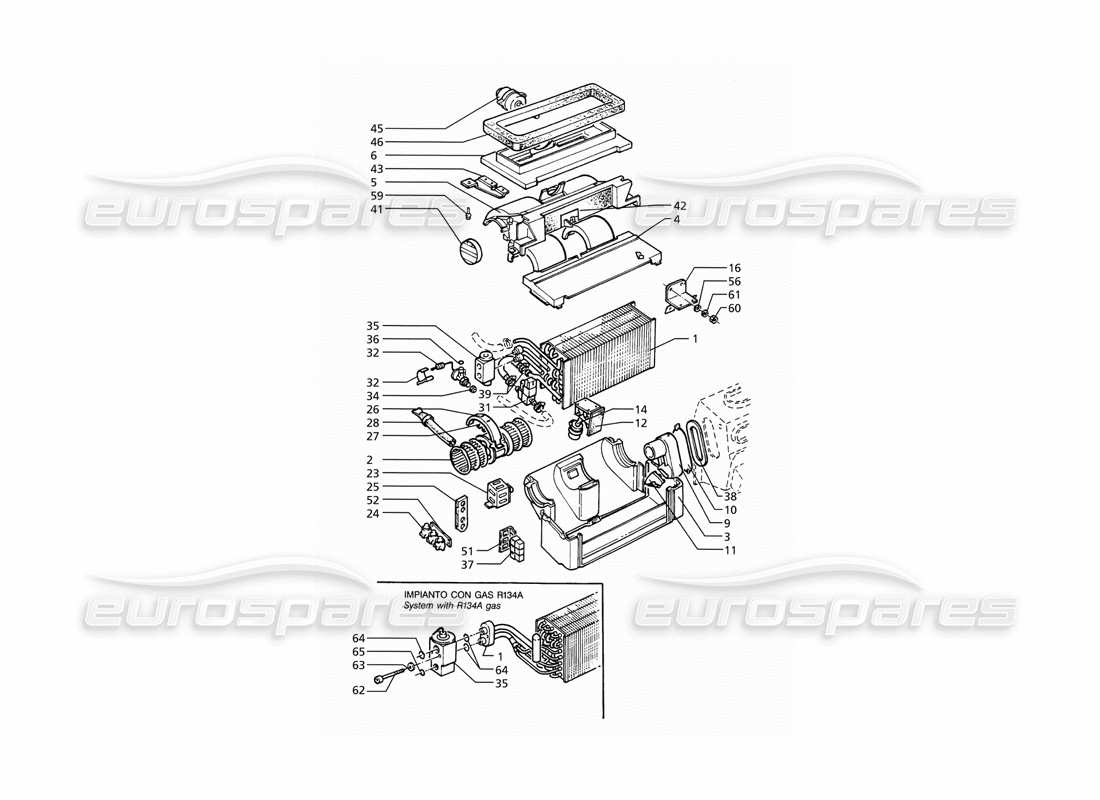

072 - Automatic Air Conditioner Assy (RH Drive)
Maserati Ghibli 2.8 (ABS) Automatic Air Conditioner Assy (R.H.Drive) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
MPN:
375515165/A
COMPLETE HEATER BOX
Valid For RHD
from
£735.00
from
£735.00
#
001
MPN:
315570165
HEATER EVAPORATOR
- Valid for 22, 21 version - For system with Freon R12
from
£175.36
from
£175.36
#
001
MPN:
375515165
HEATER EVAPORATOR
- Valid for 22, 21 version - For system with R134A gas
from
£366.01
from
£366.01
#
002
MPN:
315520167
ELECTRIC FAN
- Valid for 22, 21 version
from
£220.23
from
£220.23
#
003
MPN:
315570380
LOWER BOX
- Valid for 22, 21 version
from
£17.16
from
£17.16
#
004
MPN:
315520381
INTERMEDIATE BOX
- Valid for 22, 21 version
from
£12.68
from
£12.68
#
005
MPN:
315520382
UPPER BOX
- Valid for 22, 21 version
from
£7.73
from
£7.73
#
006
MPN:
315520470
CONVEYOR
- Valid for 22, 21 version
from
£42.14
from
£42.14
#
009
MPN:
315520473
RH NOZZLE FOR AIR
- Valid for 22, 21 version
from
£8.48
from
£8.48
#
009
MPN:
315520474
LH NOZZLE FOR AIR
from
£8.48
from
£8.48
#
010
MPN:
315520163
DOOR FOR LH NOZZLE
- Valid for 22, 21 version
from
£3.21
from
£3.21
This part replaces part number 315520129
#
010
MPN:
315520164
DOOR FOR RH NOZZLE
- Valid for 22, 21 version
from
£4.13
from
£4.13
This part replaces part number 315520130
#
011
MPN:
315520387
VENT
- Valid for 22, 21 version
from
£18.64
from
£18.64
#
012
MPN:
315520018
LOWER DOOR ASSY
- Valid for 22, 21 version
from
£10.38
from
£10.38
#
014
MPN:
315520158
ACTUATOR TO CONTROL DOOR
- Valid for 22, 21 version
from
£9.20
from
£9.20
#
016
MPN:
315520138
PAD TO SUPPORT CONDITIONER
- Valid for 22, 21 version
from
£3.24
from
£3.24
#
023
MPN:
315520143
RESISTANCE
- Valid for 22, 21 version
from
£17.20
from
£17.20
#
024
MPN:
315520207
PNEUMATIC SYSTEM SOLENOID VALVE
- Valid for 22, 21 version
from
£41.27
from
£41.27
#
025
MPN:
315520475
GASKET
- Valid for 22, 21 version
#
026
MPN:
315520402
PAD
- Valid for 22, 21 version
#
027
MPN:
315520403
BUMPER
- Valid for 22, 21 version
#
028
MPN:
315520017
DRAIN PIPE
- Valid for 22, 21 version
from
£1.76
from
£1.76
#
031
MPN:
315522144
COCK, ASSY
- Valid for 22, 21 version
from
£396.93
from
£396.93
#
032
MPN:
315520166
EXPANSION VALVE
- Valid for 22, 21 version
from
£77.02
from
£77.02
#
033
MPN:
315520408
PROBE FIXING SPRING
- Valid for 22, 21 version
from
£1.93
from
£1.93
#
034
MPN:
315520445
SEAL RING
- Valid for 22, 21 version
from
£0.69
from
£0.69
#
035
MPN:
315553166
BLOCK EXPANSION VALVE
- Valid for 22, 21 version - For system with Freon R12
from
£66.47
from
£66.47
#
035
MPN:
375500166
BLOCK EXPANSION VALVE
- Valid for 22, 21 version - For system with R134A gas
from
£58.13
from
£58.13
#
036
MPN:
315520443
SEAL RING
- Valid for 22, 21 version
from
£1.04
from
£1.04
#
037
MPN:
313351139
RELAY WITH RESISTOR
- Valid for 22, 21 version
from
£2.99
from
£2.99
This part replaces part number 30331137
#
038
MPN:
315520483
GASKET
- Valid for 22, 21 version
from
£3.83
from
£3.83
#
039
MPN:
315520415
CLAMP
- Valid for 22, 21 version
#
041
MPN:
315551416
THROTTLE FLAP
- Valid for 22, 21 version
from
£4.63
from
£4.63
#
042
MPN:
315520136
AIR CONTROL DOOR
- Valid for 22, 21 version
#
043
MPN:
315520419
LH PAD FIX. CONDITIONER
- Valid for 22, 21 version
#
043
MPN:
315520420
RH PAD FIX. CONDITIONER
- Valid for 22, 21 version
#
045
MPN:
315520160
ACTUATOR FOR AIR DOOR
- Valid for 22, 21 version
from
£3.84
from
£3.84
#
046
MPN:
315520422
GASKET
- Valid for 22, 21 version
from
£2.90
from
£2.90
#
051
MPN:
315520477
BRACKET
- Valid for 22, 21 version
from
£18.09
from
£18.09
#
052
MPN:
315520478
SOLENOID VALVE BRACKET
- Valid for 22, 21 version
#
056
MPN:
169020406
WASHER
- Valid for 22, 21 version
from
£0.77
from
£0.77
#
059
MPN:
314320345
SCREW
- Valid for 22, 21 version
from
£41.65
from
£41.65
#
060
MPN:
125100060
NUT
- Valid for 22, 21 version
#
061
MPN:
135600060
WASHER
- Valid for 22, 21 version
from
£0.77
from
£0.77
#
062
MPN:
14304821
SCREW
- Valid for 22, 21 version - For system with R134A gas
from
£0.53
from
£0.53
#
063
MPN:
84157
WASHER
- Valid for 22, 21 version - For system with R134A gas
Supersession
Supersession
#
064
MPN:
375500458
GROMMET
- Valid for 22, 21 version
from
£5.28
from
£5.28
#
065
MPN:
375500457
GROMMET
- Valid for 22, 21 version
from
£3.60
from
£3.60
-part-diagram-072.1.webp "MASERATI GHIBLI 2.8 (ABS) AUTOMATIC AIR CONDITIONER ASSY (RH DRIVE) PARTS DIAGRAM")
-part-diagram-001.webp "MASERATI GHIBLI 2.8 (ABS) GASKETS AND SEALS FOR HEADS OVERHAUL PARTS DIAGRAM")
-part-diagram-002.webp "MASERATI GHIBLI 2.8 (ABS) GASKETS AND OIL SEALS FOR BLOCK OVERHAUL PARTS DIAGRAM")
-part-diagram-003.webp "MASERATI GHIBLI 2.8 (ABS) CYLINDER BLOCK AND OIL SUMP PARTS DIAGRAM")
-part-diagram-004.webp "MASERATI GHIBLI 2.8 (ABS) FASTENINGS AND BLOCK ACCESSORIES PARTS DIAGRAM")
-part-diagram-005.webp "MASERATI GHIBLI 2.8 (ABS) CRANKSHAFT, PISTONS, CONRODS & FLYWHEEL PARTS DIAGRAM")
-part-diagram-006.webp "MASERATI GHIBLI 2.8 (ABS) CYLINDER HEADS PARTS DIAGRAM")
-part-diagram-007.webp "MASERATI GHIBLI 2.8 (ABS) TIMING PARTS DIAGRAM")
-part-diagram-008.webp "MASERATI GHIBLI 2.8 (ABS) TIMING CONTROL PARTS DIAGRAM")
-part-diagram-008.1.webp "MASERATI GHIBLI 2.8 (ABS) TIMING CONTROL PARTS DIAGRAM")
-part-diagram-009.webp "MASERATI GHIBLI 2.8 (ABS) OIL PUMP AND WATER PUMP PARTS DIAGRAM")
-part-diagram-009.1.webp "MASERATI GHIBLI 2.8 (ABS) ENGINE OIL COOLING PARTS DIAGRAM")
-part-diagram-010.webp "MASERATI GHIBLI 2.8 (ABS) INTAKE AND EXHAUST MANIFOLD THROTTLE VALVE BODY PARTS DIAGRAM")
-part-diagram-011.webp "MASERATI GHIBLI 2.8 (ABS) VACUUM SYSTEM (LH DRIVE) PARTS DIAGRAM")
-part-diagram-011.1.webp "MASERATI GHIBLI 2.8 (ABS) VACUUM SUSTEM (RH DRIVE) PARTS DIAGRAM")
-part-diagram-012.webp "MASERATI GHIBLI 2.8 (ABS) WATER COOLED TURBOBLOWERS PARTS DIAGRAM")
-part-diagram-012.1.webp "MASERATI GHIBLI 2.8 (ABS) TURBOBLOWERS LUBRICATION PARTS DIAGRAM")
-part-diagram-012.2.webp "MASERATI GHIBLI 2.8 (ABS) BOOST CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-012.3.webp "MASERATI GHIBLI 2.8 (ABS) POP OFF VALVE SYSTEM PARTS DIAGRAM")
-part-diagram-013.webp "MASERATI GHIBLI 2.8 (ABS) INJECTION SYSTEM ACCESSORIES PARTS DIAGRAM")
-part-diagram-014.webp "MASERATI GHIBLI 2.8 (ABS) AIR FILTER AND DUCTS PARTS DIAGRAM")
-part-diagram-014.1.webp "MASERATI GHIBLI 2.8 (ABS) OIL VAPOUR RECOVERY PARTS DIAGRAM")
-part-diagram-015.webp "MASERATI GHIBLI 2.8 (ABS) HEAT EXCHANGER PIPES LH SIDE PARTS DIAGRAM")
-part-diagram-015.1.webp "MASERATI GHIBLI 2.8 (ABS) HEAT EXCHANGER PIPES RH SIDE PARTS DIAGRAM")
-part-diagram-016.webp "MASERATI GHIBLI 2.8 (ABS) IGNITION SYSTEM TIMING PARTS DIAGRAM")
-part-diagram-016.1.webp "MASERATI GHIBLI 2.8 (ABS) IGNITION SYSTEM TIMING: SENSORS PARTS DIAGRAM")
-part-diagram-017.webp "MASERATI GHIBLI 2.8 (ABS) DELCO ALTERNATOR PARTS DIAGRAM")
-part-diagram-018.webp "MASERATI GHIBLI 2.8 (ABS) STARTING MOTOR PARTS DIAGRAM")
-part-diagram-019.webp "MASERATI GHIBLI 2.8 (ABS) ENGINE COOLING PIPES AND THERMOSTAT PARTS DIAGRAM")
-part-diagram-020.webp "MASERATI GHIBLI 2.8 (ABS) RADIATOR AND COOLING FANS PARTS DIAGRAM")
-part-diagram-021.webp "MASERATI GHIBLI 2.8 (ABS) AIR CONDITIONING SYSTEM (LH DRIVE) WITH FREON R12 PARTS DIAGRAM")
-part-diagram-021.1.webp "MASERATI GHIBLI 2.8 (ABS) AIR CONDITIONING SYSTEM (LH DRIVE) WITH R134A GAS PARTS DIAGRAM")
-part-diagram-021.2.webp "MASERATI GHIBLI 2.8 (ABS) AIR CONDITIONING SYSTEM (RH DRIVE) WITH FREON R12 PARTS DIAGRAM")
-part-diagram-021.3.webp "MASERATI GHIBLI 2.8 (ABS) AIR CONDITIONING SYSTEM (RH DRIVE) WITH R134A GAS PARTS DIAGRAM")
-part-diagram-021.4.webp "MASERATI GHIBLI 2.8 (ABS) AIR COMPRESSOR AND BRACKETS PARTS DIAGRAM")
-part-diagram-022.webp "MASERATI GHIBLI 2.8 (ABS) EVAPORATION VAPOURS RECOVERY SYSTEM AND FUEL PIPES PARTS DIAGRAM")
-part-diagram-023.webp "MASERATI GHIBLI 2.8 (ABS) FUEL TANK PARTS DIAGRAM")
-part-diagram-024.webp "MASERATI GHIBLI 2.8 (ABS) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-025.webp "MASERATI GHIBLI 2.8 (ABS) CLUTCH PARTS DIAGRAM")
-part-diagram-026.webp "MASERATI GHIBLI 2.8 (ABS) GETRAG MANUAL TRANSMISSION 6 SPEED PARTS DIAGRAM")
-part-diagram-026.1.webp "MASERATI GHIBLI 2.8 (ABS) GETRAG TRANSMISSION 6 SPEED: OUTSIDE CONTROLS PARTS DIAGRAM")
-part-diagram-027.webp "MASERATI GHIBLI 2.8 (ABS) GETRAG MANUAL TRANSMISSION 5 SPEED PARTS DIAGRAM")
-part-diagram-027.1.webp "MASERATI GHIBLI 2.8 (ABS) GETRAG TRANSMISSION 5 SPEED: OUTSIDE CONTROLS PARTS DIAGRAM")
-part-diagram-028.webp "MASERATI GHIBLI 2.8 (ABS) AUTOMATIC TRANSMISSION CONVERTER (4HP) PARTS DIAGRAM")
-part-diagram-028.1.webp "MASERATI GHIBLI 2.8 (ABS) AUTOMATIC TRANSMISSION (4HP) OUTSIDE CONTROLS PARTS DIAGRAM")
-part-diagram-028.2.webp "MASERATI GHIBLI 2.8 (ABS) AUTOMATIC TRANSMISSION (4HP) OIL RADIATOR PARTS DIAGRAM")
-part-diagram-029.webp "MASERATI GHIBLI 2.8 (ABS) PROPELLER SHAFT AND CARRIER PARTS DIAGRAM")
-part-diagram-030.webp "MASERATI GHIBLI 2.8 (ABS) DIFFERENTIAL WITH RADIATOR PARTS DIAGRAM")
-part-diagram-030.1.webp "MASERATI GHIBLI 2.8 (ABS) DIFFERENTIAL EXTENSION PARTS DIAGRAM")
-part-diagram-031.webp "MASERATI GHIBLI 2.8 (ABS) STEERING COLUMN AND WHEEL PARTS DIAGRAM")
-part-diagram-032.webp "MASERATI GHIBLI 2.8 (ABS) STEERING BOX FRONT SUBFRAME PARTS DIAGRAM")
-part-diagram-033.webp "MASERATI GHIBLI 2.8 (ABS) POWER STEERING SYSTEM (LH DRIVE RH DRIVE) PARTS DIAGRAM")
-part-diagram-034.webp "MASERATI GHIBLI 2.8 (ABS) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-034.1.webp "MASERATI GHIBLI 2.8 (ABS) STALIBILIZER BAR PARTS DIAGRAM")
-part-diagram-035.webp "MASERATI GHIBLI 2.8 (ABS) FRONT SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-036.webp "MASERATI GHIBLI 2.8 (ABS) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-037.webp "MASERATI GHIBLI 2.8 (ABS) ELECTRONIC CONTROL REAR SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-038.webp "MASERATI GHIBLI 2.8 (ABS) HUBS AND FRONT BRAKES WITH A.B.S. PARTS DIAGRAM")
-part-diagram-039.webp "MASERATI GHIBLI 2.8 (ABS) HUBS, REAR BRAKES WITH A.B.S. AND DRIVE SHAFTS PARTS DIAGRAM")
-part-diagram-040.webp "MASERATI GHIBLI 2.8 (ABS) HANDBRAKE CONTROL PARTS DIAGRAM")
-part-diagram-041.webp "MASERATI GHIBLI 2.8 (ABS) PEDAL ASSY AND CLUTCH PUMP FOR LH DRIVE (MANUAL AND AUTOM. TRANSMISSION) PARTS DIAGRAM")
-part-diagram-041.1.webp "MASERATI GHIBLI 2.8 (ABS) PEDAL ASSY AND CLUTCH PUMP FOR RH DRIVE (MANUAL AND AUTOM. TRANSMISSION) PARTS DIAGRAM")
-part-diagram-042.webp "MASERATI GHIBLI 2.8 (ABS) ABS HYDRAULIC BRAKE LINES PARTS DIAGRAM")
-part-diagram-043.webp "MASERATI GHIBLI 2.8 (ABS) WHEEL RIMS PARTS DIAGRAM")
-part-diagram-044.webp "MASERATI GHIBLI 2.8 (ABS) BODY SHELL: OUTER PANELS PARTS DIAGRAM")
-part-diagram-044.1.webp "MASERATI GHIBLI 2.8 (ABS) BODY SHELL: OUTER PANELS PARTS DIAGRAM")
-part-diagram-045.webp "MASERATI GHIBLI 2.8 (ABS) BODY SHELL: INNER PANELS PARTS DIAGRAM")
-part-diagram-045.1.webp "MASERATI GHIBLI 2.8 (ABS) BODY SHELL: INNER PANELS PARTS DIAGRAM")
-part-diagram-045.2.webp "MASERATI GHIBLI 2.8 (ABS) BODY SHELL: FRONT PANEL AND BONNET PARTS DIAGRAM")
-part-diagram-045.3.webp "MASERATI GHIBLI 2.8 (ABS) BODY SHELL: ROOF PANEL,DOORS AND BOOT LID PARTS DIAGRAM")
-part-diagram-046.webp "MASERATI GHIBLI 2.8 (ABS) BONNET: HINGES AND BONNET RELEASE PARTS DIAGRAM")
-part-diagram-046.1.webp "MASERATI GHIBLI 2.8 (ABS) BONNET AND ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-047.webp "MASERATI GHIBLI 2.8 (ABS) BOOT LID: HINGES, BOOT LID RELEASE PARTS DIAGRAM")
-part-diagram-047.1.webp "MASERATI GHIBLI 2.8 (ABS) BOOT: CARPETS PARTS DIAGRAM")
-part-diagram-048.webp "MASERATI GHIBLI 2.8 (ABS) TOOLS PARTS DIAGRAM")
-part-diagram-049.webp "MASERATI GHIBLI 2.8 (ABS) DOORS: HINGES AND INNER CONTROLS PARTS DIAGRAM")
-part-diagram-050.webp "MASERATI GHIBLI 2.8 (ABS) DOORS: WINDOWS AND REGULATORS PARTS DIAGRAM")
-part-diagram-051.webp "MASERATI GHIBLI 2.8 (ABS) FIXED WINDOWS PARTS DIAGRAM")
-part-diagram-052.webp "MASERATI GHIBLI 2.8 (ABS) EXTERNAL FINISHING BADGES PARTS DIAGRAM")
-part-diagram-053.webp "MASERATI GHIBLI 2.8 (ABS) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-054.webp "MASERATI GHIBLI 2.8 (ABS) REAR BUMPER PARTS DIAGRAM")
-part-diagram-055.webp "MASERATI GHIBLI 2.8 (ABS) WINDSCREEN WIPER WASHER (LH DRIVE) PARTS DIAGRAM")
-part-diagram-055.1.webp "MASERATI GHIBLI 2.8 (ABS) WINDSCREEN WIPER WASHER (RH DRIVE) PARTS DIAGRAM")
-part-diagram-056.webp "MASERATI GHIBLI 2.8 (ABS) FRONT LIGHTS PARTS DIAGRAM")
-part-diagram-057.webp "MASERATI GHIBLI 2.8 (ABS) REAR LIGHTS PARTS DIAGRAM")
-part-diagram-058.webp "MASERATI GHIBLI 2.8 (ABS) ELECTRICAL SYSTEM: ENGINE COMPARTMENT (LH DRIVE) PARTS DIAGRAM")
-part-diagram-058.1.webp "MASERATI GHIBLI 2.8 (ABS) ELECTRICAL SYSTEM: ENGINE COMPARTMENT (RH DRIVE) PARTS DIAGRAM")
-part-diagram-058.2.webp "MASERATI GHIBLI 2.8 (ABS) ELECTRICAL SYSTEM: A.B.S. AND 'KONI' SUSPENSION (LH DRIVE) PARTS DIAGRAM")
-part-diagram-058.3.webp "MASERATI GHIBLI 2.8 (ABS) ELECTRICAL SYSTEM: A.B.S. AND 'KONI' SUSPENSION (RH DRIVE) PARTS DIAGRAM")
-part-diagram-059.webp "MASERATI GHIBLI 2.8 (ABS) ELECTRICAL SYSTEM: BOOT-DOORS-PASSANGER COMPARTMENT (LH DRIVE) PARTS DIAGRAM")
-part-diagram-059.1.webp "MASERATI GHIBLI 2.8 (ABS) ELECTRICAL SYSTEM: BOOT-DOORS-PASSANGER COMPARTMENT (RH DRIVE) PARTS DIAGRAM")
-part-diagram-059.2.webp "MASERATI GHIBLI 2.8 (ABS) ELECTRICAL SYSTEM: DASHBOARD AND BATTERY (LH DRIVE) PARTS DIAGRAM")
-part-diagram-059.3.webp "MASERATI GHIBLI 2.8 (ABS) ELECTRICAL SYSTEM: DASHBOARD AND BATTERY (RH DRIVE) PARTS DIAGRAM")
-part-diagram-060.webp "MASERATI GHIBLI 2.8 (ABS) BORLETTI INSTRUMENTATION PARTS DIAGRAM")
-part-diagram-061.webp "MASERATI GHIBLI 2.8 (ABS) SWITCHES AND STEERING LOCK PARTS DIAGRAM")
-part-diagram-062.webp "MASERATI GHIBLI 2.8 (ABS) INSTRUMENT PANEL (LH DRIVE) PARTS DIAGRAM")
-part-diagram-062.1.webp "MASERATI GHIBLI 2.8 (ABS) INSTRUMENT PANEL (RH DRIVE) PARTS DIAGRAM")
-part-diagram-063.webp "MASERATI GHIBLI 2.8 (ABS) CONSOLE PARTS DIAGRAM")
-part-diagram-064.webp "MASERATI GHIBLI 2.8 (ABS) INNER TRIM: ROOF PARTS DIAGRAM")
-part-diagram-064.1.webp "MASERATI GHIBLI 2.8 (ABS) INNER TRIMS: PILLARS PARTS DIAGRAM")
-part-diagram-065.webp "MASERATI GHIBLI 2.8 (ABS) INNER TRIMS: PANELS PARTS DIAGRAM")
-part-diagram-066.webp "MASERATI GHIBLI 2.8 (ABS) FRONT AND REAR SEATS PARTS DIAGRAM")
-part-diagram-066.1.webp "MASERATI GHIBLI 2.8 (ABS) FRONT SEATS STRUCTURE PARTS DIAGRAM")
-part-diagram-067.webp "MASERATI GHIBLI 2.8 (ABS) SEAT BELTS PARTS DIAGRAM")
-part-diagram-068.webp "MASERATI GHIBLI 2.8 (ABS) REAR VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-069.webp "MASERATI GHIBLI 2.8 (ABS) PASSENGER COMPARTMENT CARPETS PARTS DIAGRAM")
-part-diagram-069.1.webp "MASERATI GHIBLI 2.8 (ABS) INSULATION PARTS DIAGRAM")
-part-diagram-070.webp "MASERATI GHIBLI 2.8 (ABS) PASSENGER COMPARTMENT VENTILATION PARTS DIAGRAM")
-part-diagram-071.webp "MASERATI GHIBLI 2.8 (ABS) AUTOMATIC AIR CONDITIONER ASSY (LH DRIVE) PARTS DIAGRAM")
-part-diagram-071.1.webp "MASERATI GHIBLI 2.8 (ABS) AUTOMATIC AIR CONDITIONER ASSY (LH DRIVE) PARTS DIAGRAM")
