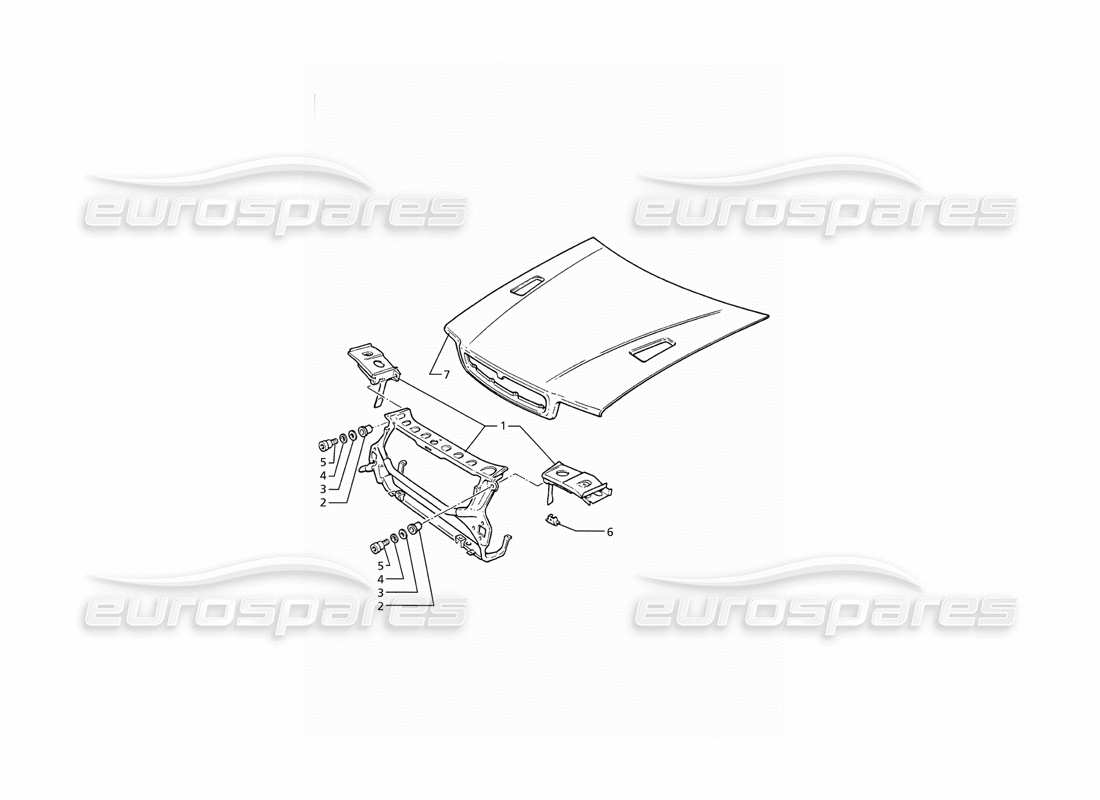

045.2 - Body Shell: Front Panel and Bonnet
Maserati Ghibli 2.8 (ABS) Body Shell: Front Panel and Bonnet Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 361100200
MOVABLE FRONTAL ASSY
from £866.38
from £866.38
# 002
MPN: 391350576
BUSHING
from £17.85
from £17.85
# 003
MPN: 14496601
FLAT WASHER
Supersession
Supersession
# 004
MPN: 138200100
SPRING WASHER
# 005
MPN: 391350577
SCREW
from £4.91
from £4.91
# 006
MPN: 361300562
HEADLIGHTS SUPPORT
from £1.56
from £1.56
# 007
MPN: 364300100
BONNET ASSY
from £3,690.82
from £3,690.82
