063 - Console

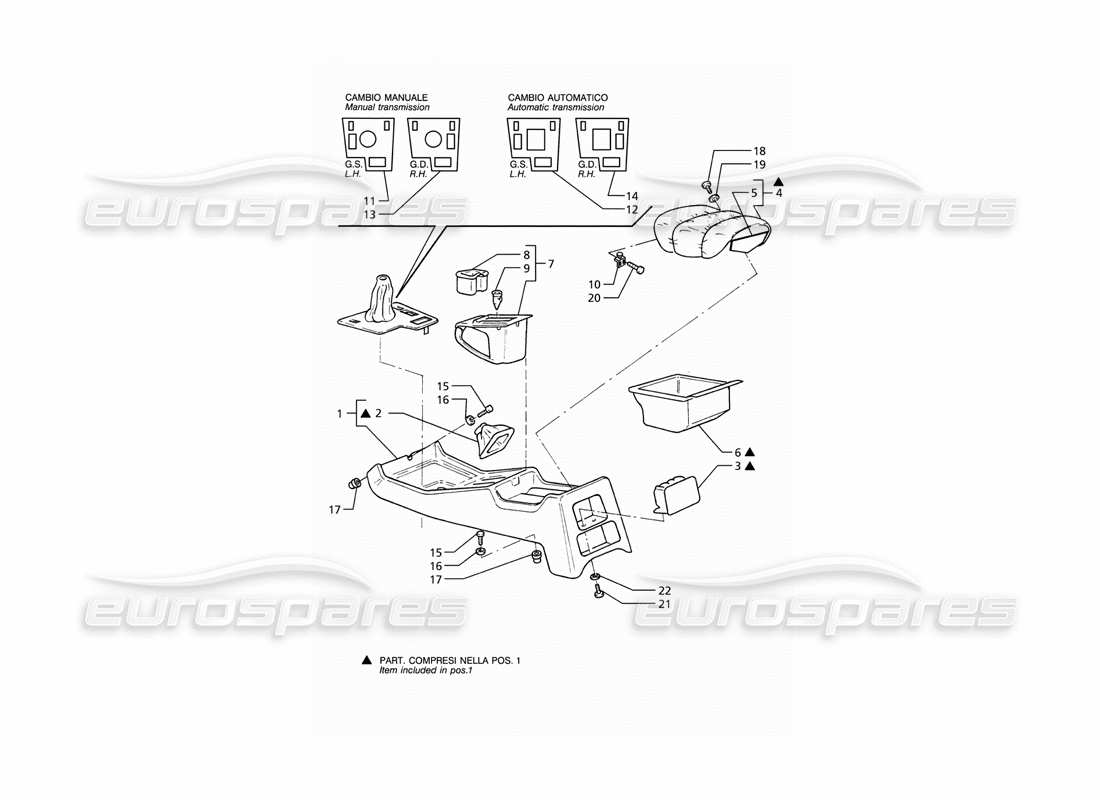

Maserati Ghibli 2.8 (ABS) Console Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 318951148
CONSOLE (IVORY LEATHER)
from £535.61
from £535.61
# 001
MPN: 319953148
CONSOLE (GREY LEATHER)
from £535.61
from £535.61
# 001
MPN: 319953348
CONSOLE (BLACK LEATHER)
from £548.75
from £548.75
# 001
MPN: 339100148
CONSOLE (BEIGE LEATHER)
from £535.61
from £535.61
# 002
MPN: 328912247
HAND BRAKE LEVER BOOT (IVORY LEATHER)
from £18.47
from £18.47
# 002
MPN: 329956247
HAND BRAKE LEVER BOOT (GREY LEATHER)
from £12.26
from £12.26
# 002
MPN: 329956277
HAND BRAKE LEVER BOOT (BLACK LEATHER)
from £18.24
from £18.24
# 002
MPN: 399100277
HAND BRAKE LEVER BOOT (BEIGE LEATHER)
from £5.96
from £5.96
# 003
MPN: 328156137
REAR ASH TRAY (GREY LEATHER)
from £10.05
from £10.05
# 003
MPN: 328156139
REAR ASH TRAY (BLACK LEATHER)
from £21.56
from £21.56
# 003
MPN: 328912122
REAR ASH TRAY (IVORY LEATHER)
from £37.72
from £37.72
# 003
MPN: 339120122
REAR ASH TRAY (BEIGE LEATHER)
Supersession
Supersession
# 004
MPN: 318951181
CONSOLE CUSHION (IVORY LEATHER)
from £27.93
from £27.93
# 004
MPN: 319953181
CONSOLE CUSHION (GREY LEATHER)
from £28.31
from £28.31
# 004
MPN: 319953361
CONSOLE CUSHION (BLACK LEATHER)
from £121.67
from £121.67
# 004
MPN: 339100181
CONSOLE CUSHION (BEIGE LEATHER)
from £27.93
from £27.93
# 005
MPN: 318351556
HINGE
from £1.93
from £1.93
# 006
MPN: 318353511
OBJECT TRAY
from £10.68
from £10.68
# 007
MPN: 328153022
FRONT ASH TRAY
from £144.92
from £144.92
This part replaces part number 318153022
# 008
MPN: 318153334
CONTAINER
# 009
MPN: 53336115
CIGAR LIGHTER
from £29.46
from £29.46
# 010
MPN: 318353549
PUSH BUTTON
from £1.70
from £1.70
# 011
MPN: 368902182
M. GEAR LEVER PANEL (IVORY LEATHER)
- Valid for 10 and 02 version
from £64.02
from £64.02
# 011
MPN: 369100185
M. GEAR LEVER PANEL (BEIGE LEATHER)
- Valid for 10 and 02 version
from £22.21
from £22.21
# 011
MPN: 369900184
M. GEAR LEVER PANEL (GREY LEATHER)
- Valid for 10 and 02 version
from £64.02
from £64.02
# 011
MPN: 369900233
M. GEAR LEVER PANEL (BLACK LEATHER)
- Valid for 10 and 02 version
from £64.02
from £64.02
# 012
MPN: 368909182
A. GEAR LEVER PANEL (IVORY LEATHER)
- Valid for 09 version
from £64.02
from £64.02
# 012
MPN: 369106190
A. GEAR LEVER PANEL (BEIGE LEATHER)
- Valid for 09 version
from £45.94
from £45.94
# 012
MPN: 369906180
A. GEAR LEVER PANEL (GREY LEATHER)
- Valid for 09 version
from £64.02
from £64.02
# 012
MPN: 369906236
A. GEAR LEVER PANEL (BLACK LEATHER)
- Valid for 09 version
from £64.02
from £64.02
# 013
MPN: 368921282
M. GEAR LEVER PANEL (IVORY LEATHER)
- Valid for 21 version
from £64.02
from £64.02
# 013
MPN: 369115187
M. GEAR LEVER PANEL (BEIGE LEATHER)
- Valid for 21 version
from £64.02
from £64.02
# 013
MPN: 369915183
M. GEAR LEVER PANEL (GREY LEATHER)
- Valid for 21 version
from £13.43
from £13.43
# 013
MPN: 369915234
M. GEAR LEVER PANEL (BLACK LEATHER)
- Valid for 21 version
from £64.02
from £64.02
# 014
MPN: 368922282
A. GEAR LEVER PANEL (IVORY LEATHER)
- Valid for 22 version
# 014
MPN: 369116191
A. GEAR LEVER PANEL (BEIGE LEATHER)
- Valid for 22 version
from £64.02
from £64.02
# 014
MPN: 369916182
A. GEAR LEVER PANEL (GREY LEATHER)
- Valid for 22 version
from £64.02
from £64.02
# 014
MPN: 369916237
A. GEAR LEVER PANEL (BLACK LEATHER)
- Valid for 22 version
from £64.02
from £64.02
# 015
MPN: 119142160
SCREW
- As necessary
from £0.85
from £0.85
# 016
MPN: 135900043
WASHER
- As necessary
from £1.08
from £1.08
This part replaces part number 14496207
# 017
MPN: 318320341
NUT SCREW
- As necessary
from £0.69
from £0.69
This part replaces part number 14229280
# 018
MPN: 119342160
SCREW
# 019
MPN: 135000043
WASHER
from £1.08
from £1.08
# 020
MPN: 119529095
SCREW
# 021
MPN: 112805010
SCREW
# 022
MPN: 169020005
WASHER
from £1.08
from £1.08
