maserati qtp. 3.2 v8 (1999) electrical system: a.b.s. and 'koni' suspension (lh drive) parts diagram

058.1 - Electrical System: A.B.S. and 'Koni' Suspension (LH Drive)

Maserati QTP. 3.2 V8 (1999) Electrical System: A.B.S. and 'Koni' Suspension (L.H. Drive) Parts Diagram

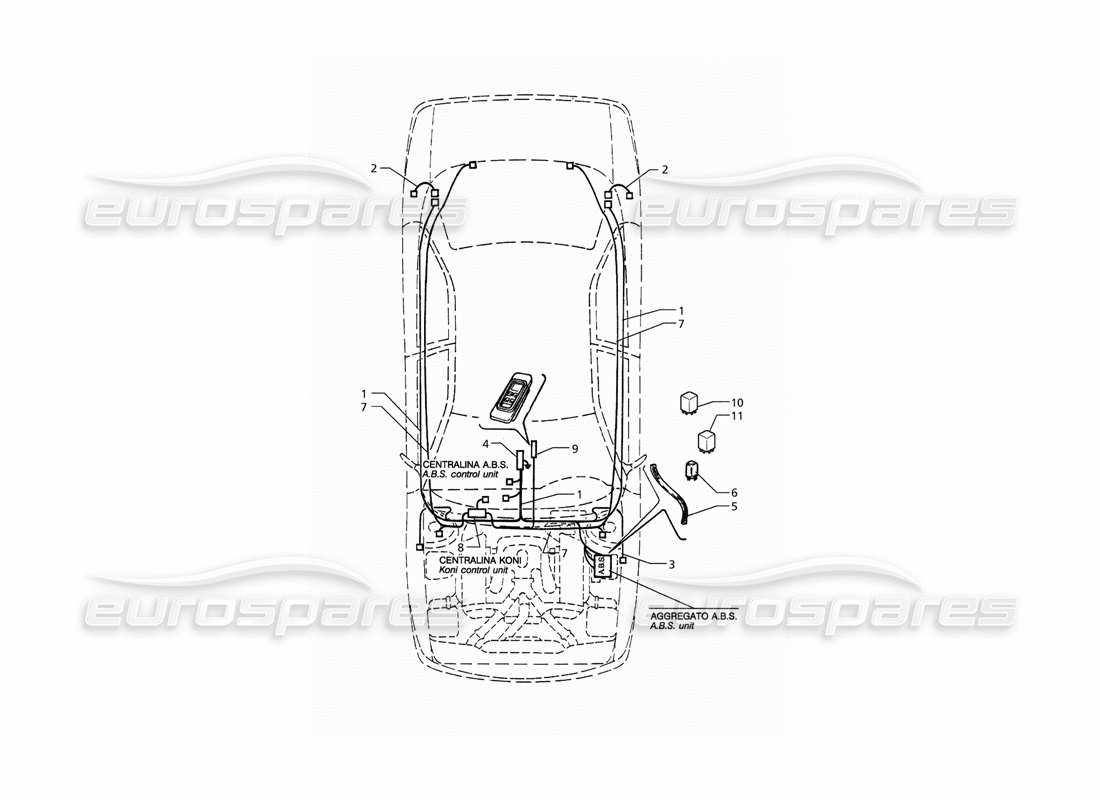

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 363802106
A.B.S. WIRING
- Valid for 06, 05 and 00 version
from £161.65
from £161.65
# 002
MPN: 363802105
A.B.S. REAR SENSOR
- Valid for 06, 05 and 00 version
from £26.82
from £26.82
# 003
MPN: 363802112
A.B.S. FRONT SENSOR EXTENSION
- Valid for 06, 05 and 00 version
from £73.49
from £73.49
# 004
MPN: 363802104
A.B.S. CONTROL UNIT
- Valid for 06, 05 and 00 version
from £603.75
from £603.75
# 005
MPN: 363802118
GROUND BRAID
- Valid for 06, 05 and 00 version
from £5.05
from £5.05
# 006
MPN: 363802110
RELAY PROTECTION
- Valid for 06, 05 and 00 version
from £34.77
from £34.77
# 007
MPN: 363902105
KONI WIRING
- Valid for 06, 05 and 00 version
from £90.17
from £90.17
# 008
MPN: 323951104
KONI CONTROL UNIT
- Valid for 06, 05 and 00 version
from £210.00
from £210.00
This part replaces part number 313953101 - and 1 more. Click to view details
# 009
MPN: 313953100
KONI ADJ. BUTTON
- Valid for 06, 05 and 00 version
from £267.24
from £267.24
# 010
MPN: 363802120
ABS PUMP RELAY
- Valid for 06, 05 and 00 version
from £36.70
from £36.70
# 011
MPN: 363802121
SOLENOID VALVE PUMP RELAY
- Valid for 06, 05 and 00 version
from £13.46
from £13.46
