maserati qtp. 3.2 v8 (1999) timing control (pre modification) parts diagram

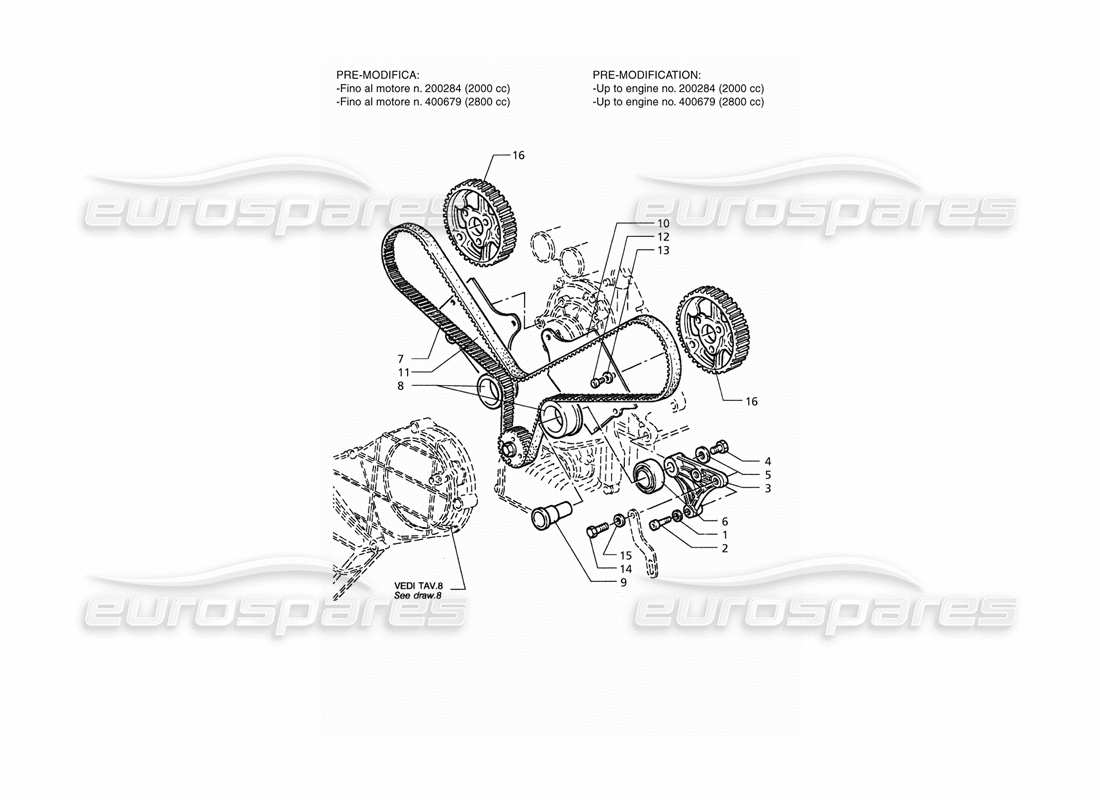

008.1 - timing control (pre modification)

Maserati QTP. 3.2 V8 (1999) Timing Control (Pre Modification) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 002
                                  MPN: 311020320
                                  SCREW
                                  from £1.32
                                  from £1.32
                                  # 005
                                  MPN: 319055315
                                  WASHER
                                  from £1.08
                                  from £1.08
                                  # 006
                                  MPN: 311020107
                                  TIMING BEARING
                                  from £99.75
                                  from £99.75
                                  # 007
                                  MPN: 98025
                                  TIMING BELT
                                  from £33.60
                                  from £33.60
                                  This part replaces part number 391050341
                                  # 008
                                  MPN: 311020350
                                  BEARING COVER
                                  from £56.75
                                  from £56.75
                                  # 009
                                  MPN: 321053343
                                  PIN FOR FIXED SUPPORT
                                  from £63.56
                                  from £63.56
                                  This part replaces part number 311053343
                                  # 010
                                  MPN: 571035900

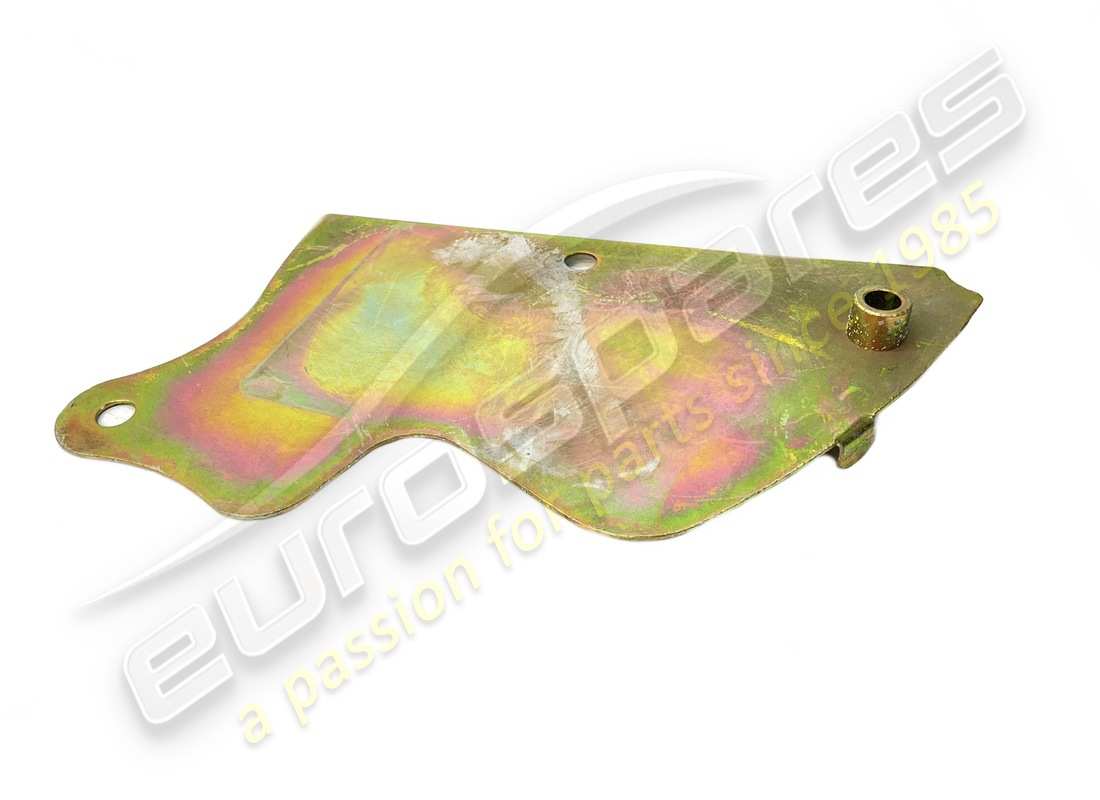

                                  L. H. BACK PLATE
                                  from £9.70
                                  from £9.70
                                  # 011
                                  MPN: 571036000
                                  R. H. BACK PLATE
                                  from £8.23
                                  from £8.23
                                  # 013
                                  MPN: 311620303
                                  FLAT WASHER
                                  from £1.08
                                  from £1.08
                                  # 016
                                  MPN: 571035402
                                  SHIM PULLEY
                                  from £238.16
                                  from £238.16
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
