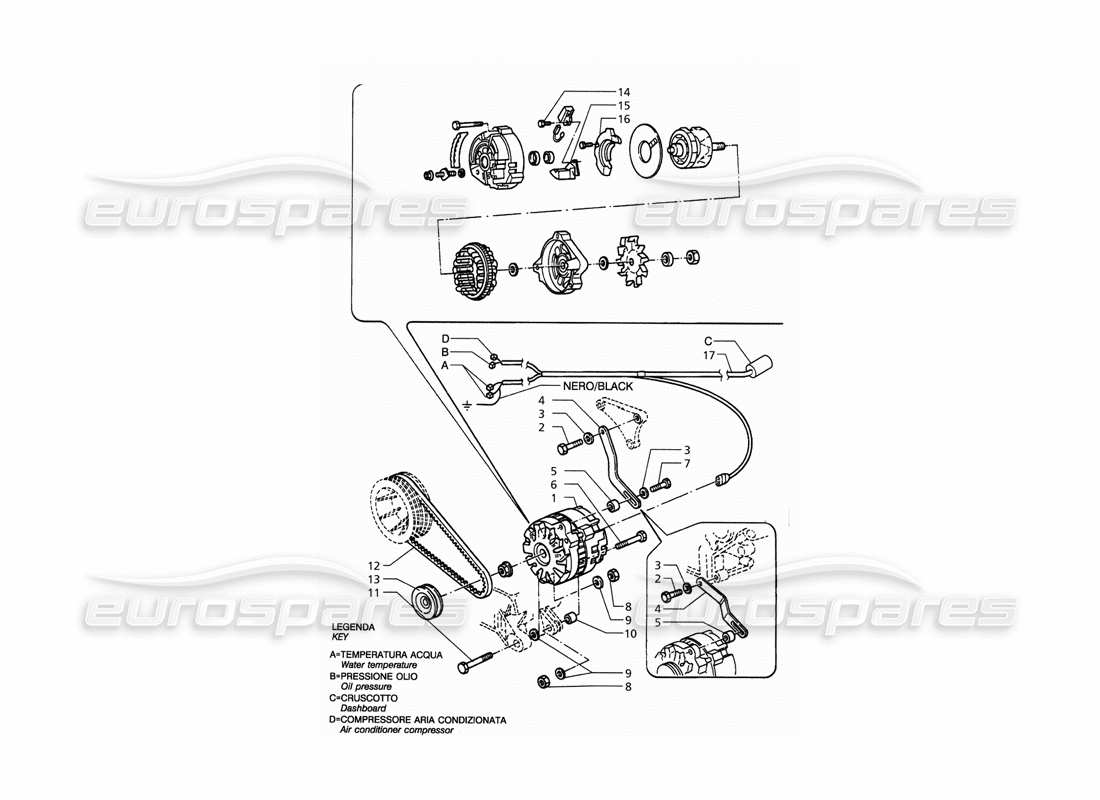

017 - Delco Alternator
Maserati QTP. 3.2 V8 (1999) Delco Alternator Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 393050214
ALTERNATOR (DELCO)
Also Biturbo 2,8 cc.
from £871.92
from £871.92
This part replaces part number 313053214
# 002
MPN: 100708040
SCREW
# 003
MPN: 317832393
WASHER
# 004
MPN: 313053407
PUSH ROD
# 005
MPN: 323758508
SPACER
# 006
MPN: 100710075
BOLT
# 007
MPN: 100708035
BOLT
# 008
MPN: 128300100
NUT
# 009
MPN: 313020414
WASHER
from £11.28
from £11.28
# 010
MPN: 323758506
SPACER
from £3.09
from £3.09
# 011
MPN: 100710050
SCREW
# 012
MPN: 313054421
ALTERNATOR BELT
from £12.00
from £12.00
# 013
MPN: 313053215
PULLEY
from £70.10
from £70.10
# 014
MPN: 393050207
BRUSH HOLDER COMPLETE ASSY
from £11.44
from £11.44
# 015
MPN: 393050208
VOLTAGE REGULATOR
from £64.33
from £64.33
# 016
MPN: 393050209
RECTIFIER BRIDGE
from £98.24
from £98.24
# 017
MPN: 373000123
ENGINE INSTRUMENTS CABLE ASSY
- Post modification With 10 pin connector C
from £93.45
from £93.45
# 017
MPN: 373000125
ENGINE INSTRUMENTS CABLE ASSY
- Pre modification With 7 pin connector C
from £60.98
from £60.98
