021 - Air Conditioning System (LH Drive) With Freon R12

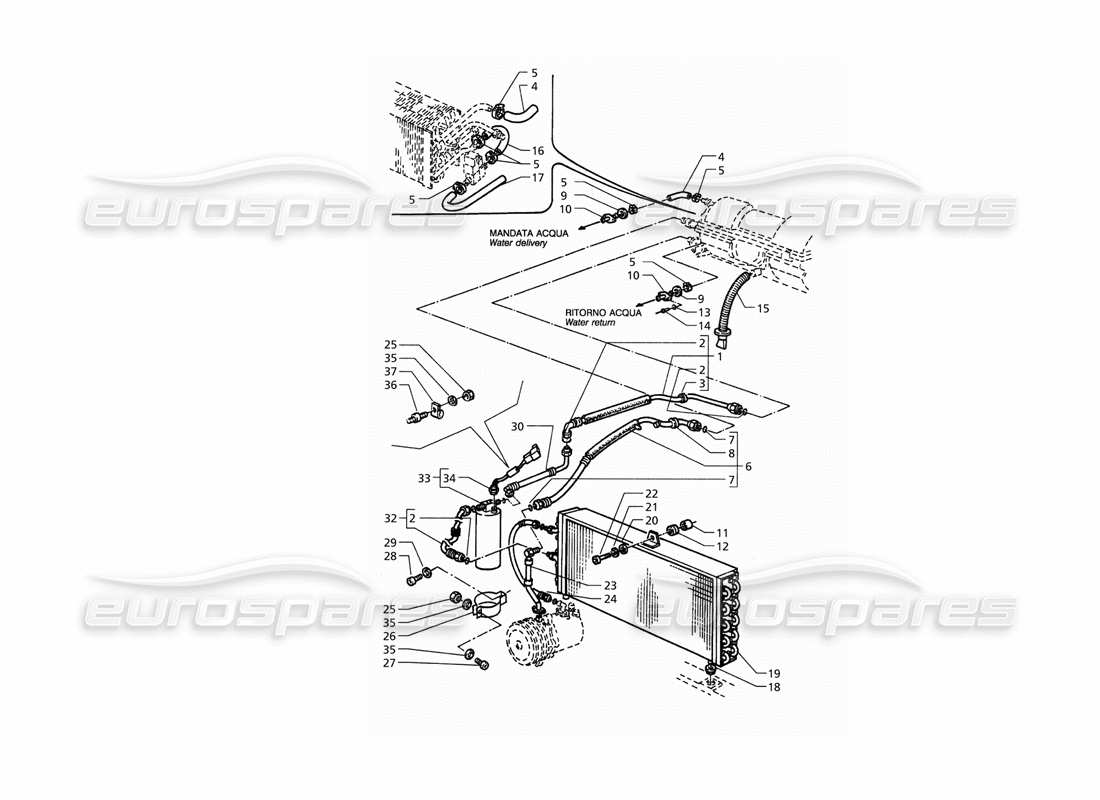

Maserati QTP. 3.2 V8 (1999) Air Conditioning System (L.H. Drive) With Freon R12 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 375500180
FREON DELIVERY LINE
- Valid for 06, 05 and 00 version
from £20.61
from £20.61
# 002
-
GASKET
# 003
MPN: 31331303
FAIRLEAD
- Valid for 06, 05 and 00 version
from £1.06
from £1.06
# 004
MPN: 315520479
TUBE
- Valid for 06, 05 and 00 version
from £8.24
from £8.24
# 005
MPN: 186402028
CLAMP
- Valid for 06, 05 and 00 version
from £1.56
from £1.56
# 006
MPN: 315551173
FREON RETURN LINE
- Valid for 06, 05 and 00 version
from £71.56
from £71.56
# 007
-
GASKET
# 008
MPN: 315520371
FAIRLEAD
- Valid for 06, 05 and 00 version
from £0.64
from £0.64
# 009
MPN: 315520372
GASKET
- Valid for 06, 05 and 00 version
from £0.70
from £0.70
# 010
MPN: 315520370
UNION
- Valid for 06, 05 and 00 version
from £0.71
from £0.71
# 011
MPN: 315520376
SPACER
- Valid for 06, 05 and 00 version
from £3.67
from £3.67
# 012
MPN: 315520375
RING
- Valid for 06, 05 and 00 version
Supersession
Supersession
# 013
MPN: 169020005
WASHER
- Valid for 06, 05 and 00 version
from £1.09
from £1.09
# 014
MPN: 164323413
RIVET
- Valid for 06, 05 and 00 version
# 015
MPN: 315520017
CONDENSATE DRAINAGE TUBE
- Valid for 06, 05 and 00 version
from £1.78
from £1.78
# 016
MPN: 315520480
TUBE
- Valid for 06, 05 and 00 version
from £2.06
from £2.06
# 017
MPN: 315520481
TUBE
- Valid for 06, 05 and 00 version
from £7.89
from £7.89
# 018
MPN: 189453
BUSH
from £1.09
from £1.09
This part replaces part number 374030312
# 019
MPN: 375500220
BIRANGO CONDENSER
- Valid for 06, 05 and 00 version
from £188.65
from £188.65
# 020
MPN: 135900064
FLAT WASHER
- Valid for 06, 05 and 00 version
from £0.47
from £0.47
# 021
MPN: 135300064
SPRING WASHER
- Valid for 06, 05 and 00 version
# 022
MPN: 101206020
SCREW
- Valid for 06, 05 and 00 version
# 023
MPN: 375500185
FREON RETURN LINE
- Valid for 06, 05 and 00 version
from £37.59
from £37.59
# 024
MPN: 375500262
FREON DELIVERY LINE
- Valid for 06, 05 and 00 version
from £18.83
from £18.83
# 025
MPN: 128300060
NUT
- Valid for 06, 05 and 00 version
Supersession
Supersession
# 026
MPN: 315520301
CLAMP
- Valid for 06, 05 and 00 version
from £17.29
from £17.29
# 027
MPN: 108006022
SCREW
- Valid for 06, 05 and 00 version
# 028
MPN: 108006012
SCREW
- Valid for 06, 05 and 00 version
from £0.54
from £0.54
# 029
MPN: 135000064
FLAT WASHER
- Valid for 06, 05 and 00 version
# 030
MPN: 375500266
TUBE
- Valid for 06, 05 and 00 version
from £20.04
from £20.04
# 032
MPN: 375500181
FREON DELIVERY LINE
- Valid for 06, 05 and 00 version
from £12.36
from £12.36
# 033
MPN: 365502174
FILTER ASSY
- Valid for 06, 05 and 00 version
from £104.87
from £104.87
This part replaces part number 315520174
# 034
MPN: 365502175
MAX AND MIN. CAPACITY PRESSURE SWITCH
- Valid for 06, 05 and 00 version
from £94.77
from £94.77
# 035
MPN: 312220411
FLAT WASHER
- Valid for 06, 05 and 00 version
from £0.47
from £0.47
# 036
MPN: 479009120
STUD BOLT
- Valid for 06, 05 and 00 version
from £23.14
from £23.14
# 037
MPN: 97598
Tube clamp
- Valid for 06, 05 and 00 version
from £7.80
from £7.80
