maserati qtp. 3.2 v8 (1999) pedal assy clutch pump for lh drive (m.t. and a.t.) parts diagram

041 - Pedal Assy Clutch Pump for LH Drive (M.T. and A.T.)

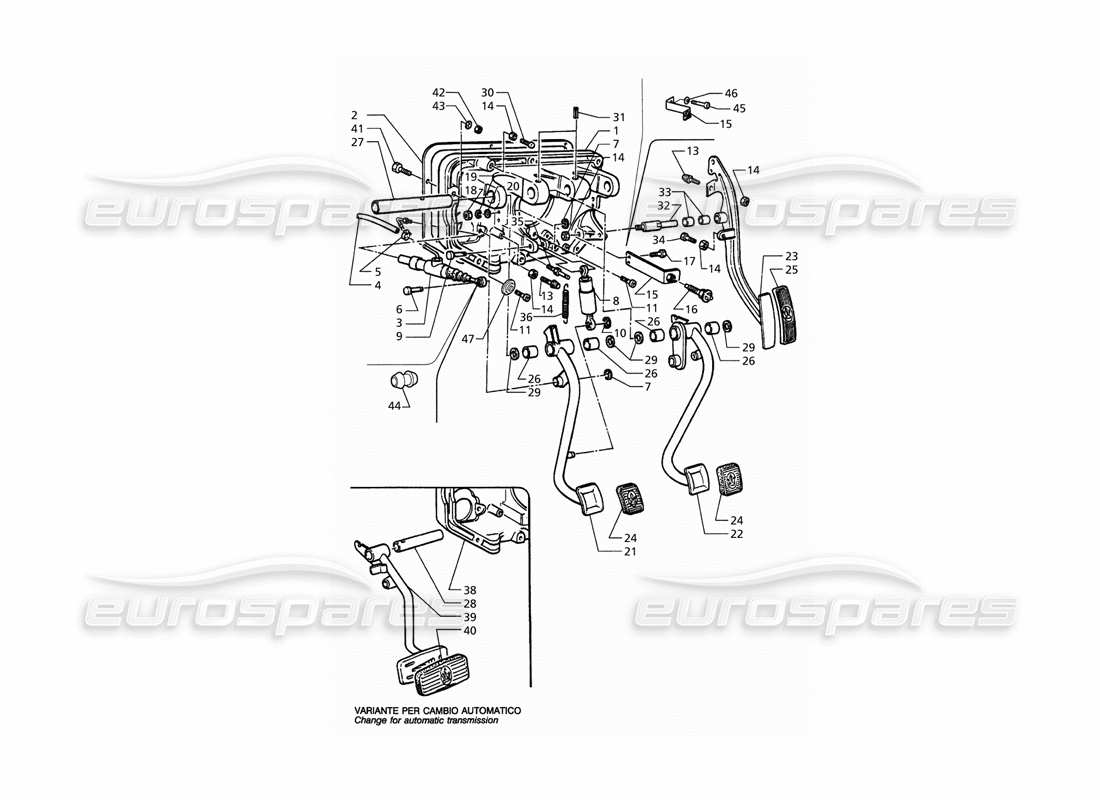

Maserati QTP. 3.2 V8 (1999) Pedal Assy Clutch Pump for L.H. Drive (M.T. and A.T.) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 378400304
SUPPORT FOR PEDAL ASSY
- Valid for 05 and 00 version - Pre modification Up to chassis no. 330758 (2000 cc.) - Pre modification Up to chassis no. 330846 (2800 cc.)
from £1,369.84
from £1,369.84
# 001
MPN: 378405304
SUPPORT FOR PEDAL ASSY
- Valid for 05 and 00 version - Post modification From chassis no. 330759 (2000 cc.) - Post modification From chassis no. 330847 (2800 cc.)
from £31.35
from £31.35
# 002
MPN: 378400348
GASKET
- Valid for 06, 05 and 00 version
from £9.66
from £9.66
# 003
MPN: 378200101
PUMP
- Valid for 05 and 00 version
from £225.00
from £225.00
# 004
MPN: 378200329
TUBE
- Valid for 05 and 00 version
from £0.57
from £0.57
# 005
MPN: 559221332
CLAMP
- Valid for 05 and 00 version
# 006
MPN: 378400358
PIN
- Valid for 05 and 00 version
from £14.76
from £14.76
# 007
MPN: 71509
SEEGER RING
- Valid for 06, 05 and 00 version
Supersession
Supersession
# 008
MPN: 378400854
CLUTCH PEDAL SERVO CONTROL
- Valid for 06, 05 and 00 version
from £41.19
from £41.19
# 009
MPN: 367402327
PIN
- Valid for 06, 05 and 00 version
from £9.82
from £9.82
# 010
MPN: 150800090
SEEGER RING
- Valid for 06, 05 and 00 version
from £0.47
from £0.47
# 011
MPN: 108006018
ALLEN SCREW
- Valid for 06, 05 and 00 version
# 012
MPN: 138410060
WASHER
- Valid for 06, 05 and 00 version - Pre modification Up to chassis no. 330758 (2000 cc.) - Pre modification Up to chassis no. 330846 (2800 cc.)
# 013
MPN: 318420114
LIMIT STOP
- Valid for 06, 05 and 00 version
from £1.92
from £1.92
# 014
MPN: 125100060
NUT
- Valid for 06, 05 and 00 version
# 015
MPN: 368404120
IDROSTOP SUPPORT
- Valid for 06, 05 and 00 version - Post modification From chassis no. 330759 (2000 cc.) - Post modification From chassis no. 330847 (2800 cc.)
from £9.20
from £9.20
# 015
MPN: 378400120
IDROSTOP SUPPORT
- Valid for 06, 05 and 00 version - Pre modification Up to chassis no. 330758 (2000 cc.) - Pre modification Up to chassis no. 330846 (2800 cc.)
from £21.95
from £21.95
# 016
MPN: 323850107
IDROSTOP
- Valid for 06, 05 and 00 version
Supersession
Supersession
# 017
MPN: 47370
SCREW
- Valid for 06, 05 and 00 version - Pre modification Up to chassis no. 330758 (2000 cc.) - Pre modification Up to chassis no. 330846 (2800 cc.)
Supersession
Supersession
# 018
MPN: 47046
NUT
- Valid for 06, 05 and 00 version
Supersession
Supersession
# 019
MPN: 135600050
SPRING WASHER
- Valid for 06, 05 and 00 version
from £0.78
from £0.78
# 020
MPN: 69021
FLAT WASHER
- Valid for 06, 05 and 00 version
Supersession
Supersession
# 021
MPN: 378400122
CLUTCH PEDAL
- Valid for 05 and 00 version
from £243.46
from £243.46
# 022
MPN: 378400104
BRAKE PEDAL
- Valid for 05 and 00 version
from £6.26
from £6.26
# 023
MPN: 318420113
SPEED PEDAL
- Valid for 06, 05 and 00 version
from £30.14
from £30.14
# 024
MPN: 318420300
BRAKE AND CLUTCH PEDAL COVER
- Valid for 05 and 00 version
from £3.25
from £3.25
# 025
MPN: 318420301
SPEED PEDAL COVER
- Valid for 06, 05 and 00 version
from £1.50
from £1.50
# 026
MPN: 318420320
BUSH
- Valid for 06, 05 and 00 version
from £9.66
from £9.66
# 027
MPN: 378400329
PIN
- Valid for 05 and 00 version
from £33.07
from £33.07
# 028
MPN: 368402336
PIN
- Valid for 06 version
from £33.07
from £33.07
# 029
MPN: 368402321
SPACER WASHER
- Valid for 06, 05 and 00 version
from £1.08
from £1.08
# 030
MPN: 364700180
LIMIT STOP
- Valid for 06, 05 and 00 version
from £2.83
from £2.83
# 031
MPN: 144208028
RETAINING PIN
- Valid for 06, 05 and 00 version
# 032
MPN: 378400341
PIN
- Valid for 06, 05 and 00 version
from £15.46
from £15.46
# 033
MPN: 318420334
BUSH
- Valid for 06, 05 and 00 version
from £1.55
from £1.55
# 034
MPN: 101206040
SCREW
- Valid for 06, 05 and 00 version
from £0.47
from £0.47
# 035
MPN: 378400368
PIN
- Valid for 06, 05 and 00 version
from £81.13
from £81.13
# 036
MPN: 368402308
SPRING
- Valid for 06, 05 and 00 version
from £2.96
from £2.96
# 038
MPN: 378406304
PEDAL ASSY SUPPORT
- Valid for 06 version
from £29.31
from £29.31
# 039
MPN: 378406104
PEDAL
- Valid for 06 version
from £193.17
from £193.17
# 040
MPN: 318432300
PEDAL COVER
- Valid for 06 version
from £2.41
from £2.41
# 041
MPN: 100708045
SCREW
- Valid for 06, 05 and 00 version
# 042
MPN: 135900084
WASHER
- Valid for 06, 05 and 00 version
# 043
MPN: 128350080
NUT
- Valid for 06, 05 and 00 version
Supersession
Supersession
# 044
MPN: 9532
BUSHING SECUR. CLUTCH PUMP
- Valid for 06, 05 and 00 version
from £2.31
from £2.31
# 045
MPN: 108006012
SCREW
- Valid for 06, 05 and 00 version - Post modification From chassis no. 330759 (2000 cc.) - Post modification From chassis no. 330847 (2800 cc.)
from £0.54
from £0.54
# 046
MPN: 312220411
WASHER
- Valid for 06, 05 and 00 version - Post modification From chassis no. 330759 (2000 cc.) - Post modification From chassis no. 330847 (2800 cc.)
from £0.47
from £0.47
# 047
MPN: 378419378
BUSH
- Valid for 06, 05 and 00 version - Post modification From chassis no. 330759 (2000 cc.) - Post modification From chassis no. 330847 (2800 cc.)
from £4.64
from £4.64
