maserati qtp. 3.2 v8 (1999) automatic air conditioner assy (rh drive) parts diagram

072 - Automatic Air Conditioner Assy (RH Drive)

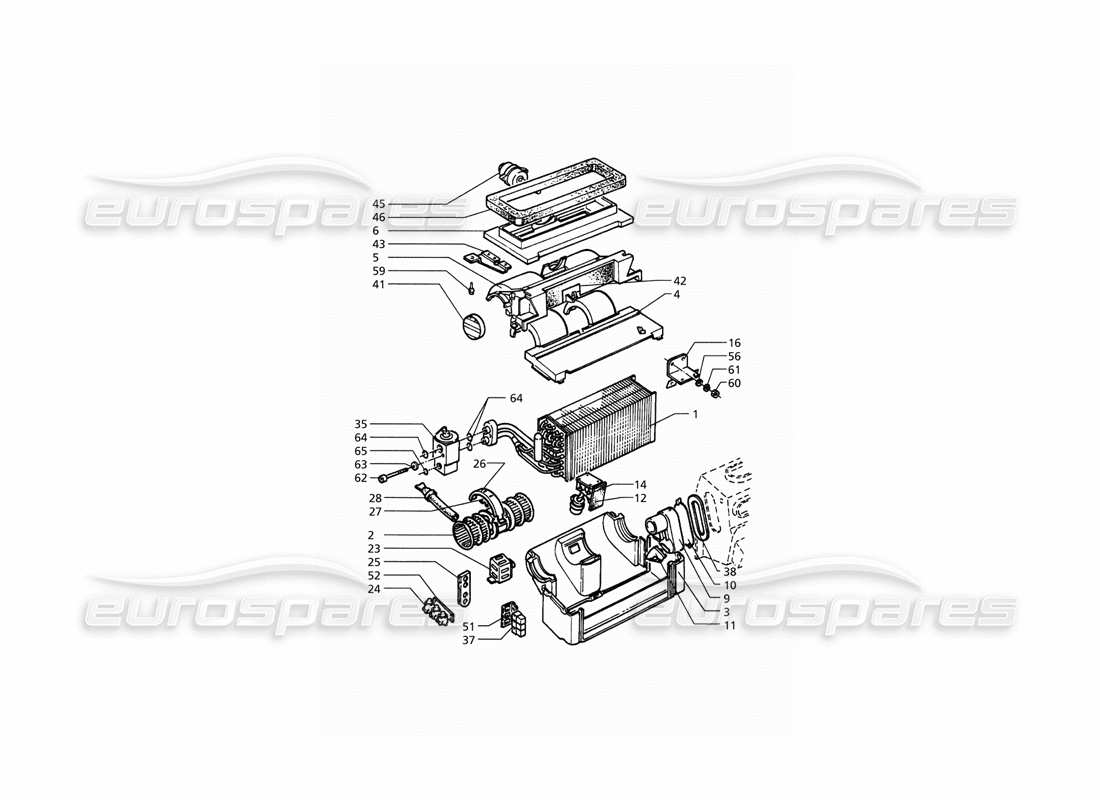

Maserati QTP. 3.2 V8 (1999) Automatic Air Conditioner Assy (R.H. Drive) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 375515165/A
COMPLETE HEATER BOX
Valid For RHD
from £735.00
from £735.00
# 001
MPN: 375515165
HEATER EVAPORATOR
- Valid for 20, 19 version
from £364.38
from £364.38
# 002
MPN: 315520167
ELECTRIC FAN
- Valid for 20, 19 version
from £219.24
from £219.24
# 003
MPN: 315570380
LOWER BOX
- Valid for 20, 19 version
from £17.08
from £17.08
# 004
MPN: 315520381
INTERMEDIATE BOX
- Valid for 20, 19 version
from £12.62
from £12.62
# 005
MPN: 315520382
UPPER BOX
- Valid for 20, 19 version
from £7.70
from £7.70
# 006
MPN: 315520470
CONVEYOR
- Valid for 20, 19 version
from £41.95
from £41.95
# 009
MPN: 315520473
RH NOZZLE FOR AIR
- Valid for 20, 19 version
from £8.52
from £8.52
# 009
MPN: 315520474
LH NOZZLE FOR AIR
from £8.52
from £8.52
# 010
MPN: 315520163
DOOR FOR LH NOZZLE
- Valid for 20, 19 version
from £3.19
from £3.19
This part replaces part number 315520129
# 010
MPN: 315520164
DOOR FOR RH NOZZLE
- Valid for 20, 19 version
from £4.11
from £4.11
This part replaces part number 315520130
# 011
MPN: 315520387
VENT
- Valid for 20, 19 version
from £18.72
from £18.72
# 012
MPN: 315520018
LOWER DOOR ASSY
- Valid for 20, 19 version
from £10.33
from £10.33
# 014
MPN: 315520158
ACTUATOR TO CONTROL DOOR
- Valid for 20, 19 version
from £9.15
from £9.15
# 016
MPN: 315520138
PAD TO SUPPORT CONDITIONER
- Valid for 20, 19 version
from £3.23
from £3.23
# 023
MPN: 315520143
RESISTANCE
- Valid for 20, 19 version
from £17.12
from £17.12
# 024
MPN: 315520207
PNEUMATIC SYSTEM SOLENOID VALVE
- Valid for 20, 19 version
from £41.09
from £41.09
# 025
MPN: 315520475
GASKET
- Valid for 20, 19 version
# 026
MPN: 315520402
PAD
- Valid for 20, 19 version
# 027
MPN: 315520403
BUMPER
- Valid for 20, 19 version
# 028
MPN: 315520017
DRAIN PIPE
- Valid for 20, 19 version
from £1.76
from £1.76
# 031
MPN: 315522144
COCK, ASSY
- Valid for 20, 19 version
from £395.15
from £395.15
# 035
MPN: 375500166
BLOCK EXPANSION VALVE
- Valid for 20, 19 version
from £57.88
from £57.88
# 037
MPN: 313351139
RELAY WITH RESISTOR
- Valid for 20, 19 version
from £1.98
from £1.98
This part replaces part number 30331137
# 038
MPN: 315520483
GASKET
- Valid for 20, 19 version
from £3.81
from £3.81
# 041
MPN: 315551416
THROTTLE FLAP
- Valid for 20, 19 version
from £4.62
from £4.62
# 042
MPN: 315520136
AIR CONTROL DOOR
- Valid for 20, 19 version
# 043
MPN: 315520419
LH PAD FIX. CONDITIONER
- Valid for 20, 19 version
# 043
MPN: 315520420
RH PAD FIX. CONDITIONER
- Valid for 20, 19 version
# 045
MPN: 315520160
ACTUATOR FOR AIR DOOR
- Valid for 20, 19 version
from £3.82
from £3.82
# 046
MPN: 315520422
GASKET
- Valid for 20, 19 version
from £2.90
from £2.90
# 051
MPN: 315520477
BRACKET
- Valid for 20, 19 version
from £18.01
from £18.01
# 052
MPN: 315520478
SOLENOID VALVE BRACKET
- Valid for 20, 19 version
# 056
MPN: 169020406
WASHER
- Valid for 20, 19 version
from £0.76
from £0.76
# 059
MPN: 314320345
SCREW
- Valid for 20, 19 version
from £41.46
from £41.46
# 060
MPN: 125100060
NUT
- Valid for 20, 19 version
# 061
MPN: 135600060
WASHER
- Valid for 20, 19 version
from £0.76
from £0.76
# 062
MPN: 14304821
SCREW
- Valid for 20, 19 version
from £0.53
from £0.53
# 063
MPN: 84157
WASHER
- Valid for 20, 19 version
Supersession
Supersession
# 064
MPN: 375500458
GROMMET
- Valid for 20, 19 version
from £5.26
from £5.26
# 065
MPN: 375500457
GROMMET
- Valid for 20, 19 version
from £3.59
from £3.59
