maserati qtp. 3.2 v8 (1999) oil pump and water pump (pre modification) parts diagram

009 - Oil Pump and Water Pump (Pre Modification)

Maserati QTP. 3.2 V8 (1999) Oil Pump and Water Pump (Pre Modification) Parts Diagram

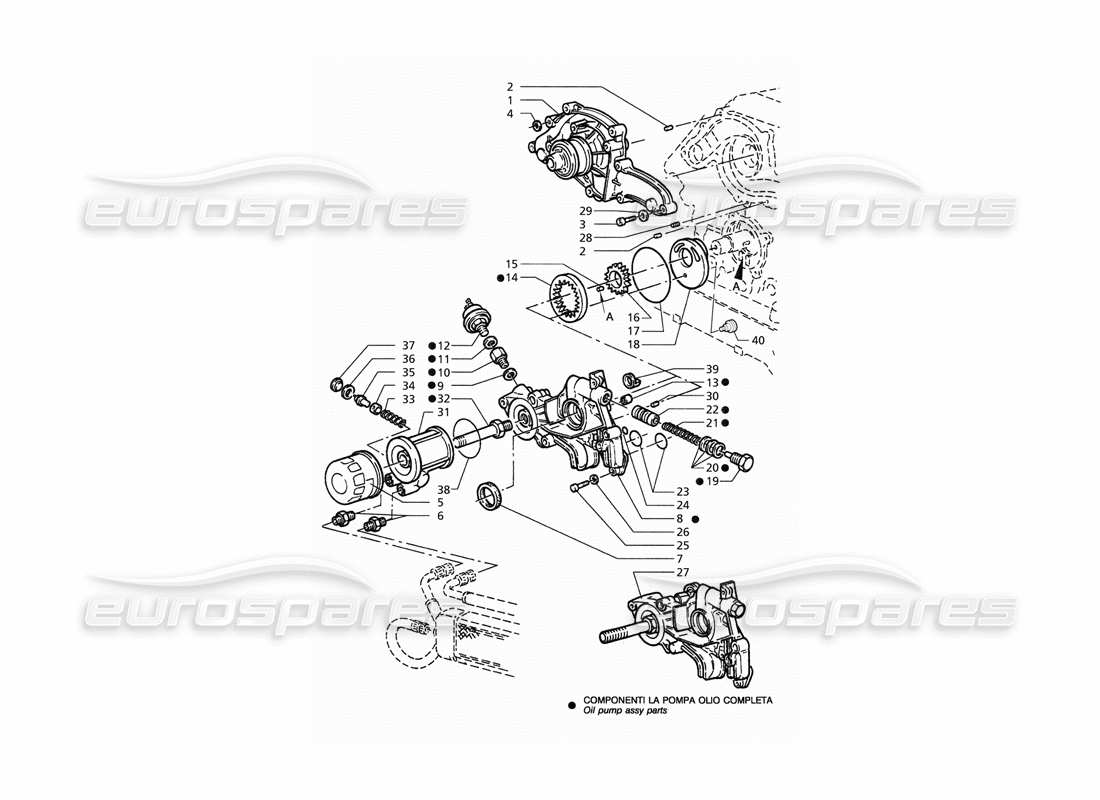

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Price
                                                                                # 001
                                                                                MPN: 578045900
                                                                                WATER PUMP ASSY + GASKET
                                                                                from £624.75
                                                                                from £624.75
                                                                                This part replaces part number 479045900
                                                                                # 002
                                                                                MPN: 314020329
                                                                                CENTERING ROLLER
                                                                                from £1.93
                                                                                from £1.93
                                                                                # 004
                                                                                MPN: 138410060
                                                                                RETAINING WASHER
                                                                                # 005
                                                                                MPN: 470040900
                                                                                OIL FILTER
                                                                                from £42.50
                                                                                from £42.50
                                                                                # 006
                                                                                MPN: 362802306
                                                                                NIPPLE
                                                                                from £10.92
                                                                                from £10.92
                                                                                # 007
                                                                                MPN: 311020368
                                                                                SEAL RING
                                                                                from £8.25
                                                                                from £8.25
                                                                                This part replaces part number 190400351
                                                                                # 008
                                                                                MPN: 455040101
                                                                                OIL CONTROL UNIT
                                                                                from £47.47
                                                                                from £47.47
                                                                                # 009
                                                                                MPN: 311820302
                                                                                GASKET
                                                                                from £2.35
                                                                                from £2.35
                                                                                # 010
                                                                                MPN: 311820303
                                                                                ADAPTER
                                                                                from £22.39
                                                                                from £22.39
                                                                                # 011
                                                                                MPN: 311820304
                                                                                GASKET
                                                                                from £1.54
                                                                                from £1.54
                                                                                # 012
                                                                                MPN: 313650105
                                                                                OIL PRESSURE SWITCH
                                                                                USE 313620105
                                                                                # 013
                                                                                MPN: 311820309
                                                                                DOWEL (12MM DIA)
                                                                                from £16.62
                                                                                from £16.62
                                                                                # 014
                                                                                MPN: 391850324
                                                                                DRIVEN GEAR (12 MM THICK)
                                                                                # 015
                                                                                MPN: 97054
                                                                                ROLLER
                                                                                from £0.68
                                                                                from £0.68
                                                                                # 016
                                                                                MPN: 391850323
                                                                                DRIVING GEAR (12 MM THICK)
                                                                                # 017
                                                                                MPN: 14465881
                                                                                SEAL RING
                                                                                from £4.62
                                                                                from £4.62
                                                                                # 018
                                                                                MPN: 571982100
                                                                                OIL PUMP COVER
                                                                                from £72.32
                                                                                from £72.32
                                                                                This part replaces part number 311820321
                                                                                # 020
                                                                                MPN: 311820317
                                                                                GASKET
                                                                                from £0.68
                                                                                from £0.68
                                                                                # 022
                                                                                MPN: 311820319
                                                                                OIL PRESSURE ADJUSTING VALVE
                                                                                from £12.14
                                                                                from £12.14
                                                                                # 023
                                                                                MPN: 14454181
                                                                                SEAL RING
                                                                                from £1.15
                                                                                from £1.15
                                                                                # 024
                                                                                MPN: 14452981
                                                                                SEAL RING
                                                                                from £0.79
                                                                                from £0.79
                                                                                # 026
                                                                                MPN: 138410080
                                                                                RETAINING WASHER
                                                                                # 027
                                                                                MPN: 573040000
                                                                                OIL PUMP, ASSY
                                                                                from £222.60
                                                                                from £222.60
                                                                                # 030
                                                                                MPN: 311820315
                                                                                CENTERING ROLLER, OIL PUMP (L = 10 MM)
                                                                                from £1.15
                                                                                from £1.15
                                                                                # 031
                                                                                MPN: 571041200
                                                                                THERMOSTATIC VALVE BODY
                                                                                from £287.44
                                                                                from £287.44
                                                                                # 032
                                                                                MPN: 571041300
                                                                                NIPPLE
                                                                                from £34.01
                                                                                from £34.01
                                                                                # 033
                                                                                MPN: 571044600
                                                                                SPRING
                                                                                from £1.40
                                                                                from £1.40
                                                                                # 034
                                                                                MPN: 571044200
                                                                                BULB VALVE
                                                                                from £6.10
                                                                                from £6.10
                                                                                # 035
                                                                                MPN: 571044100
                                                                                BULB
                                                                                from £13.54
                                                                                from £13.54
                                                                                # 036
                                                                                MPN: 571044500
                                                                                WASHER (0.30 MM THICK)
                                                                                from £1.93
                                                                                from £1.93
                                                                                # 037
                                                                                MPN: 571044400
                                                                                PLUG
                                                                                from £8.62
                                                                                from £8.62
                                                                                # 038
                                                                                MPN: 14465881
                                                                                RUBBER GASKET
                                                                                from £4.62
                                                                                from £4.62
                                                                                # 039
                                                                                MPN: 97730
                                                                                RETAINING WASHER
                                                                                from £4.07
                                                                                from £4.07
                                                                                # 040
                                                                                MPN: 501047800
                                                                                PIN
                                                                                from £33.47
                                                                                from £33.47
