maserati qtp. 3.2 v8 (1999) front doors: windows and regulators parts diagram

050 - Front Doors: Windows and Regulators

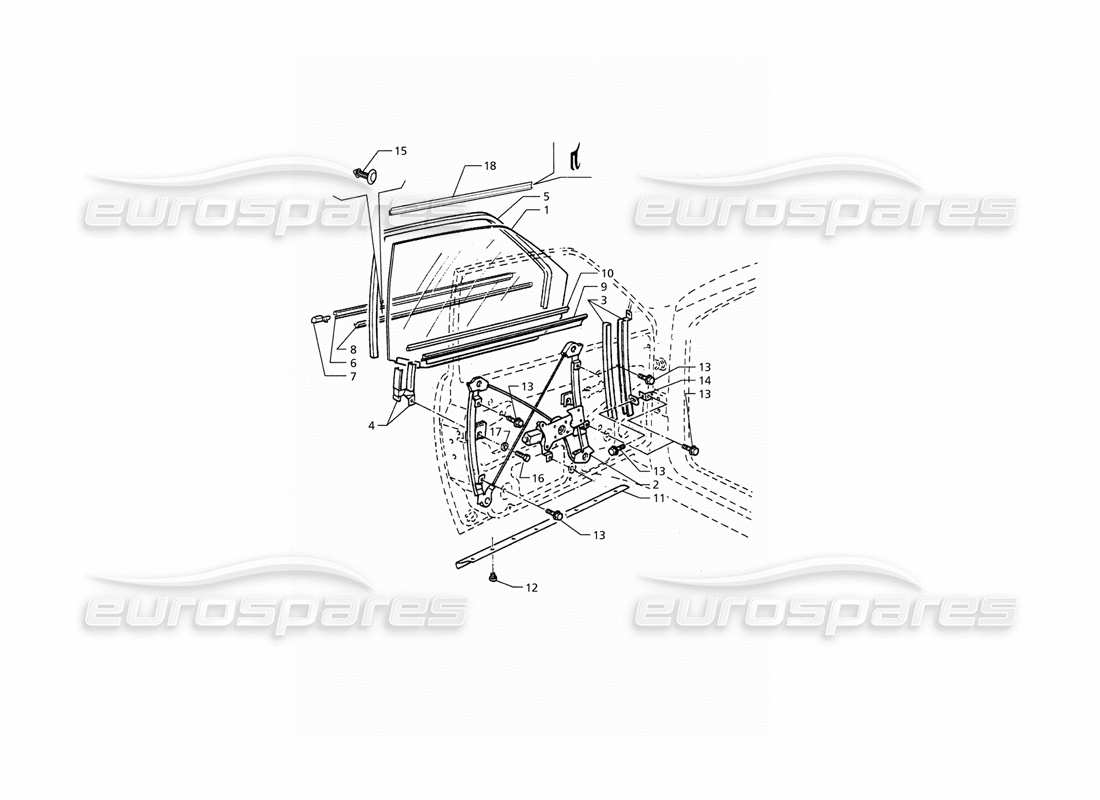

Maserati QTP. 3.2 V8 (1999) Front Doors: Windows and Regulators Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 377700329
                          LH WINDABLE WINDOW
                          from £82.95
                          from £82.95
                          # 001
                          MPN: 377700330
                          RH WINDABLE WINDOW
                          from £64.47
                          from £64.47
                          # 002
                          MPN: 377700021
                          LH WINDOW RAISER
                          from £479.54
                          from £479.54
                          # 002
                          MPN: 377700022
                          RH WINDOW RAISER
                          from £566.71
                          from £566.71
                          # 003
                          MPN: 377700111
                          FRONT LH WINDOW GUIDE CHANNEL
                          from £23.10
                          from £23.10
                          # 003
                          MPN: 377700112
                          FRONT RH WINDOW GUIDE CHANNEL
                          from £23.10
                          from £23.10
                          # 004
                          MPN: 377700115
                          REAR LH WINDOW GUIDE CHANNEL
                          from £6.38
                          from £6.38
                          # 004
                          MPN: 377700116
                          REAR RH WINDOW GUIDE CHANNEL
                          from £6.38
                          from £6.38
                          # 005
                          MPN: 377700124
                          RH WINDOW GUIDE
                          Supersession
                          Supersession
                          # 005
                          MPN: 377730123
                          LH WINDOW GUIDE
                          from £38.78
                          from £38.78
                          This part replaces part number 377700123
                          # 006
                          MPN: 377700317
                          OUTER LH FINISHER
                          - Pre modification
                          from £10.94
                          from £10.94
                          # 006
                          MPN: 377700318
                          OUTER RH FINISHER
                          - Pre modification
                          from £11.32
                          from £11.32
                          # 007
                          MPN: 377700319
                          RH FINISHER CLOSING CAP
                          - Pre modification
                          from £3.88
                          from £3.88
                          # 007
                          MPN: 377700320
                          LH FINISHER CLOSING CAP
                          - Pre modification
                          from £4.15
                          from £4.15
                          # 008
                          MPN: 377700323
                          OUTER WINDOW SCRAPER SEAL
                          - Pre modification
                          from £0.72
                          from £0.72
                          # 009
                          MPN: 377700350
                          INNER WINDOW SCRAPER SEAL SUPPORT
                          - Pre modification
                          from £2.17
                          from £2.17
                          # 010
                          MPN: 377700352
                          INNER WINDOW SCRAPER SEAL
                          - Pre modification
                          from £7.70
                          from £7.70
                          # 011
                          MPN: 374500010
                          DUST SEAL UNDER DOOR
                          from £5.93
                          from £5.93
                          # 012
                          MPN: 314553426
                          DOOR INTERNAL OPENING LEVER (ANTRACITE COLOR)
                          from £95.00
                          from £95.00
                          This part replaces part number 314520426
                          # 013
                          MPN: 317720335
                          SCREW
                          from £3.16
                          from £3.16
                          This part replaces part number 317720355
                          # 014
                          MPN: 377700132
                          THREADED HOLE PLATE
                          from £2.84
                          from £2.84
                          # 015
                          MPN: 377700355
                          PLUG
                          from £0.68
                          from £0.68
                          # 016
                          MPN: 327720338
                          SCREW
                          from £1.54
                          from £1.54
                          # 017
                          MPN: 30471338
                          WASHER
                          from £1.07
                          from £1.07
                          # 018
                          MPN: 377730323
                          LH WINDOW SCRAPER SEAL, COMPLETE
                          - Post modification From chassis no. 330871 (LH Drive) - Post modification From chassis no. 350055 (RH Drive)
                          from £1.30
                          from £1.30
                          # 018
                          MPN: 377730324
                          RH WINDOW SCRAPER SEAL, COMPLETE
                          - Post modification From chassis no. 330871 (LH Drive) - Post modification From chassis no. 350055 (RH Drive)
                          from £6.42
                          from £6.42
