maserati bora outside transmission control parts diagram

014 - Outside transmission control

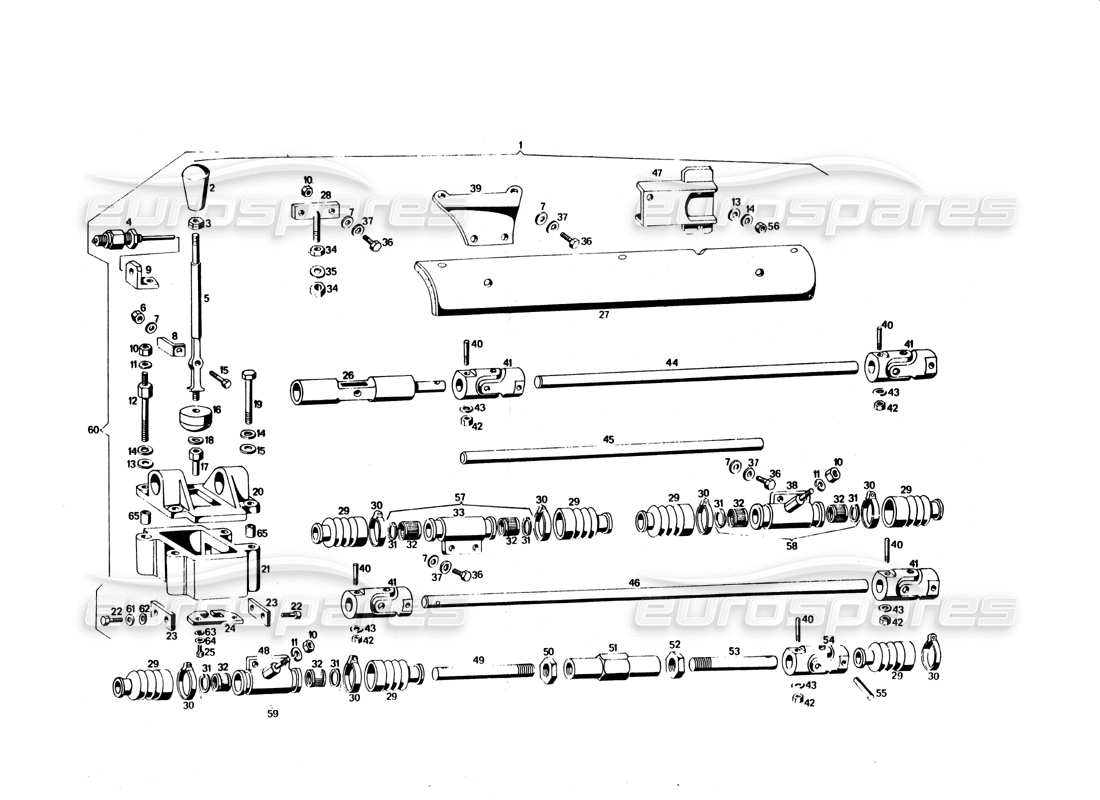

Maserati Bora Outside transmission control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Key
                                                                                                                      Price
                                                                                                                      # 001
                                                                                                                      MPN: 117 TC 72642
                                                                                                                      ASSEMBLY ASSEMBLY OF GEARBOX CONTROL RODS
                                                                                                                      ASSEMBLY ASSEMBLY OF GEARBOX CONTROL RODS Genuine Maserati Part - New (to order)
                                                                                                                      # 002
                                                                                                                      MPN: 117 TC 73235
                                                                                                                      Pomello per leva comando cambio
                                                                                                                      Pomello per leva comando cambio Genuine Maserati Part - New (to order)
                                                                                                                      # 003
                                                                                                                      MPN: 117 TC 74912
                                                                                                                      RING
                                                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                                                      # 004
                                                                                                                      MPN: 117 BL 74869
                                                                                                                      INTERRUTTORE PER ACCENSIONE LUCI RETROMARCIA (FINO ALLA VETTURA N - DALLA VETTURA N - VEDI PARTICOLARE N. 76 - TAV. N. 11)
                                                                                                                      SWITCH FOR HEADLIGHTS UP WARNING LIGHT Genuine Maserati Part - New (to order)
                                                                                                                      # 005
                                                                                                                      MPN: 117 TC 70643
                                                                                                                      LEVER
                                                                                                                      LEVER Genuine Maserati Part - New (to order)
                                                                                                                      # 007
                                                                                                                      MPN: RNT 6701,1
                                                                                                                      WASHER
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 008
                                                                                                                      MPN: 117 TC 74355
                                                                                                                      PIASTRINO PER CONTATTO INTERRUTTORE RETROMARCIA (FINO ALLA VETTURA N...)
                                                                                                                      PIASTRINO PER CONTATTO INTERRUTTORE RETROMARCIA (FINO ALLA VETTURA N...) Genuine Maserati Part - New (to order)
                                                                                                                      # 009
                                                                                                                      MPN: 117 TC 74356
                                                                                                                      PIASTRINO PER SUPPORTO INTERRUTTORE RETROMARCIA (FINO ALLA VETTURA N...)
                                                                                                                      PIASTRINO PER SUPPORTO INTERRUTTORE RETROMARCIA (FINO ALLA VETTURA N...) Genuine Maserati Part - New (to order)
                                                                                                                      # 010
                                                                                                                      MPN: DNT 32484
                                                                                                                      NUT
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 012
                                                                                                                      MPN: 117 TC 74358
                                                                                                                      COLONNETTA FISSAGGIO TORRETTA CAMBIO E SUPPORTO INTERRUTTORE RETROMARCIA (FINO ALLA VETT. N...)
                                                                                                                      COLONNETTA FISSAGGIO TORRETTA CAMBIO E SUPPORTO INTERRUTTORE RETROMARCIA (FINO ALLA VETT. N...) Genuine Maserati Part - New (to order)
                                                                                                                      # 012
                                                                                                                      MPN: DNT 47046
                                                                                                                      NUT
                                                                                                                      from £0.88
                                                                                                                      from £0.88
                                                                                                                      This part replaces part number 47046
                                                                                                                      Screw nut Genuine Maserati Part - New (to order)
                                                                                                                      # 013
                                                                                                                      MPN: RDI 58544
                                                                                                                      WASHER
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 013
                                                                                                                      MPN: RNT 55379
                                                                                                                      WASHER
                                                                                                                      Washer Ø 8 Genuine Maserati Part - New (to order)
                                                                                                                      # 014
                                                                                                                      MPN: 117 TC 69626
                                                                                                                      GEARBOX CONTROL ROD LEVER BOX SIDE
                                                                                                                      GEARBOX CONTROL ROD LEVER BOX SIDE Genuine Maserati Part - New (to order)
                                                                                                                      # 014
                                                                                                                      MPN: DRI 55990
                                                                                                                      WASHER
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 015
                                                                                                                      MPN: 117 TC 69627
                                                                                                                      ASTA INTERMEDIA COMANDO CAMBLO
                                                                                                                      ASTA INTERMEDIA COMANDO CAMBLO Genuine Maserati Part - New (to order)
                                                                                                                      # 015
                                                                                                                      MPN: 117 TC 72614
                                                                                                                      PIVOT
                                                                                                                      PIVOT Genuine Maserati Part - New (to order)
                                                                                                                      # 016
                                                                                                                      MPN: 117 TC 69628
                                                                                                                      DRIVE BOX SIDE GEARBOX CONTROL ROD
                                                                                                                      DRIVE BOX SIDE GEARBOX CONTROL ROD Genuine Maserati Part - New (to order)
                                                                                                                      # 016
                                                                                                                      MPN: 117 TC 70644
                                                                                                                      BALL FOR GEAR LEVER
                                                                                                                      BALL FOR GEAR LEVER Genuine Maserati Part - New (to order)
                                                                                                                      # 017
                                                                                                                      MPN: 117 TC 72644
                                                                                                                      SUPPORT
                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                      # 017
                                                                                                                      MPN: 117 TC 73567
                                                                                                                      NUT
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 019
                                                                                                                      MPN: BNT 62773
                                                                                                                      BOLT
                                                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                                                      # 020
                                                                                                                      MPN: 117 TC 72621
                                                                                                                      GEARBOX CONTROL TURRET WITH FOCUS AT THE BOTTOM
                                                                                                                      GEARBOX CONTROL TURRET WITH FOCUS AT THE BOTTOM Genuine Maserati Part - New (to order)
                                                                                                                      # 021
                                                                                                                      MPN: 117 TC 72622
                                                                                                                      SUPPORT
                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                      # 022
                                                                                                                      MPN: VNT 73707
                                                                                                                      Allen screw 5 X 0,8 X 12 for fixing dowel for gear lever joint
                                                                                                                      Allen screw 5 X 0,8 X 12 for fixing dowel for gear lever joint Genuine Maserati Part - New (to order)
                                                                                                                      # 023
                                                                                                                      MPN: 117 TC 68094
                                                                                                                      PLUSH FOR GEAR LEVER JOINT
                                                                                                                      PLUSH FOR GEAR LEVER JOINT Genuine Maserati Part - New (to order)
                                                                                                                      # 024
                                                                                                                      MPN: 117 TC 73568
                                                                                                                      Selettore per 4' e 5' march'
                                                                                                                      Selettore per 4' e 5' march' Genuine Maserati Part - New (to order)
                                                                                                                      # 026
                                                                                                                      MPN: 117 TC 68129
                                                                                                                      PIVOT
                                                                                                                      PIVOT Genuine Maserati Part - New (to order)
                                                                                                                      # 027
                                                                                                                      MPN: 117 TC 75622
                                                                                                                      Bulkhead Guard guard on the gear shift rod
                                                                                                                      Bulkhead Guard guard on the gear shift rod Genuine Maserati Part - New (to order)
                                                                                                                      # 028
                                                                                                                      MPN: 117 TC 73693
                                                                                                                      SUPPORT
                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                      # 029
                                                                                                                      MPN: PNF 71901
                                                                                                                      GROMMET
                                                                                                                      GROMMET Genuine Maserati Part - New (to order)
                                                                                                                      # 030
                                                                                                                      MPN: FRN 46351
                                                                                                                      FASCETTA PER FISSAGGIO PASSAFILO SOFFIETTO
                                                                                                                      RUBBER BELLOW SEALING CLAMP ON THE SECONDARY CLUTCH PUMP Genuine Maserati Part - New (to order)
                                                                                                                      # 031
                                                                                                                      MPN: ART 53016
                                                                                                                      RING
                                                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                                                      # 032
                                                                                                                      MPN: G RL 71902
                                                                                                                      Gabbla rullini sul manicotto Ø 15X 22 X 16
                                                                                                                      Gabbla rullini sul manicotto Ø 15X 22 X 16 Genuine Maserati Part - New (to order)
                                                                                                                      # 033
                                                                                                                      MPN: 117 TC 69612
                                                                                                                      SLEEVE SUPPORT ASSEMBLY FOR GEARBOX ROD GUIDE
                                                                                                                      SLEEVE SUPPORT ASSEMBLY FOR GEARBOX ROD GUIDE Genuine Maserati Part - New (to order)
                                                                                                                      # 038
                                                                                                                      MPN: 117 TC 75620
                                                                                                                      SUPPORT
                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                      # 039
                                                                                                                      MPN: 117 TC 72643
                                                                                                                      SUPPORT
                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                      # 040
                                                                                                                      MPN: SN46652
                                                                                                                      PIN
                                                                                                                      from £26.31
                                                                                                                      from £26.31
                                                                                                                      Taper pin 5x27 holding fork lever on the shaft Genuine Maserati Part - New (to order)
                                                                                                                      # 041
                                                                                                                      MPN: 117 TC 75266
                                                                                                                      GLOVE BETWEEN THE GEARBOX CONTROL RODS
                                                                                                                      GLOVE BETWEEN THE GEARBOX CONTROL RODS Genuine Maserati Part - New (to order)
                                                                                                                      # 049
                                                                                                                      MPN: 117 TC 69616
                                                                                                                      END RIGHT FOR SHIFT CONTROL ROD
                                                                                                                      END RIGHT FOR SHIFT CONTROL ROD Genuine Maserati Part - New (to order)
                                                                                                                      # 050
                                                                                                                      MPN: DN 69648
                                                                                                                      NUT
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 051
                                                                                                                      MPN: 117 TC 69647
                                                                                                                      SLEEVE FOR DRIVE ROD ADJUSTMENT
                                                                                                                      SLEEVE FOR DRIVE ROD ADJUSTMENT Genuine Maserati Part - New (to order)
                                                                                                                      # 052
                                                                                                                      MPN: DN 43587
                                                                                                                      NUT
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 053
                                                                                                                      MPN: 117 TC 69617
                                                                                                                      END LEFT FOR SHIFT CONTROL ROD
                                                                                                                      END LEFT FOR SHIFT CONTROL ROD Genuine Maserati Part - New (to order)
                                                                                                                      # 054
                                                                                                                      MPN: 117 TC 75267
                                                                                                                      JOINT BETWEEN THE CAMBLO CONTROL RODS
                                                                                                                      JOINT BETWEEN THE CAMBLO CONTROL RODS Genuine Maserati Part - New (to order)
                                                                                                                      # 055
                                                                                                                      MPN: SN 74933
                                                                                                                      PIN
                                                                                                                      PIN Genuine Maserati Part - New (to order)
                                                                                                                      # 056
                                                                                                                      MPN: DNT. 47031
                                                                                                                      NUT
                                                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                                                      # 057
                                                                                                                      MPN: 117 TC 117008
                                                                                                                      SUPPORT
                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                      # 058
                                                                                                                      MPN: 117 TC 117437
                                                                                                                      SUPPORT
                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                      # 059
                                                                                                                      MPN: 117 TC 117438
                                                                                                                      SUPPORT
                                                                                                                      SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                      # 060
                                                                                                                      MPN: 117 TC 117046
                                                                                                                      Preparaztone gruppo lava comando cambio
                                                                                                                      Preparaztone gruppo lava comando cambio Genuine Maserati Part - New (to order)
                                                                                                                      # 062
                                                                                                                      MPN: RDI 58544
                                                                                                                      WASHER
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 064
                                                                                                                      MPN: RDI 58543
                                                                                                                      WASHER
                                                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                                                      # 065
                                                                                                                      MPN: GRN 69070
                                                                                                                      Grano per centragglo torretta at supporto Ø 13 X 8,5 X 12
                                                                                                                      Grano per centragglo torretta at supporto Ø 13 X 8,5 X 12 Genuine Maserati Part - New (to order)
