025 - Pedals

Maserati Bora Pedals Parts Diagram

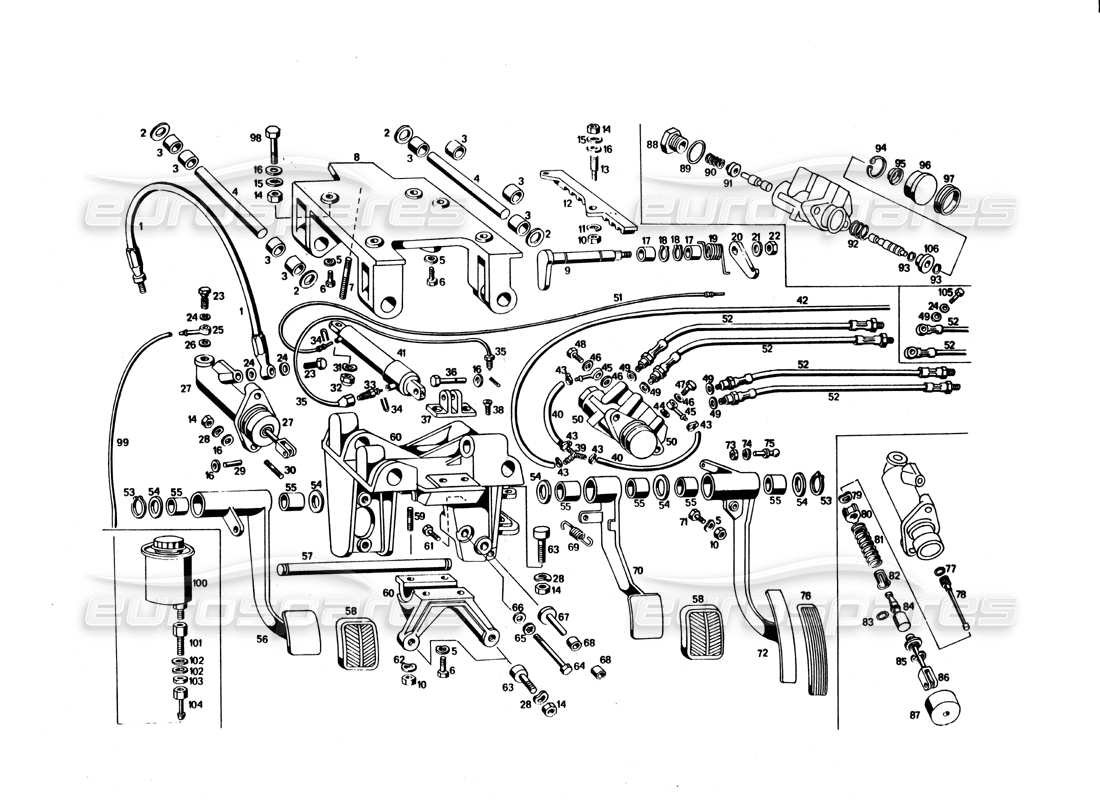

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                                                                    #
                                                                                                                                                                                                                    Part number
                                                                                                                                                                                                                    Description
                                                                                                                                                                                                                    Price
                                                                                                                                                                                                                    # 001
                                                                                                                                                                                                                    MPN: 117 FC 117014
                                                                                                                                                                                                                    PREPARAZIONE CARRELIO E PEDALIERA
                                                                                                                                                                                                                    # 001
                                                                                                                                                                                                                    MPN: 117 FC 117562
                                                                                                                                                                                                                    PREPARATION OF THE TROLLEY AND RIGHT GUIDS PEDAL
                                                                                                                                                                                                                    # 001
                                                                                                                                                                                                                    MPN: 117 Fl 75439
                                                                                                                                                                                                                    Flexible hose for clutch control pump outlet connection
                                                                                                                                                                                                                    # 002
                                                                                                                                                                                                                    MPN: 117 FC 73395
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    # 003
                                                                                                                                                                                                                    MPN: 117 FC 71202
                                                                                                                                                                                                                    BUSH
                                                                                                                                                                                                                    # 004
                                                                                                                                                                                                                    MPN: 117 FC 71201
                                                                                                                                                                                                                    Porno support trolley ports pedal board
                                                                                                                                                                                                                    # 005
                                                                                                                                                                                                                    MPN: RNT 6701,1
                                                                                                                                                                                                                    RONDSILA FISSAGGIO PORNO SOSTEGNO CARRELLO
                                                                                                                                                                                                                    # 007
                                                                                                                                                                                                                    MPN: PN 73050
                                                                                                                                                                                                                    Prigionlero fissaggio pistoncino idraulico Ø 10 X 1,5 X 49
                                                                                                                                                                                                                    # 008
                                                                                                                                                                                                                    MPN: 117 FC 71121
                                                                                                                                                                                                                    CARRELLO PORTS PEDALL
                                                                                                                                                                                                                    # 009
                                                                                                                                                                                                                    MPN: 117 FC 71265
                                                                                                                                                                                                                    ComPlessivo porno ports ganclo per arresto carrello
                                                                                                                                                                                                                    # 010
                                                                                                                                                                                                                    MPN: DNT 47047
                                                                                                                                                                                                                    NUT
                                                                                                                                                                                                                    # 011
                                                                                                                                                                                                                    MPN: RNT 6701,1
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    # 012
                                                                                                                                                                                                                    MPN: 117 FC 71222
                                                                                                                                                                                                                    Rack for trolley stop
                                                                                                                                                                                                                    # 013
                                                                                                                                                                                                                    MPN: PN 72946
                                                                                                                                                                                                                    Prigionlero fissagglo cremagliera al supporto Ø 8 X 1,25
                                                                                                                                                                                                                    # 014
                                                                                                                                                                                                                    MPN: DNT. 47031
                                                                                                                                                                                                                    NUT 8 X 1.25
                                                                                                                                                                                                                    # 015
                                                                                                                                                                                                                    MPN: RSN 3 2 6 3 5
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    # 016
                                                                                                                                                                                                                    MPN: RNT47075
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    This part replaces part number 47075
                                                                                                                                                                                                                    # 017
                                                                                                                                                                                                                    MPN: 117 FC 71332
                                                                                                                                                                                                                    BUSH
                                                                                                                                                                                                                    # 018
                                                                                                                                                                                                                    MPN: ART/49850
                                                                                                                                                                                                                    SEEGER RING
                                                                                                                                                                                                                    # 019
                                                                                                                                                                                                                    MPN: 117 FC 71283
                                                                                                                                                                                                                    Recall molls trolley stop hook
                                                                                                                                                                                                                    # 020
                                                                                                                                                                                                                    MPN: 117 FC 71269
                                                                                                                                                                                                                    GANCLO PER ARRESTO CARRELLO PORTS PEDALIERA
                                                                                                                                                                                                                    # 022
                                                                                                                                                                                                                    MPN: DST 48925
                                                                                                                                                                                                                    NUT
                                                                                                                                                                                                                    # 023
                                                                                                                                                                                                                    MPN: VRN 73385
                                                                                                                                                                                                                    Vita raccordo sulla pomp* frizlone Ø 7/16 X 20 UNF
                                                                                                                                                                                                                    # 024
                                                                                                                                                                                                                    MPN: GN 67834
                                                                                                                                                                                                                    GUARNLZIONE PER TUBO FLESSLBILE POMPA FRIZIONE Ø 11 X 16 X 1
                                                                                                                                                                                                                    # 025
                                                                                                                                                                                                                    MPN: RON 73386
                                                                                                                                                                                                                    UNION
                                                                                                                                                                                                                    # 028
                                                                                                                                                                                                                    MPN: RAT/45680
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    # 029
                                                                                                                                                                                                                    MPN: 1011529148081
                                                                                                                                                                                                                    PORNO PER SNODO PEDALO FRIZLONE
                                                                                                                                                                                                                    # 030
                                                                                                                                                                                                                    MPN: PN 72764
                                                                                                                                                                                                                    PRLGLONIERO FISSAGGLO POMPA FRIZIONE AL SUPPORTO Ø 8 X 1,25 X 33
                                                                                                                                                                                                                    # 032
                                                                                                                                                                                                                    MPN: DST 88047
                                                                                                                                                                                                                    Dodo fissto pistoncino al prigionlero
                                                                                                                                                                                                                    # 033
                                                                                                                                                                                                                    MPN: VRN 72227
                                                                                                                                                                                                                    Vito raccordo sul pistoncino Ø 3/8 X 24 UNF X 30
                                                                                                                                                                                                                    # 034
                                                                                                                                                                                                                    MPN: 117 Fl 73325
                                                                                                                                                                                                                    FORK
                                                                                                                                                                                                                    # 036
                                                                                                                                                                                                                    MPN: 117 FC 71342
                                                                                                                                                                                                                    PORNO PER SGANCLO CARRELLO
                                                                                                                                                                                                                    # 037
                                                                                                                                                                                                                    MPN: 117 FC 72008
                                                                                                                                                                                                                    PIASTRINO DI TENTS PISTONCINO IDRAULICO
                                                                                                                                                                                                                    # 038
                                                                                                                                                                                                                    MPN: VNT 72257
                                                                                                                                                                                                                    Vlte fissagglo piaatrino di tenuta pistoncino Idraulico Ø 8 X 1.25 X 18
                                                                                                                                                                                                                    # 039
                                                                                                                                                                                                                    MPN: RMNL 73842
                                                                                                                                                                                                                    Three ways for brake pump oil drain
                                                                                                                                                                                                                    # 040
                                                                                                                                                                                                                    MPN: MN 73374
                                                                                                                                                                                                                    MANICOTTO PER SCARLCO OLIO DAL DISTRIBUTORE AL 3 VIE Ø 5 X 12 X 90
                                                                                                                                                                                                                    # 041
                                                                                                                                                                                                                    MPN: 117 Fl 71793
                                                                                                                                                                                                                    PLSTONCINO PER AVANZAMENTO CARRELLO PORTS PEDAL
                                                                                                                                                                                                                    # 042
                                                                                                                                                                                                                    MPN: MN 73374
                                                                                                                                                                                                                    MANIC. PER MEND. OLIO DAL 3 VIE POMPA IRENT AL 3 VIE PRINC. Ø 5X12X500
                                                                                                                                                                                                                    # 043
                                                                                                                                                                                                                    MPN: FRN 74510
                                                                                                                                                                                                                    CLAMP FOR SAID AND FOR OIL DRAIN SLEEVE OF FAULT LIFTING CIRCUIT
                                                                                                                                                                                                                    # 044
                                                                                                                                                                                                                    MPN: GN 51962
                                                                                                                                                                                                                    GASKET OR SEAL
                                                                                                                                                                                                                    # 045
                                                                                                                                                                                                                    MPN: RON 73380
                                                                                                                                                                                                                    UNION
                                                                                                                                                                                                                    # 046
                                                                                                                                                                                                                    MPN: GN/34782
                                                                                                                                                                                                                    GUARNLZIONE PER DETTO Ø 7 X 1 X 14
                                                                                                                                                                                                                    # 047
                                                                                                                                                                                                                    MPN: VRN 73379
                                                                                                                                                                                                                    SCREW
                                                                                                                                                                                                                    # 048
                                                                                                                                                                                                                    MPN: RON 73378
                                                                                                                                                                                                                    Vito raccordo eulla pompa frenl Ø 7 X 1 X 18
                                                                                                                                                                                                                    # 049
                                                                                                                                                                                                                    MPN: GN 37911
                                                                                                                                                                                                                    GUARNLZIONE PER FLESSLBILE SULLA POMPA FRENI
                                                                                                                                                                                                                    # 050
                                                                                                                                                                                                                    MPN: 117 Fl 70774
                                                                                                                                                                                                                    POMPA FRENI
                                                                                                                                                                                                                    # 051
                                                                                                                                                                                                                    MPN: 117 Fl 73864
                                                                                                                                                                                                                    Tubo tlesslPblle dal pistoncino al distributore
                                                                                                                                                                                                                    # 052
                                                                                                                                                                                                                    MPN: 117 FC 73127
                                                                                                                                                                                                                    Tubo flesslbile rolls pompa freni guida destra
                                                                                                                                                                                                                    # 052
                                                                                                                                                                                                                    MPN: 117 Fl 73004
                                                                                                                                                                                                                    Tubo flesslbile sulla pomp* front
                                                                                                                                                                                                                    # 053
                                                                                                                                                                                                                    MPN: ART. 51653
                                                                                                                                                                                                                    RING
                                                                                                                                                                                                                    # 054
                                                                                                                                                                                                                    MPN: RN 54302
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    # 055
                                                                                                                                                                                                                    MPN: 109 FC 54283
                                                                                                                                                                                                                    BUSH
                                                                                                                                                                                                                    # 056
                                                                                                                                                                                                                    MPN: 117 FC 117010
                                                                                                                                                                                                                    CLUTCH CONTROL PEDAL
                                                                                                                                                                                                                    # 056
                                                                                                                                                                                                                    MPN: 117 FC 117560
                                                                                                                                                                                                                    RIGHT DRIVE CLUTCH CONTROL PEDAL
                                                                                                                                                                                                                    # 057
                                                                                                                                                                                                                    MPN: 117 FC 71142
                                                                                                                                                                                                                    ALBERO PORTS PEDALO FRENO FRIZLONE E ACCELERATORE
                                                                                                                                                                                                                    # 058
                                                                                                                                                                                                                    MPN: 109 FC 57849
                                                                                                                                                                                                                    BRAKE AND CLUTCH PEDAL COVER
                                                                                                                                                                                                                    # 059
                                                                                                                                                                                                                    MPN: PN35771
                                                                                                                                                                                                                    PRIGIONLERO SUL SUPPORTO PEDALIERA FISSAGGIO COPERCHIETTO Ø 6 X 18 X 28
                                                                                                                                                                                                                    # 060
                                                                                                                                                                                                                    MPN: 117 FC 117005
                                                                                                                                                                                                                    Preparazione carrello ports pedali con coperchietto
                                                                                                                                                                                                                    from £525.00
                                                                                                                                                                                                                    from £525.00
                                                                                                                                                                                                                    # 062
                                                                                                                                                                                                                    MPN: RAT/45679
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    # 063
                                                                                                                                                                                                                    MPN: 117 BN 74730
                                                                                                                                                                                                                    FINE KOREA PAD ON BRAKE, CLUTCH AND ACCELERATOR PEDALS
                                                                                                                                                                                                                    # 064
                                                                                                                                                                                                                    MPN: BNT 73367
                                                                                                                                                                                                                    BOLT
                                                                                                                                                                                                                    # 065
                                                                                                                                                                                                                    MPN: RDI 60333
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    # 067
                                                                                                                                                                                                                    MPN: 117 FC 71200
                                                                                                                                                                                                                    Puntalino per pompa freni
                                                                                                                                                                                                                    # 068
                                                                                                                                                                                                                    MPN: 117 FC 71199
                                                                                                                                                                                                                    BUSH
                                                                                                                                                                                                                    # 069
                                                                                                                                                                                                                    MPN: 117 FC 73394
                                                                                                                                                                                                                    MOLLS DL RICHIAMO PEDALO FRENO
                                                                                                                                                                                                                    # 070
                                                                                                                                                                                                                    MPN: 117 FC 117559
                                                                                                                                                                                                                    Pedals comando freno guide destra
                                                                                                                                                                                                                    # 071
                                                                                                                                                                                                                    MPN: BNT 72427
                                                                                                                                                                                                                    BOLT
                                                                                                                                                                                                                    # 072
                                                                                                                                                                                                                    MPN: 117 FC 117012
                                                                                                                                                                                                                    PEDALS COMANDO ACCELERATORE
                                                                                                                                                                                                                    # 072
                                                                                                                                                                                                                    MPN: 117 FC 117561
                                                                                                                                                                                                                    Pedalo comando accelerators guide destra
                                                                                                                                                                                                                    # 073
                                                                                                                                                                                                                    MPN: DNT 47046
                                                                                                                                                                                                                    NUT
                                                                                                                                                                                                                    This part replaces part number 47046
                                                                                                                                                                                                                    # 074
                                                                                                                                                                                                                    MPN: RDI 58544
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    # 075
                                                                                                                                                                                                                    MPN: C/114/1 MC 66904
                                                                                                                                                                                                                    Porno eferico fllettato
                                                                                                                                                                                                                    # 076
                                                                                                                                                                                                                    MPN: 117 FC 68337
                                                                                                                                                                                                                    Copri pedalo accelerators

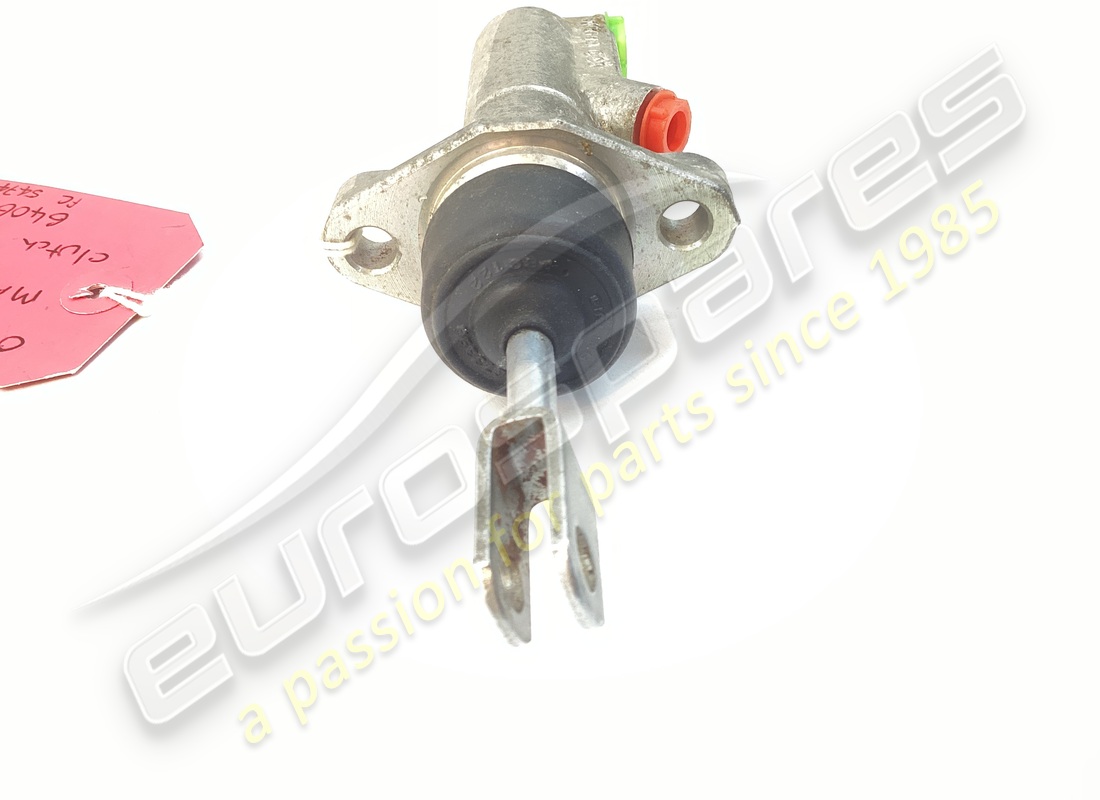

                                                                                                                                                                                                                    # 077
                                                                                                                                                                                                                    MPN: 107 FC 59792
                                                                                                                                                                                                                    Gommino per valvola clllndro pompa frizlone
                                                                                                                                                                                                                    # 078
                                                                                                                                                                                                                    MPN: 107 FC 59791
                                                                                                                                                                                                                    Porno comando valvola pomp* frizlone
                                                                                                                                                                                                                    # 080
                                                                                                                                                                                                                    MPN: 107FC59789
                                                                                                                                                                                                                    BICCHIERINO SODS VALVOLA P O M P * FRIZLONE
                                                                                                                                                                                                                    # 081
                                                                                                                                                                                                                    MPN: 107 FC 59788
                                                                                                                                                                                                                    MOLLS COMANDO VALVOLA POMP. FRIZLONE
                                                                                                                                                                                                                    # 082
                                                                                                                                                                                                                    MPN: 107 FC 59787
                                                                                                                                                                                                                    Bicchierino guide molls pompa frizlone
                                                                                                                                                                                                                    # 083
                                                                                                                                                                                                                    MPN: 107 - FC 59786
                                                                                                                                                                                                                    GOMMINO PER STANTUFFO POMP* FRIZLONE
                                                                                                                                                                                                                    # 084
                                                                                                                                                                                                                    MPN: 107FC59785
                                                                                                                                                                                                                    STANTUFFO POMP* FRIZLONE
                                                                                                                                                                                                                    # 086
                                                                                                                                                                                                                    MPN: 107FC59782
                                                                                                                                                                                                                    PISTON CONTROL SHAFT FROM THE CLUTCH PEDAL
                                                                                                                                                                                                                    # 087
                                                                                                                                                                                                                    MPN: 107 FC 59781
                                                                                                                                                                                                                    Cappuccio per protezione pompa frizlone
                                                                                                                                                                                                                    # 088
                                                                                                                                                                                                                    MPN: 117 Fl 76856
                                                                                                                                                                                                                    TAPPO PER POMPA COMANDO FRENL
                                                                                                                                                                                                                    # 089
                                                                                                                                                                                                                    MPN: 117 Fl 76150
                                                                                                                                                                                                                    RUBBER FOR BRAKE CONTROL PUMP CAP
                                                                                                                                                                                                                    # 090
                                                                                                                                                                                                                    MPN: 117 FI 78250
                                                                                                                                                                                                                    Molls pistoncino Inferiors pomp* comando freni
                                                                                                                                                                                                                    # 091
                                                                                                                                                                                                                    MPN: 117 Fl 76152
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    # 092
                                                                                                                                                                                                                    MPN: 117 Fl 76153
                                                                                                                                                                                                                    Molls del pistoncino superiors
                                                                                                                                                                                                                    # 093
                                                                                                                                                                                                                    MPN: 117 Fl 76154
                                                                                                                                                                                                                    Arresto per scodelllno
                                                                                                                                                                                                                    # 094
                                                                                                                                                                                                                    MPN: 117 Fl 76155
                                                                                                                                                                                                                    ARRESTO ELASTICO PER SCODELLLNO
                                                                                                                                                                                                                    # 095
                                                                                                                                                                                                                    MPN: 117 Fl 76156
                                                                                                                                                                                                                    Scodeliino dl protezlone
                                                                                                                                                                                                                    # 096
                                                                                                                                                                                                                    MPN: 117 Fl 76157
                                                                                                                                                                                                                    Rubber protection
                                                                                                                                                                                                                    # 097
                                                                                                                                                                                                                    MPN: 117 Fl 76158
                                                                                                                                                                                                                    BUSH
                                                                                                                                                                                                                    # 098
                                                                                                                                                                                                                    MPN: BNT 47017
                                                                                                                                                                                                                    BOLT
                                                                                                                                                                                                                    # 099
                                                                                                                                                                                                                    MPN: MN 73374/0450
                                                                                                                                                                                                                    Sleeve for clutch pump supply from the tank Ø 5 X 12
                                                                                                                                                                                                                    # 100
                                                                                                                                                                                                                    MPN: 107 FC 56068
                                                                                                                                                                                                                    Clutch oil tank up to the 499E car
                                                                                                                                                                                                                    # 100
                                                                                                                                                                                                                    MPN: 117 Fl 73388
                                                                                                                                                                                                                    SERBATOLO OLIO FRIZLONE DALLY 500. VETTURA IN POI
                                                                                                                                                                                                                    # 101
                                                                                                                                                                                                                    MPN: DRN 73901
                                                                                                                                                                                                                    NUT
                                                                                                                                                                                                                    # 102
                                                                                                                                                                                                                    MPN: RDI 55639
                                                                                                                                                                                                                    WASHER
                                                                                                                                                                                                                    # 103
                                                                                                                                                                                                                    MPN: DN 73372
                                                                                                                                                                                                                    NUT
                                                                                                                                                                                                                    # 104
                                                                                                                                                                                                                    MPN: DRN 73389
                                                                                                                                                                                                                    NUT
                                                                                                                                                                                                                    # 105
                                                                                                                                                                                                                    MPN: VRN 76119
                                                                                                                                                                                                                    Vito raccordo per fissaggio tubs fleselbilt entrata olio sul dosatore
                                                                                                                                                                                                                    # 106
                                                                                                                                                                                                                    MPN: 117 Fl 77236
                                                                                                                                                                                                                    WASHER
