maserati bora air intake maninifold and filter parts diagram

008 - Air intake maninifold and filter

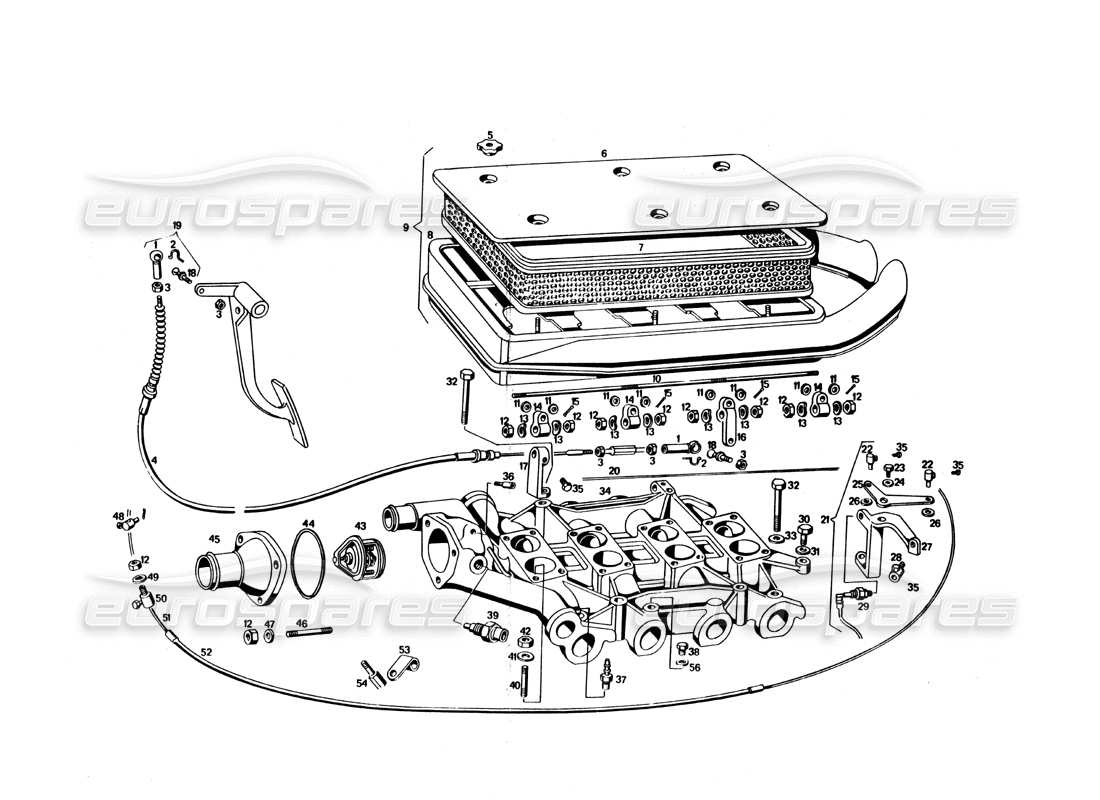

Maserati Bora Air intake maninifold and filter Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: C 114 MC 66896
CORPO PER SNODO ANGOLARE
# 002
MPN: C 114 MC 70908
FERMO PER SNODO ANGOLARE
# 003
MPN: DNT 47046
DARIO Ø 5 X 0,8 X 4 FISSAGGIO TESTING SFERICA
from £0.86
from £0.86
This part replaces part number 47046
# 004
MPN: 117 FC 73408
CAVO COMANDO CARBURATORI COMPLETO
# 004
MPN: 117 FC 76590
Complete carburettor control cable for right-hand drive
# 005
MPN: 107/0300 MC 72824
TOP COVER FIXING PANEL
from £51.28
from £51.28
# 006
MPN: 107/0300 MC 72823
COVER
# 007

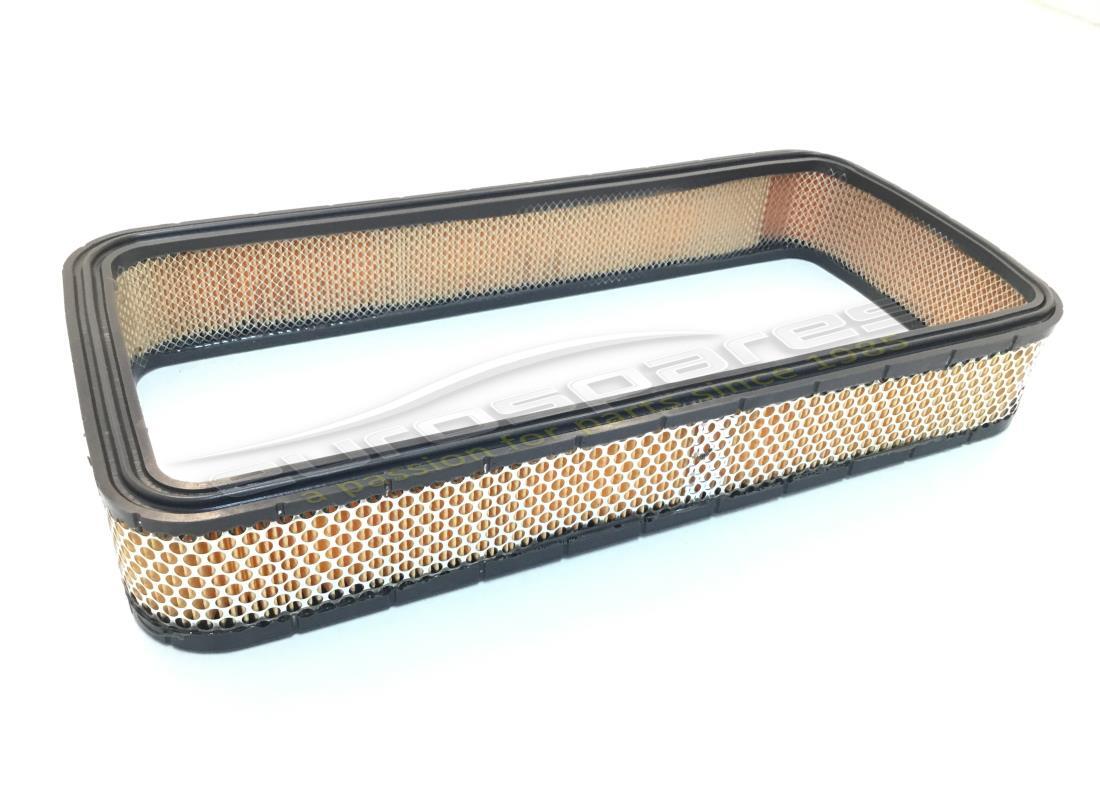

MPN: MC72821
CARTUCCLA FILTRANTE
from £94.50
from £94.50
# 008
MPN: 107 0300 MC 72820
Corpo flltro sui carburatorl
# 009
MPN: 107 0300 MC 72825
Complessivo flltro aria sui carburatori

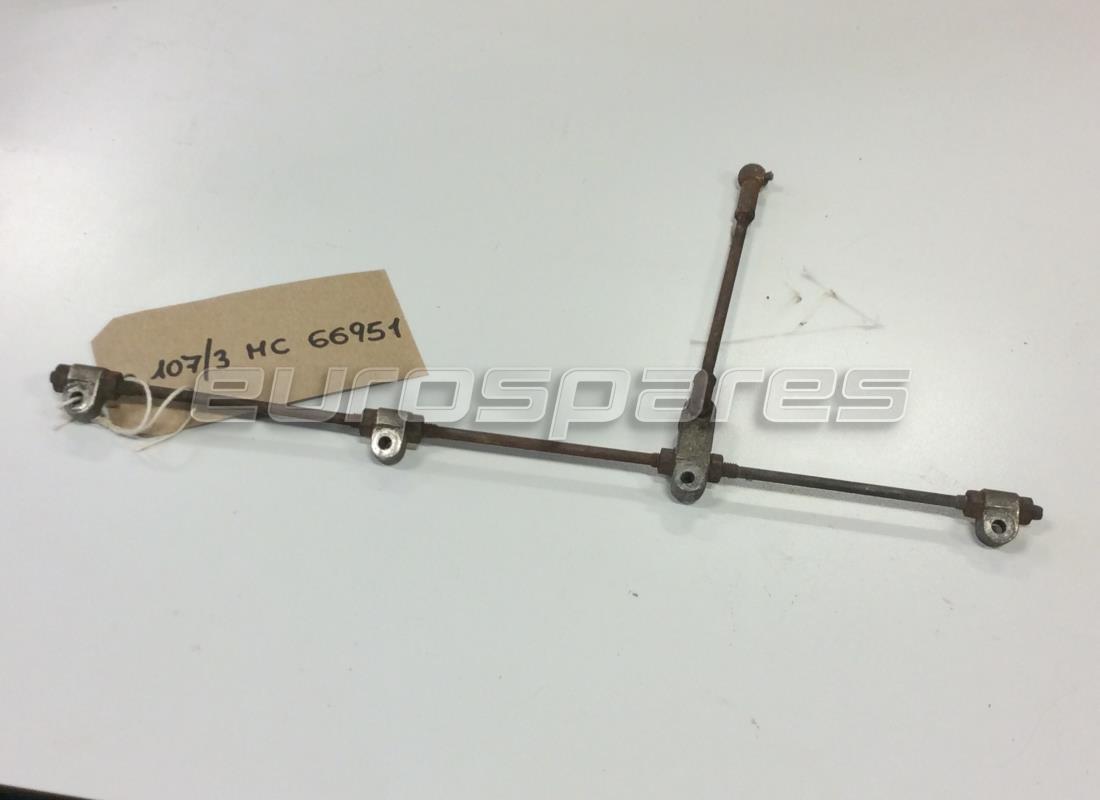

# 010
MPN: 107/3 MC 66951
TIE ROD
from £157.50
from £157.50
# 012
MPN: DNT 47047
DARIO Ø 6 X 1 X 5 PER TKANTE FILETTATO
# 013
MPN: RAT/45679
WASHER
# 014
MPN: C 114/1 MC 66897
Levetta sui carburatorl
# 015
MPN: CN 64833
COPIGLIA Ø 1,3 X 10 PER LEVY CARBURATORI
# 016
MPN: C 114/1 MC 66911
Levetta sul carburatore posteriors
# 017
MPN: 107 07 47 MC 73141
Complete carburettor control cable sheath retainer
# 018
MPN: C/114/1 MC 66904
SPHERICAL PIVOT
# 019
MPN: 66905
Compleasfvo corpo e porno sferico
# 020
MPN: FGN 57260
Fllo Ø 1,2 comando starter
# 021
MPN: 107/A BC 67590
COMPLESSFVO SUPPORTO E RINVIO COMANDO STARTER
# 022
MPN: NPL 48869
Niples Ø 5 X 13,5 sulla levetta rinvio starter
# 024
MPN: RN 41313
WASHER
# 025
MPN: 107/A BC 67587
LEVETTA PER NINVLO COMANDO STARTER
# 027
MPN: 107/A BC 67588
SUPPORT
# 028
MPN: NPL 48847
NIPLES Ø 6 X 1 X 19 PER GUAINA COMANDO STARTER
# 029
MPN: 107BL56933
BUTTON SWITCH FOR HANDBRAKE AND STARTER
# 031
MPN: RSN 3 2 6 3 5
WASHER
# 033
MPN: RNT 55379
WASHER
# 034
MPN: 107 07 47 MT 72704
Collettore d'aspirazione

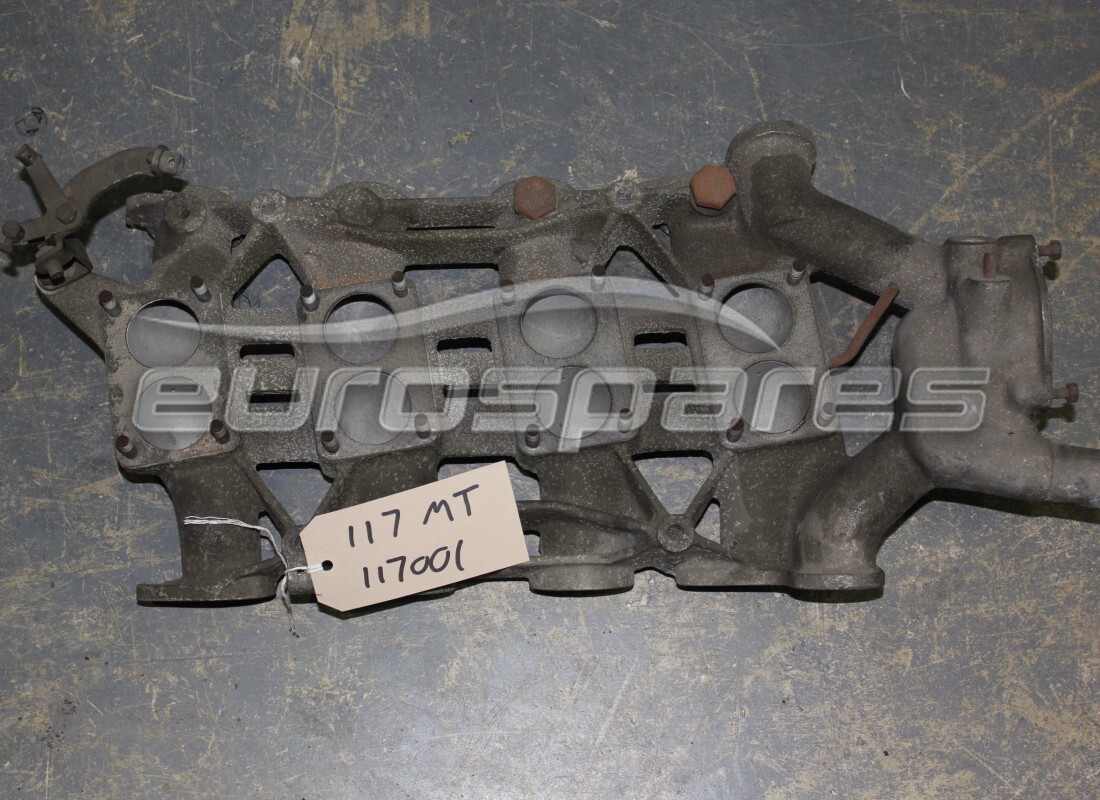

# 034
MPN: 117 MT 117001
Preparaxione collettore d'aspirazione
from £1,044.75
from £1,044.75
# 036
MPN: C 114/1 MT 68289
UNION
# 037
MPN: 107 0300 MT 74936
Non-return valve on the intake manifold
# 038
MPN: TN 74422
Cap closing the hole on the intake manifold
# 040
MPN: PN 66853
PRIGIONLERO FISSAGGIO CARBURATORI AT COLLETTORE D'ASPIRAZIONE Ø 8X 1,25X40
# 042
MPN: DN 66854
DADS Ø 8 X 1.25 X6,5
# 043
MPN: 107/3 MT 64544
TERMOSTATO
from £117.94
from £117.94
# 044
MPN: GOM 65802
RUBBER ON THE THERMOSTAT RETAINING COVER
from £10.26
from £10.26
# 045
MPN: 107/3 MT 65801
COVER
# 047
MPN: RNT 6701,1
WASHER
# 048
MPN: NPL 55688
NIPLES COMANDO CAVO STARTER
# 050
MPN: NPL 48847
NIPLES FISSAGGIO GUAINA LOVE STARTER
# 051
MPN: FGN 64375
Cavo d'acciaio Ø 1 per guaina comando starter I = mt. 2,50
# 052
MPN: GFN 57259
GUAINA FLESSIBILE PER CAVO COMANDO STARTER I= MT. 2,30
# 053
MPN: FRN 44674
Fascetta per detto
# 054
MPN: 3124 41187
Colonnetta sostegno cavo comando starter
# 055
MPN: GN 46636
GASKET OR SEAL
