maserati bora tools parts diagram

041 - Tools

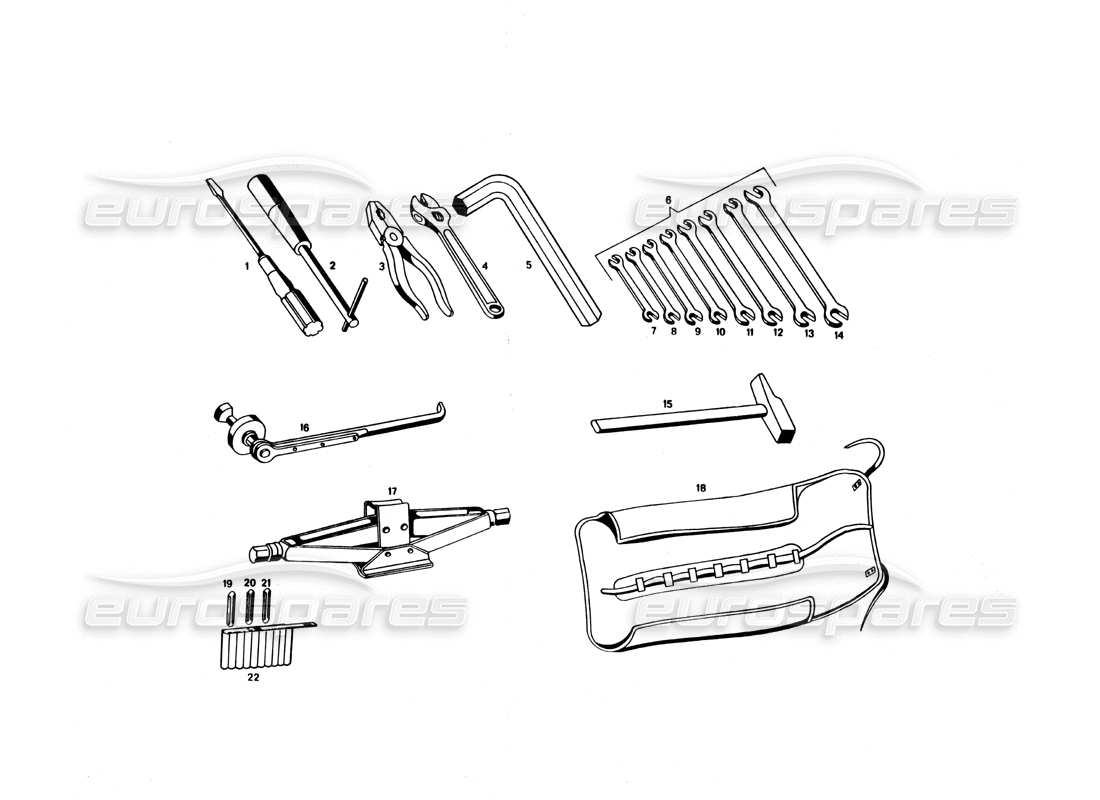

Maserati Bora Tools Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 20130 33994
                                              CACCIAVITE
                                              # 002
                                              MPN: 115 VA 66832
                                              CHIAVE SNODATA PER CANDELE
                                              # 003
                                              MPN: 30140 33995
                                              Pinza universals
                                              # 004
                                              MPN: 30042 34917
                                              CHIAVE A RULLINO
                                              # 005
                                              MPN: 115 VA 66913
                                              CHIAVE A BRUGOLA CH. 17 PER TAPPI SCARICO OHO
                                              # 006
                                              MPN: 30045 39507
                                              SERIE COMPLETA CHIAVI FISSE 6:22
                                              # 007
                                              MPN: 30061/51012
                                              Chiave fissa da 6+7
                                              # 008
                                              MPN: 30062 51013
                                              Chiave fissa da 8+9
                                              # 009
                                              MPN: 30063/51014
                                              CHIAVE FISSA DA 10:11
                                              # 010
                                              MPN: 30064 51015
                                              CHIAVE FISSA DA 12:13
                                              # 011
                                              MPN: 30065/51016
                                              Chiave fissa da 14+15
                                              # 012
                                              MPN: 30066 51017
                                              Chiave fissa da 16+17
                                              # 013
                                              MPN: 300,67 51018
                                              CHIAVE FISSA DA 18:19
                                              # 014
                                              MPN: 30068/51019
                                              CHIAVE FISSA DA 20:22
                                              # 015
                                              MPN: 30125/34219
                                              MARTELLO D'ACCIALO
                                              # 016
                                              MPN: 107 VA 58398
                                              CHIAVE PER CRIK E DA RUOTE A COLONETTE
                                              # 017
                                              MPN: 107 - VA 58397
                                              CRIK SOTLEVAMENTO VETTURA FISSATO NET VANO MOTORE
                                              # 018
                                              MPN: 30002 33996
                                              BUSTA PER ATTREZZI
                                              # 019
                                              MPN: VFN/47496
                                              8 A FLEXIBLE VALVE
                                              # 020
                                              MPN: VFN 47490
                                              15 A FLEXIBLE VALVE
                                              # 021
                                              MPN: VFN 51306
                                              25 A FLEXIBLE VALVE
                                              # 022
                                              MPN: 116 VA 71688
                                              SPARE FLEXIBLE VALVE BOX COMPLETE WITH FUSES
