maserati bora fuel tank and pump parts diagram

026 - Fuel Tank and Pump

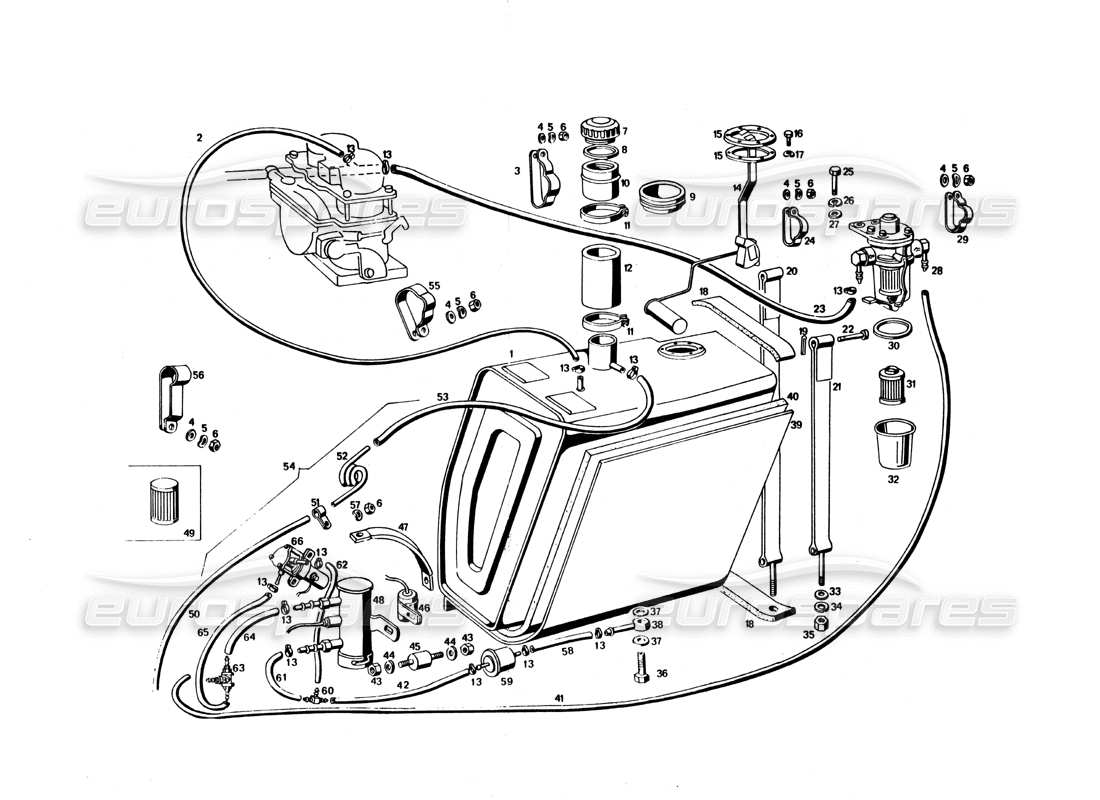

Maserati Bora Fuel tank and pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 117 CS 70666
COMPLETE FUEL TANK
# 001
MPN: MN 60008/140
Rubber and canvas hose Ø 8 X 14,5 X 140 for fuel return from the carburettor to the tank
# 003
MPN: FRN 73159
Petrol fixing clamp Tubi
# 005
MPN: RNT 45678
WASHER
# 006
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 007
MPN: TN 33811
FILLER FILLER CLOSING CAP
# 008
MPN: GOM 50650
RUBBER SEALING CAP ON THE FILLER FILLER
# 009
MPN: PFN56119
GROMMET
# 010
MPN: 117 CS 73639
UNION WELDING ASSEMBLY
# 011
MPN: FRN 37832
CLAMP FROM Ø 50 TO 0 70 TO SEAL THE SLEEVE ON THE FILLING PORT
# 012
MPN: 117 CS 73638
Sleeve for filler neck Ø 60 X 70 X 105
# 013
MPN: FRN 68934
FASCETTA Ø 14 PER FISSAGGIO MANICOTTO IMPIANTO CARBURAZ.
# 014
MPN: 117 CS 73164
Indlcatore di lfvello
# 015
MPN: 115 CS 66048
GASKET OR SEAL
# 018
MPN: CS 76934
FELT FOR FUEL TANK FIXING
# 019
MPN: CN 32668
GLFA CAP FOR TANK STRAP FIXING PIN
# 020
MPN: 117 CS 74006
ASSLEME NASTRO FISSAGGLO SERBATOIO BENZINA L = 555
# 021
MPN: 117 CS 68514
ASSLEME NASTRO FISSAGGIO SERBATOIO BENZINA L = 480
# 022
MPN: 117 CS 70699
PIVOT
# 023
MPN: MN 60008/1000
Tubo in gomma dal filtro benzina ai carbur. 0 8X14,5X1000
# 025
MPN: BNT. 53968
BOLT
# 026
MPN: RSN 31690
WASHER
# 027
MPN: RNT 47074
WASHER
# 028
MPN: 122 CS 80495

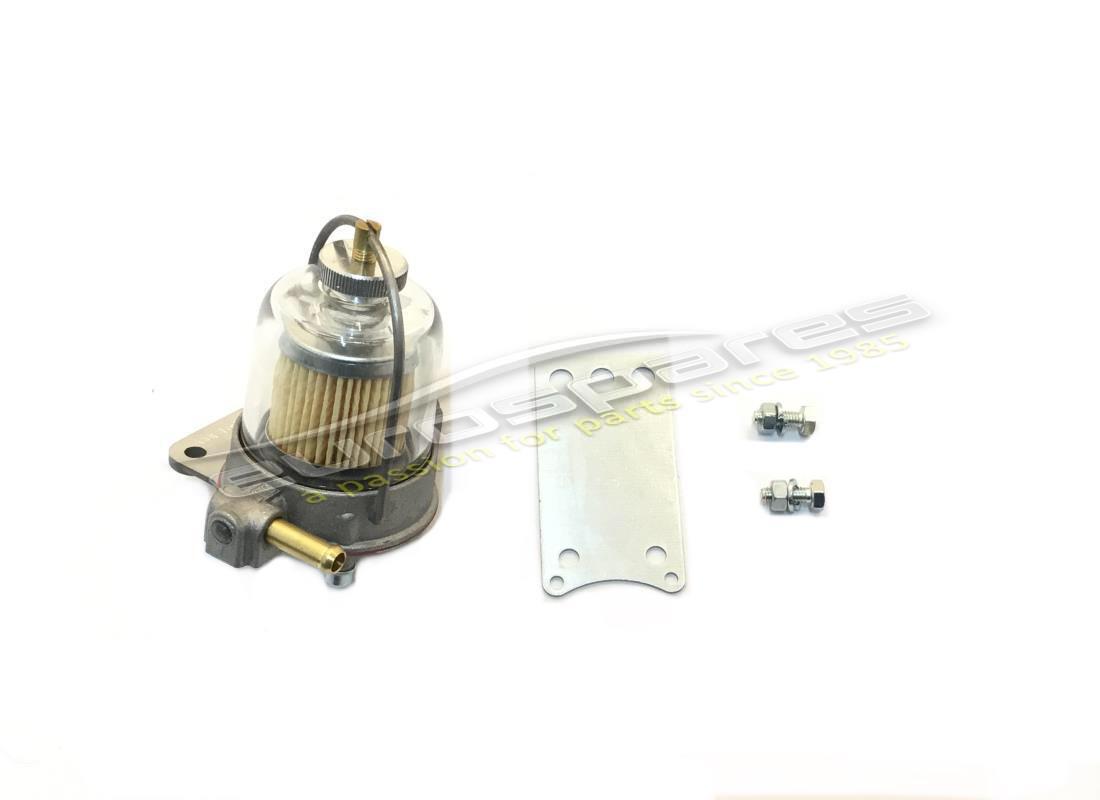

FUEL FILTER REGULATOR
from £131.25
from £131.25
# 029
MPN: FRN 73158
Petrol fixing clamp Tubi
# 030
MPN: 107 CS 73474
Guarnlzlone vaschetta
# 033
MPN: RNT 71306
WASHER
# 034
MPN: RSN 3 2 6 3 5
WASHER
# 035
MPN: DNT 53060
NUT
# 036
MPN: VRN 48547
SCREW
# 037
MPN: GN 44635
Guarnizlone Ø 14,2 X 22 X 1 per detto
# 038
MPN: RON 75067
UNION
# 039
MPN: 117 CT 74381
PARATLA COMPLETA DI ISOLANTE
# 040
MPN: 117 CT 75221
Insulator for petrol tank protection bulkhead m' 1
# 041
MPN: MN 60008/1500
Rubber and canvas hose from the fuel pump to the fuel filter Ø 8 X 14,5 X 1500
# 042
MPN: MN 60008/60
Rubber and canvas hose from the float tube to the fuel pump Ø 8X14.5X60
# 043
MPN: DST 68045
NUT
# 044
MPN: RNT 6701,1
WASHER
# 045
MPN: SLN 62135
SUPPORT
# 046
MPN: 101/7 ME-52898
CONDENSOR
# 047
MPN: 107/A BL 62615
CAVO MASSE PER POMPA BENDIX
# 048
MPN: 107 CS 69915
BENDIX TYPE ELECTRIC PUMP COMPLETE WITH FITTINGS
# 049
MPN: 107/A CS 62936
FILTRO SUTLA POMPA BENZINA BENDIX
# 051
MPN: FRN 44674
FASCETTA FISSAGGIO SPIRALE Ø 6
# 052
MPN: 115 CS 64695
SPIRAL PIPE FOR TANK VENT
# 053
MPN: TPN 56118/0500
GREEN PLASTIC HOSE FROM THE NOZZLE TO THE SPIRAL
# 054
MPN: 117 CS 76049
SPIRAL HOSE ASSEMBLY FOR FUEL TANK VENT
# 055
MPN: FRN 73160
Petrol fixing clamp Tubi
# 056
MPN: FRN 73473
Petrol fixing clamp Tubi
# 057
MPN: RNT 35345
WASHER
# 058
MPN: MN 60008/160
Rubber and canvas sleeve from the float tube to the first fuel filter Ø 8 X 14,5 X 160
# 059
MPN: 117 CS 77765
FUEL FILTER ON THE SUCTION PIPE
# 060
MPN: RMN 52257
UNION 3-WAY
# 061
MPN: MN 60008/350
Rubber and canvas sleeve from the 3 way connection to the Bendix fuel pump Ø 8 X 14,5 X 350
# 062
MPN: MN 60008/400
Manicotto in gomma e tela dells pompa secondaria APG al raccordo a 3 vie Ø 8 X 14,5 X 400
# 064
MPN: MN 60008/430
Rubber and canvas sleeve from the Bendix pump to the 3 way fitting with non-return valve Ø 8 X 14,5 X 430
# 065
MPN: MN 60008/500
Rubber sleeve from the 3 way connection with non-return valve to the APG secondary pump Ø 8X14,5X500
# 066
MPN: 117 CS 77767
POMPA BENZINA SECONDARIA TIPO APG
Use P/N 100245
