038 - Seats and Upholstery

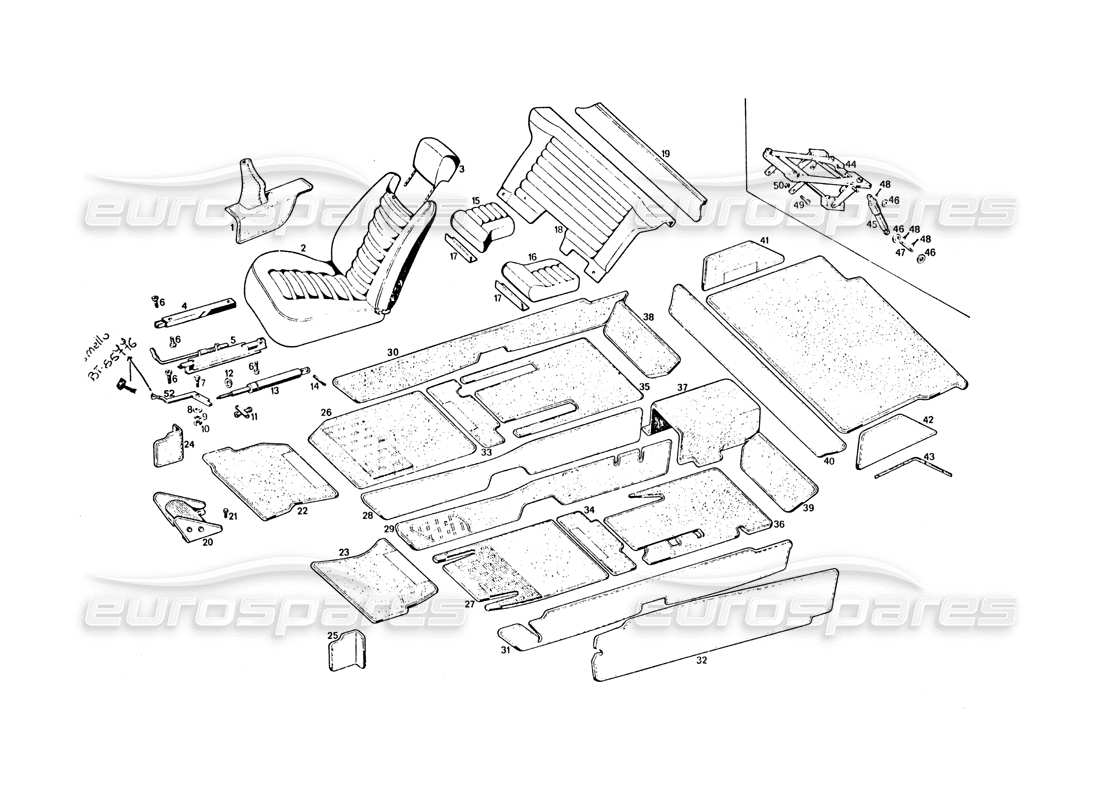

Maserati Khamsin Seats and upholstery Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 120 BP 84627
FAIRING FOR RIGHT HAND BRAKE LEVER RAW
# 001
MPN: 120 BP 84884
RAW HANDBRAKE LEVER FAIRING
# 001
MPN: 120 BP 84885
COVERED HANDBRAKE LEVER FAIRING
# 001
MPN: 120 BP 84886
COVERED HAND BRAKE LEVER FAIRING RIGHT DRIVE
# 002
MPN: 120 BP 84637
POLTRONA ANTERIORE SINISTRA RIVESTITA (SENZA SCORREVOLI)
# 002
MPN: 120 BP 84638
POLTRONA ANTERIORE DESTRA RIVESTITA (SENZA SCORREVOLI)
# 003
MPN: 120 BP 84887
HEADREST FOR ARMCHAIR
# 004
MPN: 120 BP 84888
SLIDING RIDER AND PASSENGER SEAT WITHOUT ADJUSTMENT LEVER
# 005
MPN: 120 BP 85009
SLIDING PILOT SEAT WITH ADJUSTMENT LEVER
# 005
MPN: 120 BP 85010
SCORREVOLE SEDILE PASSEGGERO CON LEVA DI REGOLAZIONE
# 006
MPN: VNT 53866
SCREW
# 007
MPN: 120 BP 85011
BOLT
# 009
MPN: RDI 58544
WASHER
# 010
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 011
MPN: 120 BP 85012
ARMCHAIR BACKREST LEVER CRUISE
# 012
MPN: RNT 47087
WASHER
# 013
MPN: 120 BP 85013
Automatic backrest return piston
# 014
MPN: 120 BP 85014
PIN
# 015
MPN: 120 BP 85015
Right rear cushion covered in leather
# 016
MPN: 120 BP 85016
LEFT REAR CUSHION COVERED IN LEATHER
# 017
MPN: 120 BP 85017
RAW REAR CUSHION ANGLE STOPPER
# 017
MPN: 120 BP 85018
COVERED REAR CUSHION CORNER STOPPER
# 018
MPN: 120 BP 85019
RAW REAR BACKREST
# 018
MPN: 120 BP 85020
COVERED REAR BACKREST
# 019
MPN: 120 BP 85021
SPALLATURA IN LEGNO APPOGGIO SCHIENALE POSTERIORE (NON FORNIBILE)
# 020
MPN: 120 BP 85022
APPEGGIAPIEDI COMPLETO LATO PASSEGGERO
# 021
MPN: BNT. 53968
BOLT
# 022
MPN: 120 BP 85023
PASSENGER LATE CARPET ON THE FIREPROOF
# 023
MPN: 121 BP 85023
TAPPETO LATO PILOTE SUL PARAFIRONMA
# 024
MPN: 120 BP 85025
RIVESTIMENTO PASSARTATA ANTERIORE DESTRA
# 025
MPN: 120 BP 85026
RIVESTIMENTO PASSARUOTA ANTERIORE SINISTRA
# 026
MPN: 120 BP 85027
TAPPCTO VASEHETTA LATO PASSEGGERO ANTERIORE
# 027
MPN: 120 BP 85028
PILOT SIDE TRAY MAT
# 028
MPN: 120 BP 85029
TUNNEL COVERING LOWER PART RIGHT SIDE
# 029
MPN: 120 BP 85030
TUNNEL COVERING LOWER LEFT SIDE
# 030
MPN: 120 BP 85031
RIVESTIMENTO LONGHERONE DESTRO
# 031
MPN: 120 BP 85032
RIVESTIMENTO LONGHERONE SINISTRO
# 032
MPN: 120 BP 85033
TUNNEL COVERING TOP LEFT SIDE
# 032
MPN: 120 BP 85044
TUNNEL COVERING TOP RIGHT SIDE
# 033
MPN: 120 BP 85034
RIGHT IOTA CROSS CROSS COVERING
# 033
MPN: 120 BP 85039
RIVESTIMENTO MENSOLA SEDILE POSTERLORE DESTRO
# 034
MPN: 120 BP 85035
LEFT SIDE CROSS CROSS COVERING
# 035
MPN: 120 BP 85036
RIGHT REAR PASSENGER TRAY MAT
# 036
MPN: 120 BP 85037
REAR PASSENGER LEFT TRAY MAT
# 037
MPN: 120 BP 85038
REAR TUNNEL COVERING
# 039
MPN: 120 BP 85040
LEFT REAR SEAT SHELF COVER
# 040
MPN: 120 BP 85041
FRONT TRUNK COMPARTMENT COVERING
# 041
MPN: 120 BP 85042
TRUNK COMPARTMENT RIGHT SIDE COVERING
# 042
MPN: 120 BP 85043
Rivestimento pate sinistra vane baule
# 043
MPN: 120 BP 85045
MODANATURA CCUMATA SUL RIVESTIRLONTO SINISTRO VANO BAULE
# 043
MPN: 120 BP 85046
CHROME MOLDING ON THE RIGHT TRUNK COMPARTMENT COVERING
# 044
MPN: 120 BP 84535
Parti meccaniche alzapoltrona completo
# 045
MPN: 117 Fl 71792
Hydraulic cylinder for lifting the pilot's chair
# 046
MPN: RNT 65593
WASHER
# 047
MPN: 117 BP 72744
PIVOT
# 048
MPN: CN. 43776
COPIGLIA Ø 1,8X15 PER DETTO
from £0.86
from £0.86
# 049
MPN: BNT/47028
BOLT
# 051
MPN: 120 BP 83809
CARPET ON THE TRUNK FLOOR
# 052
MPN: 120 BP 85103
LEVER
# 052
MPN: 120 BP 85104
LEVER
