maserati khamsin air intake manifold and filter parts diagram

009 - air intake manifold and filter

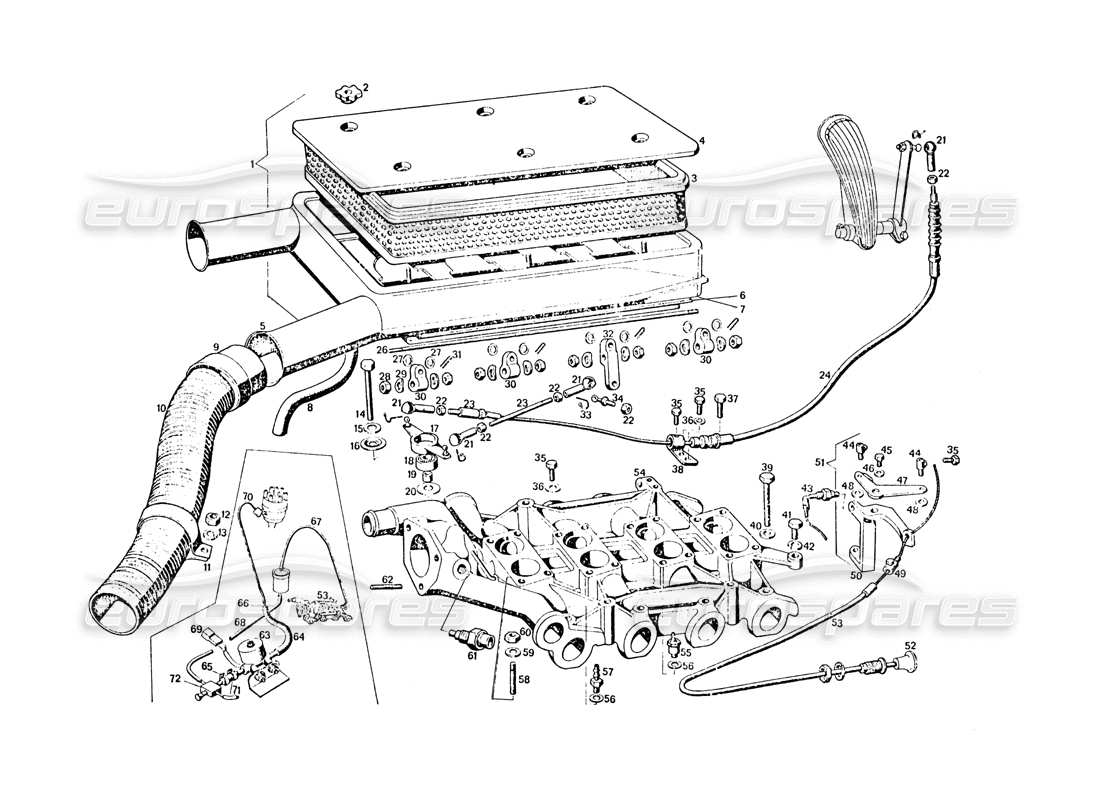

Maserati Khamsin Air intake manifold and filter Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 115/10.49.81923
FILTER ASSEMBLY ON CARBURETORS COMPLETE WITH TRUMPETS
# 002
MPN: 107/0300 MC 72824
Air filter upper cover fixing knob
from £51.06
from £51.06
# 003
MPN: MC72821
FILTER CARTRIDGE
from £94.50
from £94.50
# 004
MPN: 107/0300 MC 72823
COVER
# 005
MPN: 107 0300 MC 72820
FILTER BODY ON CARBURETORS
# 006
MPN: 107/0300 MC 72822
PLATE ON CARBURETORS
# 007
MPN: 115/10 MC 83902
RUBBER GASKET
# 008
MPN: MN 73378
AIR FILTER CYLINDER HEAD CONNECTION SLEEVE
# 009
MPN: 115.10/49 MC 81924
RUBBER RING FOR Tubi AIR CONVEYORS
# 010
MPN: TFC 81954
FLEXIBLE PIPE
# 011
MPN: 115.10/49 MC 81953
Air fixing clamp Tubi
# 012
MPN: DNT 80338
FASCETTA SOSTEGNO FISSAGGIO Tubi Ø 6 X 1
# 013
MPN: RSN/32690
Washer Ø 6
# 016
MPN: C 114/1 MC 66890
Bearing protection ring
# 017
MPN: 107/3 MC 68623
CARBURETTOR CONTROL RETURN LEVER
# 018
MPN: CSC 66910
BEARING FOR SAID
# 019
MPN: GRN 56859
Grub screw Ø 10 X 8,25 X 6 bearing and bolt centering
Supersession
Supersession
# 020
MPN: C 114/1 MC 66909
WASHER
# 021
MPN: C 114/1 MC 66896
CORPO PER SNODO ANGOLARE
# 022
MPN: DNT 47046
NUT
from £0.86
from £0.86
This part replaces part number 47046
# 023
MPN: 107/3 MC 66952
EXTENSION FOR CARBURETTOR CONTROL CABLE
# 024
MPN: 116 FC 69872
COMPLETE CABLE FOR CARBURETTOR CONTROL
# 025
MPN: 107/3 MC 66952
TIE ROD
# 026
MPN: 107/3 MC 66951
TIE ROD
from £157.50
from £157.50
# 028
MPN: DNT 47047
NUT
# 029
MPN: RAT/45679
WASHER
# 030
MPN: 114/1 MC 66897
LEVER ON CARBURETORS
# 031
MPN: CN 64833
COPIGLIA Ø 1,3 X 10 PER LAVA CARBURATORI
# 032
MPN: C 114/1 MC 66911
LEVER ON THE REAR CARBURETTOR
# 033
MPN: C 114/1 MC 70908
FERMO PER SNODO ANGOLARE
# 034
MPN: C/114/1 MC 66904
PIVOT
# 038
MPN: 107/3 MC 68624
Carburetor control sheath stop
# 040
MPN: RNT 55379
WASHER
# 042
MPN: RSN 3 2 6 3 5
WASHER
# 043
MPN: 107 BC 56933
BUTTON SWITCH FOR HANDBRAKE AND STARTER
# 044
MPN: NPL 48869
Niples Ø 5 X 13,5 sulla levetta rinvio starter
# 046
MPN: RN 41313
WASHER
# 047
MPN: 107/A BC 67587
LEVETTA PER RINVIO COMANDO STARTER
# 049
MPN: NPL 48847
NIPLES Ø 6 X 1 X 19 PER GUAINA COMANDO STARTER
# 050
MPN: 107/A BC 67588
SUPPORT
# 051
MPN: 107/A BC 67590
COMPLESSIVO SUPPORTO A RINVIC COMANDO STARTER
# 053
MPN: 107/A BC 63048
Tiretto comando starter motore - guaina L = 985 mm. - L = 1340 mm. totale
# 054
MPN: 117 MT 117.694
Intake manifold with studs mounted PN 66853 - PN 35771
# 054
MPN: MM 64444
Manicotto fra I'elettrovaivola e iI raccordo spinterogeno L = 400 mm.
# 055
MPN: 107/3 MT 74396
Non-return valve on the intake manifold
# 056
MPN: GN 46636
GASKET OR SEAL
# 057
MPN: 107 0300 MT 74936
Non-return valve on the intake manifold
# 063
MPN: 422 BV 80553
GENERATOR VACUUM CONTROL SOLENOID VALVE
# 065
MPN: FRN 79383
FASCIETTA FISSAGGIO MANICOTTI SULL'ELETTROVALVOLA DEPRESSIONE
# 066
MPN: RMN 78668
REDUCING SLEEVE FOR CONNECTION Tubi
# 067
MPN: MM 79509
SLEEVE FROM INTAKE MANIFOLD TO VACUUM CANISTER L = 850 MM
# 068
MPN: MN 79509
SLEEVE FROM THE VACUUM TANK TO 4 WAY L = 350 MM.
# 069
MPN: 107 ME 58024
Connector for vacuum control solenoid valve
# 070
MPN: MN 79509
SLEEVE BETWEEN THE DISTRIBUTOR FITTING AND THE DISTRIBUTOR L = 350 MM.
# 071
MPN: MN 64444
MANICOTTO FRA I'ELETTROVALVOLA ED IL QUATTRO VIE L = 50 MM.
# 072
MPN: 115.07.49 MC 79763
UNION
