039 - Heating and Conditioning

Maserati Khamsin Heating and conditioning Parts Diagram

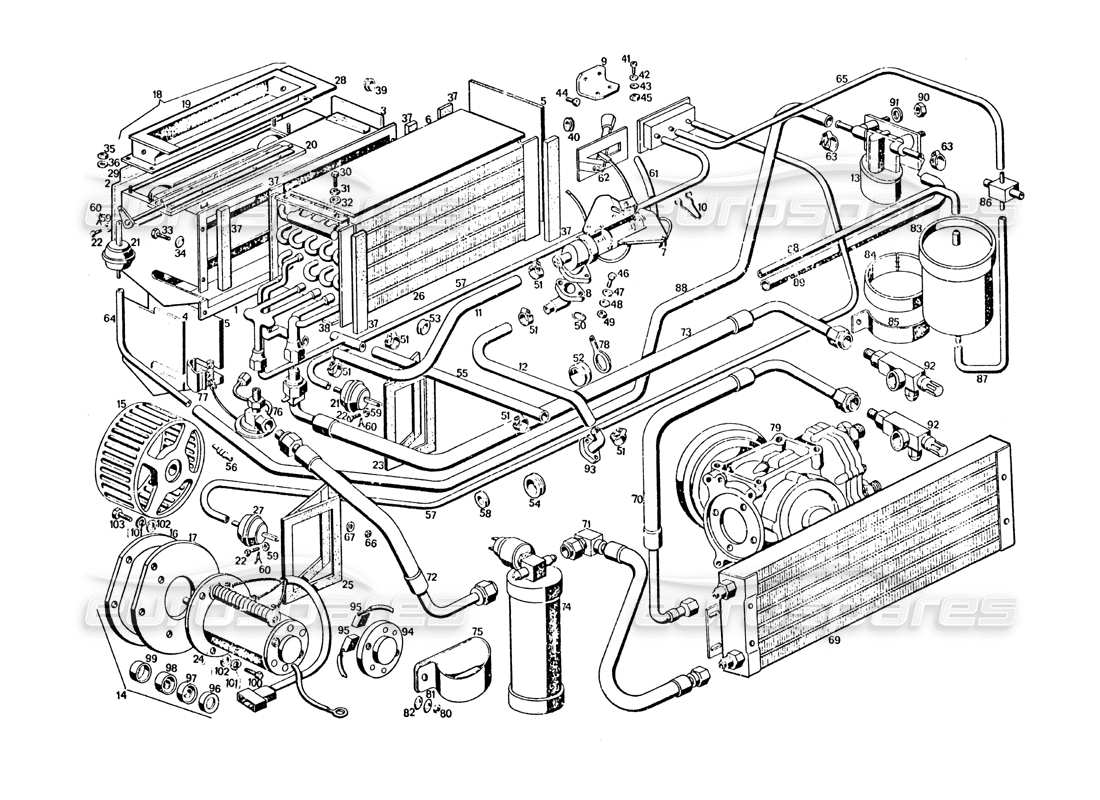

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 120 BV 75033
HEATING AND AIR CONDITIONING RADIATORS CONTAINER BOX
# 001
MPN: 120 BV 83035
RADIATORS CONTAINER BOX HEATING AND AIR CONDITIONING RIGHT DRIVE
# 002
MPN: 120 BV 75460
LOWER PROTECTION OF THE EVAPORATOR BOX
# 002
MPN: 120 BV 83033
LOWER PROTECTION OF THE EVAPORATOR BOX, RIGHT DRIVE
# 003
MPN: 120 BV 75462
FIANCHCTTO TOLERATE SINISTRO PROTEZIONE SCATOLA PORTA EVAPORATORE
# 003
MPN: 120 BV 83028
FLANCHCLTO LATERALE SMISTRO PROTEZIONE SCATOLA PORTA EVAPORATORE GUIDA DESTRA
# 004
MPN: 120 BV 75401
SIDE SIDE OF EVAPORATOR BOX
# 005
MPN: 120 BV 75463
INTERNAL SIDE PROTECTION OF THE DOOR BOX
# 006
MPN: 120 BV 75464
PROTEZIMRE SUPERIORE INTERNA SCATOLA PORTA
# 008
MPN: 120 BV 75300
UNION
# 009
MPN: 120 BV 75298
PIASIRINO SOSTEGNO VALVOLA ACQUA RISCALDAMENTO
# 010
MPN: 120 BV 75297
SPRING
# 011
MPN: 120 BV 75299
Pipe from the valve to the heating water delivery evaporator
# 011
MPN: 120 BV 83032
Pipe from the valve to the evaporator, heating water delivery, right hand drive
# 012
MPN: 120 BV 75301
PIPE FROM THE MANIFOLD TO THE HEATING WATER DELIVERY VALVE
# 013
MPN: 116/B 6V 76045
THROTTLE CONTROL SOLENOID VALVE ON THE WINDSHIELD
# 014
MPN: 116/B BV 78594
MOTOR COMPLETE WITH FAN FOR AIR CONDITIONING AND HEATING SYSTEM RIGHT DRIVE
# 014
MPN: 120 RV 75471
MOTOR COMPLETE WITH FAN, AIR CONDITIONING AND HEATING SYSTEM
# 015
MPN: 116/B BV 78592
IMPELLER FOR SAID RIGHT DRIVE
# 015
MPN: 120 BV 74933
IMPELLER FOR SAID
# 016
MPN: 120 BL 75452
RUBBER RING SEALED BETWEEN THE MOTOR COVER AND THE NUT
# 017
MPN: 120 BL 75451
COVER
# 018
MPN: 120 BV 83054
AIR DIFFUSION BOX COMPLETE WITH RIGHT-HAND DRIVE BUTTERFLY VALVE
# 018
MPN: 120 RV 79148
AIR DIFFUSION BOX COMPLETE WITH VALVE AND BUTTERFLY
# 019
MPN: 120 BV 75017
AIR DIFFUSION BOX COMPLETE WITH BUTTERFLY
# 019
MPN: 120 BV 75018
AIR DIFFUSION BOX
# 019
MPN: 120 BV 75020
AIR DIFFUSION BOX COMPLETE WITH GASKETS
# 019
MPN: 120 BV 83053
AIR DIFFUSION BOX COMPLETE WITH RIGHT DRIVE BUTTERFLY
# 020
MPN: 120 BV 75021
BUTTERFLY COMPLETE WITH SHAFT
# 020
MPN: 120 BV 83052
THROTTLE COMPLETE WITH RIGHT DRIVE SHAFT
# 021
MPN: C114 0327.M1/76043
VACUUM VALVE
# 023
MPN: 120 BV 75111
BUTTERFLY COMPLETE WITH EXTERNAL AIR INTAKE SHAFT
# 023
MPN: 120 BV 75112
EXTERNAL AIR INTAKE BUTTERFLY COMPLETE WITH FRAME
# 023
MPN: 120 BV 75113
EXTERNAL AIR INTAKE BUTTERFLY COMPLETE WITH VALVE AND FRAME
# 024
MPN: 116/B BL 78593
3 speed motor for right-hand drive passenger compartment fan
# 024
MPN: 120 BL 75450
3 speed motor for interior fan
# 025
MPN: 120 BV 79282
RECIRCULATING BUTTERFLY COMPLETE WITH VALVE AND FRAME
# 025
MPN: 120 BV 79283
FARFALLA RICIRCOLAZIONE COMPLETA DI CORNICE
# 025
MPN: 120 BV 83104
RECIRCULATING BUTTERFLY COMPLETE WITH FRAME RIGHT DRIVE
# 025
MPN: 120 BV 83105
RECIRCULATING BUTTERFLY COMPLETE WITH VALVE AND RIGHT DRIVE FRAME
# 026
MPN: 120 BV 79668
RADIATOR AND EVAPORATOR FOR HEATING AND AIR CONDITIONING SYSTEM
# 026
MPN: 120 BV 83034
RADIATOR AND EVAPORATOR FOR HEATING AND AIR CONDITIONING SYSTEM RIGHT DRIVE
# 027
MPN: 120 BV 81490
VACUUM VALVE FOR RECIRCULATION BUTTERFLY
# 028
MPN: 120 BV 81891
UPPER PROTECTION OF EVAPORATOR BOX
# 029
MPN: 120 BV 81882
FRONT TRAY PROTECTION ON THE EVAPORATOR CONTAINER BOX
# 032
MPN: RNT 59020
WASHER
# 033
MPN: BNT 47019
BOLT
# 034
MPN: RNT 6701,1
WASHER
# 035
MPN: DNT 47046
NUT
