Maserati Khamsin Dashboard Instruments Parts Diagram

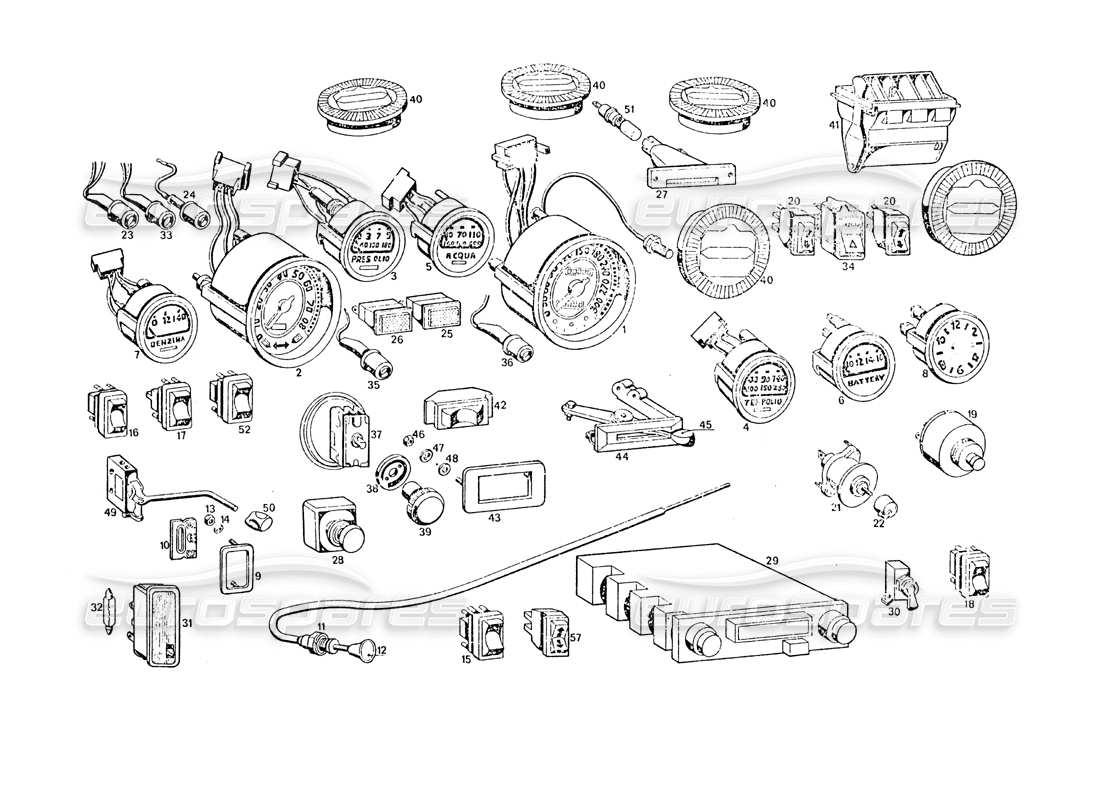

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 116 BC 69031
ODOMETER WITH RESETTING ROD
# 001
MPN: 116 BC 69032
Contamiglia con asta azzeramento
Supersession
Supersession
# 002
MPN: 116/A RC 73601
CONTAGIRI ELETTRONICO
# 003
MPN: 115 BC 65213

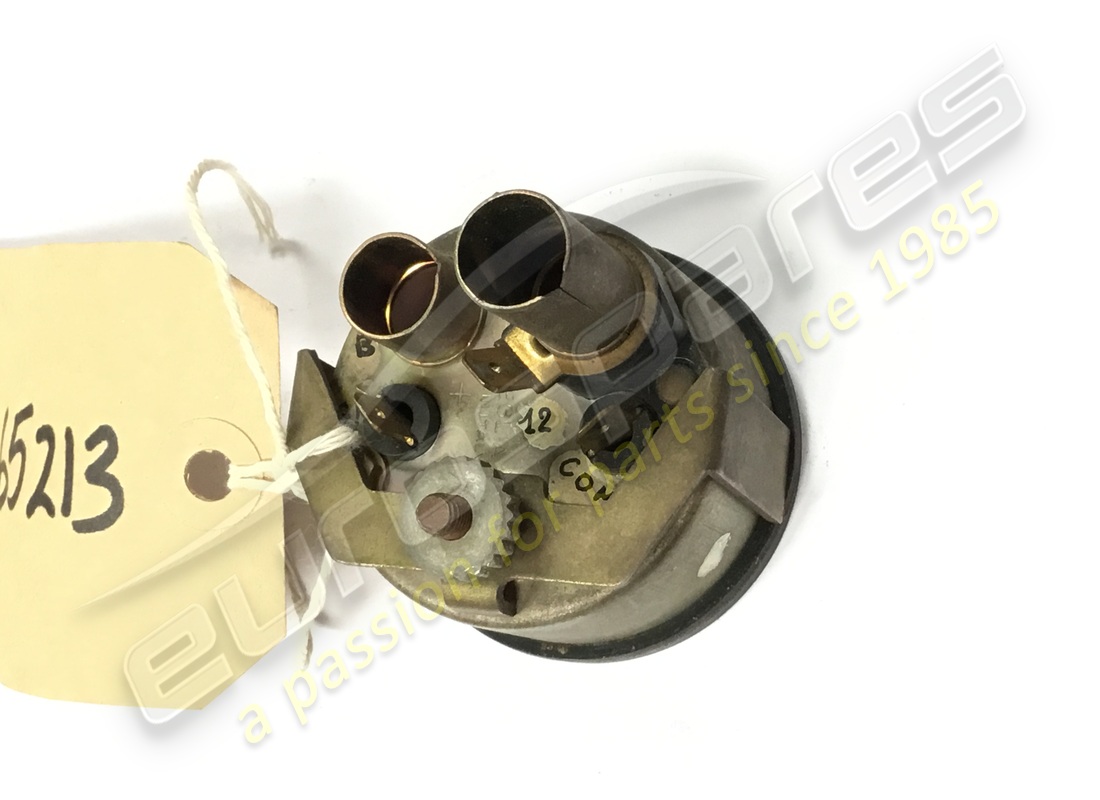

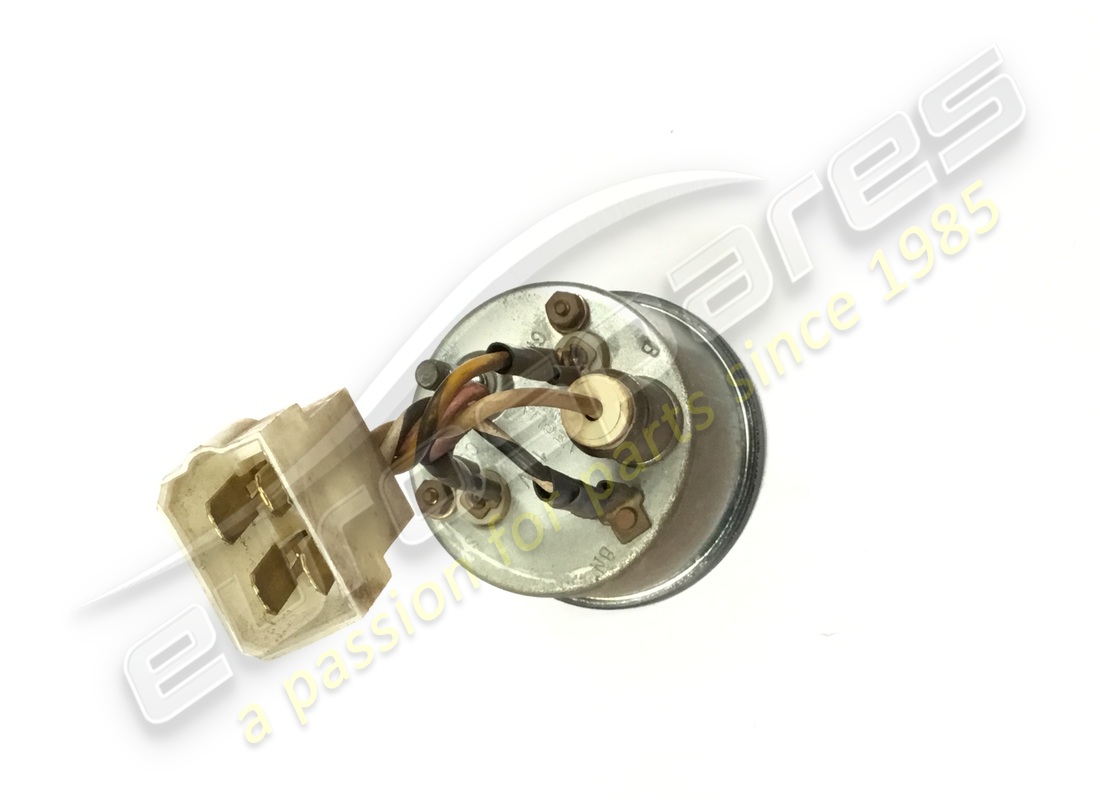

Manometro pressione olio motore
from £519.75
from £519.75
# 004
MPN: 115 BC 65214
Termometro temperatura olio motore
# 005
MPN: 115 BC 65215
Termometro temperatura acqua motore
# 006
MPN: 117 BC 75280
ELECTROMAGNETIC VOLTOMETER
# 007
MPN: 115 BC 65216
INDICATORE IIVEILO CARBURANTE
from £525.00
from £525.00
# 008
MPN: 120 BC 81864
ELECTRIC QUARTZ WATCH
# 009
MPN: 117 BC 75332

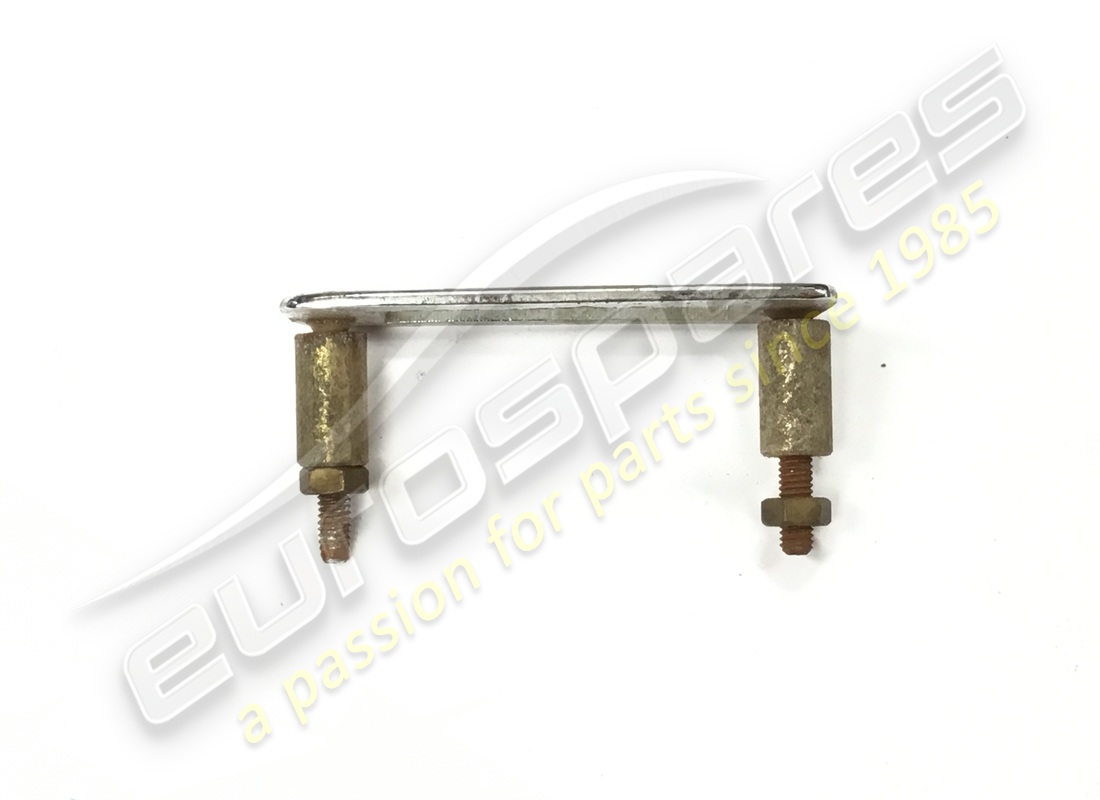

FRAME FOR MASK LEVER FOR HEADLIGHTS
# 010
MPN: 117 BC 75334
PLATE
# 012
MPN: 107/A BC 62327
POMELLO PER TIRETTO COMANDO STARTER
# 014
MPN: RDE 61865
WASHER
# 015
MPN: 115/A BL 79954
WINDSHIELD AIR DELIVERY THROTTLE CONTROL SWITCH
# 016
MPN: 115/A BL 78696
ACOUSTIC SIGNAL CONTROL SWITCH
from £52.50
from £52.50
# 017
MPN: 115/A BL 69531

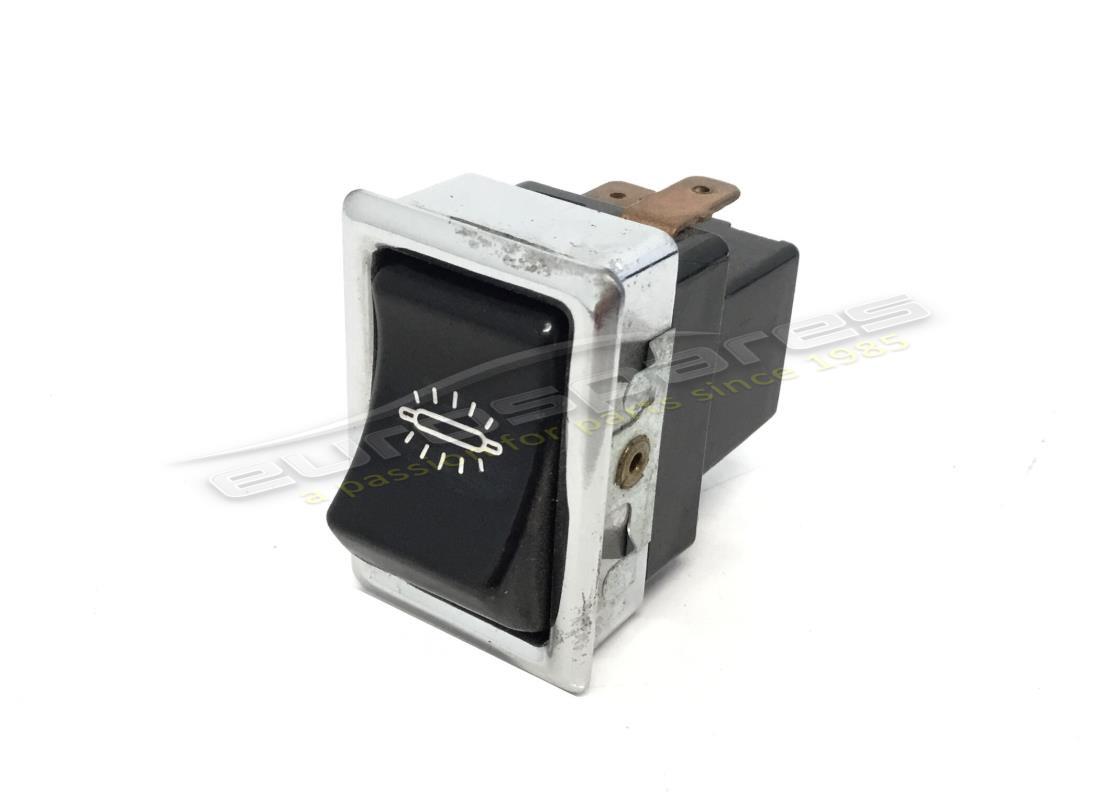

INTERRUTTORE COMANDO SBRINAMENTO LUNOTTO TERMICO
# 018
MPN: 115/A BL 72426
Interruttore coniando plafoniere abitacolo
from £52.50
from £52.50
# 019
MPN: 116/A BL 72981

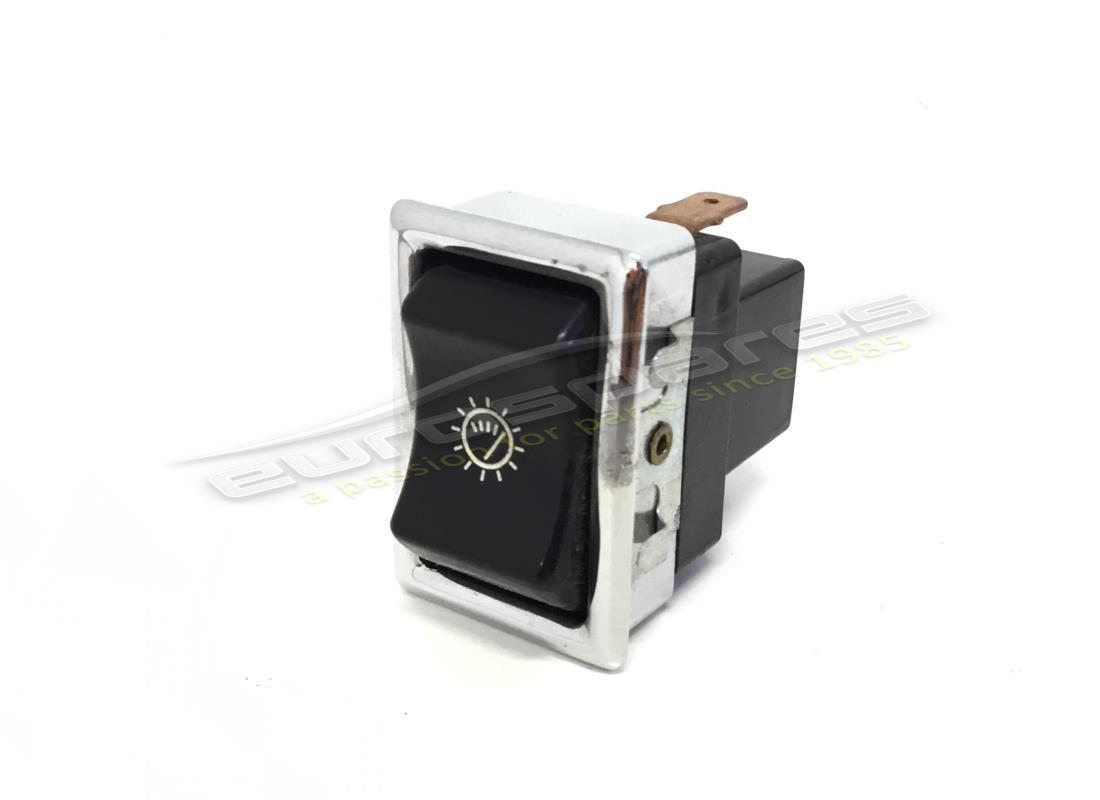

INTERRUTTORE AREOSTATO PER LUCI CRUSCOTTO
from £52.50
from £52.50
# 020
MPN: 115 BL 67015
DIVERTER
# 021
MPN: 120 BL 83500

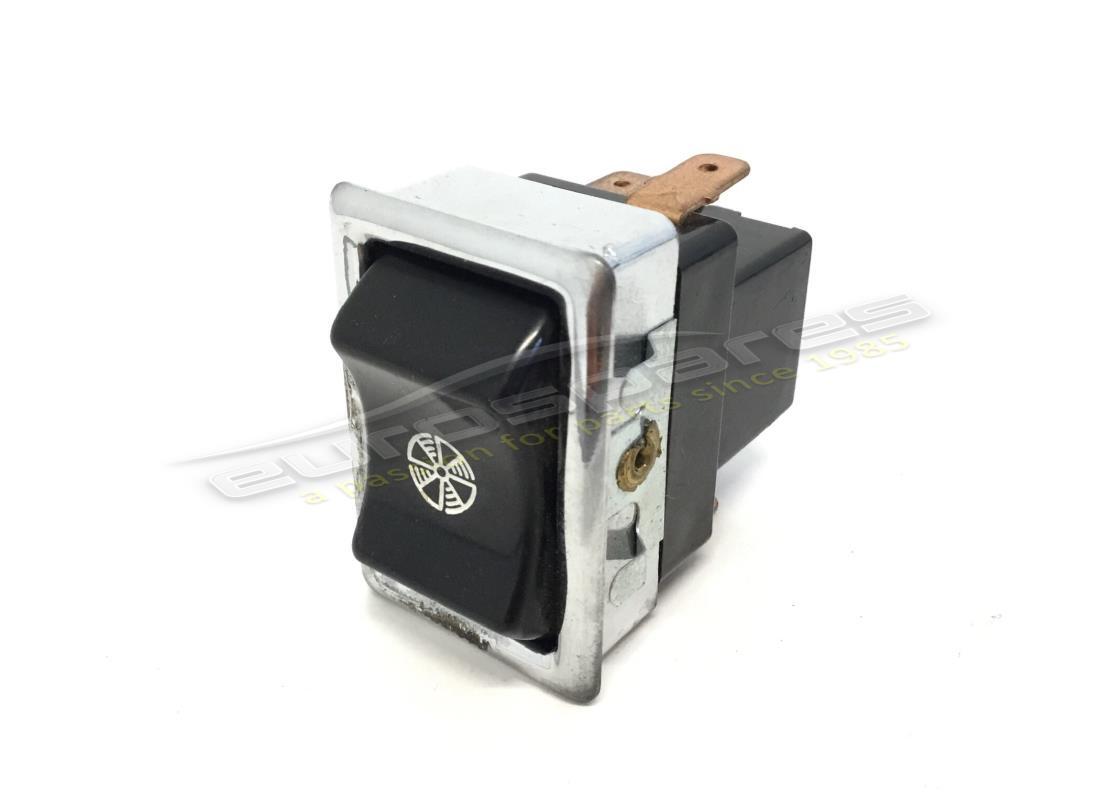

Three-speed cabin fan switch
from £52.50
from £52.50
# 022
MPN: 107/A BR 67734
Pomello per detto e temporeggiatore tergi
# 023
MPN: 101 /8 BL 54556
RED BIPOLAR LIGHT INDICATING FUEL RESERVE
# 024
MPN: 101/8 BL 54178

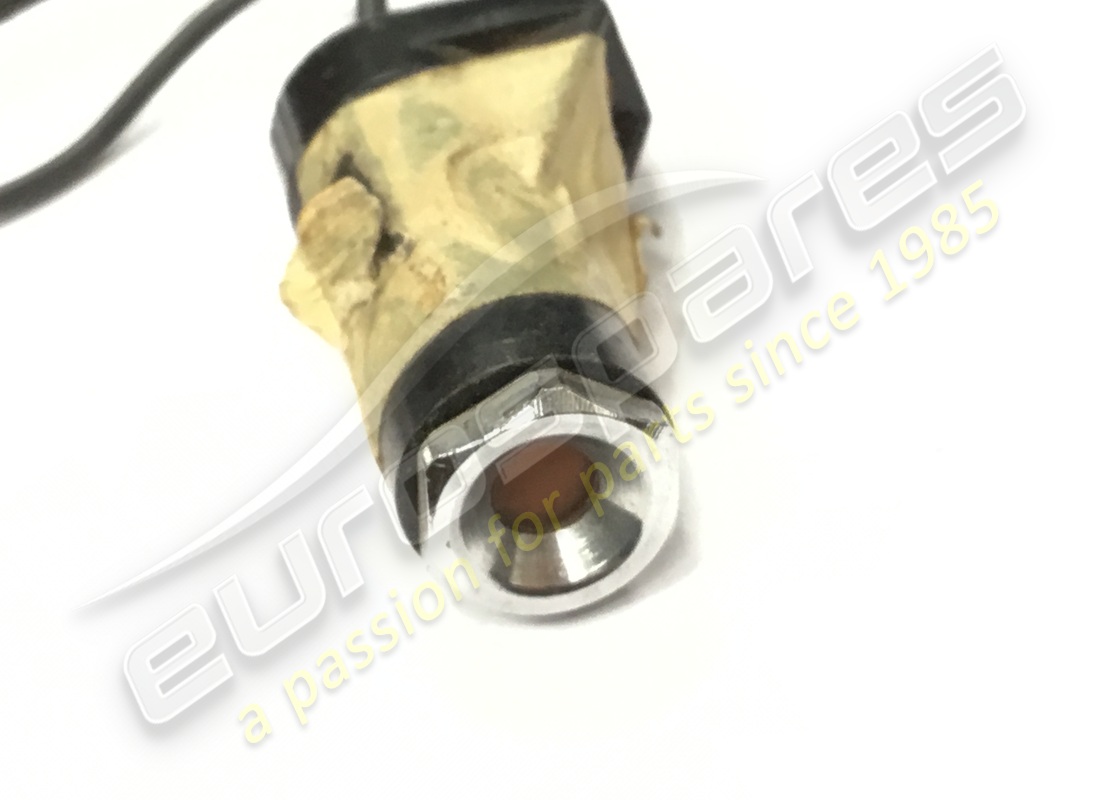

SINGLE-POLE YELLOW LIGHT INDICATING REAR DEFROSTER ON
from £52.50
from £52.50
# 025
MPN: 117 BL 75368
RED BIPOLAR LIGHT SEAT BELTS NOT FASTENED (USA)
# 025
MPN: 117 BL 75864
RED BIPOLAR LIGHT INDICATING HANDBRAKE ON
# 026
MPN: 120 BL 83632
RED BIPOLAR LIGHT INDICATING BRAKE CIRCUIT OIL PRESSURE
# 027
MPN: 120 BL 80968
PLAFONIERA ILLUMINAZIONE STRUMENTI
# 028
MPN: 116 BL 66815

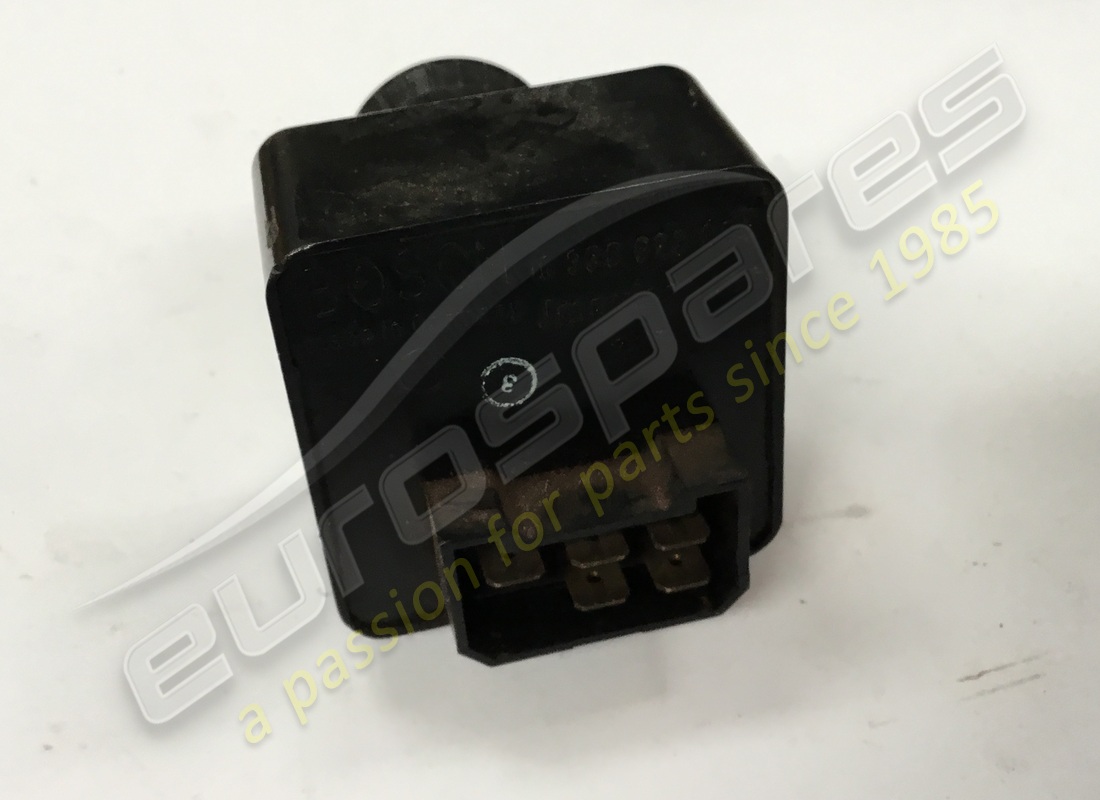

Temporizzatore comando intermittente tergicristallo
from £204.75
from £204.75
# 029
MPN: 116/A BL 79280
RADIO WITH TAPE PLAYER
# 030
MPN: 115/A BL 70566
RIGHT DRIVE HEADLIGHT EMERGENCY SWITCH
# 030
MPN: 120 BL 83469
EMERGENCY HEADLIGHTS SWITCH
# 031
MPN: 116 BL 68741
CEILING LIGHT ON THE LOWER SIDE DASHBOARD
from £100.42
from £100.42
# 032
MPN: LPN/48150
LAMP 12 V-5W A SILURO PER DETTO
# 033
MPN: 101 /8 BL 54556
BIPOLAR RED LIGHT FOR BRAKING CIRCUIT FAILURE FOR USA AND SWITZERLAND
# 033
MPN: 101/8 BL 54180
BLUE LIGHT SIGNALING HEADLIGHTS UP FOR GERMANY
# 034
MPN: 120 BL 82831
Emergency parking light control switch for France, England and Germany
# 034
MPN: 120 BL 82884
EMERGENCY PARKING LIGHT CONTROL SWITCH FOR USA ONLY
# 035
MPN: 120 BL 83633
RED BIPOLAR LIGHT FOR HANDBRAKE USA
# 036
MPN: 120 BL 84009
RED BIPOLAR LIGHT FOR BRAKE OIL PRESSURE AND CIRCUIT BALANCING
# 037
MPN: 116/B BR 81385
TERMOSTATO RANCO TP. A.50-2305
# 038
MPN: 116 BR 72103
RING FOR FIXING THE THERMOSTAT TO THE DASHBOARD
# 039
MPN: 107/A BR 67734
POMELLO COMANDO TERMOSTATO
# 040
MPN: 116 BV 68082
ADJUSTABLE AIR CIRCULATION BUTTERFLY
# 041
MPN: 120 BV 81395
LEFT ADJUSTABLE THROTTLE ON THE DASHBOARD PLATFORM
# 041
MPN: 120 BV 82870
RIGHT ADJUSTABLE THROTTLE ON THE DASHBOARD PLATFORM
# 042
MPN: 117 BV 71577
THROTTLE CONTROL UNIT FOR HEATING AND AIR CONDITIONING SYSTEM
# 044
MPN: 120 BV 81587
COMPLETE WATER REGULATOR VALVE CONTROL ASSEMBLY
# 045
MPN: 117 BV 75657
POMELLO PER DETTO
# 046
MPN: DNT/62557
NUT
# 047
MPN: RDI 58543
WASHER
# 049
MPN: 117 FI 75293
DISTRIBUTORE COMANDO ALZAFARI
# 050
MPN: 117 FI 75378
POMELLO PER DISTRIBUTORI ALZAFARI
# 051
MPN: LPN 48151
LAMP 12 V 3W FOR INSTRUMENT LIGHTING CEILING LIGHT
# 052
MPN: 115/A BL 69528

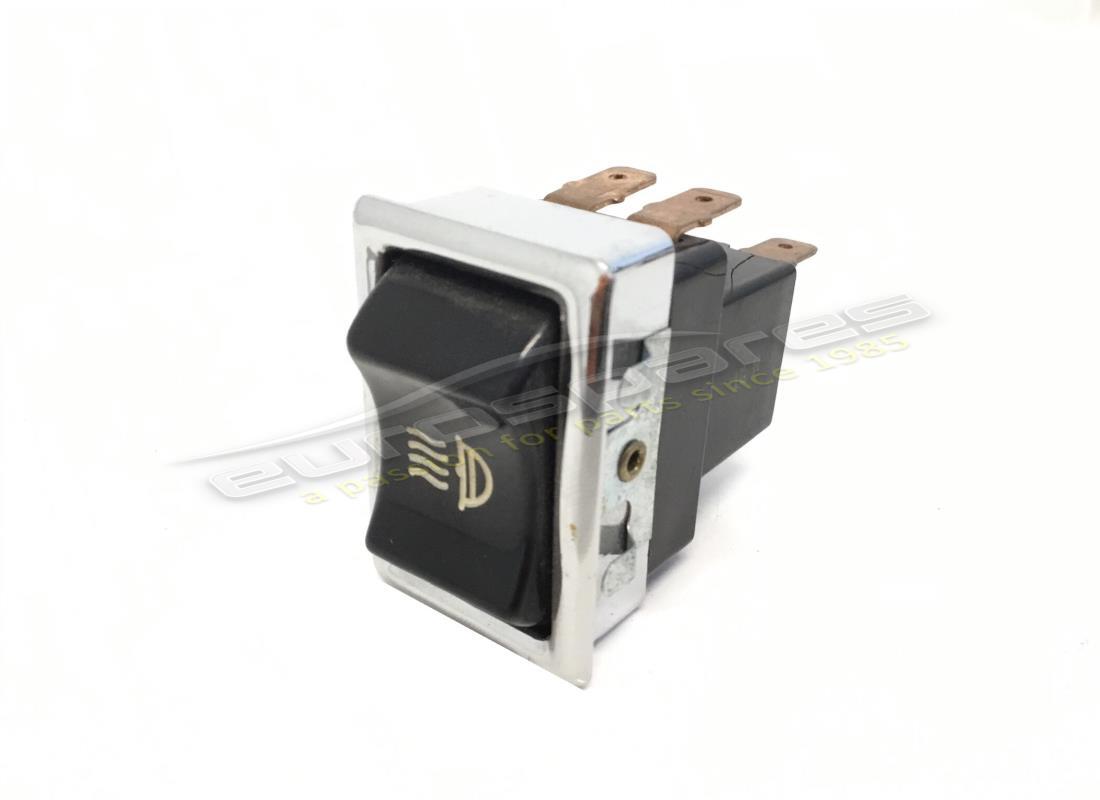

INTERRUTTORE PER FARI ANTINEBBIA (A RICHIESTA)
from £78.75
from £78.75
# 053
MPN: S.522.207 A
DIVERTER
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
