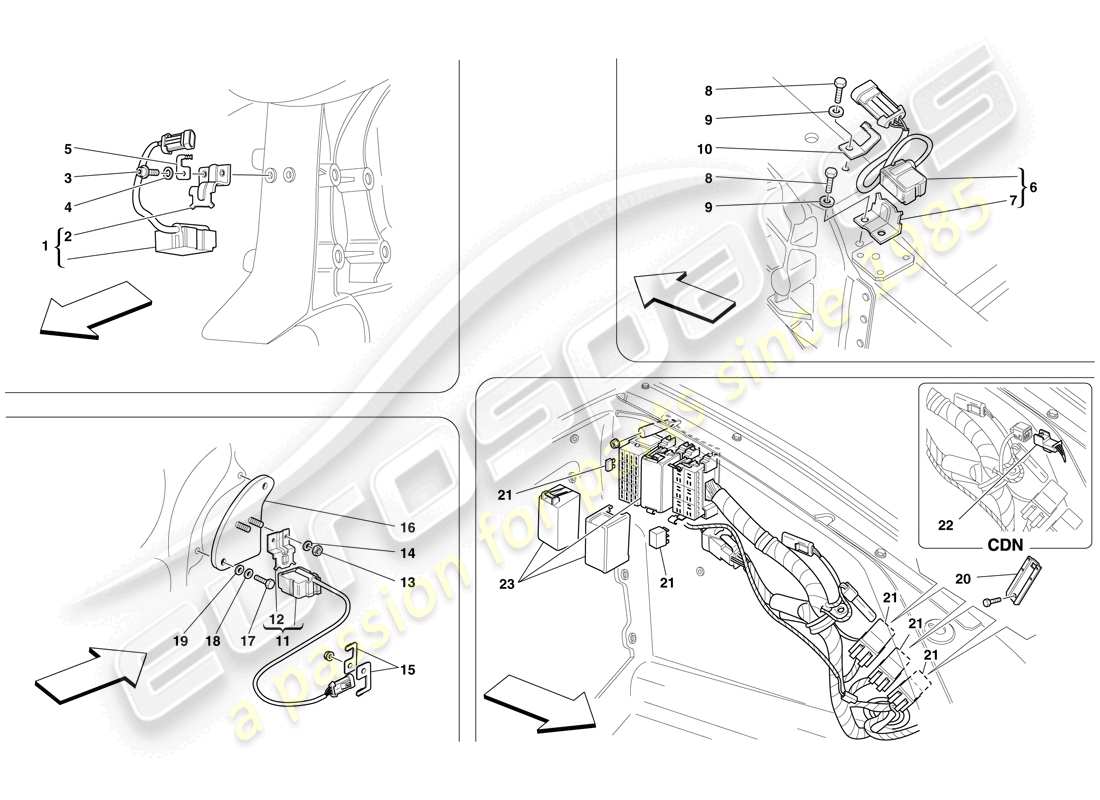

0145 - ECUs AND SENSORS IN FRONT COMPARTMENT AND ENGINE COMPARTMENT
Ferrari F430 Spider (Europe) ECUs AND SENSORS IN FRONT COMPARTMENT AND ENGINE COMPARTMENT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
175220
FRONT VERTICAL ACCELERATION SENSOR
-No longer supplied- -Replaced by 232667-
Supersession
Supersession
This part replaces part number 178246
#
001
MPN:
232667
FRONT VERTICAL ACCELERATION SENSOR
from
£119.43
from
£119.43
This part replaces part number 175220
#
002
MPN:
178247
BRACKET
-With sensor ref. 1- -No longer supplied-
Supersession
Supersession
#
003
MPN:
10902024
SCREW
from
£0.47
from
£0.47
This part replaces part number 10902011 which we have in stock
- and 2 more. Click to view details
#
004
MPN:
12601274
WASHER
from
£0.47
from
£0.47
This part replaces part number 12601221
- and 5 more. Click to view details
#
005
MPN:
156198
CLIP
from
£8.53
from
£8.53
#
006
MPN:
183343
REAR VERTICAL ACCELERATION SENSOR
-No longer supplied- -Replaced by 232672-
Supersession
Supersession
#
006
MPN:
232672
REAR VERTICAL ACCELERATION SENSOR
from
£111.32
from
£111.32
This part replaces part number 183343
#
007
MPN:
178251
BRACKET
from
£77.52
from
£77.52
#
008
MPN:
10902024
SCREW
from
£0.47
from
£0.47
This part replaces part number 10902011 which we have in stock
- and 2 more. Click to view details
#
009
MPN:
12601274
WASHER
from
£0.47
from
£0.47
This part replaces part number 12601221
- and 5 more. Click to view details
#
010
MPN:
162606
CLIP
from
£0.76
from
£0.76
#
011
MPN:
183957
LATERAL ACCELERATION SENSOR
-Applicable until depletion-
Supersession
Supersession
#
011
MPN:
232676
LATERAL ACCELERATION SENSOR
-Applicable after depletion of 183957-
from
£446.89
from
£446.89
This part replaces part number 178247
- and 1 more. Click to view details
#
012
MPN:
178247
BRACKET
-With sensor ref. 1- -No longer supplied-
Supersession
Supersession
#
013
MPN:
169180
NUT
from
£0.47
from
£0.47
This part replaces part number 12574121
#
014
MPN:
12637824
WASHER
from
£0.47
from
£0.47
This part replaces part number 12637801
- and 1 more. Click to view details
#
015
MPN:
156198
CLIP
from
£8.53
from
£8.53
#
016
MPN:
194973
LH BRACKET
from
£8.34
from
£8.34
#
016
MPN:
194974
RH BRACKET
from
£8.34
from
£8.34
#
017
MPN:
15970324
SCREW
-M10 X 16-
from
£0.53
from
£0.53
#
017
MPN:
16043124
SCREW
-M8 X 14-
from
£0.26
from
£0.26
This part replaces part number 16043121 which we have in stock
- and 1 more. Click to view details
#
018
MPN:
127496
WASHER
from
£0.47
from
£0.47
This part replaces part number 10516671
- and 2 more. Click to view details
#
019
MPN:
14496524
WASHER
from
£0.47
from
£0.47
This part replaces part number 14496525
- and 1 more. Click to view details
#
020
MPN:
155184
BRACKET
from
£6.66
from
£6.66
#
021
MPN:
161590
20 A MICRO RELAY
-Applicable until depletion-
from
£13.24
from
£13.24
#
021
MPN:
172875
5 A MINI FUSE
from
£5.70
from
£5.70
#
021
MPN:
172876
7.5 A MINI FUSE
from
£5.76
from
£5.76
#
021
MPN:
172878
15 A MINI FUSE
from
£4.02
from
£4.02
#
021
MPN:
172880
25 A MINI FUSE
from
£4.74
from
£4.74
#
021
MPN:
172881
30 A MINI FUSE
from
£5.80
from
£5.80
#
021
MPN:
172882
30 A MICRO RELAY
-Applicable until depletion-
from
£9.99
from
£9.99
#
021
MPN:
183275
HEADLIGHT WASHER TIMER
from
£32.21
from
£32.21
#
021
MPN:
194909
50 A RELAY
-Applicable until depletion-
from
£7.80
from
£7.80
#
021
MPN:
227286
30 A MICRO RELAY
-Applicable after depletion of 172882-
from
£20.67
from
£20.67
#
021
MPN:
227286
30 A MICRO RELAY
-Applicable after depletion of 161590-
from
£20.67
from
£20.67
#
021
MPN:
228646
50 A RELAY
-Applicable after depletion of 194909- -No longer supplied- -Replaced by 233100-
from
£22.70
from
£22.70
#
021
MPN:
233100
50 A RELAY
from
£5.69
from
£5.69
#
022
MPN:
216006
DAILY LIGHT BRIDGE
-Applicable for CDN-
from
£12.78
from
£12.78
#
023
MPN:
70001621
FUSE COVER
from
£40.94
from
£40.94
-part-diagram-0146.webp "FERRARI F430 SPIDER (EUROPE) REAR PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0147.webp "FERRARI F430 SPIDER (EUROPE) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0148.webp "FERRARI F430 SPIDER (EUROPE) EVAPORATOR UNIT PARTS DIAGRAM")
-part-diagram-0149.webp "FERRARI F430 SPIDER (EUROPE) AC SYSTEM PARTS DIAGRAM")
-part-diagram-0150.webp "FERRARI F430 SPIDER (EUROPE) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0151.webp "FERRARI F430 SPIDER (EUROPE) RADIO AMPLIFIER SYSTEM PARTS DIAGRAM")
-part-diagram-0152.webp "FERRARI F430 SPIDER (EUROPE) HIGH POWER BOSE HI FI SYSTEM PARTS DIAGRAM")
-part-diagram-0153.webp "FERRARI F430 SPIDER (EUROPE) IMMOBILISER KIT PARTS DIAGRAM")
-part-diagram-0154.webp "FERRARI F430 SPIDER (EUROPE) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI F430 SPIDER (EUROPE) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI F430 SPIDER (EUROPE) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI F430 SPIDER (EUROPE) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI F430 SPIDER (EUROPE) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI F430 SPIDER (EUROPE) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI F430 SPIDER (EUROPE) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI F430 SPIDER (EUROPE) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI F430 SPIDER (EUROPE) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI F430 SPIDER (EUROPE) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI F430 SPIDER (EUROPE) PNEUMATIC ACTUATOR SYSTEM PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI F430 SPIDER (EUROPE) FUEL SYSTEM PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI F430 SPIDER (EUROPE) FUEL TANKS AND FILLER NECK PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI F430 SPIDER (EUROPE) FUEL TANKS - FASTENERS AND GUARDS PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI F430 SPIDER (EUROPE) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI F430 SPIDER (EUROPE) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI F430 SPIDER (EUROPE) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI F430 SPIDER (EUROPE) INTAKE MANIFOLD COVER PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI F430 SPIDER (EUROPE) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI F430 SPIDER (EUROPE) RACING EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI F430 SPIDER (EUROPE) LUBRICATION SYSTEM - TANK - HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI F430 SPIDER (EUROPE) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI F430 SPIDER (EUROPE) HEADER TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI F430 SPIDER (EUROPE) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI F430 SPIDER (EUROPE) COOLING SYSTEM RADIATORS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI F430 SPIDER (EUROPE) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI F430 SPIDER (EUROPE) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI F430 SPIDER (EUROPE) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI F430 SPIDER (EUROPE) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI F430 SPIDER (EUROPE) F1 GEARBOX AND CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI F430 SPIDER (EUROPE) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI F430 SPIDER (EUROPE) GEARBOX - COVERS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI F430 SPIDER (EUROPE) PRIMARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI F430 SPIDER (EUROPE) SECONDARY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI F430 SPIDER (EUROPE) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI F430 SPIDER (EUROPE) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI F430 SPIDER (EUROPE) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI F430 SPIDER (EUROPE) HYDRAULIC BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI F430 SPIDER (EUROPE) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI F430 SPIDER (EUROPE) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI F430 SPIDER (EUROPE) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI F430 SPIDER (EUROPE) FRONT AND REAR BRAKE CALLIPERS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI F430 SPIDER (EUROPE) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI F430 SPIDER (EUROPE) HYDRAULIC POWER STEERING BOX AND SERPENTINE COIL PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI F430 SPIDER (EUROPE) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI F430 SPIDER (EUROPE) POWER STEERING PUMP AND RESERVOIR PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI F430 SPIDER (EUROPE) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI F430 SPIDER (EUROPE) FRONT SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI F430 SPIDER (EUROPE) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI F430 SPIDER (EUROPE) REAR SUSPENSION - ARMS PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI F430 SPIDER (EUROPE) WHEELS PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI F430 SPIDER (EUROPE) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI F430 SPIDER (EUROPE) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI F430 SPIDER (EUROPE) ALTERNATOR - STARTER MOTOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI F430 SPIDER (EUROPE) AC SYSTEM COMPRESSOR PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI F430 SPIDER (EUROPE) TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI F430 SPIDER (EUROPE) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI F430 SPIDER (EUROPE) SPARE WHEEL AND TOOLS PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI F430 SPIDER (EUROPE) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI F430 SPIDER (EUROPE) CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI F430 SPIDER (EUROPE) CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI F430 SPIDER (EUROPE) CENTRAL ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI F430 SPIDER (EUROPE) CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI F430 SPIDER (EUROPE) CHASSIS - REAR ELEMENT SUBASSEMBLIES PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI F430 SPIDER (EUROPE) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI F430 SPIDER (EUROPE) INSULATION PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI F430 SPIDER (EUROPE) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI F430 SPIDER (EUROPE) FRONT COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI F430 SPIDER (EUROPE) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI F430 SPIDER (EUROPE) ROOF CANVAS - SEALS - MOULDINGS PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI F430 SPIDER (EUROPE) ROOF TRIM AND TUB PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI F430 SPIDER (EUROPE) ROOF LINKAGES AND MECHANISM PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI F430 SPIDER (EUROPE) FRONT ROOF LATCH PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI F430 SPIDER (EUROPE) ROOF KINEMATICS - UPPER PART PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI F430 SPIDER (EUROPE) ROOF KINEMATICS - LOWER PART PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI F430 SPIDER (EUROPE) ROOF CONTROL AND FLAPS PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI F430 SPIDER (EUROPE) ROOF MICROSWITCHES AND ECU PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI F430 SPIDER (EUROPE) HYDRAULIC SYSTEM AND ELECTROHYDRAULIC PUMP UNIT PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI F430 SPIDER (EUROPE) FRONT LID AND OPENING MECHANISM PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI F430 SPIDER (EUROPE) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI F430 SPIDER (EUROPE) ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI F430 SPIDER (EUROPE) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI F430 SPIDER (EUROPE) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI F430 SPIDER (EUROPE) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI F430 SPIDER (EUROPE) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI F430 SPIDER (EUROPE) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI F430 SPIDER (EUROPE) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI F430 SPIDER (EUROPE) MANUAL FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI F430 SPIDER (EUROPE) ELECTRIC SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI F430 SPIDER (EUROPE) ELECTRIC SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI F430 SPIDER (EUROPE) RACING SEAT- OPTIONAL PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI F430 SPIDER (EUROPE) RACING SEAT- OPTIONAL PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI F430 SPIDER (EUROPE) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI F430 SPIDER (EUROPE) REAR ODDMENT STORAGE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI F430 SPIDER (EUROPE) DASHBOARD PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI F430 SPIDER (EUROPE) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI F430 SPIDER (EUROPE) AIRBAGS PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI F430 SPIDER (EUROPE) DASHBOARD AND TUNNEL INSTRUMENTS PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI F430 SPIDER (EUROPE) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI F430 SPIDER (EUROPE) SHIELDS - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI F430 SPIDER (EUROPE) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI F430 SPIDER (EUROPE) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI F430 SPIDER (EUROPE) FRONT PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
