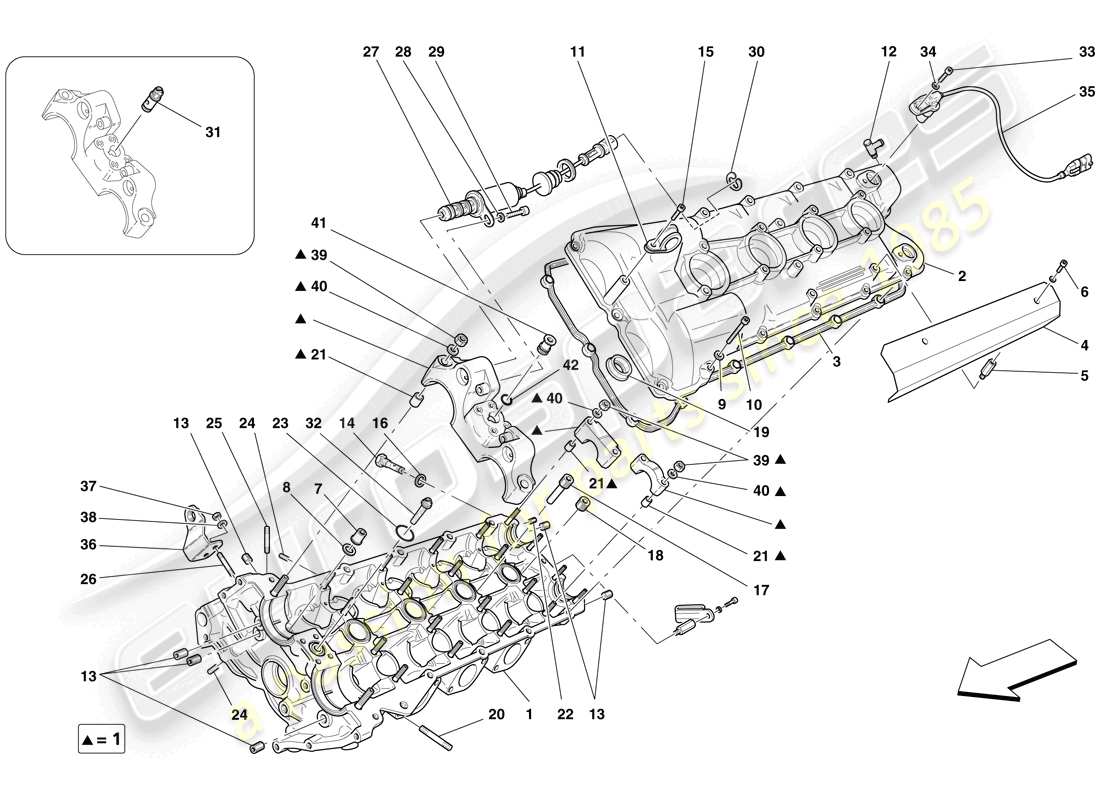

Ferrari F430 Spider (Europe) LEFT HAND CYLINDER HEAD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 20-48-08
                                                              LH HEAD COMPLETE WITH GUIDES
                                                              -Applicable up to engine No. 91153-
                                                              # 001
                                                              MPN: 206797
                                                              LH HEAD COMPLETE WITH GUIDES
                                                              -Applicable from engine No. 91154 up to engine No. 97780-
                                                              from £1,402.82
                                                              from £1,402.82
                                                              # 001
                                                              MPN: 218553
                                                              LH HEAD COMPLETE WITH GUIDES
                                                              -Applicable from MY 06- -Applicable up to Ass. No. 83801- -Applicable from engine No. 99608 up to engine No. 147606- -Applicable until depletion-
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 235662
                                                              # 001
                                                              MPN: 219173
                                                              LH HEAD COMPLETE WITH GUIDES
                                                              -Applicable up to MY 06- -Applicable from engine No. 97781 up to engine No. 99607-
                                                              from £4,114.04
                                                              from £4,114.04
                                                              # 001
                                                              MPN: 227614
                                                              LH HEAD COMPLETE WITH GUIDES
                                                              -Applicable from Ass. No. 83802- -Applicable from engine No. 147607- -Applicable after depletion of 218553-
                                                              from £2,381.43
                                                              from £2,381.43
                                                              This part replaces part number 218553
                                                              # 002
                                                              MPN: 197576
                                                              LH CYLINDER HEAD COVER
                                                              -No longer supplied- -Replaced by 224063-
                                                              Supersession
                                                              Supersession
                                                              # 002
                                                              MPN: 221341
                                                              LH CYLINDER HEAD COVER
                                                              -Applicable for USA, CDN- -Applicable from Ass. No. 67971-
                                                              from £244.67
                                                              from £244.67
                                                              # 002
                                                              MPN: 221341
                                                              LH CYLINDER HEAD COVER
                                                              -Not for USA, CDN- -Applicable from Ass. No. 69639-
                                                              from £244.67
                                                              from £244.67
                                                              # 002
                                                              MPN: 224063
                                                              LH CYLINDER HEAD COVER
                                                              -Applicable for USA, CDN- -Applicable up to Ass. No. 67970-
                                                              from £645.30
                                                              from £645.30
                                                              This part replaces part number 197576
                                                              # 002
                                                              MPN: 224063
                                                              LH CYLINDER HEAD COVER
                                                              -Not for USA, CDN- -Applicable up to Ass. No. 69639-
                                                              from £645.30
                                                              from £645.30
                                                              This part replaces part number 197576
                                                              # 004
                                                              MPN: 212025
                                                              HEAT SHIELD
                                                              -No longer supplied- -Replaced by 229163-
                                                              Supersession
                                                              Supersession
                                                              # 004
                                                              MPN: 229163
                                                              HEAT SHIELD
                                                              from £98.26
                                                              from £98.26
                                                              This part replaces part number 212024 which we have in stock - and 3 more. Click to view details
                                                              # 005
                                                              MPN: 212466
                                                              STUD BOLT
                                                              from £5.63
                                                              from £5.63
                                                              # 006
                                                              MPN: 14305724
                                                              SCREW
                                                              from £0.54
                                                              from £0.54
                                                              This part replaces part number 11567624 - and 2 more. Click to view details
                                                              # 007
                                                              MPN: 183524
                                                              NUT
                                                              from £0.98
                                                              from £0.98
                                                              # 008
                                                              MPN: 151117
                                                              WASHER
                                                              from £0.31
                                                              from £0.31
                                                              # 009
                                                              MPN: 11197774
                                                              WASHER
                                                              from £0.52
                                                              from £0.52
                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                              # 010
                                                              MPN: 156834
                                                              SCREW
                                                              from £1.55
                                                              from £1.55
                                                              # 011
                                                              MPN: 10441490
                                                              BRACKET WITH SHEATH
                                                              from £0.47
                                                              from £0.47
                                                              # 011
                                                              MPN: 10441590
                                                              BRACKET WITH SHEATH
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 10113600
                                                              # 012
                                                              MPN: 124342
                                                              THREADED CONNECTOR
                                                              from £3.59
                                                              from £3.59
                                                              # 013
                                                              MPN: 14326001
                                                              THREADED PLUG
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 194495
                                                              # 014
                                                              MPN: 180267
                                                              OIL CHECK VALVE
                                                              from £18.82
                                                              from £18.82
                                                              # 015
                                                              MPN: 14305124
                                                              SCREW
                                                              -No longer supplied- -Replaced by 233600-
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 14305121
                                                              # 015
                                                              MPN: 233600
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 016
                                                              MPN: 10261060
                                                              GASKET
                                                              from £0.53
                                                              from £0.53
                                                              # 017
                                                              MPN: 127635
                                                              THREADED PLUG
                                                              -Applicable after depletion of 183447-
                                                              from £1.48
                                                              from £1.48
                                                              This part replaces part number 183447
                                                              # 017
                                                              MPN: 183447
                                                              THREADED PLUG
                                                              -Applicable until depletion-
                                                              from £4.64
                                                              from £4.64
                                                              # 018
                                                              MPN: 164400
                                                              THREADED PLUG
                                                              from £1.86
                                                              from £1.86
                                                              This part replaces part number 194490
                                                              # 019
                                                              MPN: 187706
                                                              GASKET
                                                              -Applicable for USA, CDN- -Applicable up to Ass. No. 68459-
                                                              from £3.25
                                                              from £3.25
                                                              # 019
                                                              MPN: 187706
                                                              GASKET
                                                              -Not for USA, CDN- -Applicable up to Ass. No. 69638-
                                                              from £3.25
                                                              from £3.25
                                                              # 019
                                                              MPN: 223982
                                                              GASKET
                                                              -Applicable from MY 07- -Applicable for USA, CDN- -Applicable from Ass. No. 68460-
                                                              from £1.36
                                                              from £1.36
                                                              # 019
                                                              MPN: 223982
                                                              GASKET
                                                              -Applicable from MY 07- -Not for USA, CDN- -Applicable from Ass. No. 69639-
                                                              from £1.36
                                                              from £1.36
                                                              # 020
                                                              MPN: 211641
                                                              STUD BOLT
                                                              from £0.51
                                                              from £0.51
                                                              # 021
                                                              MPN: 102725
                                                              CENTRING DOWEL
                                                              from £0.61
                                                              from £0.61
                                                              # 022
                                                              MPN: 14326101
                                                              THREADED PLUG
                                                              from £0.61
                                                              from £0.61
                                                              # 023
                                                              MPN: 134233
                                                              O-RING
                                                              from £0.47
                                                              from £0.47
                                                              # 024
                                                              MPN: 199760
                                                              THREADED PLUG
                                                              from £0.47
                                                              from £0.47
                                                              # 025
                                                              MPN: 13541224
                                                              STUD BOLT
                                                              from £34.92
                                                              from £34.92
                                                              This part replaces part number 13541221
                                                              # 026
                                                              MPN: 13516624
                                                              STUD BOLT
                                                              from £0.70
                                                              from £0.70
                                                              This part replaces part number 13516621 which we have in stock
                                                              # 027
                                                              MPN: 212422
                                                              VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE
                                                              -No longer supplied- -Replaced by 250646-
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 186563
                                                              # 027
                                                              MPN: 250646
                                                              VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE
                                                              from £531.65
                                                              from £531.65
                                                              This part replaces part number 212422
                                                              # 028
                                                              MPN: 11197774
                                                              WASHER
                                                              from £0.54
                                                              from £0.54
                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                              # 029
                                                              MPN: 14433124
                                                              SCREW
                                                              -M6 X 18- -No longer supplied- -Replaced by 231617-
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 14433121
                                                              # 029
                                                              MPN: 231617
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 14433124
                                                              # 030
                                                              MPN: 11087376
                                                              SNAP RING
                                                              from £0.47
                                                              from £0.47
                                                              # 031
                                                              MPN: 184681
                                                              OIL PRESSURE REGULATOR VALVE
                                                              from £239.21
                                                              from £239.21
                                                              # 032
                                                              MPN: 180266
                                                              OIL FILTER
                                                              -Applicable until depletion-
                                                              Supersession
                                                              Supersession
                                                              # 032
                                                              MPN: 241406
                                                              OIL FILTER
                                                              -Applicable after depletion of 180266-
                                                              from £7.05
                                                              from £7.05
                                                              This part replaces part number 180266
                                                              # 033
                                                              MPN: 14305224
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 034
                                                              MPN: 11197774
                                                              WASHER
                                                              from £0.54
                                                              from £0.54
                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                              # 035
                                                              MPN: 219349
                                                              TIMING SENSOR
                                                              -Replaced by 219866 and 219867- -No longer supplied-
                                                              # 035
                                                              MPN: 219866
                                                              LH INTAKE TIMING SENSOR
                                                              from £164.52
                                                              from £164.52
                                                              # 035
                                                              MPN: 219867
                                                              LH EXHAUST TIMING SENSOR
                                                              from £133.14
                                                              from £133.14
                                                              # 036
                                                              MPN: 207422
                                                              BRACKET
                                                              from £28.05
                                                              from £28.05
                                                              # 037
                                                              MPN: 16100814
                                                              NUT
                                                              from £0.71
                                                              from £0.71
                                                              This part replaces part number 16100811 - and 1 more. Click to view details
                                                              # 038
                                                              MPN: 11193874
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 11193879 which we have in stock
                                                              # 039
                                                              MPN: 15896211
                                                              NUT
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 15896210
                                                              # 040
                                                              MPN: 11197774
                                                              WASHER
                                                              from £0.51
                                                              from £0.51
                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                              # 041
                                                              MPN: 220239
                                                              CAP
                                                              -No longer supplied-
                                                              from £3.85
                                                              from £3.85
                                                              # 042
                                                              MPN: 220245
                                                              GASKET
                                                              -No longer supplied-
                                                              from £4.15
                                                              from £4.15
                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
