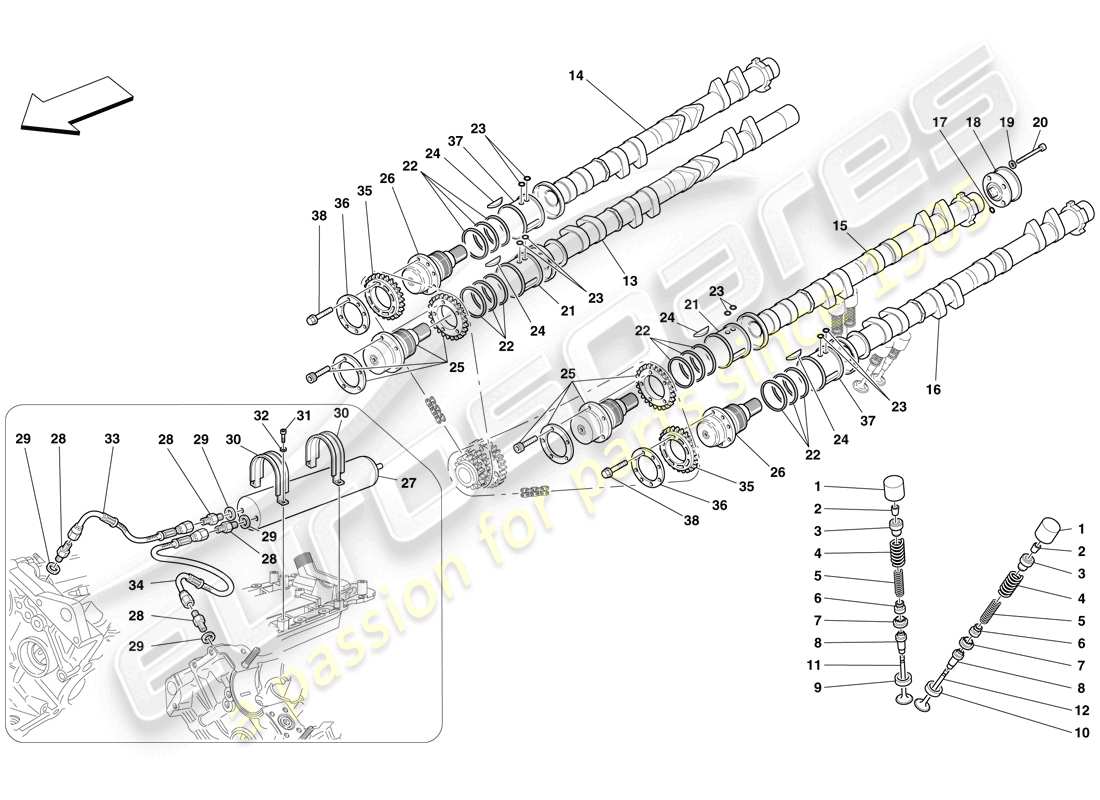

Ferrari F430 Spider (Europe) TIMING SYSTEM - TAPPETS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 194700
                                                  TAPPET
                                                  from £21.00
                                                  from £21.00
                                                  # 002
                                                  MPN: 179763
                                                  VALVE SPRING HALF-CONE
                                                  from £0.27
                                                  from £0.27
                                                  # 003
                                                  MPN: 194713
                                                  UPPER STOP CAP
                                                  from £5.10
                                                  from £5.10
                                                  # 004
                                                  MPN: 197900
                                                  EXTERNAL VALVE RETURN SPRING
                                                  from £3.88
                                                  from £3.88
                                                  # 005
                                                  MPN: 197901
                                                  INTERNAL VALVE RETURN SPRING
                                                  from £2.81
                                                  from £2.81
                                                  # 006
                                                  MPN: 148153
                                                  OIL SEAL
                                                  -No longer supplied- -Replaced by 221473-
                                                  from £1.92
                                                  from £1.92
                                                  # 006
                                                  MPN: 221473
                                                  OIL SEAL
                                                  from £0.94
                                                  from £0.94
                                                  # 007
                                                  MPN: 194718
                                                  LOWER STOP CAP
                                                  from £26.97
                                                  from £26.97
                                                  # 008
                                                  MPN: 6172328
                                                  INTAKE AND EXHAUST VALVE GUIDES
                                                  -No longer supplied- -Replaced by 6213498-
                                                  # 008
                                                  MPN: 6213498
                                                  INTAKE AND EXHAUST VALVE GUIDES
                                                  from £1.76
                                                  from £1.76
                                                  This part replaces part number 213498
                                                  # 009
                                                  MPN: 6175381
                                                  INTAKE VALVE SEAT
                                                  -No longer supplied- -Replaced by 6213496-
                                                  from £6.65
                                                  from £6.65
                                                  This part replaces part number 175381
                                                  # 009
                                                  MPN: 6213496
                                                  INTAKE VALVE SEAT
                                                  -Applicable up to Ass. No. 71273- -Applicable until depletion-
                                                  from £2.85
                                                  from £2.85
                                                  This part replaces part number 213496
                                                  # 009
                                                  MPN: 6222847
                                                  INTAKE VALVE SEAT
                                                  -Applicable from Ass. No. 71274- -Applicable after depletion of 6213496-
                                                  from £5.07
                                                  from £5.07
                                                  This part replaces part number 222847 - and 1 more. Click to view details
                                                  # 010
                                                  MPN: 6179959
                                                  EXHAUST VALVE SEAT
                                                  -No longer supplied- -Replaced by 6213497-
                                                  from £4.10
                                                  from £4.10
                                                  This part replaces part number 179959
                                                  # 010
                                                  MPN: 6213497
                                                  EXHAUST VALVE SEAT
                                                  -Applicable up to Ass. No. 71273- -Applicable until depletion-
                                                  from £2.85
                                                  from £2.85
                                                  This part replaces part number 213497
                                                  # 010
                                                  MPN: 6222848
                                                  EXHAUST VALVE SEAT
                                                  -Applicable from Ass. No. 71274- -Applicable after depletion of 6213497-
                                                  from £5.43
                                                  from £5.43
                                                  This part replaces part number 222848 - and 1 more. Click to view details
                                                  # 011
                                                  MPN: 175395
                                                  INTAKE VALVE
                                                  -No longer supplied- -Replaced by 198581-
                                                  from £5.78
                                                  from £5.78
                                                  # 011
                                                  MPN: 198581
                                                  INTAKE VALVE
                                                  from £4.57
                                                  from £4.57
                                                  This part replaces part number 175395 - and 4 more. Click to view details
                                                  # 012
                                                  MPN: 189351
                                                  EXHAUST VALVE
                                                  -No longer supplied- -Replaced by 198582-
                                                  from £60.57
                                                  from £60.57
                                                  # 012
                                                  MPN: 198582
                                                  EXHAUST VALVE
                                                  from £10.96
                                                  from £10.96
                                                  # 013
                                                  MPN: 200144
                                                  RH INTAKE CAMSHAFT
                                                  -Applicable from engine No. 97781-
                                                  from £324.87
                                                  from £324.87
                                                  # 013
                                                  MPN: 211414
                                                  RH INTAKE CAMSHAFT
                                                  -Applicable up to engine No. 97780-
                                                  from £269.85
                                                  from £269.85
                                                  # 014
                                                  MPN: 200146
                                                  RH EXHAUST CAMSHAFT
                                                  -Applicable from engine No. 97781-
                                                  from £324.87
                                                  from £324.87
                                                  # 014
                                                  MPN: 211416
                                                  RH EXHAUST CAMSHAFT
                                                  -Applicable up to engine No. 97780-
                                                  from £278.64
                                                  from £278.64
                                                  # 015
                                                  MPN: 200145
                                                  LH INTAKE CAMSHAFT
                                                  -Applicable from engine No. 97781-
                                                  from £324.87
                                                  from £324.87
                                                  # 015
                                                  MPN: 211415
                                                  LH INTAKE CAMSHAFT
                                                  -Applicable up to engine No. 97780-
                                                  from £269.85
                                                  from £269.85
                                                  # 016
                                                  MPN: 200147
                                                  LH EXHAUST CAMSHAFT
                                                  -Applicable from engine No. 97781-
                                                  from £324.87
                                                  from £324.87
                                                  # 016
                                                  MPN: 211418
                                                  LH EXHAUST CAMSHAFT
                                                  -Applicable up to engine No. 97780-
                                                  from £278.64
                                                  from £278.64
                                                  # 017
                                                  MPN: 134701
                                                  O-RING
                                                  from £0.47
                                                  from £0.47
                                                  # 018
                                                  MPN: 197558
                                                  VARIABLE VALVE TIMING ADJUSTER OIL PUMP
                                                  from £123.44
                                                  from £123.44
                                                  # 019
                                                  MPN: 184731
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  # 020
                                                  MPN: 14303623
                                                  SCREW
                                                  -No longer supplied- -Replaced by 252305-
                                                  from £0.71
                                                  from £0.71
                                                  # 020
                                                  MPN: 252305
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  # 021
                                                  MPN: 199440

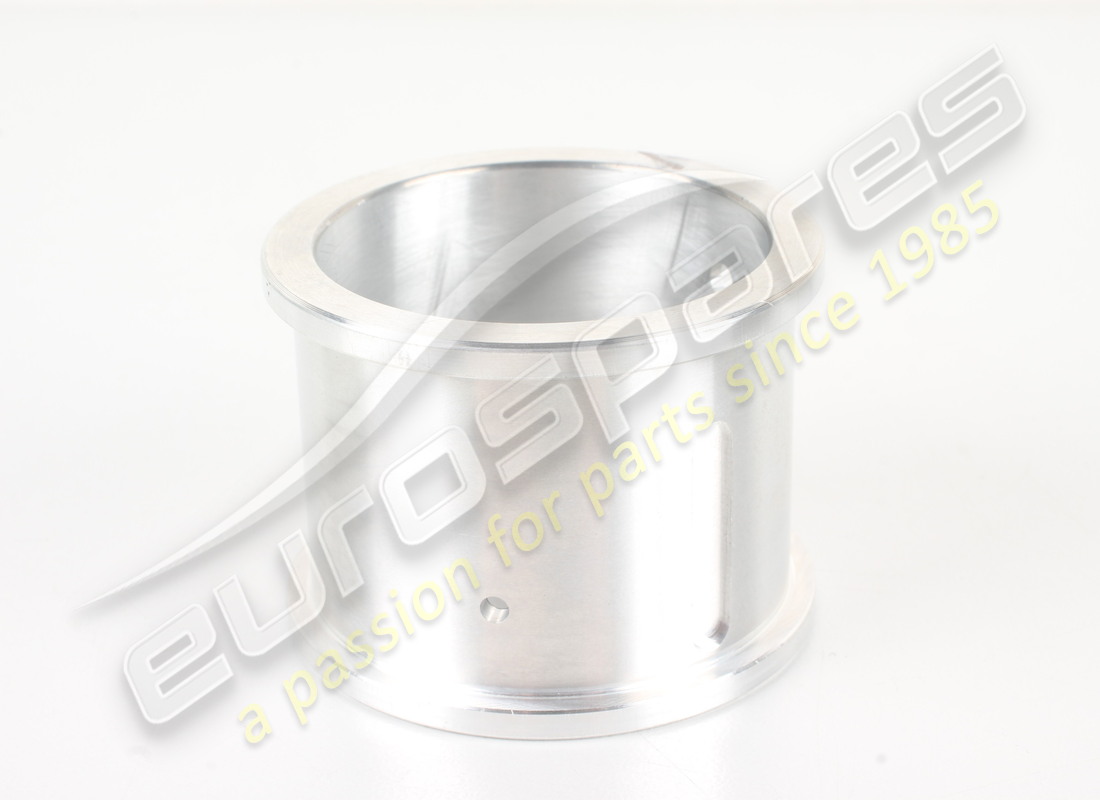

                                                  MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER
                                                  -Applicable up to engine No. 91153-
                                                  from £103.82
                                                  from £103.82
                                                  # 021
                                                  MPN: 206804

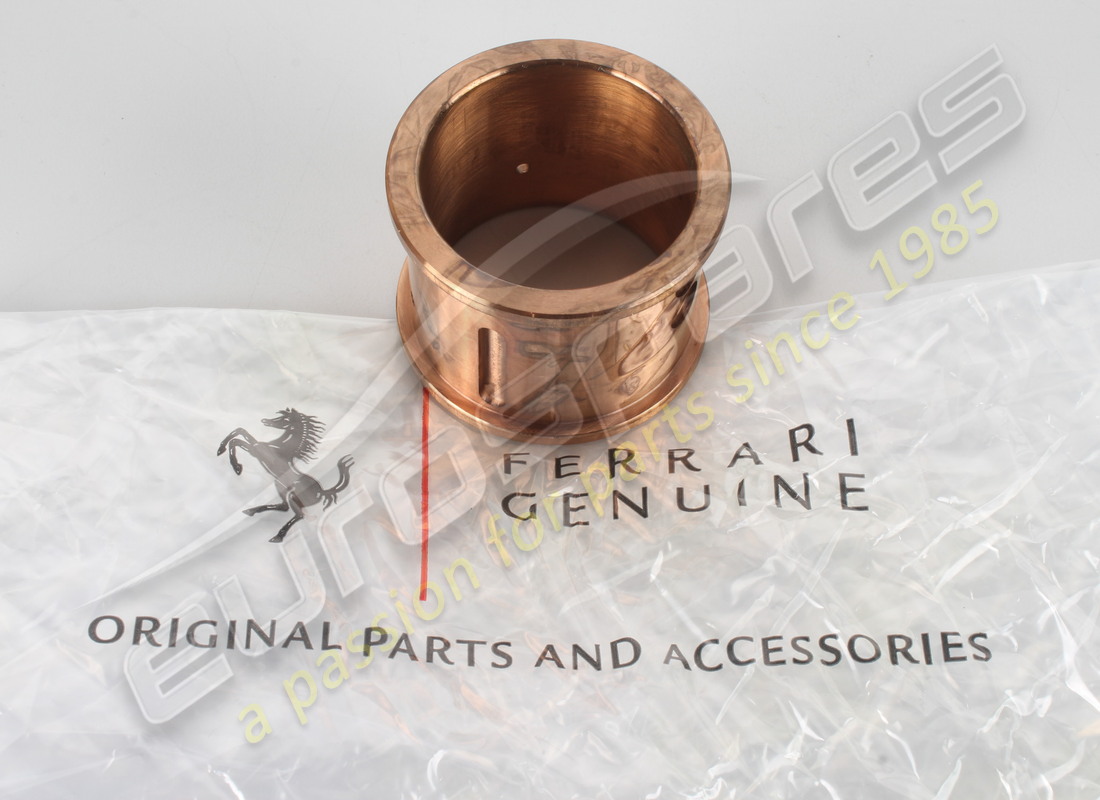

                                                  MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER
                                                  -Applicable from engine No. 91154 up to engine No. 144864- -Applicable until depletion-
                                                  from £154.30
                                                  from £154.30
                                                  # 021
                                                  MPN: 218735

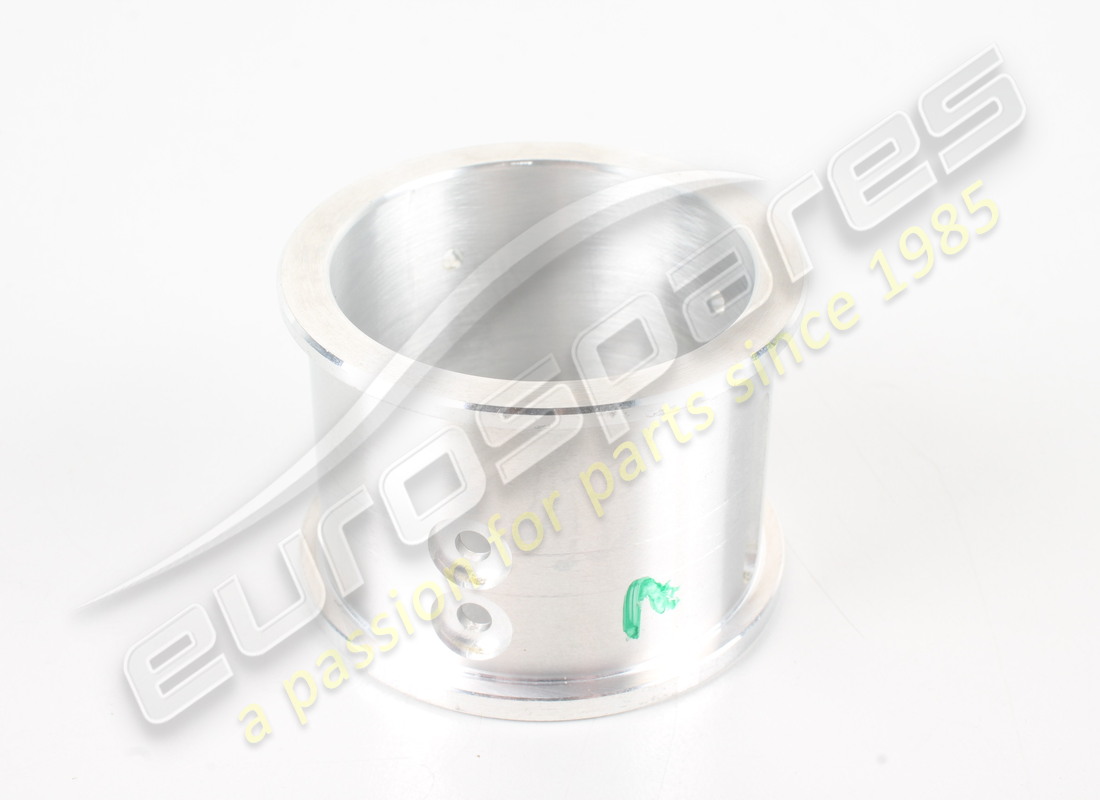

                                                  MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER
                                                  -For vehicles up to engine No. 91154, also order piston ring 218734 ref. 22 and bush 228497 ref. 37- -Applicable from engine No. 144865- -Applicable after depletion of 206804-
                                                  from £104.89
                                                  from £104.89
                                                  # 022
                                                  MPN: 179926
                                                  RING
                                                  -Applicable up to engine No. 144864- -Applicable until depletion-
                                                  from £11.34
                                                  from £11.34
                                                  # 022
                                                  MPN: 228497
                                                  RING
                                                  -For vehicles up to engine No. 91154, also order bush 218735 ref. 21 and bush 218734 ref. 37 - -Applicable from engine No. 144865- -Applicable after depletion of 179926-
                                                  from £42.99
                                                  from £42.99
                                                  # 023
                                                  MPN: 134701
                                                  O-RING
                                                  from £0.47
                                                  from £0.47
                                                  # 024
                                                  MPN: 10618120
                                                  TAB
                                                  from £0.71
                                                  from £0.71
                                                  # 025
                                                  MPN: 193779
                                                  VARIABLE VALVE TIMING ADJUSTER FOR INTAKE CAMSHAFT
                                                  from £1,131.93
                                                  from £1,131.93
                                                  # 026
                                                  MPN: 199438
                                                  VARIABLE VALVE TIMING ADJUSTER FOR EXHAUST CAMSHAFT
                                                  from £892.15
                                                  from £892.15
                                                  # 027
                                                  MPN: 197062
                                                  OIL ACCUMULATOR FOR VARIABLE VALVE TIMING ADJUSTER
                                                  from £446.87
                                                  from £446.87
                                                  # 028
                                                  MPN: 195056
                                                  THREADED CONNECTOR
                                                  from £6.48
                                                  from £6.48
                                                  # 029
                                                  MPN: 10261060
                                                  GASKET
                                                  from £0.51
                                                  from £0.51
                                                  # 030
                                                  MPN: 197151
                                                  BRACKET
                                                  from £11.04
                                                  from £11.04
                                                  # 031
                                                  MPN: 14305124
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 14305121
                                                  # 032
                                                  MPN: 11197774
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 11197770 - and 3 more. Click to view details
                                                  # 033
                                                  MPN: 198463
                                                  ACCUMULATOR TO RH HEAD CYLINDERS TUBE
                                                  from £90.89
                                                  from £90.89
                                                  # 034
                                                  MPN: 198464
                                                  PIPE FROM ACCUMULATOR TO LH CYLINDER
                                                  from £90.89
                                                  from £90.89
                                                  # 035
                                                  MPN: 194192
                                                  GEAR WHEEL
                                                  from £497.92
                                                  from £497.92
                                                  # 036
                                                  MPN: 195649
                                                  WASHER
                                                  from £3.40
                                                  from £3.40
                                                  # 037
                                                  MPN: 199439
                                                  MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER
                                                  -Applicable up to engine No. 91153-
                                                  from £103.82
                                                  from £103.82
                                                  # 037
                                                  MPN: 206805
                                                  MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER
                                                  -Applicable from engine No. 91154 up to engine No. 144864- -Applicable until depletion-
                                                  from £124.05
                                                  from £124.05
                                                  # 037
                                                  MPN: 218734
                                                  MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER
                                                  -For vehicles up to engine No. 91154, also order bush 218735 ref. 21 and piston ring 228497 ref. 22 - -Applicable from engine No. 144865- -Applicable after depletion of 206805-
                                                  from £104.89
                                                  from £104.89
                                                  # 038
                                                  MPN: 194977
                                                  SCREW
                                                  from £5.76
                                                  from £5.76
