porsche 2017 (macan) heating, air cond. system basic supply pipe return line parts diagram

813-006 - Heating, air cond. system basic supply pipe return line

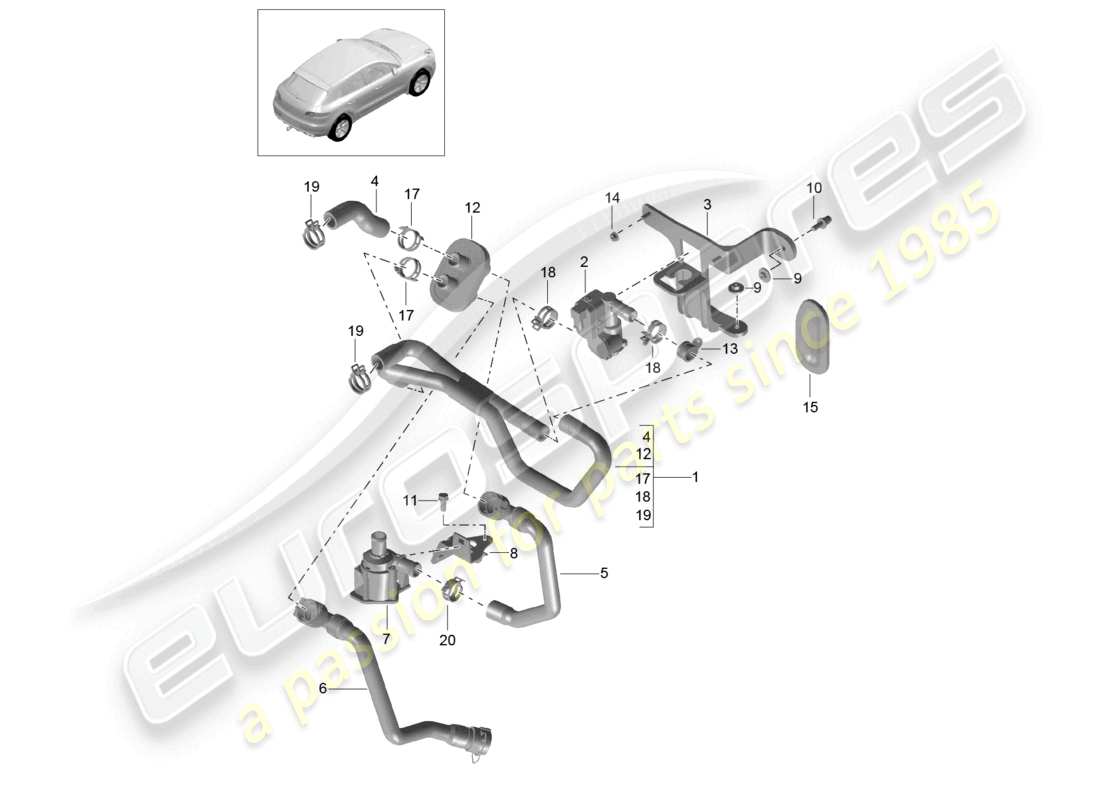

Porsche 2017 (Macan) Heating, air cond. system basic supply pipe return line Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 95B819337
                        HEATING HOSE LHD HOSE SET WITH CLIPS AND ADAPTER
                        P9MO (Without auxiliary heater or engine-indep. heating) | PL0L (Left-hand drive version)
                        from £54.92
                        from £54.92
                        heater hose Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 8R2819350F
                        HEATING HOSE RHD HOSE SET WITH CLIPS AND ADAPTER
                        P9MO (Without auxiliary heater or engine-indep. heating) | PL0R (Right-hand drive version)
                        from £26.02
                        from £26.02
                        heater hose Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 95857281000
                        Heater valve lhd If required use also item: 3
                        P9M0 (Without auxiliary heater/parking heater) | PL0L (Left-hand drive version)
                        from £100.32
                        from £100.32
                        HEATER VALVE Genuine Porsche Part - New In stock
                        # 2
                        MPN: 8R2819133D
                        HEATER VALVE RHD INCLUDED BRACKET
                        P9M0 (Without auxiliary heater/parking heater) | PL0R (Right-hand drive version)
                        HEATER VALVE Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 95B819735
                        BRACKET LHD PLASTIC
                        P9MO (Without auxiliary heater or engine-indep. heating) | PL0L (Left-hand drive version)
                        from £10.68
                        from £10.68
                        BRACKET Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 95B819371
                        HEATING HOSE
                        from £15.66
                        from £15.66
                        heater hose Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 8R0819332G
                        COOLANT HOSE SUPPLY PIPE COOLANT PUMP
                        P7E0 (Without heat accumulator) | P9M0 (Without auxiliary heater/parking heater) | PDM0 (4-cylinder TFSI engine 2.0 l/174 kW)
                        from £14.99
                        from £14.99
                        WATER HOSE Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 8R0819334AC
                        HEATING HOSE RETURN LINE
                        PDM0 (4-cylinder TFSI engine 2.0 l/174 kW)
                        from £29.49
                        from £29.49
                        heater hose Genuine Porsche Part - New (to order)
                        # 7
                        MPN: 8K0819025AB
                        COOLANT PUMP
                        P9MO (Without auxiliary heater or engine-indep. heating)
                        from £139.00
                        from £139.00
                        WATER PUMP Genuine Porsche Part - New (to order)
                        # 8
                        MPN: 8K0971502AN
                        BRACKET PUMP
                        PDM0 (4-cylinder TFSI engine 2.0 l/174 kW)
                        from £10.85
                        from £10.85
                        BRACKET Genuine Porsche Part - New (to order)
                        # 9
                        MPN: N 90570802
                        HEX. NUT WITH WASHER M6
                        from £0.96
                        from £0.96
                        HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                        HEX. NUT WITH WASHER Genuine Bentley Part - New (to order)
                        # 10
                        MPN: N 10585401
                        BLIND RIVET STUD M6X16,5/0,5-3
                        from £1.62
                        from £1.62
                        rivetted bolt Genuine Porsche Part - New (to order)
                        BLIND RIVET STUD Genuine Bentley Part - New (to order)
                        BLIND RIVET SCREW M6X16.5/0.5-3 Genuine Lamborghini - New (to order)
                        # 11
                        MPN: N 10082908
                        Hex collared bolt M6X16
                        from £0.71
                        from £0.71
                        BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                        HEXAGON HEAD BOLT M6X16-S1-N Genuine Lamborghini - New (to order)
                        # 12
                        MPN: 8R0122291
                        ADAPTER
                        from £10.61
                        from £10.61
                        ADAPTER Genuine Porsche Part - New (to order)
                        # 13
                        MPN: N 10775201
                        HOSE CLAMP D1-23X15
                        from £4.11
                        from £4.11
                        HOSE CLAMP Genuine Porsche Part - New (to order)
                        # 14
                        MPN: N 01508210
                        HEXAGON COLLAR NUT M6
                        from £0.47
                        from £0.47
                        Genuine Porsche Part (no longer available to order)
                        Genuine Bentley Part (no longer available to order)
                        HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                        # 15
                        MPN: 8K0819345G
                        GROMMET
                        P9M0 (Without auxiliary heater/parking heater)
                        from £5.24
                        from £5.24
                        GROMMET Genuine Porsche Part - New (to order)
                        # 17
                        MPN: N 90687001
                        SPRING BAND CLAMP B27X12X1,7
                        from £4.75
                        from £4.75
                        SPRING CLIP Genuine Porsche Part - New (to order)
                        Genuine Bentley Part (no longer available to order)
                        SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                        # 19
                        MPN: 99951260409
                        HOSE CLAMP 27X12
                        HOSE CLAMP Genuine Porsche Part - New (to order)
