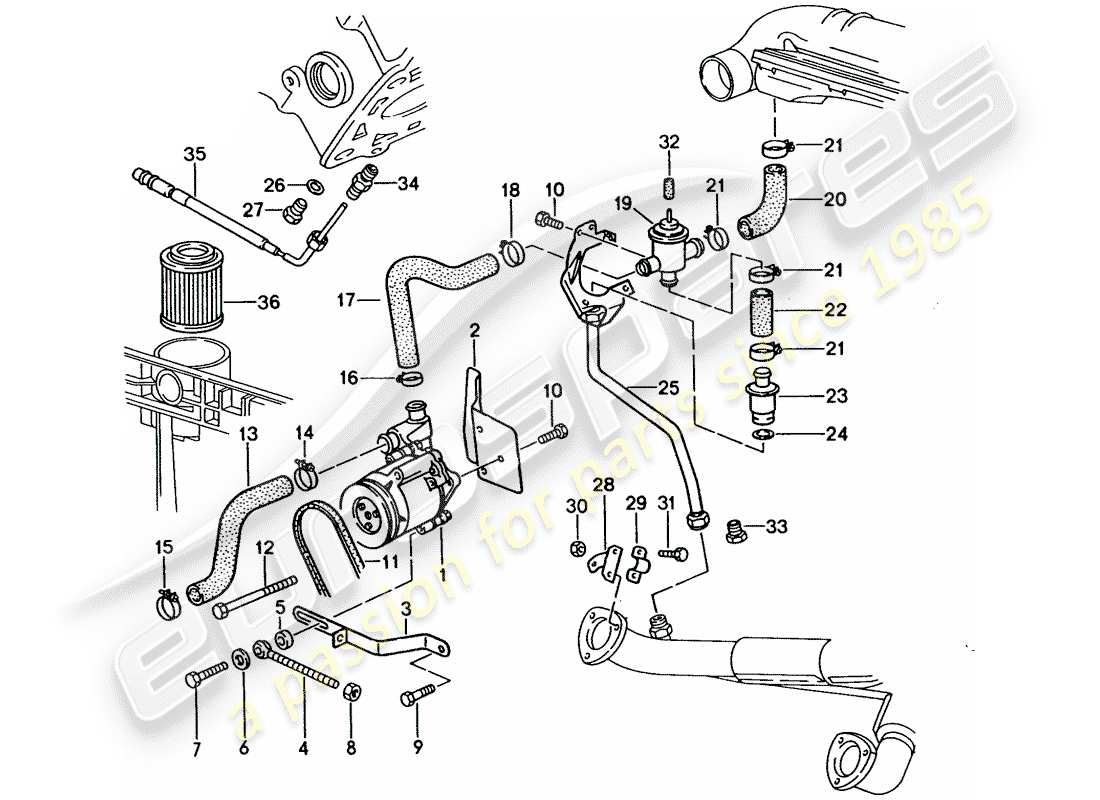

108-000 - AIR INJECTION - FOR VEHICLES WITH - CATALYST
Porsche 928 (1994) AIR INJECTION - FOR VEHICLES WITH - CATALYST Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 92811301700
AIR PUMP
# 2
MPN: 92811312505
COVER PLATE
# 3
MPN: 92811311310
cross support
# 4
MPN: 99946000202
EYE BOLT
# 5
MPN: 99902507502
WASHER - 8,5 X 19 X 6
# 6
MPN: 90002500702
WASHER - A 8,4 - DISCONTINUED PART
# 6
MPN: 90002500703
Washer - A 8,4
from £0.84
from £0.84
# 7
MPN: N 0103406
SCREW, HEX. HD. - M 8 X 40
Supersession
Supersession
# 8
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
# 8
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 9
MPN: 90007507902
SCREW, HEX. HD. - M 8 X 22
Supersession
Supersession
# 10
MPN: 90007535702
BOLT WITH WASHER - M 6 X 12 - DISCONTINUED PART
# 10
MPN: 90007545601
BOLT WITH WASHER - M 6 X 12
# 11
MPN: 99919230650
Narrow v-belt - 12,5 X 925
# 12
MPN: 90007404902
SCREW - M 8 X 110
# 13
MPN: 92811315502
MOLDED HOSE
# 14
MPN: 99951204402
HOSE CLAMP
# 15
MPN: 99951235802
HOSE CLAMP
# 16
MPN: 99951203802
HOSE CLAMP
# 16
MPN: PCG51203802
HOSE CLAMP - DISCONTINUED PART
# 17
MPN: 92811313910
MOLDED HOSE
# 18
MPN: 99951255200
HOSE CLAMP - DISCONTINUED PART
Supersession
Supersession
# 18
MPN: 99951255201
HOSE CLAMP
This part replaces part number 99951250702 - and 1 more. Click to view details
# 19
MPN: 93011314701
DIVERTER VALVE
# 20
MPN: 92811315903
MOLDED HOSE
# 21
MPN: PCG51223702
HOSE CLAMP
# 22
MPN: 92811314007
MOLDED HOSE
# 23
MPN: 91111311501
CHECK VALVE
# 24
MPN: 90012306030
SEAL RING - A 24 X 29
# 25
MPN: 92811314604
PIPE ASSEMBLY
# 26
MPN: 90012304330
SEAL RING - A 12 X 15,5
# 27
MPN: 90012400802
THREADED PLUG - M 12 X 1,5
# 28
MPN: 92811321502
BRACKET
# 29
MPN: 99951232902
CLAMP
# 30
MPN: N 01100514
HEX. NUT - M 5 - DISCONTINUED PART
# 30
MPN: 90007609101
hex. nut - M 5
from £1.00
from £1.00
# 31
MPN: N 0102056
SCREW, HEX. HD. - M 5 X 10 - DISCONTINUED PART
# 31
MPN: 90007510502
SCREW - M 5 X 10
# 32
MPN: 91111029700
SEALING CAP
(PR:900)
# 33
MPN: 92811321600
THREADED PLUG
(PR:900)
# 34
MPN: 92860625500
ADAPTER
# 35
MPN: 92860615502
TEMPERATURE SENSOR - CYLINDER 3 - AND - CYLINDER 7
# 36
MPN: 92811344500
SECONDARY AIR FILTER ELEMENT
