porsche 928 (1992) track control arm parts diagram

401-000 - track control arm

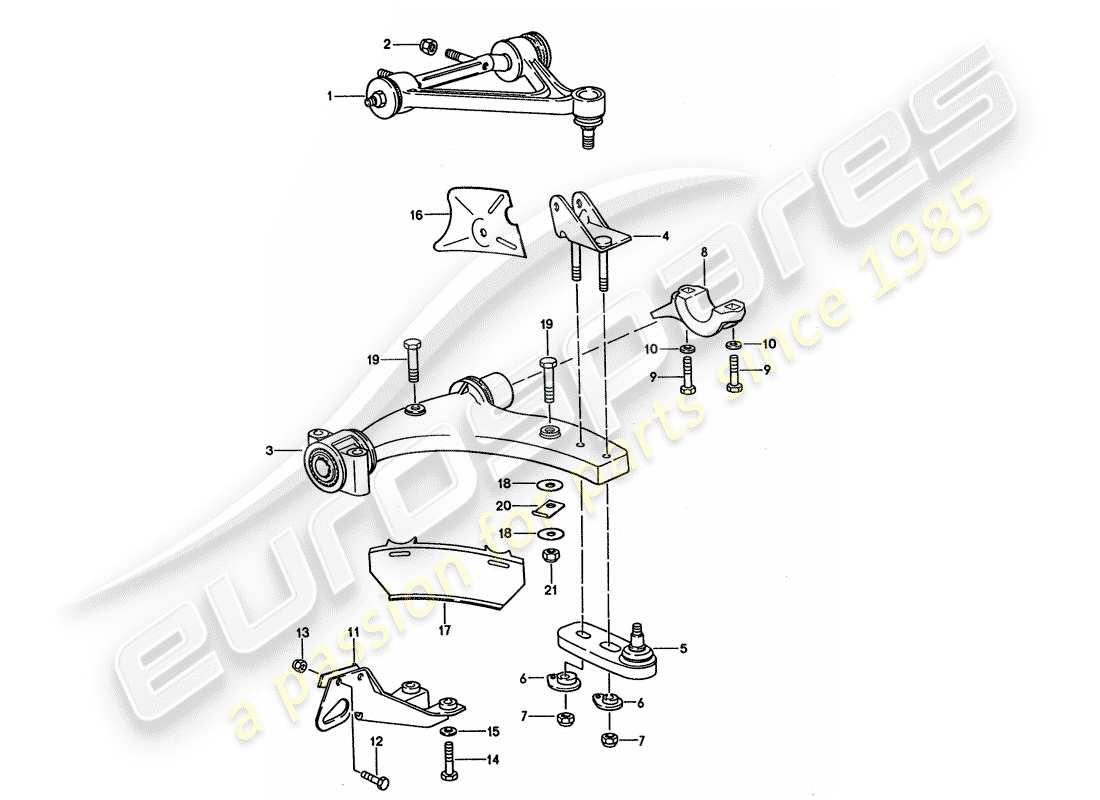

Porsche 928 (1992) TRACK CONTROL ARM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 1
                                  MPN: 92834102737
                                  track control arm
                                  left-upper
                                  # 1
                                  MPN: 92834102837
                                  track control arm
                                  right-upper
                                  # 3
                                  MPN: 92834101704
                                  TRACK CONTROL ARM - DISCONTINUED PART
                                  LOWER
                                  # 3
                                  MPN: 92834101705
                                  TRACK CONTROL ARM - DISCONTINUED PART
                                  LOWER
                                  # 3
                                  MPN: 92834101706
                                  track control arm
                                  LOWER
                                  # 4
                                  MPN: 92834109106
                                  BOW
                                  LEFT
                                  # 4
                                  MPN: 92834109206
                                  BOW
                                  RIGHT
                                  # 5
                                  MPN: 92834104908
                                  ARTICULATED CARRIER - DISCONTINUED PART
                                  # 5
                                  MPN: 92834104909
                                  ARTICULATED CARRIER
                                  # 6
                                  MPN: 92834146601
                                  EXCENTRIC
                                  # 7
                                  MPN: 90091011502
                                  LOCK NUT
                                  from £1.89
                                  from £1.89
                                  # 9
                                  MPN: 90008204808
                                  SCREW, HEX. HD. - M 12 X 1,5 X 80 - DISCONTINUED PART
                                  # 9
                                  MPN: 90008204803
                                  SCREW, HEX. HD. - M 12 X 1,5 X 80
                                  # 10
                                  MPN: 92834116500
                                  Washer - Discontinued part
                                  # 10
                                  MPN: 92834116501
                                  WASHER
                                  # 11
                                  MPN: 92834106402
                                  COVER CLIP
                                  # 13
                                  MPN: N 0211303
                                  HEX. NUT, SELF-LOCKING - DISCONTINUED PART
                                  # 14
                                  MPN: 90008203902
                                  SCREW, HEX. HD. - M 12 X 1,5 X 100
                                  # 14
                                  MPN: 90008213701
                                  SCREW, HEX. HD. - M 12 X 1,5 X 100
                                  # 16
                                  MPN: 92834138405
                                  BAFFLE PLATE
                                  RIGHT
                                  # 17
                                  MPN: 92834138903
                                  SPOILER
                                  LEFT
                                  # 17
                                  MPN: 92834139003
                                  SPOILER
                                  RIGHT
                                  # 18
                                  MPN: 92834139100
                                  SPACER
                                  # 19
                                  MPN: N 0103674
                                  SCREW, HEX. HD. - M 6 X 60 - DISCONTINUED PART
                                  # 19
                                  MPN: 90007402103
                                  SCREW, HEX. HD. - M 6 X 60
                                  # 20
                                  MPN: 92834139501
                                  FASTENING CLIP
                                  # 21
                                  MPN: 90091001202
                                  LOCK NUT - M 6 - DISCONTINUED PART
                                  # 21
                                  MPN: 90091004709
                                  LOCK NUT - M 6
