Porsche 924S (1988) BRAKE LINES Parts Diagram

604-010 - BRAKE LINES

Porsche 924S (1988) BRAKE LINES Parts Diagram

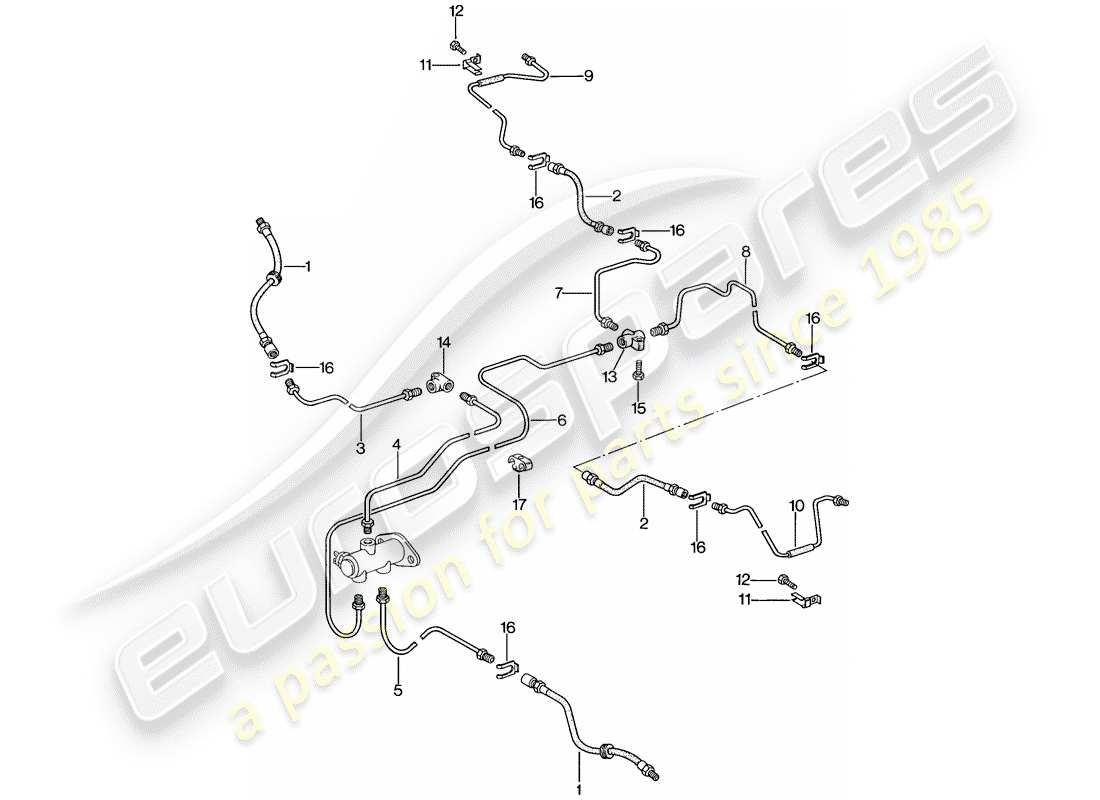

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
    • View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
    • Switch between other part diagrams using theandbuttons, or use the diagram images below
    We recommend viewing this page in landscape orientation for the best experience
    Part Key
    ST
    Part in stock
    PS
    Available in a part set
    SS
    Part supersession in stock
    PS
    Available in a part set to order (subject to availability)
    SO
    Part available to order (subject to availability)
    PK
    Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    PN: 477611071B
                    BRAKE HOSE - DISCONTINUED PART
                    front
                    brake hose - Discontinued part Genuine Porsche Part - New (to order)
                    # 1
                    PN: 477611071F
                    BRAKE HOSE
                    front
                    from $113.24
                    from $113.24
                    brake hose Genuine Porsche Part - New (to order)
                    # 2
                    PN: 94435508101
                    BRAKE HOSE
                    rear
                    from $51.52
                    from $51.52
                    brake hose - D >> - MJ 1992 Genuine Porsche Part - New (to order)
                    # 3
                    PN: 477611724A
                    BRAKE LINE
                    right
                    from $62.49
                    from $62.49
                    Brake line - F 92-49100 051>> Genuine Porsche Part - New (to order)
                    # 4
                    PN: 93735563000
                    BRAKE LINE
                    right
                    from $104.81
                    from $104.81
                    Brake line Genuine Porsche Part - New (to order)
                    # 5
                    PN: 94435502901
                    BRAKE LINE
                    left
                    from $50.03
                    from $50.03
                    Brake line Genuine Porsche Part - New (to order)
                    # 6
                    PN: 93735563100
                    BRAKE LINE
                    from $104.81
                    from $104.81
                    Brake line Genuine Porsche Part - New (to order)
                    # 7
                    PN: 93735563200
                    BRAKE LINE - DISCONTINUED PART
                    right
                    from $142.24
                    from $142.24
                    Brake line - Discontinued part Genuine Porsche Part - New (to order)
                    # 7
                    PN: 93735563201
                    BRAKE LINE
                    right
                    from $127.41
                    from $127.41
                    Brake line Genuine Porsche Part - New (to order)
                    # 8
                    PN: 94435503300
                    BRAKE LINE
                    left
                    from $112.91
                    from $112.91
                    Brake line Genuine Porsche Part - New (to order)
                    # 9
                    PN: 95135503602
                    BRAKE LINE - DISCONTINUED PART
                    right
                    Brake line - Discontinued part Genuine Porsche Part - New (to order)
                    # 9
                    PN: 95135503603
                    BRAKE LINE
                    right
                    from $130.83
                    from $130.83
                    Brake line - D - MJ 1987>> Genuine Porsche Part - New (to order)
                    # 10
                    PN: 95135503502
                    BRAKE LINE - DISCONTINUED PART
                    left
                    Brake line - Discontinued part Genuine Porsche Part - New (to order)
                    # 10
                    PN: 95135503503
                    BRAKE LINE
                    left
                    from $161.97
                    from $161.97
                    Brake line - D - MJ 1987>> Genuine Porsche Part - New (to order)
                    # 11
                    PN: 477611783
                    BRACKET
                    from $24.56
                    from $24.56
                    bracket Genuine Porsche Part - New (to order)
                    # 12
                    PN: N 01021013
                    SCREW, HEX. HD.
                    from $1.19
                    from $1.19
                    screw, hex. hd. - M 6X10 - M 090 9001 >> Genuine Porsche Part - New (to order)
                    # 13
                    PN: 91435566700
                    DISTRIBUTOR
                    from $36.97
                    from $36.97
                    distributor - D - MJ 1992>> Genuine Porsche Part - New (to order)
                    # 14
                    PN: 90135561500
                    ELBOW - DISCONTINUED PART
                    elbow - Discontinued part Genuine Porsche Part - New (to order)
                    # 14
                    PN: 90135561501
                    ELBOW
                    from $51.83
                    from $51.83
                    elbow Genuine Porsche Part - New (to order)
                    # 15
                    PN: N 0111165
                    HEX. NUT
                    from $1.08
                    from $1.08
                    hex. nut - M 6 Genuine Porsche Part - New (to order)
                    # 16
                    PN: 113611715A
                    BRAKE HOSE BRACKET
                    from $3.47
                    from $3.47
                    Brake hose bracket - D >> - MJ 1979 Genuine Porsche Part - New (to order)
                    # 17
                    PN: 811611797
                    BRACKET
                    from $2.01
                    from $2.01
                    bracket - for - Line Genuine Porsche Part - New (to order)
