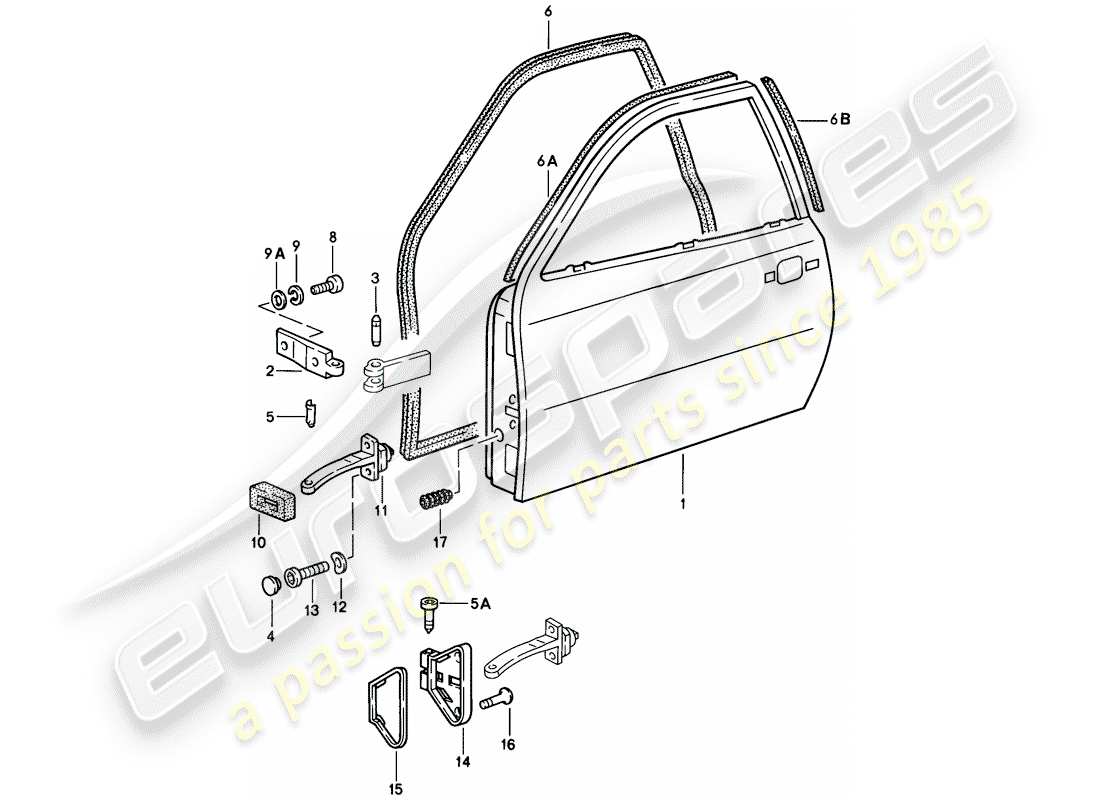

Porsche 924 (1979) DOOR Parts Diagram

804-000 - DOOR

Porsche 924 (1979) DOOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
    • View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
    • Switch between other part diagrams using theandbuttons, or use the diagram images below
    We recommend viewing this page in landscape orientation for the best experience
    Part Key
    ST
    Part in stock
    PS
    Available in a part set
    SS
    Part supersession in stock
    PS
    Available in a part set to order (subject to availability)
    SO
    Part available to order (subject to availability)
    PK
    Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            PN: 477831051H
                            DOOR SHELL
                            left
                            Door shell Genuine Porsche Part - New (to order)
                            # 1
                            PN: 477831052H
                            DOOR SHELL
                            right
                            Door shell Genuine Porsche Part - New (to order)
                            # -
                            PN: 477831139C
                            REINFORCEMENT - REAR VIEW MIRROR - ELECTRIC
                            left
                            from $85.86
                            from $85.86
                            reinforcement - rear view mirror - Electric Genuine Porsche Part - New (to order)
                            # -
                            PN: 477831140C
                            REINFORCEMENT - REAR VIEW MIRROR - ELECTRIC
                            right
                            from $122.68
                            from $122.68
                            reinforcement - rear view mirror - Electric Genuine Porsche Part - New (to order)
                            # -
                            PN: 92853123503
                            THREADED PIN - F 92-48102 503>>
                            from $8.60
                            from $8.60
                            threaded pin - F 92-48102 503>> Genuine Porsche Part - New (to order)
                            # -
                            PN: N 0132951
                            SPRING PIN - F 92-48102 503>>
                            from $0.88
                            from $0.88
                            Spring pin - F 92-48102 503>> Genuine Porsche Part - New (to order)
                            # -
                            PN: 477831136
                            REINFORCEMENT - REAR VIEW MIRROR - F >> 92-48102 502
                            right
                            reinforcement - rear view mirror - F >> 92-48102 502 Genuine Porsche Part - New (to order)
                            # -
                            PN: 477831137
                            REINFORCEMENT BRACKET
                            Reinforcement bracket Genuine Porsche Part - New (to order)
                            # 2
                            PN: 171831403
                            HINGE HALF
                            from $51.01
                            from $51.01
                            hinge half Genuine Porsche Part - New (to order)
                            # 3
                            PN: 321831421
                            PIN - HINGE
                            from $7.52
                            from $7.52
                            pin - hinge Genuine Porsche Part - New (to order)
                            # 4
                            PN: 411837111
                            CAP - F >> 92-48104 548
                            from $1.81
                            from $1.81
                            cap - F >> 92-48104 548 Genuine Porsche Part - New (to order)
                            # 5
                            PN: 823837257
                            PIN - F >> 92-48104 548
                            pin - F >> 92-48104 548 Genuine Porsche Part - New (to order)
                            # 5
                            PN: 92853741903
                            SCREW, CHEESE HD. - F 92-48104 549>>
                            from $6.32
                            from $6.32
                            screw, cheese hd. - F 92-48104 549>> Genuine Porsche Part - New (to order)
                            # 6
                            PN: 94453709100
                            DOOR SEAL
                            left
                            from $150.26
                            from $150.26
                            door seal Genuine Porsche Part - New (to order)
                            # 6
                            PN: 94453709200
                            DOOR SEAL
                            right
                            from $159.68
                            from $159.68
                            door seal Genuine Porsche Part - New (to order)
                            # 6
                            PN: 477837233
                            ADDITIONAL GASKET
                            Additional gasket - F >> 92-CN401 894 - F >> 93-CN100 246 - F >> 93-CN100 246 Genuine Porsche Part - New (to order)
                            # 6
                            PN: 477837235
                            ADDITIONAL GASKET
                            Additional gasket - F >> 92-CN401 894 - F >> 93-CN100 246 Genuine Porsche Part - New (to order)
                            # 8
                            PN: 90011905202
                            SCREW, CHEESE HD. - M 8 X 15
                            from $1.73
                            from $1.73
                            screw, cheese hd. - M8 X 16 Genuine Porsche Part - New (to order)
                            # 9
                            PN: 90002701502
                            LOCK RING - B 8
                            lock ring - M 10 Genuine Porsche Part - New (to order)
                            # 9
                            PN: 90002701503
                            LOCK RING - B 8
                            from $1.10
                            from $1.10
                            lock ring - M 10 Genuine Porsche Part - New in stock
                            # 9
                            PN: 823711815
                            WASHER
                            Washer - A 8 Genuine Porsche Part - New (to order)
                            # 10
                            PN: 477837483
                            GASKET - F >> 92-48104 548
                            gasket - F >> 92-48104 548 Genuine Porsche Part - New (to order)
                            # 11
                            PN: 94453760900
                            CHECK ROD - DOOR - DISCONTINUED PART
                            from $31.15
                            from $31.15
                            check rod - door - Discontinued part Genuine Porsche Part - New (to order)
                            # 11
                            PN: 94453760900
                            CHECK ROD - DOOR
                            from $31.15
                            from $31.15
                            check rod - door - Discontinued part Genuine Porsche Part - New (to order)
                            # 12
                            PN: N 0115247
                            WASHER - B 6 - DISCONTINUED PART
                            Washer - R 6,6 - Discontinued part Genuine Porsche Part - New (to order)
                            # 12
                            PN: N 01152427
                            WASHER - B 6
                            from $0.61
                            from $0.61
                            WASHER 6.4X12.5X1.6 (N01152427) Genuine Lamborghini - New in stock
                            Washer - R 6,6 Genuine Porsche Part - New in stock
                            # 13
                            PN: 90006700902
                            SCREW, CHEESE HD. - M 6 X 15 - DISCONTINUED PART
                            screw, cheese hd. - M6 X 15 - Discontinued part Genuine Porsche Part - New (to order)
                            # 13
                            PN: 90006742901
                            SCREW, CHEESE HD. - M 6 X 15
                            from $4.52
                            from $4.52
                            screw, cheese hd. - M6 X 15 - Chrome plated Genuine Porsche Part - New (to order)
                            # 14
                            PN: 92853741702
                            BRACKET - F 92-48104 549>> - DISCONTINUED PART
                            left
                            bracket - F 92-48104 549>> - Discontinued part Genuine Porsche Part - New (to order)
                            # 14
                            PN: 92853741703
                            BRACKET - F 92-48104 549>>
                            left
                            from $12.15
                            from $12.15
                            bracket - F 92-48104 549>> Genuine Porsche Part - New (to order)
                            # 14
                            PN: 92853741802
                            BRACKET - F 92-48104 549>>
                            right
                            from $12.15
                            from $12.15
                            bracket - F 92-48104 549>> Genuine Porsche Part - New (to order)
                            # 15
                            PN: 92853742502
                            PACKING - BRACKET - F 92-48104 549>>
                            left
                            from $8.97
                            from $8.97
                            packing - bracket - F 92-48104 549>> Genuine Porsche Part - New (to order)
                            # 15
                            PN: 92853742602
                            PACKING - BRACKET - F 92-48104 549>>
                            right
                            from $16.80
                            from $16.80
                            packing - bracket - F 92-48104 549>> Genuine Porsche Part - New (to order)
                            # 16
                            PN: 92853745902
                            FILLISTER HD. SCREW - M 6 X 20 - F 92-48104 549>> - DISCONTINUED PART
                            fillister hd. screw - M 6 X 25 - Discontinued part Genuine Porsche Part - New (to order)
                            # 16
                            PN: 92853745903
                            FILLISTER HD. SCREW - M 6 X 20 - F 92-48104 549>>
                            from $3.29
                            from $3.29
                            fillister hd. screw - M 6 X 25 Genuine Porsche Part - New (to order)
                            # 17
                            PN: 477971910
                            BELLOWS
                            from $10.38
                            from $10.38
                            bellows - See group - 8/04/00 Genuine Porsche Part - New (to order)
