Porsche 924 (1977) BRAKE - WHEEL BRAKE CYLINDER Parts Diagram

603-005 - BRAKE - WHEEL BRAKE CYLINDER

Porsche 924 (1977) BRAKE - WHEEL BRAKE CYLINDER Parts Diagram

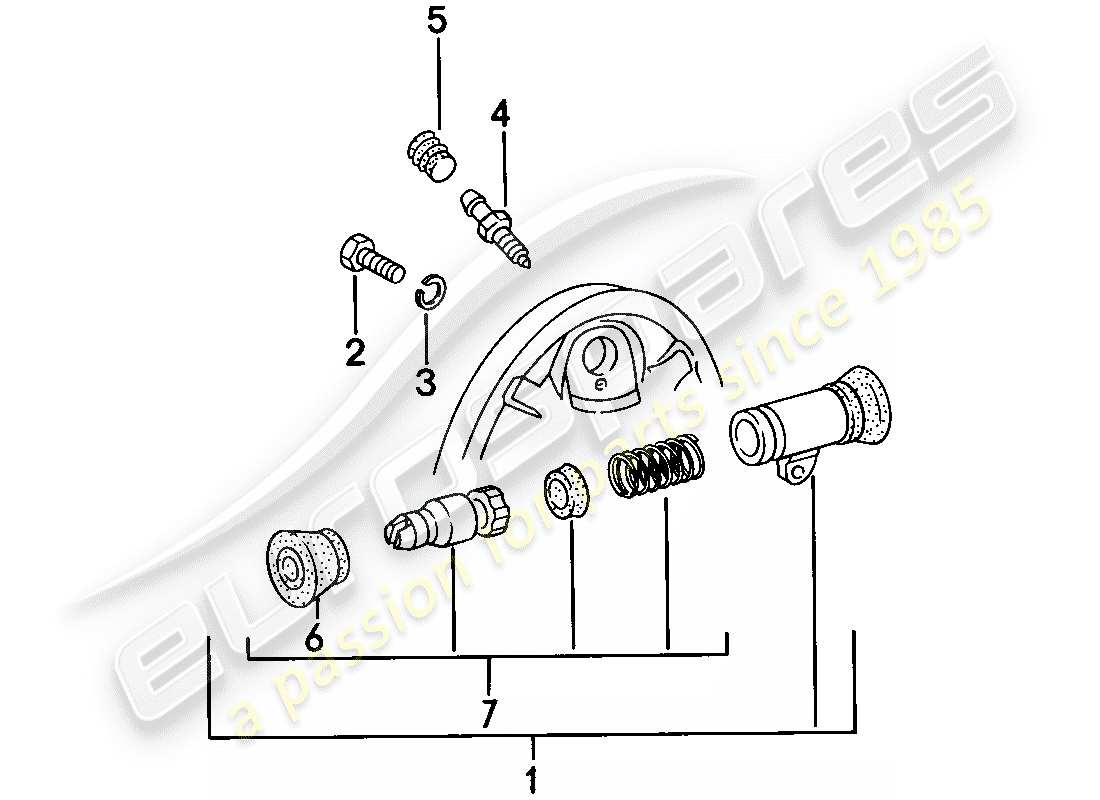

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 1
              PN: 477611055E
              WHEEL BRAKE CYLINDER - 19,05
              from $118.27
              from $118.27
              # 2
              PN: 90007508702
              SCREW, HEX. HD. - M 8 X 15 - DISCONTINUED PART
              # 2
              PN: 90007508703
              SCREW, HEX. HD. - M 8 X 15
              from $0.93
              from $0.93
              # 2
              PN: 90007508704
              SCREW, HEX. HD. - M 8 X 15
              M8X16-yellow
              from $0.98
              from $0.98
              # 3
              PN: 90002701503
              LOCK RING
              from $1.10
              from $1.10
              # 4
              PN: 211611477A
              BLEEDER VALVE
              from $3.32
              from $3.32
              # 5
              PN: 211611483
              DUST CAP
              from $3.44
              from $3.44
              # 6
              PN: 113611695D
              PROTECTIVE CAP
              # 7
              PN: 477698051
              REPAIR KIT - WHEEL BRAKE CYLINDER - 19,05
              from $32.04
              from $32.04
