Maserati Shamal Clutch Parts Diagram

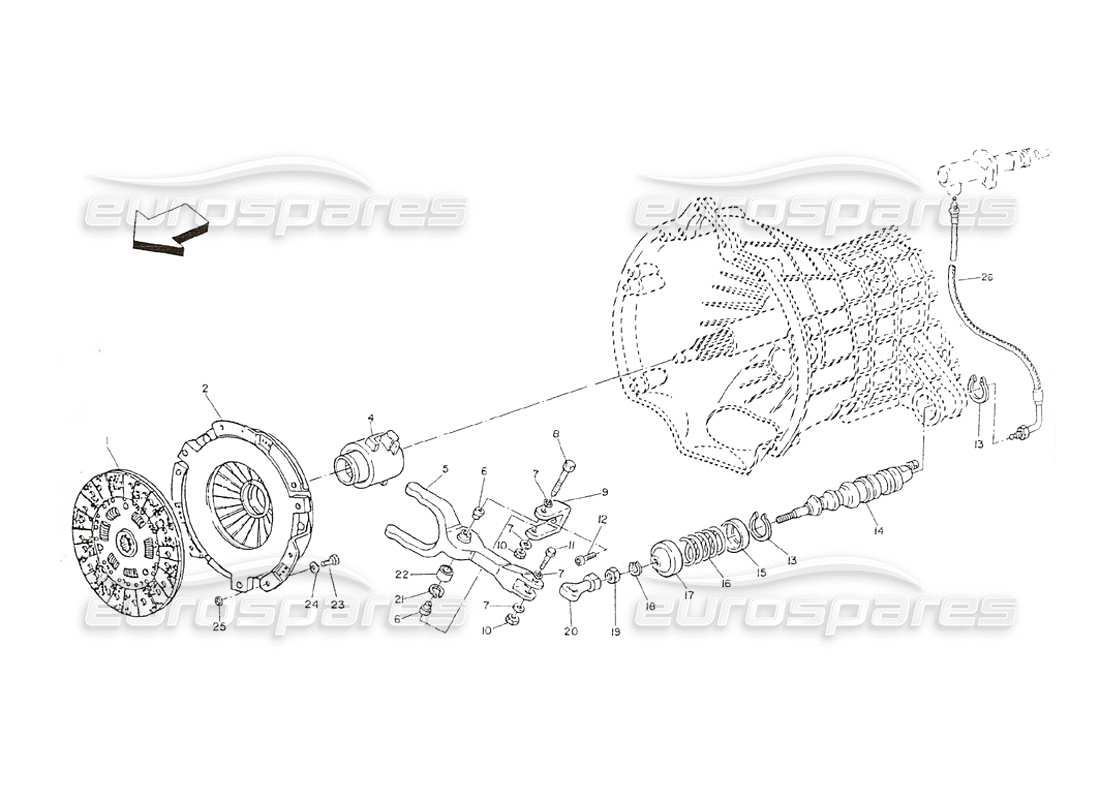

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 374640105

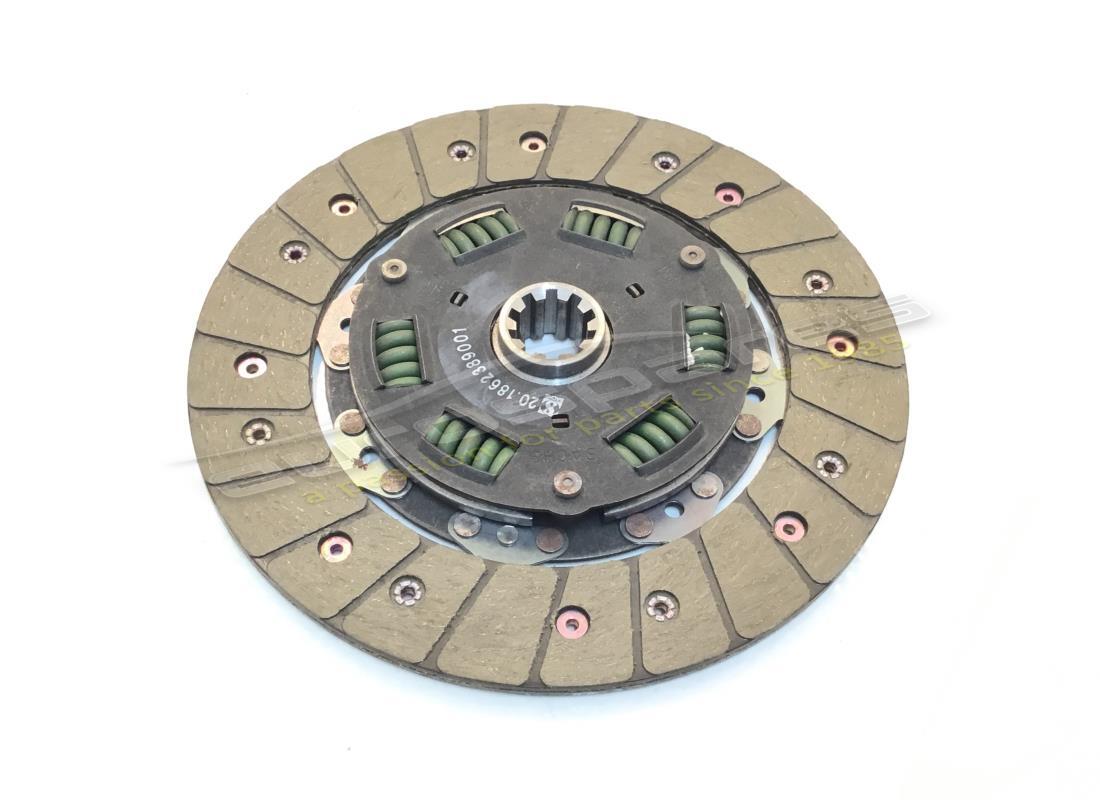

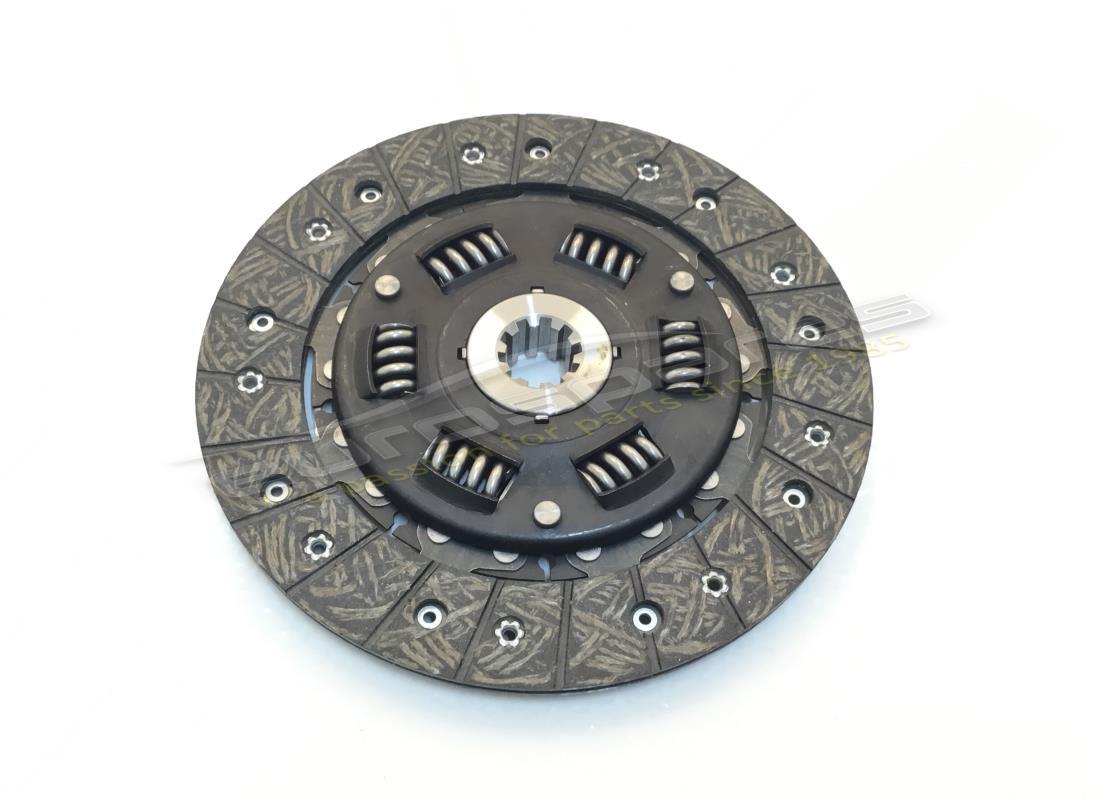

                                              CLUTCH DISC
                                              from £1,330.31
                                              from £1,330.31
                                              This part replaces part number 374630105
                                              # 002
                                              MPN: 394650102
                                              CLUTCH DEVICE
                                              AFTER CHANGE, NO. PRODUCT 392 - ENGINE 700324; CHASSIS NO. MA 300322 LH STEERING; CHASSIS NO. 320006 RH STEERING
                                              from £657.62
                                              from £657.62
                                              This part replaces part number 394650101
                                              # 004
                                              MPN: 384601108

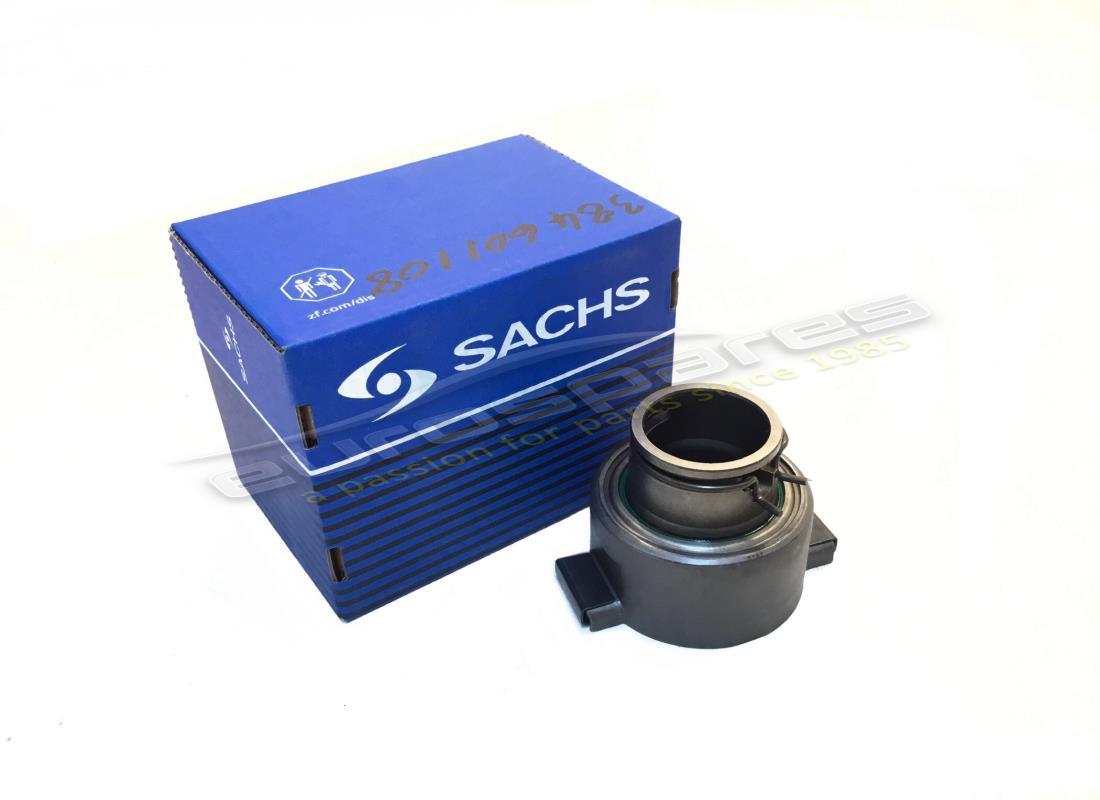

                                              Clutch Bearing
                                              from £371.18
                                              from £371.18
                                              This part replaces part number 384600108
                                              # 005
                                              MPN: 324653318
                                              CLUTCH LEVER
                                              AFTER CHANGE, NO. PRODUCT 392 - ENGINE 700324; CHASSIS NO. MA 300322 LH STEERING; CHASSIS NO. 320006 RH STEERING
                                              Supersession
                                              Supersession
                                              # 006
                                              MPN: 324653329
                                              BUSH
                                              from £3.64
                                              from £3.64
                                              # 008
                                              MPN: 324653330
                                              SCREW
                                              from £6.41
                                              from £6.41
                                              # 009
                                              MPN: 324653328
                                              FORK
                                              from £3.64
                                              from £3.64
                                              # 010
                                              MPN: 128350080
                                              SELFLOCKING NUT
                                              Supersession
                                              Supersession
                                              # 011
                                              MPN: 328253327
                                              SCREW
                                              from £2.85
                                              from £2.85
                                              # 014
                                              MPN: 378230104
                                              CLUTCH ACTUATING CYLINDER
                                              from £359.42
                                              from £359.42
                                              This part replaces part number 328253104
                                              # 015
                                              MPN: 328253332
                                              CUP
                                              from £5.10
                                              from £5.10
                                              # 016
                                              MPN: 328253331
                                              SPRING
                                              from £3.88
                                              from £3.88
                                              # 017
                                              MPN: 328253333
                                              FRONT CUP
                                              from £37.10
                                              from £37.10
                                              # 020
                                              MPN: 324653326
                                              BALL JOINT
                                              from £15.38
                                              from £15.38
                                              # 021
                                              MPN: 151700280
                                              SNAP RING
                                              from £0.70
                                              from £0.70
                                              # 022
                                              MPN: 324653320
                                              BALL JOINT
                                              from £18.86
                                              from £18.86
                                              # 025
                                              MPN: 324653314
                                              WASHER
                                              from £3.56
                                              from £3.56
                                              # 026
                                              MPN: 328253112
                                              CLUTCH PUMP CONNECTING HOSE
                                              FOR J, F, CH, 50
                                              from £28.27
                                              from £28.27
                                              # 026
                                              MPN: 398270112
                                              CLUTCH PUMP CONNECTING HOSE
                                              for 70
                                              from £45.67
                                              from £45.67
