maserati shamal boost control system and relays parts diagram

016 - Boost Control System And Relays

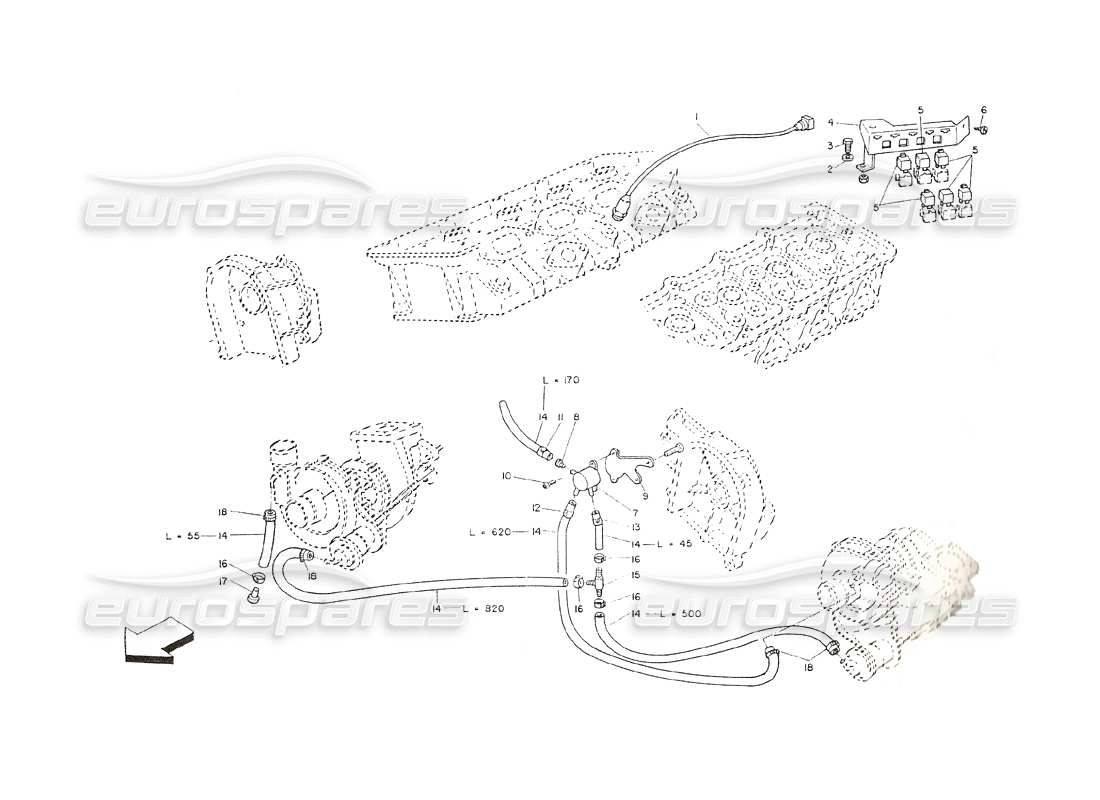

Maserati Shamal Boost Control System And Relays Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 470089701
KNOCK SENSOR
from £110.22
from £110.22
# 002
MPN: 138410060
SPRING WASHER
# 004
MPN: 313753109
RELAY SUPPORT
from £3.61
from £3.61
# 005
MPN: 313320134
RELAY
from £16.89
from £16.89
This part replaces part number 184101
# 006
MPN: 119142160
SCREW
from £0.84
from £0.84
# 007
MPN: 452089801
SOLENOID VALVE
from £113.91
from £113.91
# 009
MPN: 479083100
PLATE
from £2.95
from £2.95
# 011
MPN: 312020395
IDENTIFICATION CLAMP (R)
from £0.68
from £0.68
# 012
MPN: 312020396
IDENTIFICATION CLAMP (C)
from £0.68
from £0.68
# 013
MPN: 312020397
IDENTIFICATION CLAMP (W)
from £0.68
from £0.68
# 014
MPN: MN0096012
SLEEVE
THE CODE NO. IS REFERRED TO A SECTION. WHEN ORDERING, THE QUANTITY TO INDICATE SHOULD BE AT LEAST 5 METRES OR MULTIPLE
# 015
MPN: 19058089
SLEEVE
THE CODE NO. IS REFERRED TO A SECTION. WHEN ORDERING, THE QUANTITY TO INDICATE SHOULD BE AT LEAST 5 METRES OR MULTIPLE
from £9.61
from £9.61
This part replaces part number 379200379 - and 2 more. Click to view details
# 015
MPN: 312020399
T -UN I ON
from £0.91
from £0.91
# 017
MPN: 479362500
PLUG
from £2.31
from £2.31
