Maserati QTP. (2010) 4.7 It System Parts Diagram

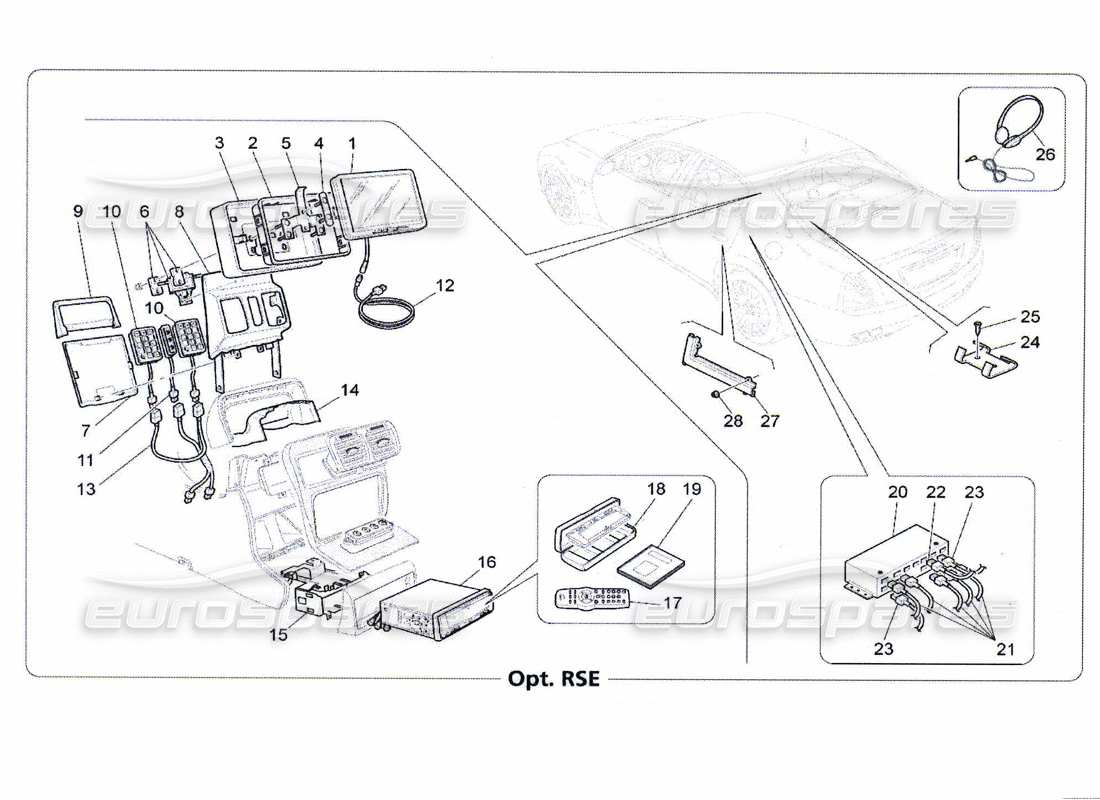

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 191192
                                                          MONITOR
                                                          from £2,700.01
                                                          from £2,700.01
                                                          # 002
                                                          MPN: 68479100
                                                          MONITOR FRAME
                                                          from £120.34
                                                          from £120.34
                                                          # 003
                                                          MPN: 9813394
                                                          MONITOR COVER
                                                          Supersession
                                                          Supersession
                                                          # 004
                                                          MPN: 68479500
                                                          MONITOR SUPPORT BRACKET
                                                          from £106.41
                                                          from £106.41
                                                          # 005
                                                          MPN: 68479400
                                                          MONITOR SUPPORT BRACKET
                                                          from £106.41
                                                          from £106.41
                                                          # 006
                                                          MPN: 68479200
                                                          COMPLETE JOINT FOR MONITOR
                                                          from £79.09
                                                          from £79.09
                                                          # 007
                                                          MPN: 9813392
                                                          FRONT SUPPORT FOR MONITOR
                                                          # 008
                                                          MPN: 9813393
                                                          REAR SUPPORT FOR MONITOR
                                                          Supersession
                                                          Supersession
                                                          # 009
                                                          MPN: 9813395
                                                          REAR COVER FOR MONITOR
                                                          Supersession
                                                          Supersession
                                                          # 010
                                                          MPN: 191199
                                                          REMOTE PANNEL
                                                          from £605.73
                                                          from £605.73
                                                          # 011
                                                          MPN: 191200
                                                          AUX MODULE
                                                          from £124.94
                                                          from £124.94
                                                          # 012
                                                          MPN: 212571
                                                          MONITOR CABLE
                                                          from £177.87
                                                          from £177.87
                                                          # 013
                                                          MPN: 211272
                                                          CABLE
                                                          from £426.50
                                                          from £426.50
                                                          # 014
                                                          MPN: 68478700
                                                          COVER
                                                          from £67.62
                                                          from £67.62
                                                          # 015
                                                          MPN: 68479300
                                                          BRACKET
                                                          from £106.41
                                                          from £106.41
                                                          # 016
                                                          MPN: 208336
                                                          DVD PLAYER
                                                          from £1,490.16
                                                          from £1,490.16
                                                          # 017
                                                          MPN: 214292
                                                          DVD REMOTE CONTROL
                                                          from £601.67
                                                          from £601.67
                                                          # 018
                                                          MPN: 215413
                                                          CONTROL SWITCH PANEL BOX
                                                          from £134.29
                                                          from £134.29
                                                          # 019
                                                          MPN: 215400
                                                          DVD MANUAL
                                                          from £18.92
                                                          from £18.92
                                                          # 020
                                                          MPN: 191198
                                                          CONTROL BOX
                                                          from £2,729.46
                                                          from £2,729.46
                                                          # 021
                                                          MPN: 211273
                                                          CABLES CONNECTION TUNNEL - CONTROL BOX
                                                          from £721.55
                                                          from £721.55
                                                          # 022
                                                          MPN: 227465
                                                          CABLE CONNECTION CONTROL BOX - NIT
                                                          from £222.15
                                                          from £222.15
                                                          # 023
                                                          MPN: 191195
                                                          TUNER TV CABLE
                                                          from £292.19
                                                          from £292.19
                                                          # 024
                                                          MPN: 69089400
                                                          DVD REMOTE CONTROL SUPPORT
                                                          from £26.86
                                                          from £26.86
                                                          # 025
                                                          MPN: 15915777
                                                          SCREW
                                                          from £1.07
                                                          from £1.07
                                                          # 026
                                                          MPN: 208979
                                                          HEADPHONE
                                                          from £126.93
                                                          from £126.93
                                                          # 027
                                                          MPN: 208518
                                                          CONTOUR
                                                          from £31.69
                                                          from £31.69
                                                          # 028
                                                          MPN: 14059114
                                                          NUT
                                                          from £0.53
                                                          from £0.53
