maserati qtp. (2010) 4.7 a c unit: electronic control parts diagram

075 - A c Unit: Electronic Control

Maserati QTP. (2010) 4.7 A C Unit: Electronic Control Parts Diagram

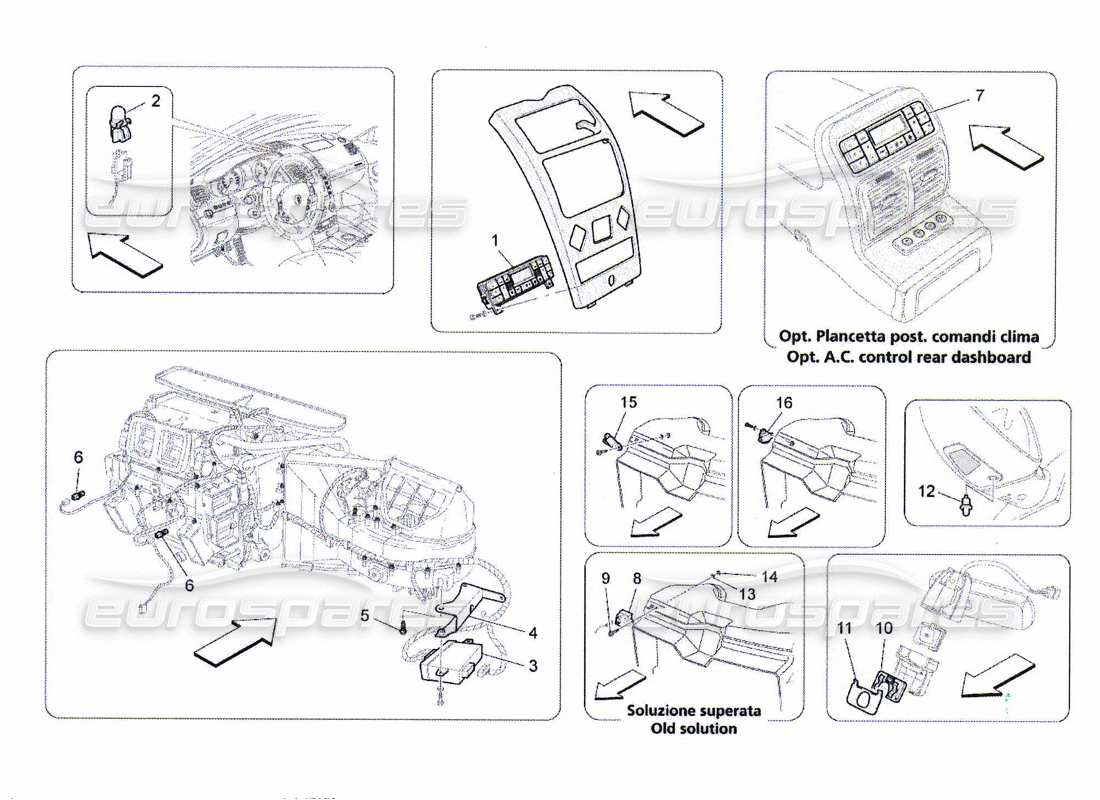

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 271199
                              A.C. CONTROL DASHBOARD
                              from £317.12
                              from £317.12
                              This part replaces part number 249301 - and 1 more. Click to view details

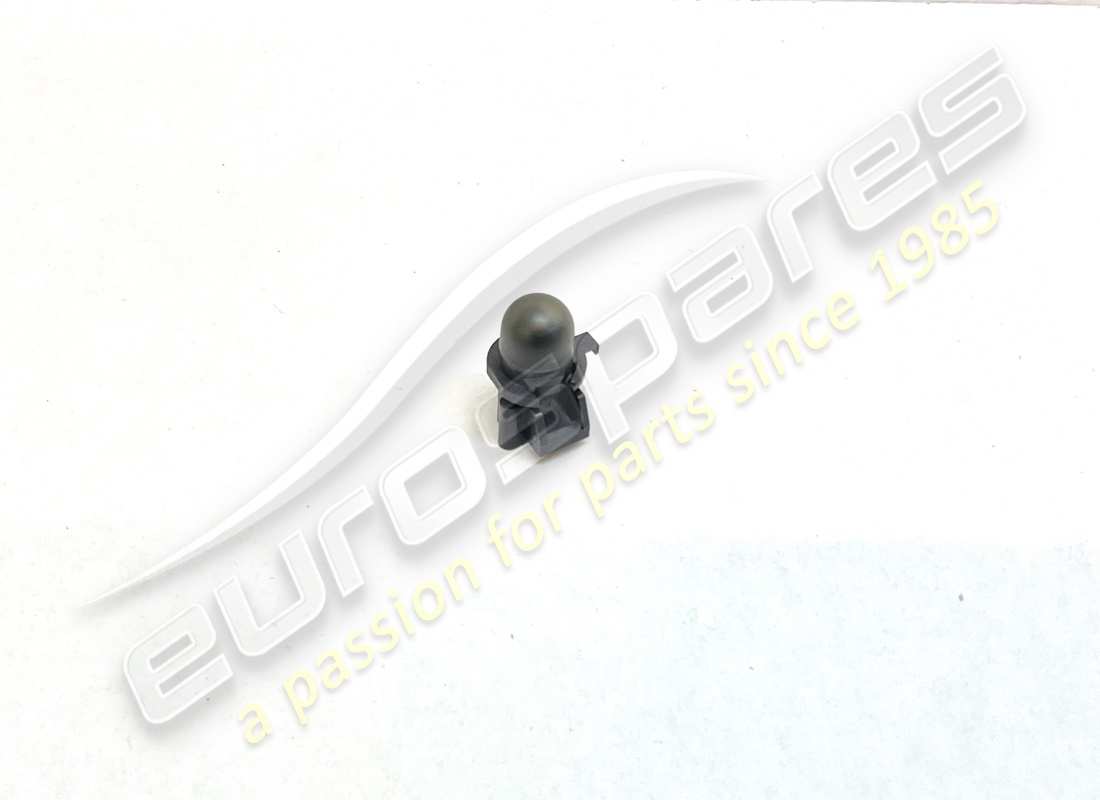

                              # 002
                              MPN: 190938
                              SOLAR SENSOR
                              from £55.90
                              from £55.90
                              # 003
                              -
                              A.C. CONTROL UNIT
                              # 004
                              MPN: 68392200
                              CONTROL UNIT FIXING BRACKET
                              from £18.62
                              from £18.62
                              # 005
                              MPN: 68391900
                              SCREW
                              from £1.85
                              from £1.85
                              # 006
                              MPN: 68390100
                              SENSOR AIR
                              from £7.32
                              from £7.32
                              # 007
                              MPN: 221238
                              A.C. REAR CONTROL DASHBOARD
                              from £1,251.10
                              from £1,251.10
                              # 008
                              MPN: 67447600
                              AQS SENSOR OLD SOLUTION
                              from £166.09
                              from £166.09
                              # 009
                              MPN: 14304624
                              SCREW
                              from £0.47
                              from £0.47
                              # 010
                              MPN: 67447700
                              DEFOGGING SENSOR
                              from £199.98
                              from £199.98
                              # 011
                              MPN: 67881900
                              COVER
                              from £10.78
                              from £10.78
                              # 013
                              MPN: 12637824
                              WASHER
                              from £0.47
                              from £0.47
                              # 014
                              MPN: 14048615
                              NUT
                              from £0.47
                              from £0.47
                              # 016
                              MPN: 249137
                              AQS SENSOR
                              from £70.05
                              from £70.05
