maserati qtp. (2010) 4.7 a c unit: diffusion parts diagram

074 - A c Unit: Diffusion

Maserati QTP. (2010) 4.7 A C Unit: Diffusion Parts Diagram

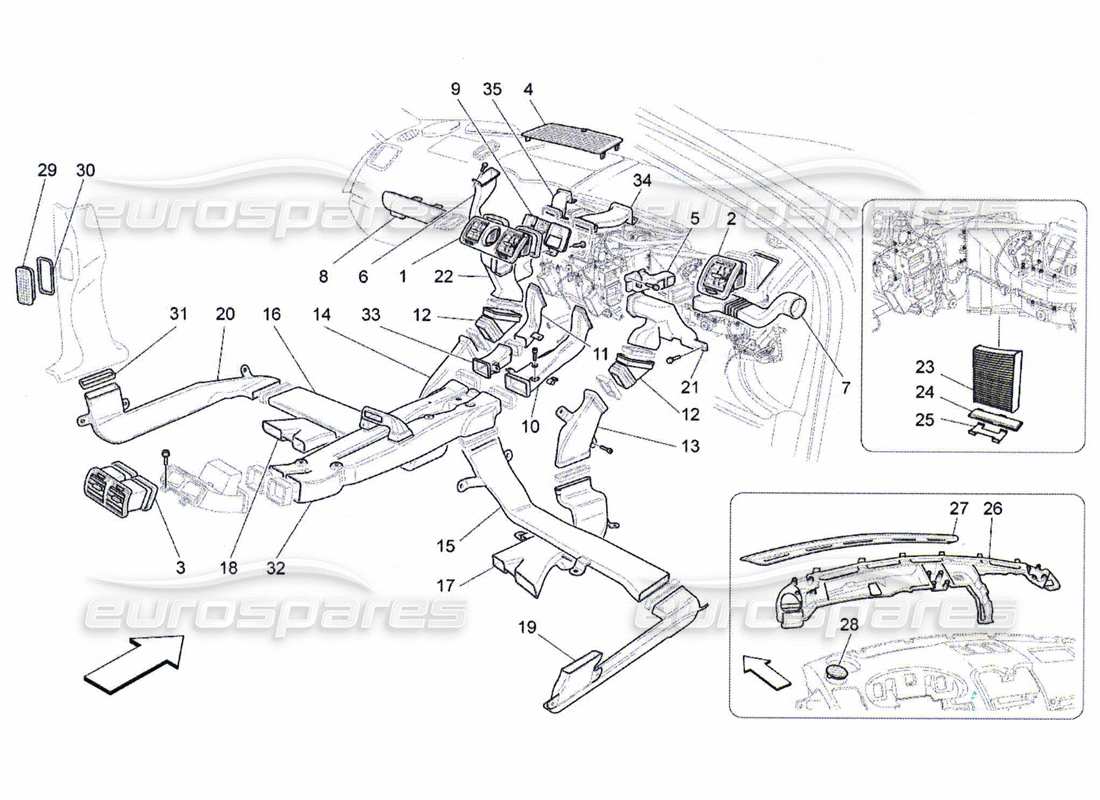

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 66526500
                                                                        CENTRAL OPENING
                                                                        from £107.91
                                                                        from £107.91
                                                                        # 002
                                                                        MPN: 66527400
                                                                        LATERAL AIR OPENING
                                                                        from £75.81
                                                                        from £75.81
                                                                        # 003
                                                                        MPN: 67211900
                                                                        REAR AIR OPENING
                                                                        from £111.81
                                                                        from £111.81
                                                                        # 004
                                                                        MPN: 66526700
                                                                        CENTRAL AIR DIFFUSER
                                                                        from £36.18
                                                                        from £36.18
                                                                        # 005
                                                                        MPN: 69632000
                                                                        RH CENTRAL OPENING UNION
                                                                        from £57.52
                                                                        from £57.52
                                                                        # 006
                                                                        MPN: 66524900
                                                                        LH CENTRAL OPENING UNION
                                                                        from £30.65
                                                                        from £30.65
                                                                        # 007
                                                                        MPN: 67207300
                                                                        RH LATERAL OPENING CONNECTION
                                                                        from £26.86
                                                                        from £26.86
                                                                        # 008
                                                                        MPN: 67488800
                                                                        LH AIR DUCTING CONNECTION
                                                                        from £27.78
                                                                        from £27.78
                                                                        # 009
                                                                        MPN: 69631900
                                                                        CENTRAL OPENING UNION
                                                                        from £20.42
                                                                        from £20.42
                                                                        # 010
                                                                        MPN: 69290800
                                                                        RH UNION
                                                                        from £27.57
                                                                        from £27.57
                                                                        # 011
                                                                        MPN: 69290900
                                                                        LH UNION
                                                                        from £17.51
                                                                        from £17.51
                                                                        # 012
                                                                        MPN: 67211300
                                                                        AIR UNION
                                                                        from £101.77
                                                                        from £101.77
                                                                        # 013
                                                                        MPN: 66552900
                                                                        RH AIR DUCTING FOOT-REST
                                                                        from £13.00
                                                                        from £13.00
                                                                        # 014
                                                                        MPN: 66552800
                                                                        LH AIR DUCTING FOOT-REST
                                                                        from £127.09
                                                                        from £127.09
                                                                        # 015
                                                                        MPN: 69633500
                                                                        AIR DUCTING FROM TUNNEL TO RH PILLAR
                                                                        from £27.57
                                                                        from £27.57
                                                                        # 016
                                                                        MPN: 69633600
                                                                        AIR DUCTING FROM TUNNEL TO LH PILLAR
                                                                        from £27.57
                                                                        from £27.57
                                                                        # 017
                                                                        MPN: 69633000
                                                                        RH REAR AIR DUCTING
                                                                        from £24.62
                                                                        from £24.62
                                                                        # 018
                                                                        MPN: 69633100
                                                                        LH REAR AIR DUCTING
                                                                        from £25.60
                                                                        from £25.60
                                                                        # 019
                                                                        MPN: 67211500
                                                                        AIR DUCTING FOR RH CENTRAL PILLAR
                                                                        from £152.47
                                                                        from £152.47
                                                                        # 020
                                                                        MPN: 67211600
                                                                        AIR DUCTING FOR LH CENTRAL PILLAR
                                                                        from £16.25
                                                                        from £16.25
                                                                        # 021
                                                                        MPN: 66525100
                                                                        RH FRONT AIR DUCTING
                                                                        from £40.40
                                                                        from £40.40
                                                                        # 022
                                                                        MPN: 66525200
                                                                        LH FRONT AIR DUCTING
                                                                        from £40.40
                                                                        from £40.40
                                                                        # 023
                                                                        MPN: 66855200

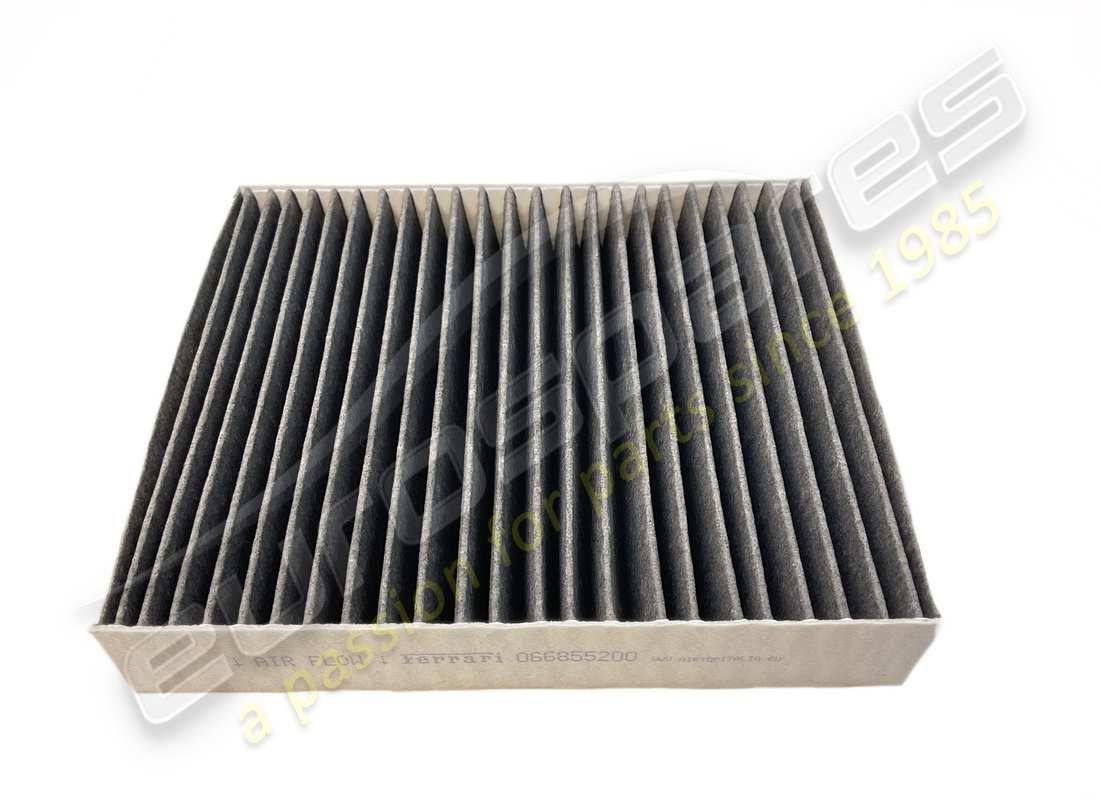

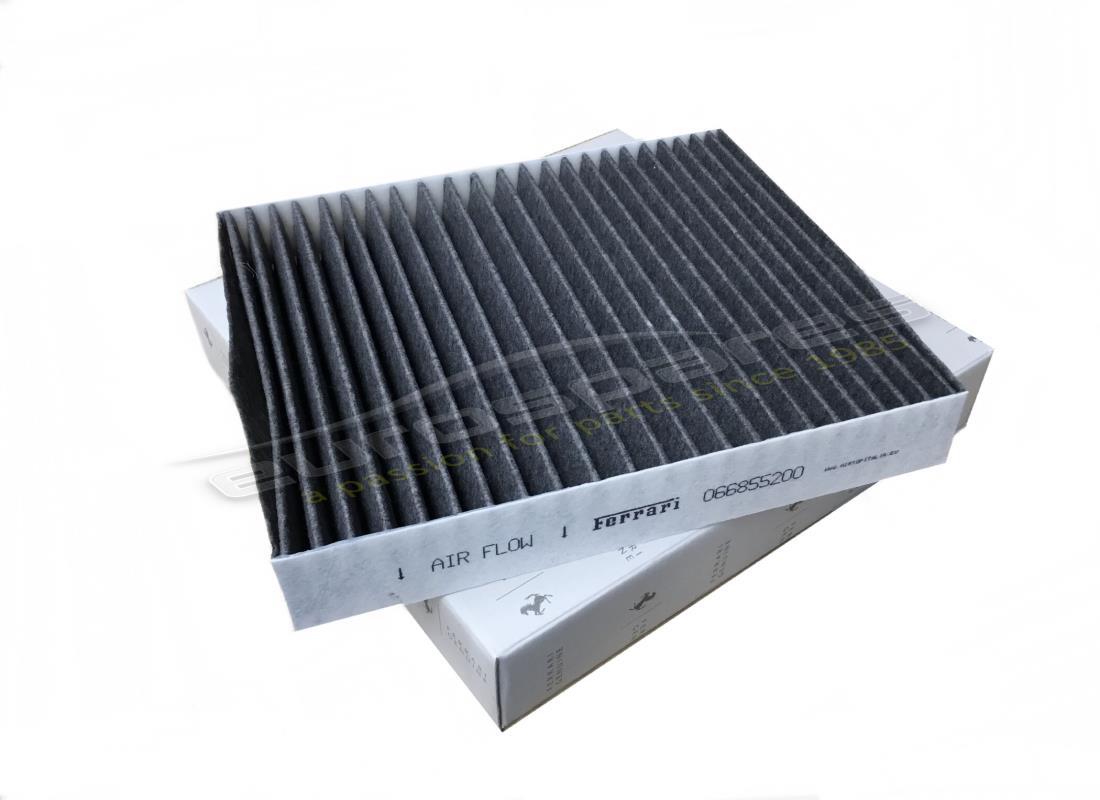

                                                                        POLLEN FILTER
                                                                        from £32.50
                                                                        from £32.50
                                                                        # 024
                                                                        MPN: 68390600
                                                                        FILTER COVER
                                                                        from £16.03
                                                                        from £16.03
                                                                        # 025
                                                                        MPN: 68390700
                                                                        COVER FIXING
                                                                        from £7.07
                                                                        from £7.07
                                                                        # 026
                                                                        MPN: 980139644
                                                                        COMPLETE AIR DUCTING
                                                                        from £240.95
                                                                        from £240.95
                                                                        # 027
                                                                        MPN: 69633400
                                                                        DEFROSTER PLATE
                                                                        from £139.10
                                                                        from £139.10
                                                                        # 028
                                                                        MPN: 66935600
                                                                        RH DEFROSTER GRILL
                                                                        from £19.14
                                                                        from £19.14
                                                                        # 028
                                                                        MPN: 67579600
                                                                        LH DEFROSTER GRILL
                                                                        from £10.53
                                                                        from £10.53
                                                                        # 029
                                                                        MPN: 9813080
                                                                        RH AIR OUTLET OPENING
                                                                        # 029
                                                                        MPN: 9813081
                                                                        LH AIR OUTLET OPENING
                                                                        Supersession
                                                                        Supersession
                                                                        # 030
                                                                        MPN: 67266400
                                                                        UPPER GASKET
                                                                        from £27.31
                                                                        from £27.31
                                                                        # 031
                                                                        MPN: 67266500
                                                                        LOWER GASKET
                                                                        from £27.31
                                                                        from £27.31
                                                                        # 032
                                                                        MPN: 980139569
                                                                        COMPLETE CENTRAL AIR DUCTING
                                                                        from £53.59
                                                                        from £53.59
                                                                        # 033
                                                                        MPN: 69291000
                                                                        UNION
                                                                        from £29.95
                                                                        from £29.95
                                                                        # 034
                                                                        MPN: 69631500
                                                                        RH DUCTING FOR CENTRAL AIR DIFFUSER
                                                                        from £47.49
                                                                        from £47.49
                                                                        # 035
                                                                        MPN: 69633900
                                                                        LH DUCTING FOR CENTRAL AIR DIFFUSER
                                                                        from £47.49
                                                                        from £47.49
