maserati qtp. (2010) 4.7 braking devices on front wheels parts diagram

036 - braking devices on front wheels

Maserati QTP. (2010) 4.7 Braking Devices On Front Wheels Parts Diagram

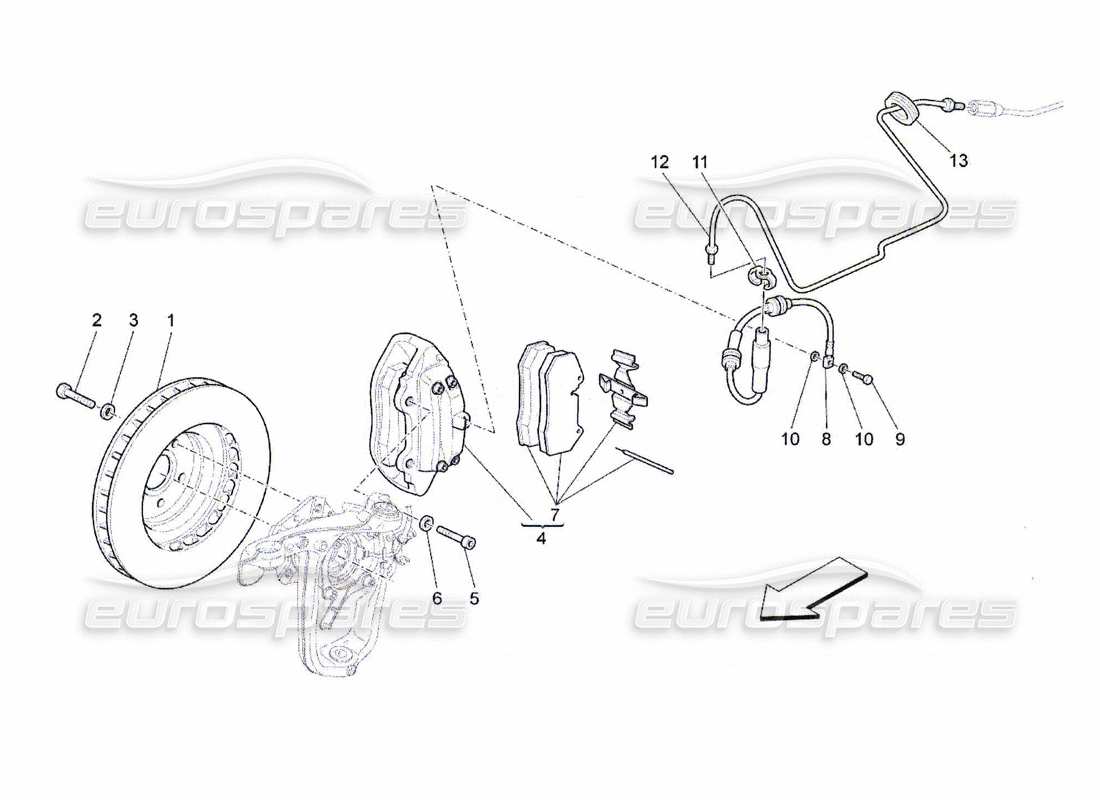

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 235318
                            FRONT BRAKE DISC
                            from £433.60
                            from £433.60
                            # 002
                            MPN: 16043424
                            SCREW
                            from £0.51
                            from £0.51
                            # 003
                            MPN: 12601374
                            WASHER
                            from £0.53
                            from £0.53
                            # 004
                            -
                            COMPLETE RH FRONT CALIPER
                            # 004
                            -
                            COMPLETE LH FRONT CALIPER
                            # 005
                            MPN: 14311734
                            SCREW
                            from £19.47
                            from £19.47
                            # 006
                            MPN: 11194174
                            WASHER
                            from £1.85
                            from £1.85
                            # 007
                            MPN: 980139070
                            FRONT BRAKE PADS SET
                            Supersession
                            Supersession
                            # 008
                            MPN: 196275
                            FLEXIBLE PIPE TO FRONT CALIPERS
                            from £38.95
                            from £38.95
                            This part replaces part number 235819
                            # 009
                            MPN: 198489
                            UNION
                            from £3.25
                            from £3.25
                            This part replaces part number 204175
                            # 010
                            MPN: 219553
                            WASHER
                            from £9.82
                            from £9.82
                            This part replaces part number 198490
                            # 011
                            MPN: 228185
                            CLIP
                            from £2.85
                            from £2.85
                            This part replaces part number 387400301
                            # 011
                            MPN: 228185
                            CLIP
                            from £2.85
                            from £2.85
                            This part replaces part number 387400301
                            # 012
                            MPN: 198082
                            RIGID PIPE FROMRH CONNECTION TO RH FRONT WHEEL
                            from £9.09
                            from £9.09
                            # 012
                            MPN: 252239
                            RIGID PIPE FROM LH CONNECTION TO LH FRONT WHEEL
                            from £13.04
                            from £13.04
                            # 013
                            MPN: 10396680
                            CABLE GROMMET
                            from £1.08
                            from £1.08
