maserati qtp. (2010) 4.7 gearbox housings parts diagram

031 - gearbox housings

Maserati QTP. (2010) 4.7 Gearbox Housings Parts Diagram

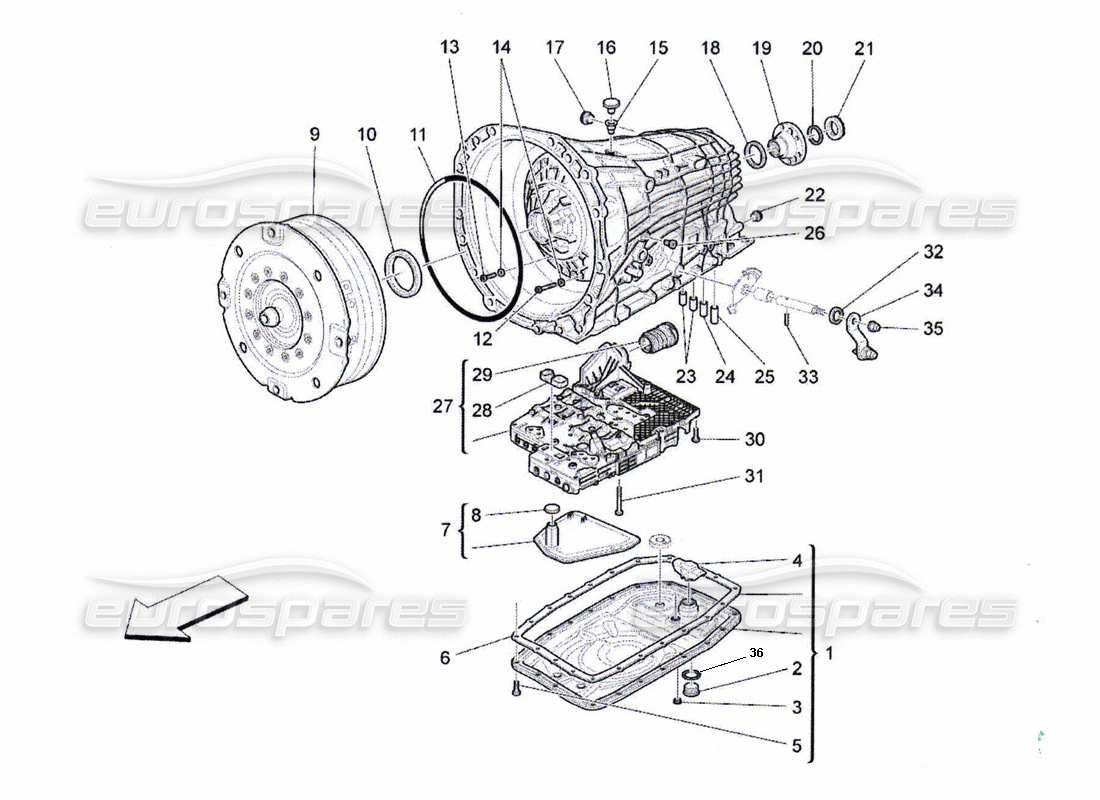

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 001
                                                                        MPN: 223709
                                                                        COMPLETE OIL SUMP
                                                                        from £242.57
                                                                        from £242.57
                                                                        # 002
                                                                        MPN: 227352
                                                                        PLUG
                                                                        from £33.00
                                                                        from £33.00
                                                                        # 003
                                                                        MPN: 227357
                                                                        PLUG
                                                                        from £11.39
                                                                        from £11.39
                                                                        # 004
                                                                        MPN: 228051
                                                                        PLUG
                                                                        from £3.61
                                                                        from £3.61
                                                                        # 005
                                                                        MPN: 227353
                                                                        SCREW
                                                                        from £11.92
                                                                        from £11.92
                                                                        # 006
                                                                        MPN: 227350
                                                                        GASKET
                                                                        from £42.25
                                                                        from £42.25
                                                                        # 007
                                                                        MPN: 228048
                                                                        COMPLETE OIL FILTER
                                                                        from £107.32
                                                                        from £107.32
                                                                        # 008
                                                                        MPN: 227351
                                                                        O.R. GASKET
                                                                        from £5.93
                                                                        from £5.93

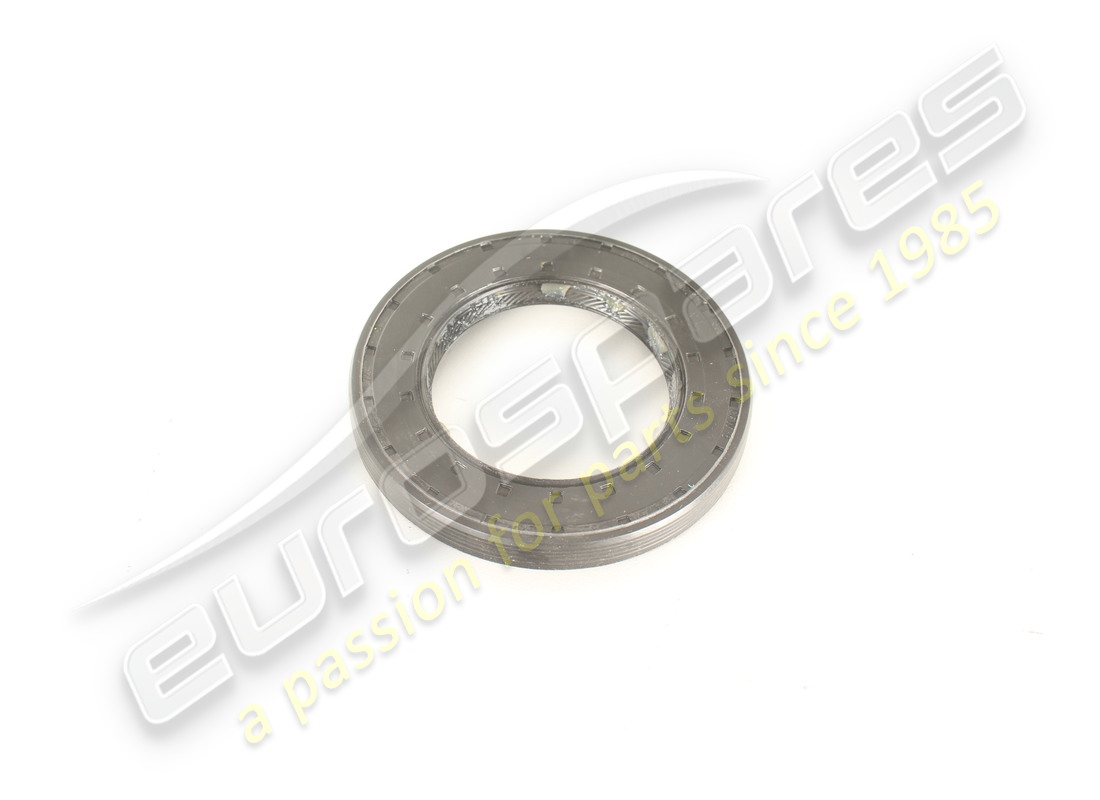

                                                                        # 010
                                                                        MPN: 227374
                                                                        SEAL RING
                                                                        from £10.92
                                                                        from £10.92
                                                                        # 011
                                                                        MPN: 227376
                                                                        O.R. GASKET
                                                                        from £64.55
                                                                        from £64.55
                                                                        # 012
                                                                        MPN: 227375
                                                                        SCREW M 6X50
                                                                        from £4.86
                                                                        from £4.86

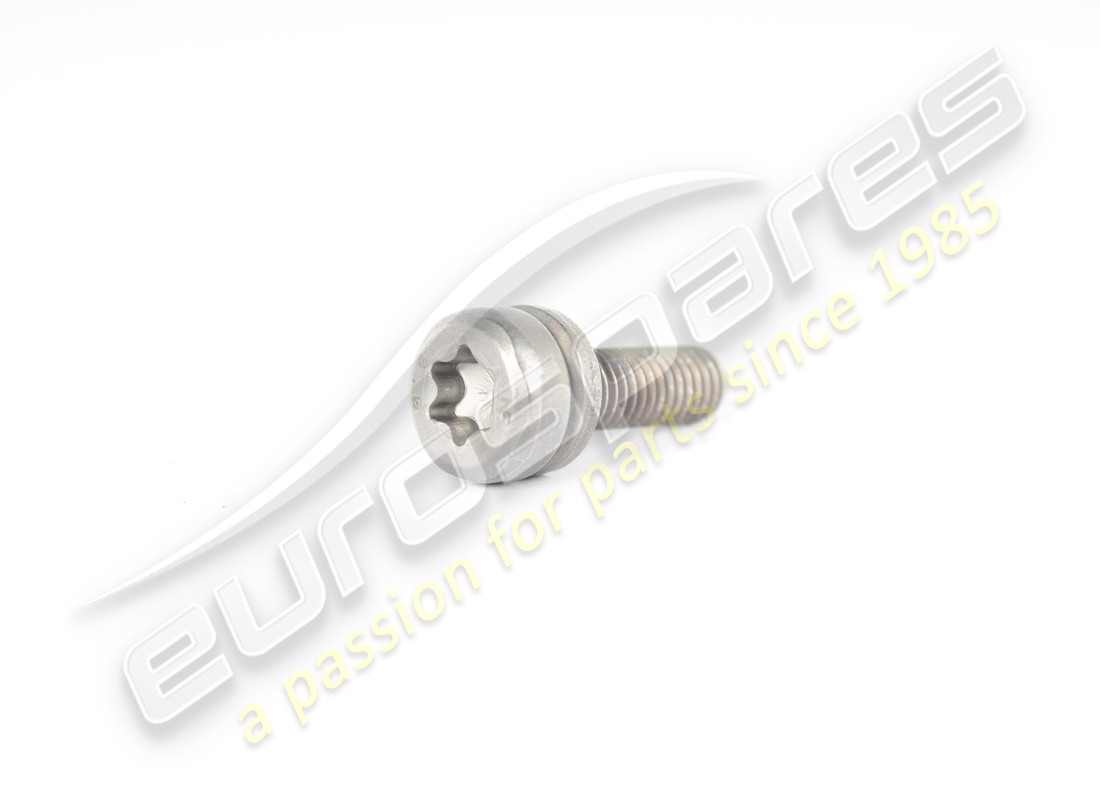

                                                                        # 013
                                                                        MPN: 228052
                                                                        SCREW M 6X20
                                                                        from £4.86
                                                                        from £4.86
                                                                        # 014
                                                                        MPN: 227377
                                                                        WASHER
                                                                        from £5.62
                                                                        from £5.62
                                                                        # 015
                                                                        MPN: 227369
                                                                        DELIVERY PIPE
                                                                        from £6.32
                                                                        from £6.32
                                                                        # 016
                                                                        MPN: 227370
                                                                        PROTECTION SHEATH
                                                                        from £3.61
                                                                        from £3.61
                                                                        # 017
                                                                        MPN: 227358
                                                                        PLUG
                                                                        from £11.76
                                                                        from £11.76
                                                                        # 018
                                                                        MPN: 227360
                                                                        SEAL RING
                                                                        from £12.62
                                                                        from £12.62
                                                                        # 019
                                                                        MPN: 223712
                                                                        OUTPUT FLANGE
                                                                        from £164.11
                                                                        from £164.11
                                                                        # 020
                                                                        MPN: 227361
                                                                        SEAL RING
                                                                        from £9.15
                                                                        from £9.15
                                                                        # 021
                                                                        MPN: 227362
                                                                        NUT
                                                                        from £15.39
                                                                        from £15.39
                                                                        # 022
                                                                        MPN: 227363
                                                                        PLUG
                                                                        from £5.07
                                                                        from £5.07
                                                                        # 023
                                                                        MPN: 227371
                                                                        SEALING SLEEVE
                                                                        from £3.78
                                                                        from £3.78
                                                                        # 024
                                                                        MPN: 227372
                                                                        SEALING SLEEVE
                                                                        from £4.63
                                                                        from £4.63
                                                                        # 025
                                                                        MPN: 227373
                                                                        SEALING SLEEVE
                                                                        from £5.83
                                                                        from £5.83
                                                                        # 026
                                                                        MPN: 227357
                                                                        PLUG
                                                                        from £11.39
                                                                        from £11.39
                                                                        # 027
                                                                        -
                                                                        COMPLETE MECHATRONIC
                                                                        # 028
                                                                        MPN: 227365
                                                                        ADAPTER
                                                                        from £5.38
                                                                        from £5.38
                                                                        # 029
                                                                        MPN: 227366
                                                                        SLIDING GUIDE
                                                                        from £35.70
                                                                        from £35.70
                                                                        # 030
                                                                        MPN: 227368
                                                                        SCREW M 6X20
                                                                        from £4.86
                                                                        from £4.86
                                                                        # 031
                                                                        MPN: 227367
                                                                        SCREW M 6X59
                                                                        from £4.86
                                                                        from £4.86
                                                                        # 032
                                                                        MPN: 227355
                                                                        SEAL RING
                                                                        from £9.15
                                                                        from £9.15
                                                                        # 033
                                                                        MPN: 227356
                                                                        FLEXIBLE PIN
                                                                        from £4.15
                                                                        from £4.15
                                                                        # 034
                                                                        MPN: 222378
                                                                        GEARBOX CONTROL LEVER
                                                                        from £96.80
                                                                        from £96.80
