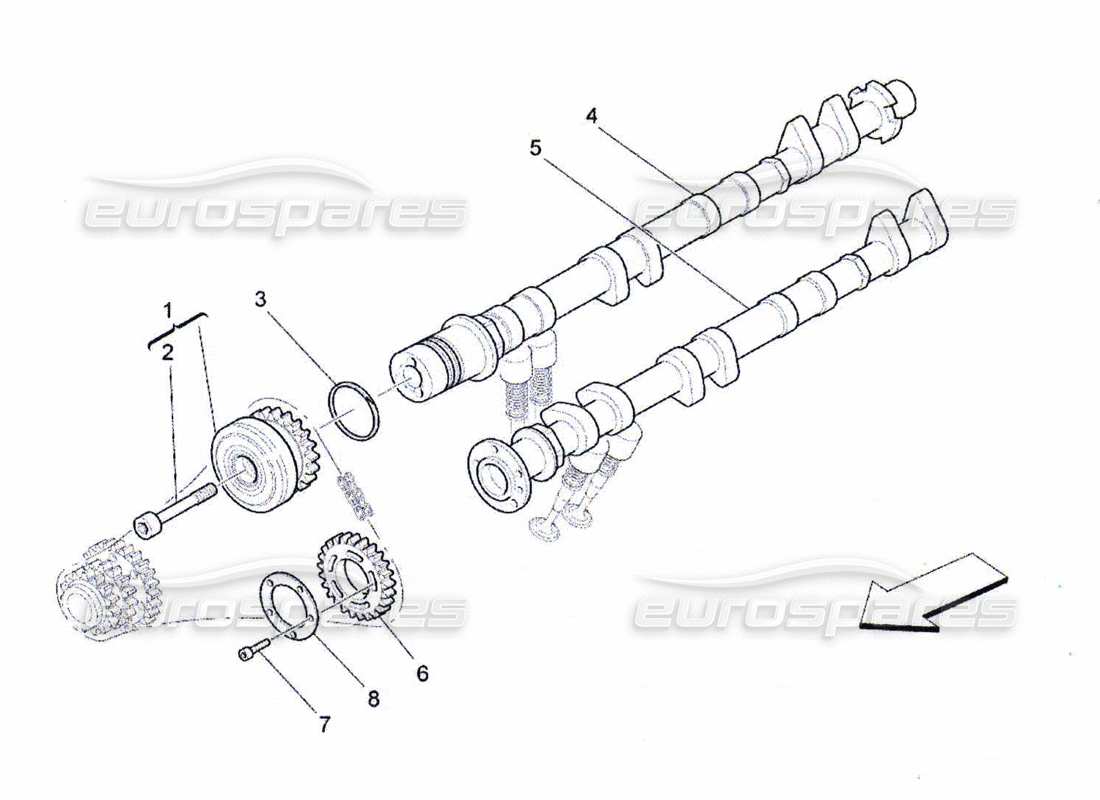

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 252648
                  PHASE VARIATOR
                  from £255.47
                  from £255.47
                  This part replaces part number 231138
                  # 003
                  MPN: 246965
                  SEAL RING
                  from £6.59
                  from £6.59
                  This part replaces part number 216301
                  # 004
                  MPN: 244670
                  LH INDUCTION DISTRIBUTION CAM SHAFT
                  Supersession
                  Supersession
                  # 005
                  MPN: 212499
                  LH EXHAUST CAM SHAFT
                  from £1,881.64
                  from £1,881.64
                  # 006
                  MPN: 199756
                  TOOTHED WHEEL FOR SHAFT
                  from £173.07
                  from £173.07
                  # 007
                  MPN: 14305170
                  SCREW
                  from £2.46
                  from £2.46
                  This part replaces part number 14305770
                  # 008
                  MPN: 199757
                  WASHER
                  from £9.54
                  from £9.54
