maserati qtp. (2010) 4.7 rh cylinder head parts diagram

004 - RH cylinder head

Maserati QTP. (2010) 4.7 Rh Cylinder Head Parts Diagram

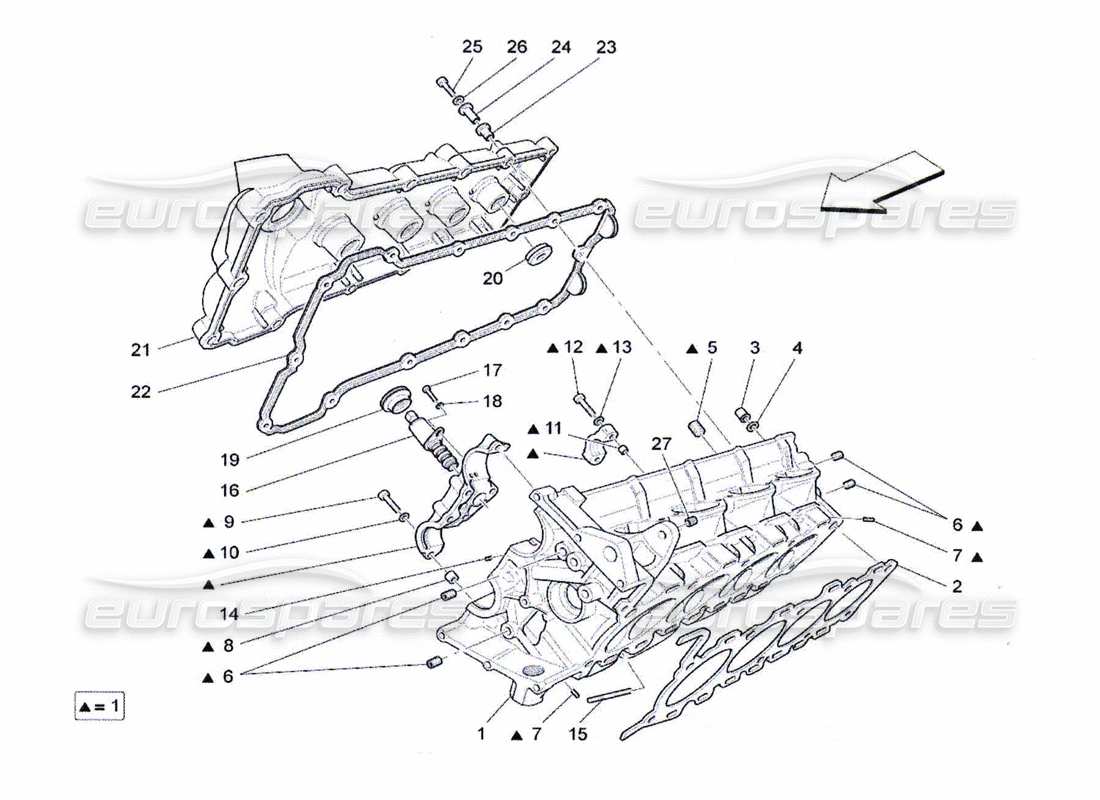

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 261272
                                                        COMPLETE RH HEAD
                                                        from £1,310.35
                                                        from £1,310.35
                                                        This part replaces part number 248931
                                                        # 001
                                                        MPN: 261327
                                                        COMPLETE RH HEAD
                                                        from £1,616.10
                                                        from £1,616.10
                                                        This part replaces part number 233695
                                                        # 001
                                                        MPN: 261327
                                                        COMPLETE RH HEAD
                                                        from £1,616.10
                                                        from £1,616.10
                                                        This part replaces part number 233695
                                                        # 002
                                                        MPN: 266262
                                                        RH HEAD GASKET
                                                        from £77.96
                                                        from £77.96
                                                        This part replaces part number 212219
                                                        # 003
                                                        MPN: 183524
                                                        NUT
                                                        from £0.98
                                                        from £0.98
                                                        # 004
                                                        MPN: 151117
                                                        WASHER
                                                        from £0.31
                                                        from £0.31
                                                        This part replaces part number 300266 - and 1 more. Click to view details
                                                        # 005
                                                        MPN: 14325140
                                                        THREADED PLUG
                                                        from £1.00
                                                        from £1.00
                                                        # 006
                                                        MPN: 14326001
                                                        THREADED PLUG
                                                        from £0.47
                                                        from £0.47
                                                        # 007
                                                        MPN: 199760
                                                        THREADED PLUG
                                                        from £0.47
                                                        from £0.47
                                                        # 008
                                                        MPN: 102725
                                                        CENTERING DOWEL
                                                        from £0.65
                                                        from £0.65
                                                        # 009
                                                        MPN: 14305921
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 010
                                                        MPN: 11197774
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        # 011
                                                        MPN: 102725
                                                        CENTERING DOWEL
                                                        from £0.59
                                                        from £0.59
                                                        # 012
                                                        MPN: 14305621
                                                        SCREW
                                                        from £0.71
                                                        from £0.71
                                                        # 013
                                                        MPN: 11197774
                                                        WASHER
                                                        from £0.52
                                                        from £0.52
                                                        # 015
                                                        MPN: 13543424
                                                        STUD
                                                        from £1.03
                                                        from £1.03
                                                        # 016
                                                        MPN: 296016
                                                        OIL PRESSURE CHECK VALVE
                                                        from £101.58
                                                        from £101.58
                                                        This part replaces part number 269226
                                                        # 017
                                                        MPN: 14304224
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 018
                                                        MPN: 11181574
                                                        WASHER
                                                        from £0.54
                                                        from £0.54
                                                        # 019
                                                        MPN: 228962
                                                        GASKET
                                                        from £6.38
                                                        from £6.38
                                                        # 020
                                                        MPN: 223982
                                                        GASKET
                                                        from £1.36
                                                        from £1.36
                                                        # 021
                                                        MPN: 980145469
                                                        RH HEAD COVER
                                                        from £1,213.95
                                                        from £1,213.95
                                                        This part replaces part number 240566
                                                        # 022
                                                        MPN: 211219
                                                        RH HEAD COVER GASKET
                                                        from £37.47
                                                        from £37.47
                                                        # 023
                                                        MPN: 203102
                                                        RUBBER BUSHING
                                                        from £2.66
                                                        from £2.66
                                                        # 024
                                                        MPN: 228598
                                                        BUSHING
                                                        from £1.75
                                                        from £1.75
                                                        # 025
                                                        MPN: 213129
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 026
                                                        MPN: 11197774
                                                        WASHER
                                                        from £0.52
                                                        from £0.52
                                                        # 027
                                                        MPN: 13525970
                                                        THREADED INSERT
                                                        from £3.61
                                                        from £3.61
