041 - Steering Box And Hydraulic Steering Pump

Maserati QTP. (2010) 4.2 Steering Box and Hydraulic Steering Pump Parts Diagram

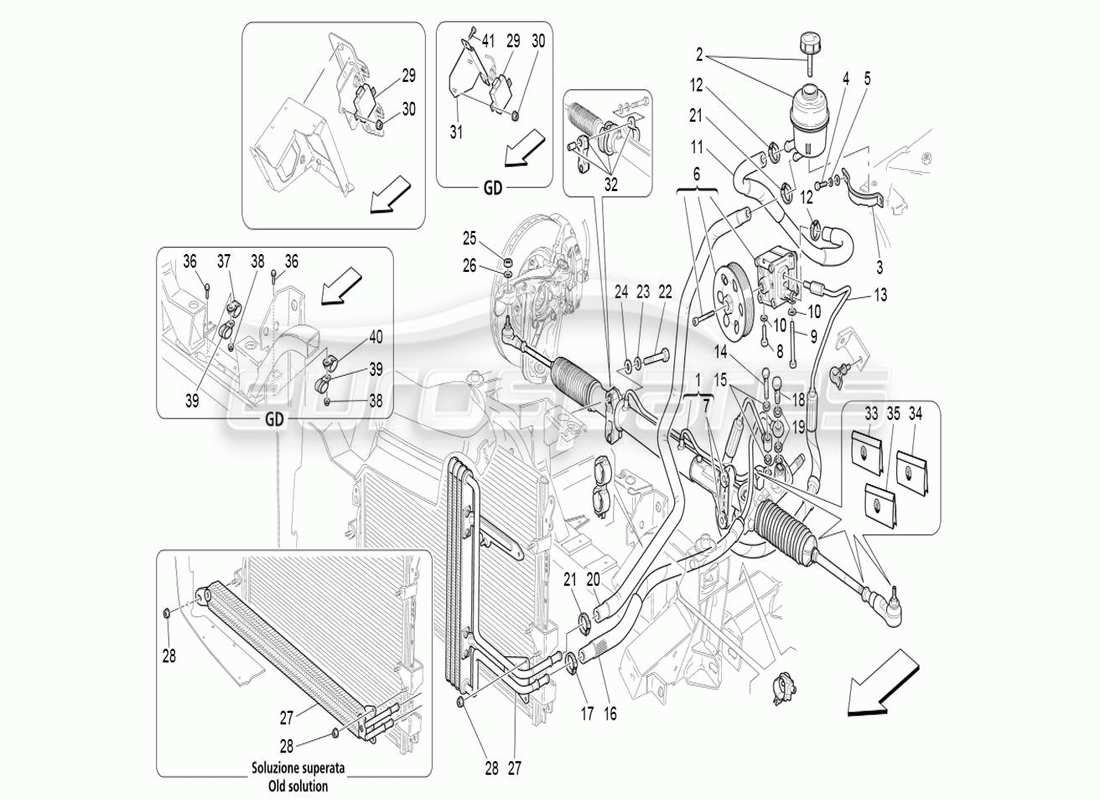

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 321589
                                                                    RACK STEERING BOX
                                                                    from £2,266.01
                                                                    from £2,266.01
                                                                    This part replaces part number 267184
                                                                    # 002
                                                                    MPN: 185820
                                                                    OIL TANK FOR HYDRAULIC SERVO-CONTROL PUMP
                                                                    from £10.45
                                                                    from £10.45
                                                                    # 003
                                                                    MPN: 224325
                                                                    COLLAR
                                                                    from £6.77
                                                                    from £6.77
                                                                    # 004
                                                                    MPN: 10902424
                                                                    SCREW
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 005
                                                                    MPN: 12644424
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 13550214
                                                                    # 006
                                                                    MPN: 980145407
                                                                    HYDRAULIC SERVO-CONTROL PUMP
                                                                    from £490.11
                                                                    from £490.11
                                                                    This part replaces part number 980145383
                                                                    # 006
                                                                    MPN: 980145407
                                                                    HYDRAULIC SERVO-CONTROL PUMP
                                                                    from £490.11
                                                                    from £490.11
                                                                    This part replaces part number 980145383
                                                                    # 007
                                                                    MPN: 980138228
                                                                    SILENTBLOCK
                                                                    from £13.46
                                                                    from £13.46
                                                                    # 010
                                                                    MPN: 11193874
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 011
                                                                    MPN: 210128
                                                                    PIPE FROM TANK TO HYDRAULIC SERVO-CONTROL PUMP
                                                                    from £16.01
                                                                    from £16.01
                                                                    # 012
                                                                    MPN: 13000490
                                                                    SCREW COLLAR
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 13127870 - and 1 more. Click to view details
                                                                    # 013
                                                                    MPN: 227560
                                                                    PIPE FROM PUMP TO STEERING BOX
                                                                    from £86.56
                                                                    from £86.56
                                                                    This part replaces part number 205784
                                                                    # 014
                                                                    MPN: 205821
                                                                    UNION
                                                                    from £8.70
                                                                    from £8.70
                                                                    # 014
                                                                    MPN: 250145
                                                                    UNION
                                                                    from £8.70
                                                                    from £8.70
                                                                    # 015
                                                                    MPN: 10261360
                                                                    GASKET
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 016
                                                                    MPN: 224000
                                                                    PIPE FROM STEERING BOX TO EXCHANGER
                                                                    from £75.80
                                                                    from £75.80
                                                                    # 017
                                                                    MPN: 13000390
                                                                    SCREW COLLAR
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 13121170 - and 1 more. Click to view details
                                                                    # 018
                                                                    MPN: 188930
                                                                    UNION
                                                                    from £8.38
                                                                    from £8.38
                                                                    # 018
                                                                    MPN: 250144
                                                                    UNION
                                                                    from £8.38
                                                                    from £8.38
                                                                    # 019
                                                                    MPN: 10280060
                                                                    GASKET
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 020
                                                                    MPN: 224662
                                                                    PIPE FROM EXCHANGER TO TANK
                                                                    from £13.81
                                                                    from £13.81
                                                                    # 021
                                                                    MPN: 13000390
                                                                    SCREW COLLAR
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 13121170 - and 1 more. Click to view details
                                                                    # 022
                                                                    MPN: 206926
                                                                    SCREW
                                                                    from £5.46
                                                                    from £5.46
                                                                    # 023
                                                                    MPN: 11198374
                                                                    WASHER
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 675000618
                                                                    # 024
                                                                    MPN: 12641024
                                                                    WASHER
                                                                    from £1.02
                                                                    from £1.02
                                                                    # 025
                                                                    MPN: 102742
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 026
                                                                    MPN: 12626224
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 027
                                                                    MPN: 233098
                                                                    COMPLETE POWER STEERING EXCHANGER
                                                                    from £183.86
                                                                    from £183.86
                                                                    This part replaces part number 231014
                                                                    # 027
                                                                    MPN: 233098
                                                                    COMPLETE POWER STEERING EXCHANGER
                                                                    from £183.86
                                                                    from £183.86
                                                                    This part replaces part number 231014
                                                                    # 027
                                                                    MPN: 233098
                                                                    COMPLETE POWER STEERING EXCHANGER
                                                                    from £183.86
                                                                    from £183.86
                                                                    This part replaces part number 231014
                                                                    # 028
                                                                    MPN: 102741
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 12575421
                                                                    # 029
                                                                    MPN: 211697
                                                                    HYDRAULIC STEERING CONTROL ELECTRIC UNIT
                                                                    from £114.47
                                                                    from £114.47
                                                                    # 030
                                                                    MPN: 14059211
                                                                    NUT
                                                                    from £0.47
                                                                    from £0.47
                                                                    This part replaces part number 675000181
                                                                    # 032
                                                                    MPN: 980138275
                                                                    STEERING BOX FIXING KIT
                                                                    from £116.87
                                                                    from £116.87
                                                                    # 033
                                                                    MPN: 980139057
                                                                    PIPES REPLACEMENT KIT FOR STEERING BOX
                                                                    Not for GD
                                                                    from £240.54
                                                                    from £240.54
                                                                    # 034
                                                                    MPN: 980001706
                                                                    TRACK ROD END
                                                                    from £89.37
                                                                    from £89.37
                                                                    This part replaces part number 980000968
                                                                    # 035
                                                                    MPN: 980139056
                                                                    STEERING RACK BOOTS KIT
                                                                    from £68.40
